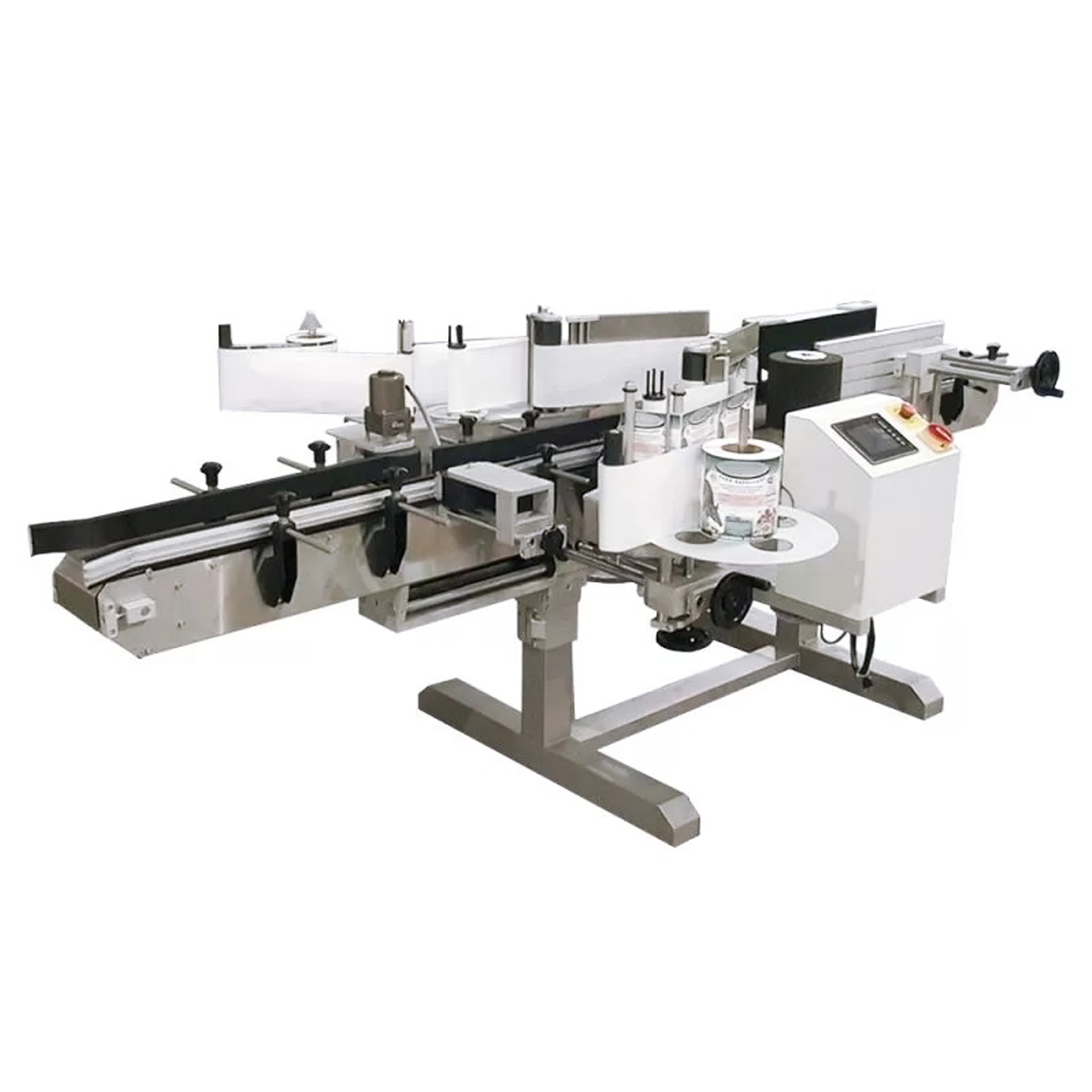

APS 216

Features

• Touchscreen control system with job memory
• Heavy-duty construction for three-shift operations
• Sanitary stainless-steel frame
• Easy-adjusting hand wheels for quick setup
• Fully synchronized conveyor/label head, with eight different speed selections
• Height-adjustable conveyor
• 6” dual label heads
• Synchronized top hold-down belt

Options

• Hot-stamp coder
• Bottle separator assembly
• Wheel orientation for ovals
• Chain orientation for container centering
• Top hold-down belt

Standard Specifications

• Label Length: 0.5” – 22 (12.5 mm – 550 mm)
• Label Height: 0.75” – 5.75” (20 mm – 145 mm)
• Electrical Requirements: 110VAC – 10 AMPS (220 VAC optional)
• Length: 79” (200.66 cm)
• Width: 53” (134.62 cm)
• Height: 45” (114.3 cm)
• Weight: ~575 Lbs. (260 kg)
• Speed: Up to 175 CPM

Frequently Asked Questions

Is the touchscreen interface easy to use?

Yes, the touchscreen interface is easy to navigate. It may not be immediately obvious which buttons are supposed to do what, but the manual will go over all of this with you. After reading it, you’ll have the know-how and confidence to carry out the labeling of your product(s).

How do I mount my label reel onto the machine?

You start by setting a roll of labels on the supply reel, then pulling about five feet of labels from the roll to form a leader. Then you peel the labels off the ladder and lace it through the guide rollers, label sensor, and around the peel plate.

The rest of how to mount your label is described in the machine’s manual.

What should I do if I have a problem with the machine?

The machine’s interface contains a built-in section on troubleshooting problems that you may encounter when operating this machine. Also, the manual contains a troubleshooting section that describes some potential problems and how to solve them.

 If the suggested solutions don’t work or the problem is outside its covered scope, then contact Accutek’s service department. We’ll do our best to help you solve your problem.

How often should I clean and maintain my machine?

That will depend on how often you use it. We do recommend cleaning the APS once you receive it, just to make sure any residue from transport is removed. Do NOT use caustic or acidic solutions on the stainless steel components.
