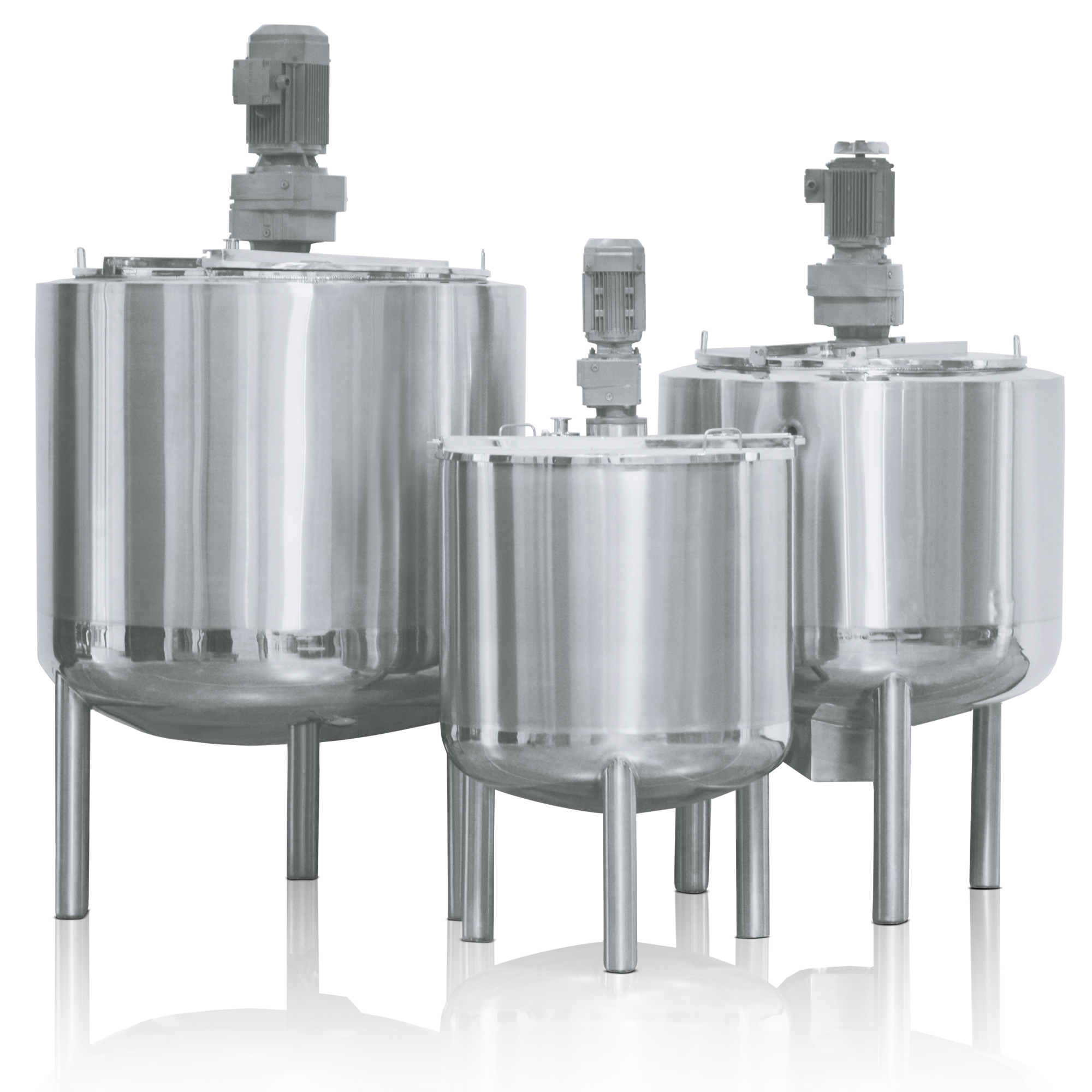

Mixing Tanks - Specification Sheet

Product Description

Accutek’s mixing tanks use heat-conducting oil via jacket inlets to heat your product up to high temperatures. This helps solidify certain liquid or near-liquid products, and can be drained and refilled (as recommended by the oil’s manufacturer). You can use control panels to change the tank’s mixer speed and temperature. There’s also a drain valve and product drain you can use to drain your product, allowing you to move it to the next stage of your production cycle. The reliability of Accutek’s tanks exceeds industry leaders in mixing equipment technology at a fraction of the price. Contact Accutek Packaging Equipment to learn more about this machine and how it can enhance your production line. Recommended Products

Balms
Sauces
Jellies
Dressings

Features

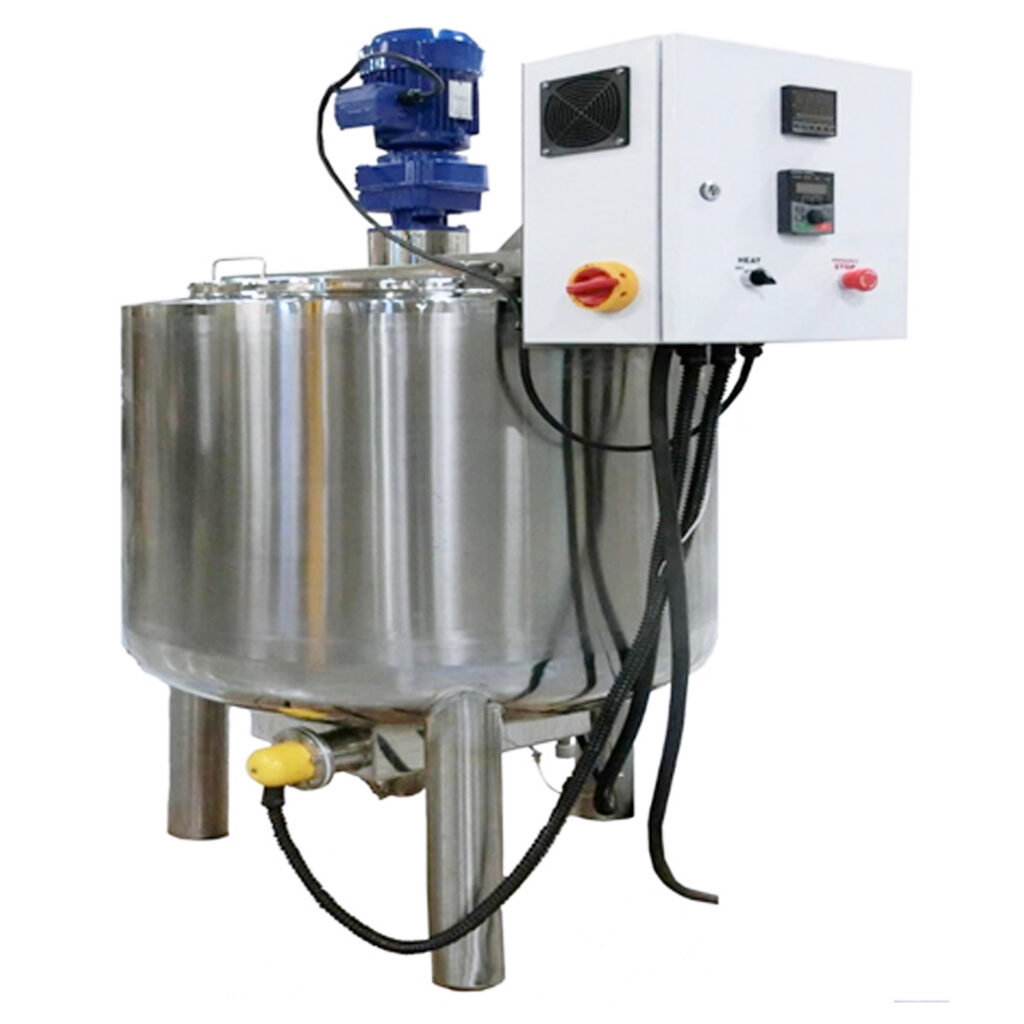

Control box
Stainless-steel construction
Motor controller
Clean in place (CIP) spray ball
Digital temperature and speed controls
Wall scrapers

Options

High-shear mixers
Electrical or steam-heated tanks
Insulated walls
Dual lids for easy access
Two-inch tri-clamp outlets

6-unit 7 KW heating element

Standard Specifications

50-gallon tank

Voltage: 220V, 3-phase, 60 Hz, 36KW
38.5 AMPS with paddle mixer
39 AMPS with wall scraper mixer
110V, 15 amps for heater rope on product drain
Mixer motor: .75KW/1HP, 0-30 RPM, 56 gear box ratio

100-gallon tank

Max working pressure of inner tank: .095 MPa
Max working pressure of second layer: .3 MPa
Max working temperature of inner tank: 100 degrees Celsius
Max working temperature of second layer 143 degrees Celsius
AC power: 220V, 3-phase
Motor power: 4 kw/5.4 HP
Variable speed: 0-3000 rpm
Electric heating element power: 7 kw x 3 (units)=21 kw
Dimensions: 1000 mm x 1000 mm x 1900 mm (L x W x H)

200-gallon tank

Max working pressure of inner tank: .095 MPa
Max working pressure of second layer: .3 MPa
Max working temperature of inner tank: 100 degrees Celsius
Max working temperature of second layer 143 degrees Celsius
AC power: 220V, 3-phase
Motor power: 7.5 kw/10.2 HP
Variable speed: 0-3000 rpm
Electric heating element power: 7 kw x 6 (units)=42 kw
Dimensions: 1200 mm x 1200 mm x 2100 mm (L x W x H)

Frequently Asked Questions

How often should I clean the tank?

The frequency of cleaning and the type of cleaning solution you use will depend on your specific application. Local and federal guidelines for your product and manufacturing format should also be considered.

What are some tips for performing maintenance on this machine?

Generally, we recommend having two people remove the wall scrapers for cleaning. The manual will discuss this process in greater depth.

What should I do if I have a problem with my heated mixing tank?

If you have a problem with your machine, give Accutek’s service department a call. We’ll do whatever we can to help you solve the problem and get your production cycle back to peak efficiency.
