RC Series — Specification Sheet

Features:

Adaptable to a wide range of caps and containers
Up to 20 AC motor drive chuck capping stations
Automatic “No Bottle – No Cap” system
Centrifugal cap orientation and delivery
Powered height control
Single-point grease system for easy maintenance
Touchscreen controls with job memory
Adjustable mechanical friction clutches
Quick swap change parts

Options:

Neck stabilizer for weak-walled containers
Low-cap supply sensor and alarms
Anti-rotation upgrade for round containers (cam or belt-operated)
QA sensor and alarm for misaligned or missing caps
Custom chuck head upgrades (vacuum, teeth)
Magnetic or pneumatic clutches

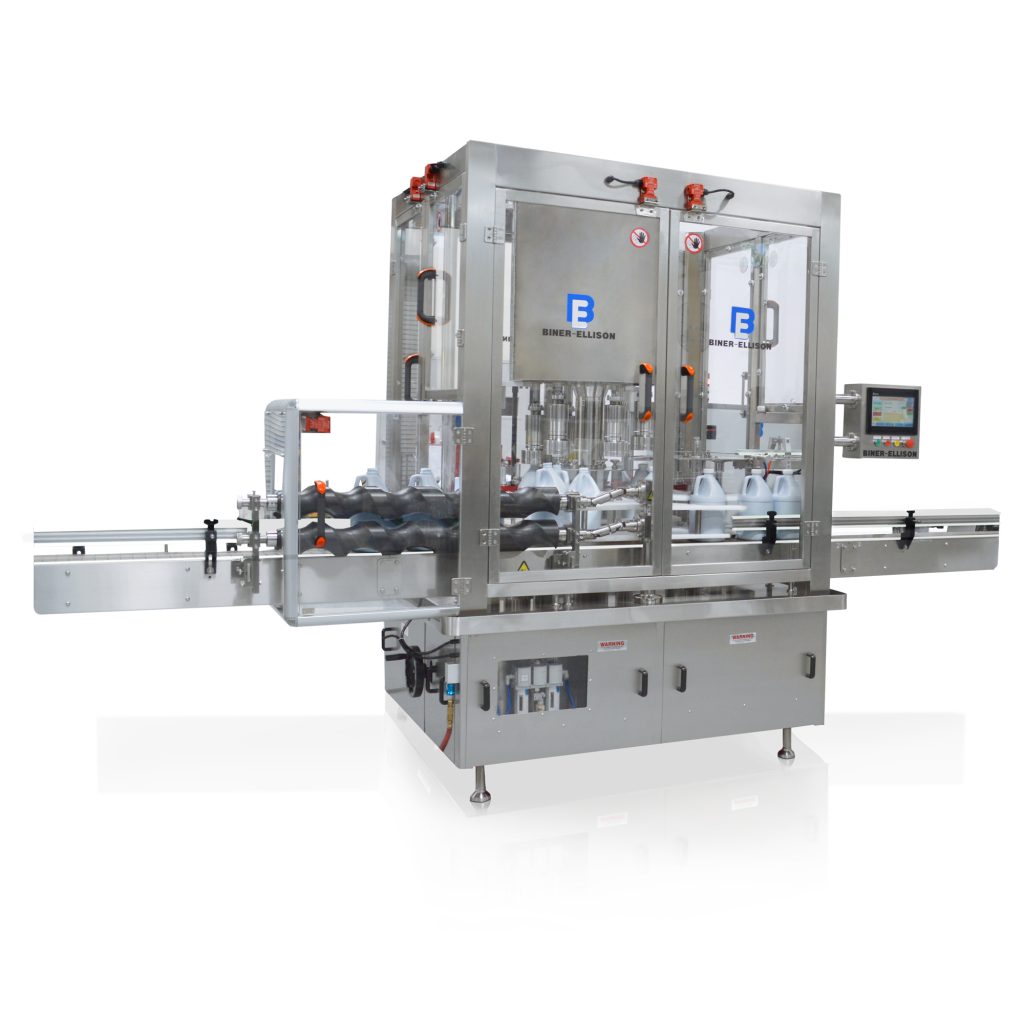

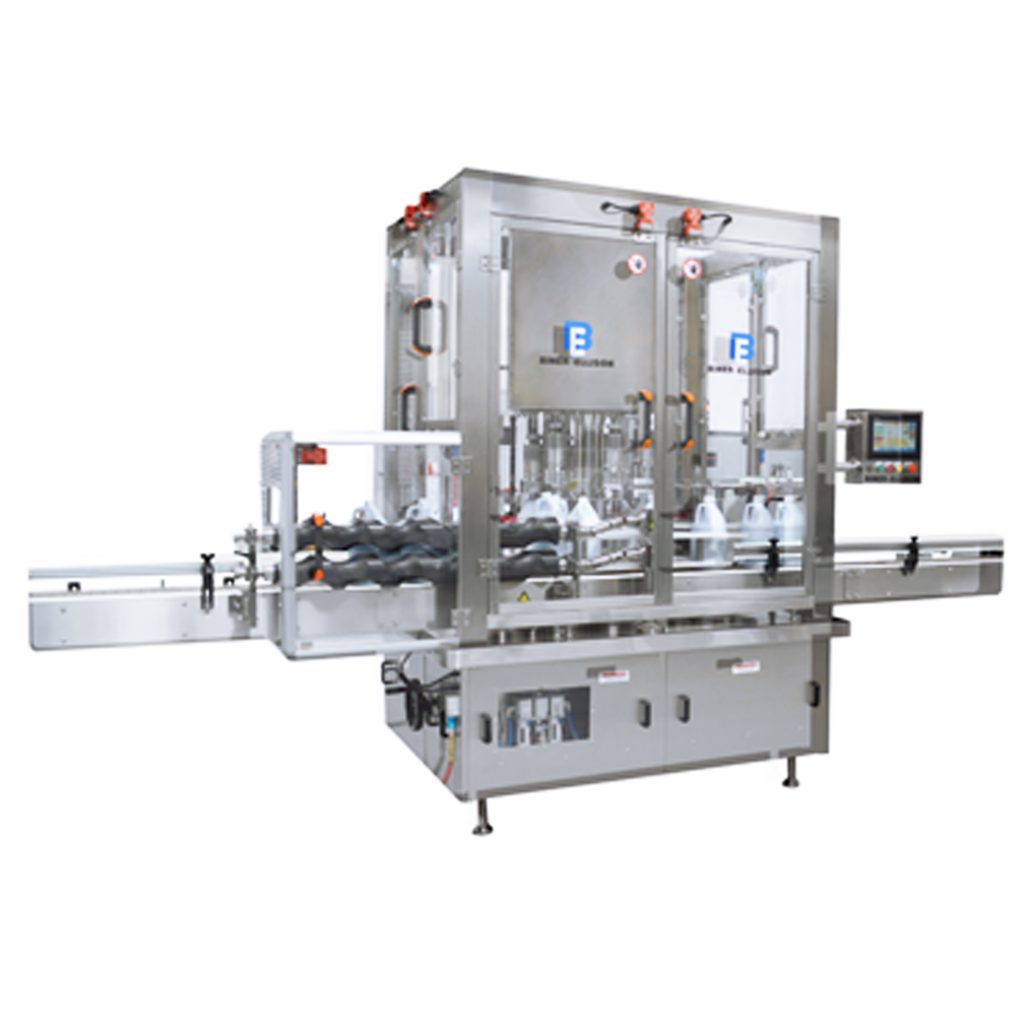

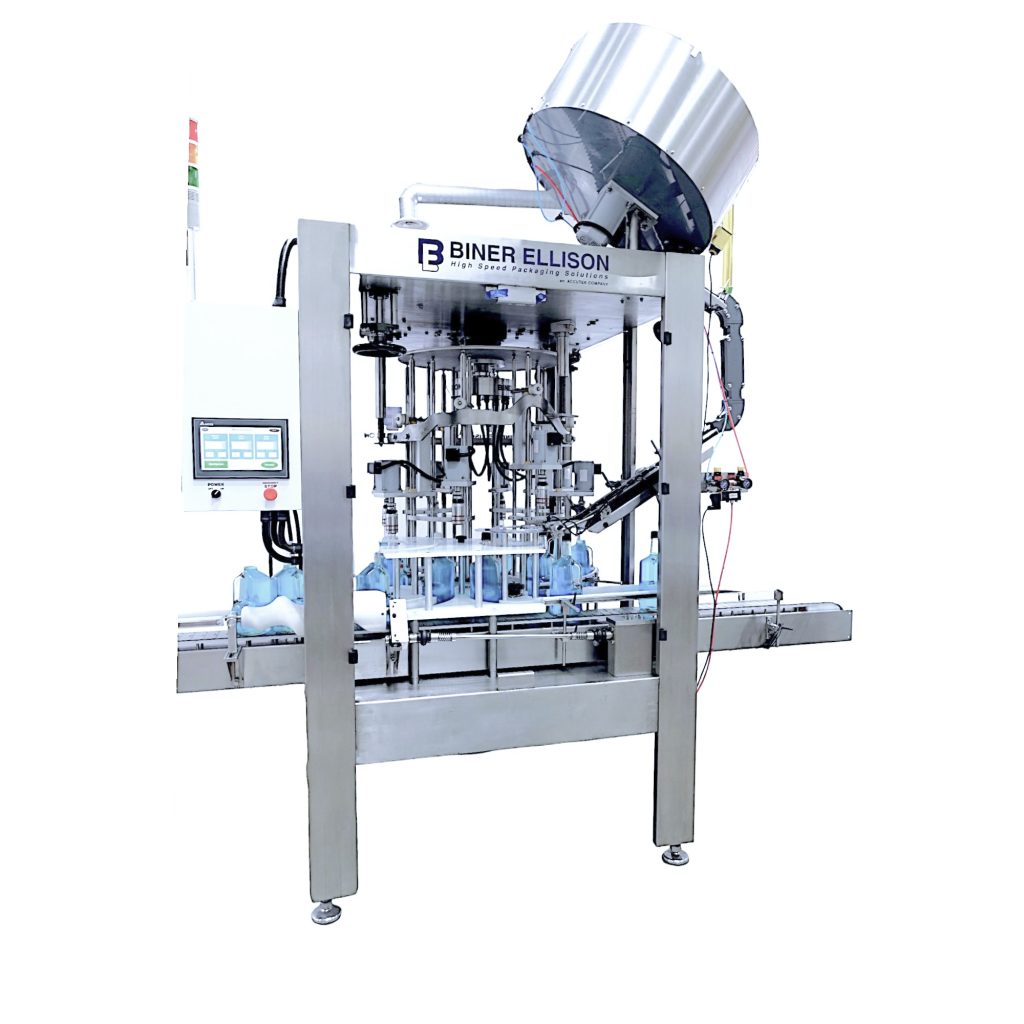

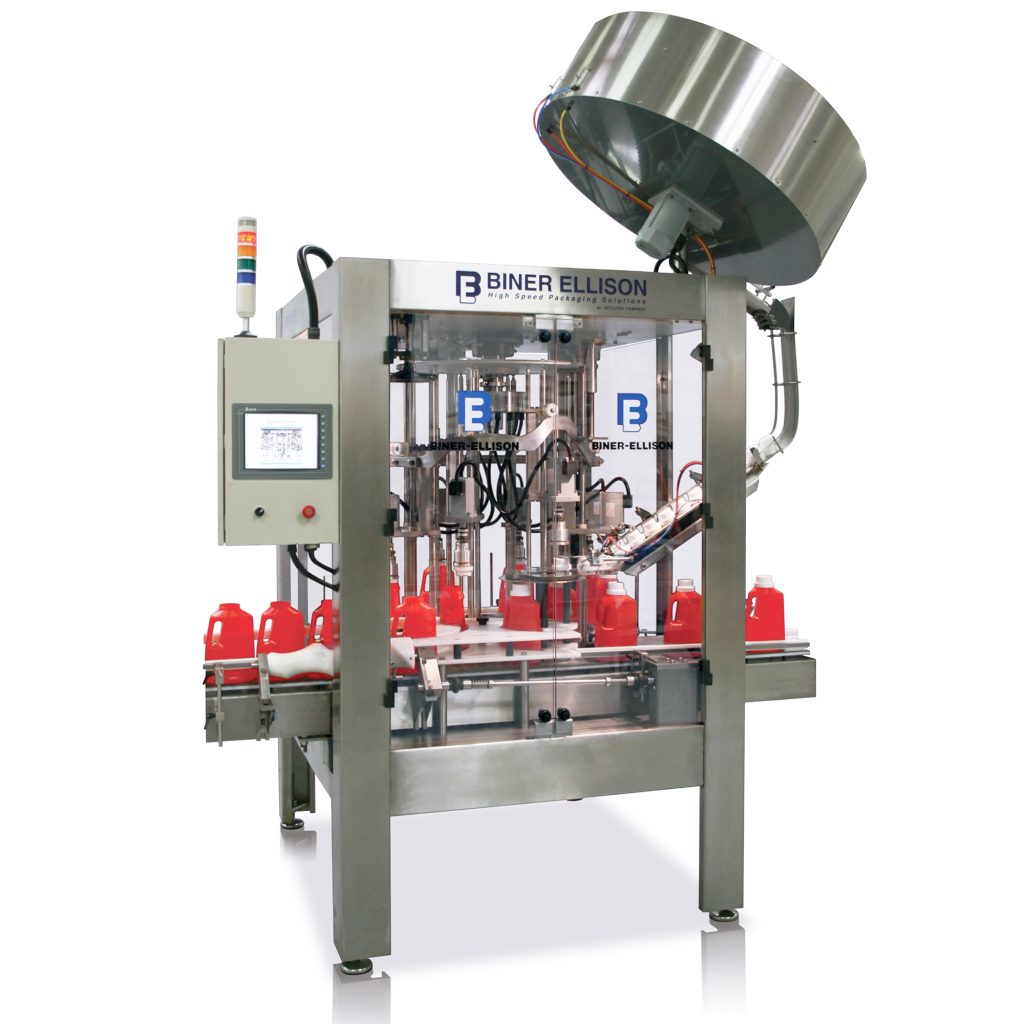

The Biner Ellison Rotary Chuck machine is a rotary capping system that complements high-speed rotary bottling equipment. These cappers continuously sort, apply, and torque caps to different container sizes and shapes.

The RC Series comes with mechanical friction clutches to ensure accurate and uniform torque values are applied to each container for optimal closure results. They can be easily integrated into existing packaging lines or tailored for your new project specs.

The RC Series cappers are available in two model sizes, the RC40 and the RC52, with operational speeds up to 140 CPM and 240 CPM, respectively. (Higher speeds are possible depending on container and cap characteristics.)

Each RC Series capper can accommodate a range of container and cap sizes with minimal change parts. This makes them the perfect capper for customers or contract packagers who plan to run multiple products on a single bottling line.

All cappers have touchscreen displays featuring a full management interface for complete control. Up to 99 job recipes can be saved, making the changeover from one project to another smooth and simple.

Recommended Products

Water bottle caps
Condiment container caps
Sport caps

Contact Accutek Packaging Equipment Company, Inc. today to learn more about this capping machine.

Standard Specification:

Cap Type	Screw or Lug
Cap Range	.98” – 5.98” (25 – 152 mm)
Container Range	(25.4 cm – 22.86 cm)
Speed	Up to 240 CPM
Air Requirements	90 PSI @ 3 CFM
Electrical Requirements	220/240 VAC, 20 AMP, 3-phase
Height	89” (226.06 cm)
Length	54” – 62” (137.16 – 157.48 cm)
Width	61” – 73” (154.94 – 185.42 cm)
Weight	2350 lbs. (1065.94 kg)

Machine specifications are based on the machine configuration. Any options or modifications may affect these specifications.
