Servo Rotary Chuck Capper — Specification Sheet

Features:

HMI and PLC controller
Stainless-steel and aluminum construction
10” control color touchscreen
Hybrid stepper drives
Precision ball screws
Electronic adjustable cam that simulates a mechanical cam
Servo drive
Top drive
Low power consumption
Minimal tooling change over time
Safety lockouts
Remote bottle count
Production monitoring and reporting
Linear height adjustment

Options:

Different sizes of chucks and star wheels for different sizes of containers
Adjustable pneumatic grippers
Centrifugal bowl

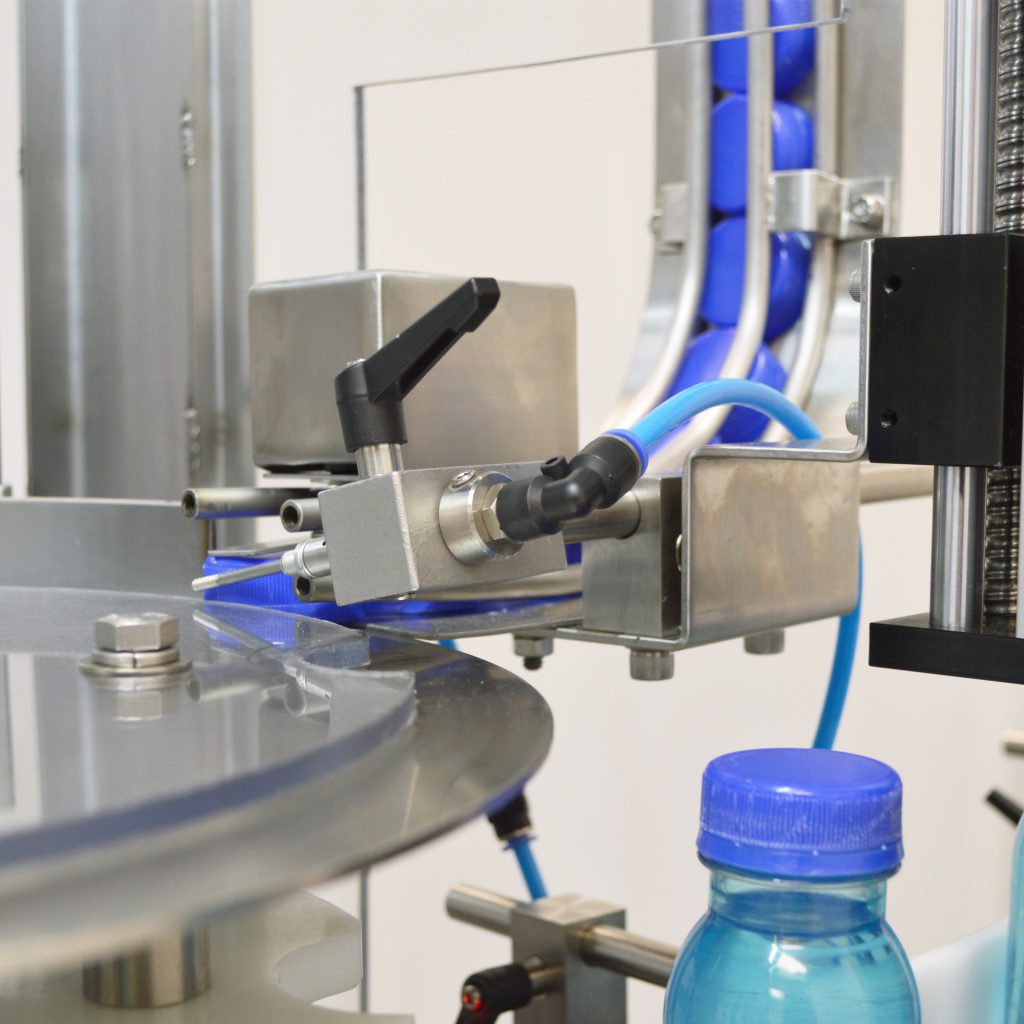

Cap elevator orientator
Backup sensor
Cap torque measurement/reporting
Go-no-go torque measurement
Digital torque feedback
Air shoots
Tooling changes
Cap UV cleaning

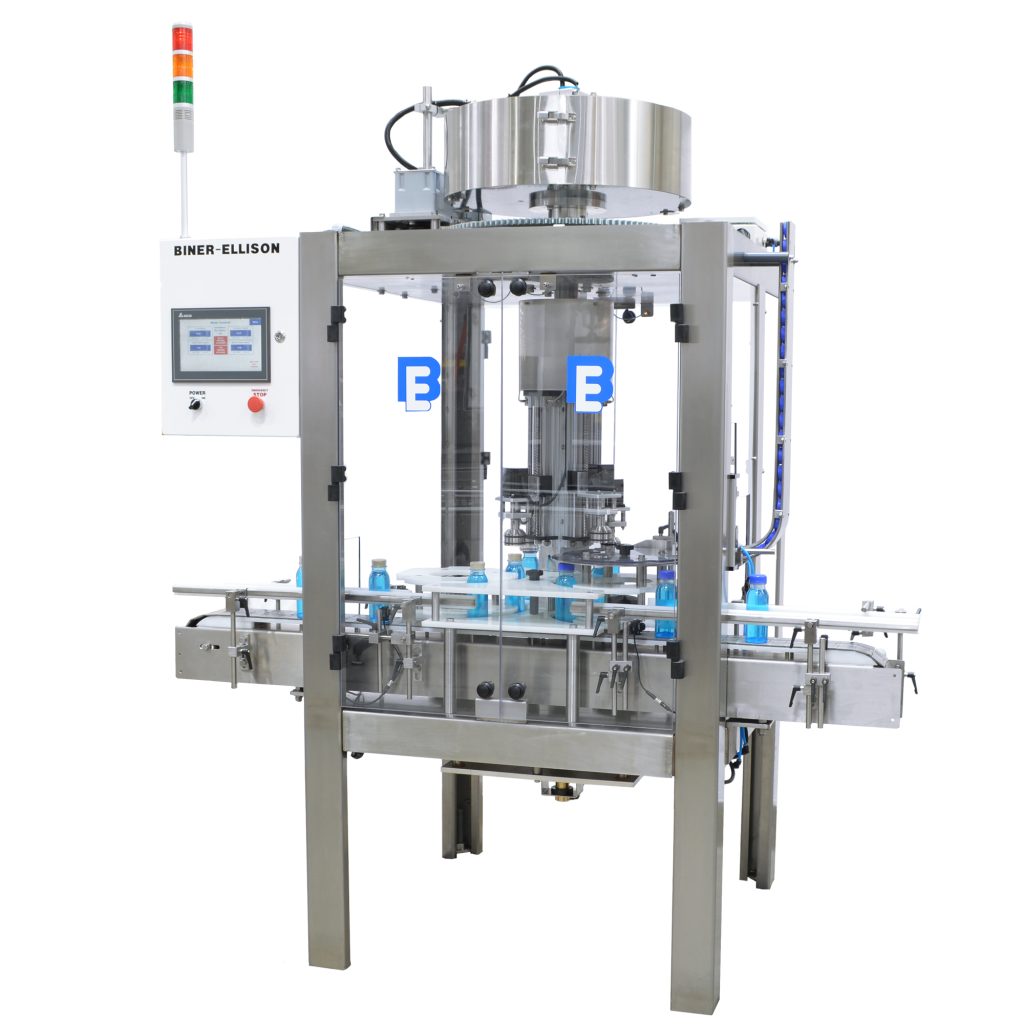

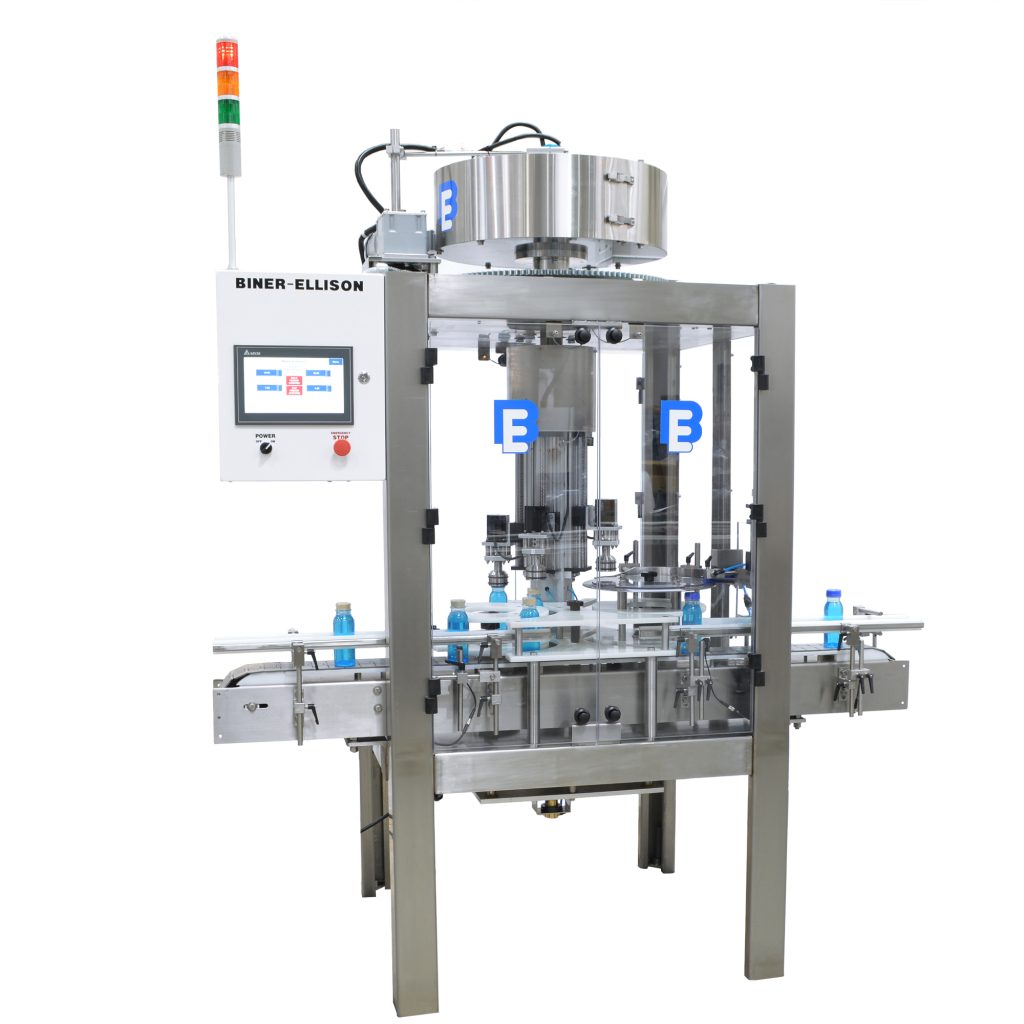

The Servo-Drive Rotary Chuck Capper delivers superior performance, combining precision, efficiency, and affordability for high-volume capping operations.

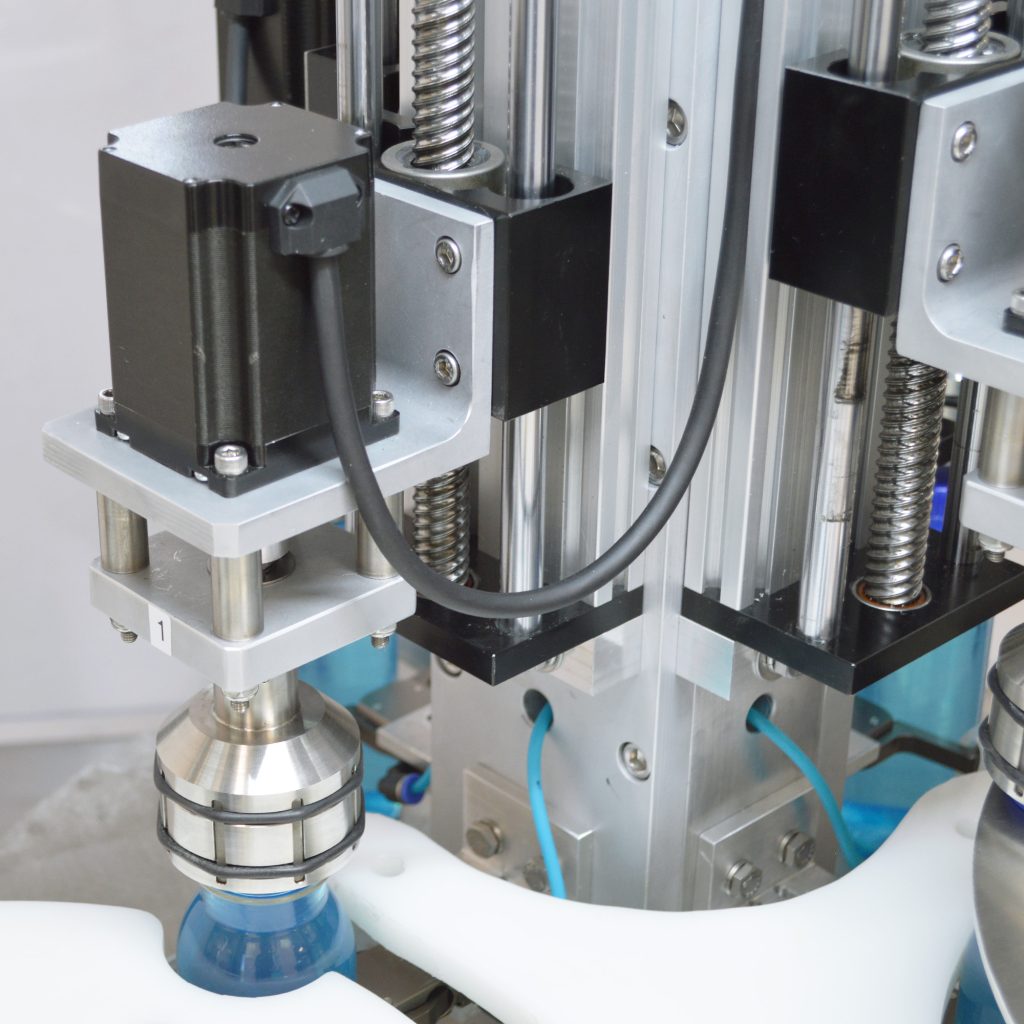

Powered by advanced servo motor technology and an electronic servo cam with precision ball screws, it ensures smooth, accurate vertical movement of the capping heads, accommodating containers from two ounces to one gallon with exceptional reliability.

Capable of processing 20 to 100 bottles per minute, it supports threaded, tamper-evident, and child-resistant caps with diameters ranging from approximately 20mm to 100mm. It also features a job memory function that streamlines settings for diverse applications.

Optional torque feedback technology enhances precision by providing real-time monitoring and adjustment of cap application torque, ensuring consistent sealing quality.

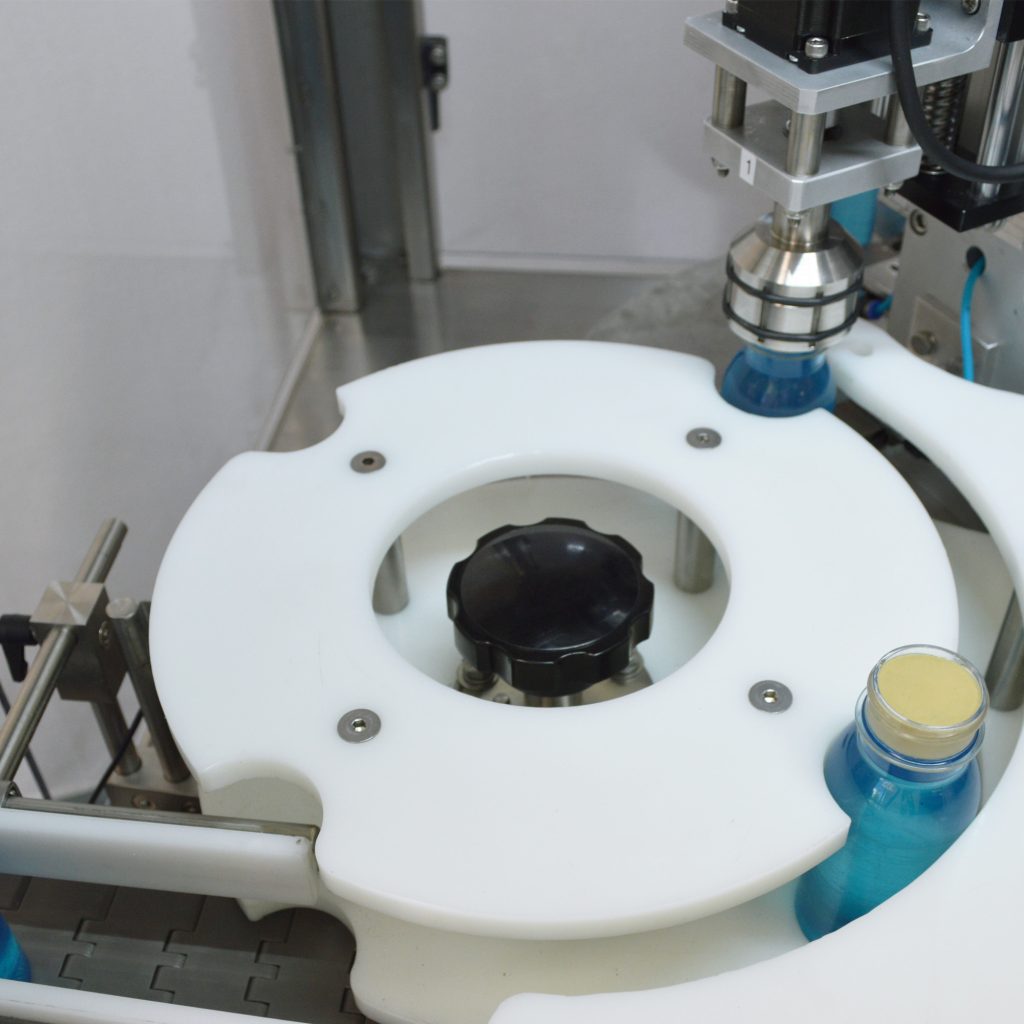

The capper’s quick-change tooling, including chucks and star wheels, accommodates various bottle sizes and shapes. Its compact design optimizes production floor space, while its unmatched speed, accuracy, and cost-effectiveness set it apart from competitors.

Customizable and efficient, the Servo-Driven Rotary Capper maximizes productivity and profitability.

Contact Accutek today to check whether this highly efficient capping machine is right for you.

Standard Specification:

Electric	220V, Single-phase
Length	~71.5” (181.61 cm)
Width	40” (101.6 cm)
Height	~92.25” (234.32 cm)

Machine specifications are based on the machine configuration. Any options or modifications may affect these specifications.
