ASC Series - Automatic Spindle capping machine

Features:

Heavy-duty stainless-steel frame
C-frame design for easy addition to any conveyor
Centrifugal bowl cap orientator
Low-maintenance
Individual spindle speed settings
Intelligent electronic single-touch torque control
Powered height adjustment
On-the-fly speed and torque adjustment
Adjustable angle gripper belts
Spring-loaded spindles

Options:

Dual, double-wide, or low-profile gripper belts
Closure elevator/orientator
Reversible spindle sets for cap seating
Custom container/closure product handling
Clutches

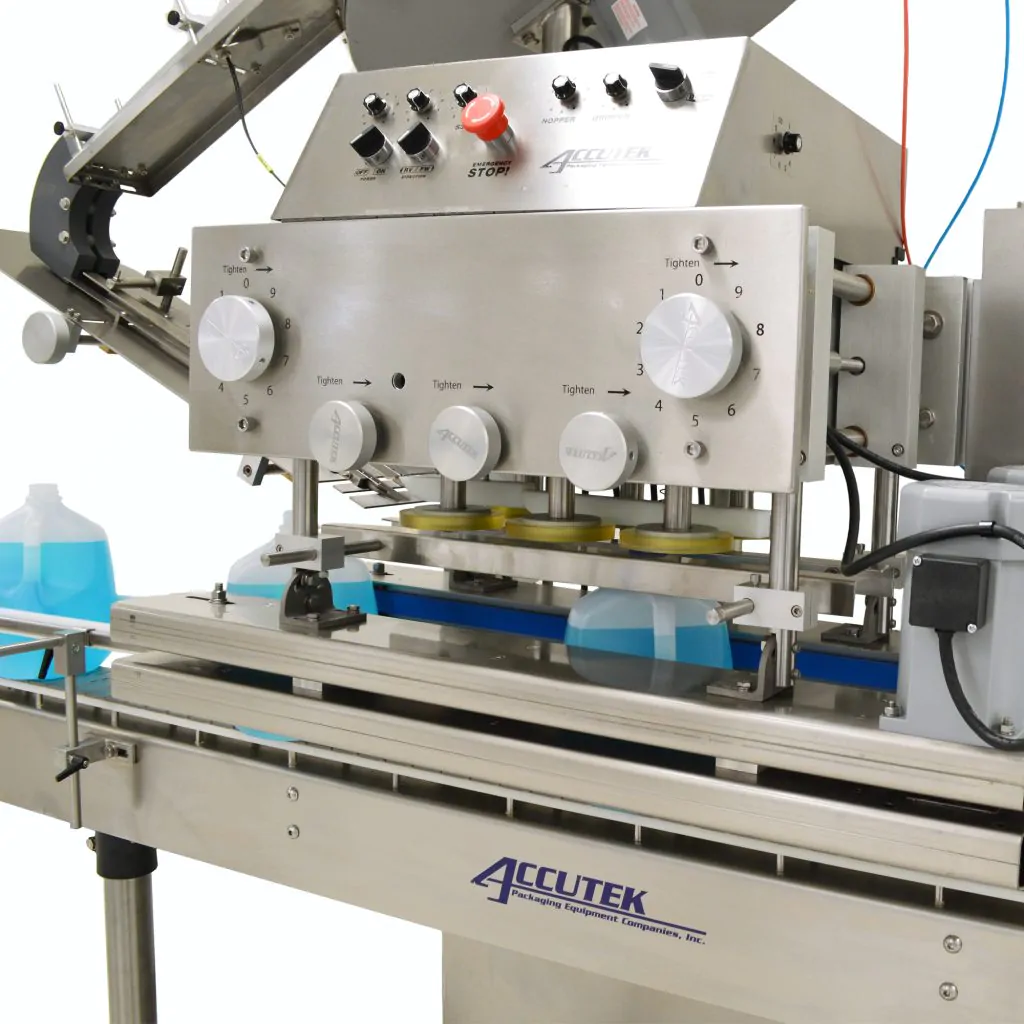

The Accutek ASC Automatic Spindle Cappers machines are designed to automatically place and tighten a wide variety of screw and lug-type closures onto containers in a sanitary environment. Each tightening spindle is spring-loaded and driven by a torque-sensitive individual motor for increased disk-to-cap contact and reduced disk wear.

This unique design eliminates the need for transmissions, belts, pulleys, and universal shafts. This reduces the size of the machine, lowers maintenance time, and expands the capper’s capability and adjustability. The ASC series can accommodate standard closure sizes ranging from 1 to 12 cm with no additional components.

ASCs ship standard with a centrifugal bowl closure orientation system for line speeds up to 120 CPM. The system can be upgraded with an optional closure elevator/orientator, increasing line speed and efficiency.

Single gripper belts are standard and have a tapered container adjustment to accommodate sloped containers up to 8.5” (21.59 cm) wide. Various optional gripper belt configurations are available for higher production rates, torque requirements, or difficult-to-handle containers.

Contact Accutek Packaging Equipment Company, Inc. today to learn more about this capping machine.

Standard Specification:

Cap Size	.39” – 4.72” (10 – 120 mm)
Torque Range	1 in/lb to over 90 lbs
Speed	120 CPM
Electrical Requirements	110 V, 20 Amps
Air Requirements	120 psi @ 2 CFM
Length	43” (1092.2 mm), ~49.25” (1250.95 mm) with bowl
Width	34.25” (869.95 mm), ~37.75″ (958.85 mm) with bowl
Height	43” (1092.2 mm); ~95” (2413 mm) with bowl
Weight	1200 lbs. (544.31 kg)

Machine specifications are based on the machine configuration. Any options or modifications may affect these specifications.
