SSC-6 — Specification Sheet

Features:

Heavy-duty stainless steel frame
C-frame design for easy addition to any conveyor
Individual spindle set speeds
Low-maintenance individual variable-speed AC motors
Intelligent electronic single-touch torque control
Powered height adjustment
On-the-fly speed and torque adjustment
Spring-loaded spindles for reduced cap damage and disk wear
Cantering bottle grippers to accommodate oddly shaped containers

Options:

Dual, double-wide, or low-profile gripper belts
Auto upgrade with centrifugal bowl
Auto upgrade with closure elevator / orientator
Reversible spindle sets for cap seating
Custom container/closure product handling
Spindle disks in different durometers
Casters

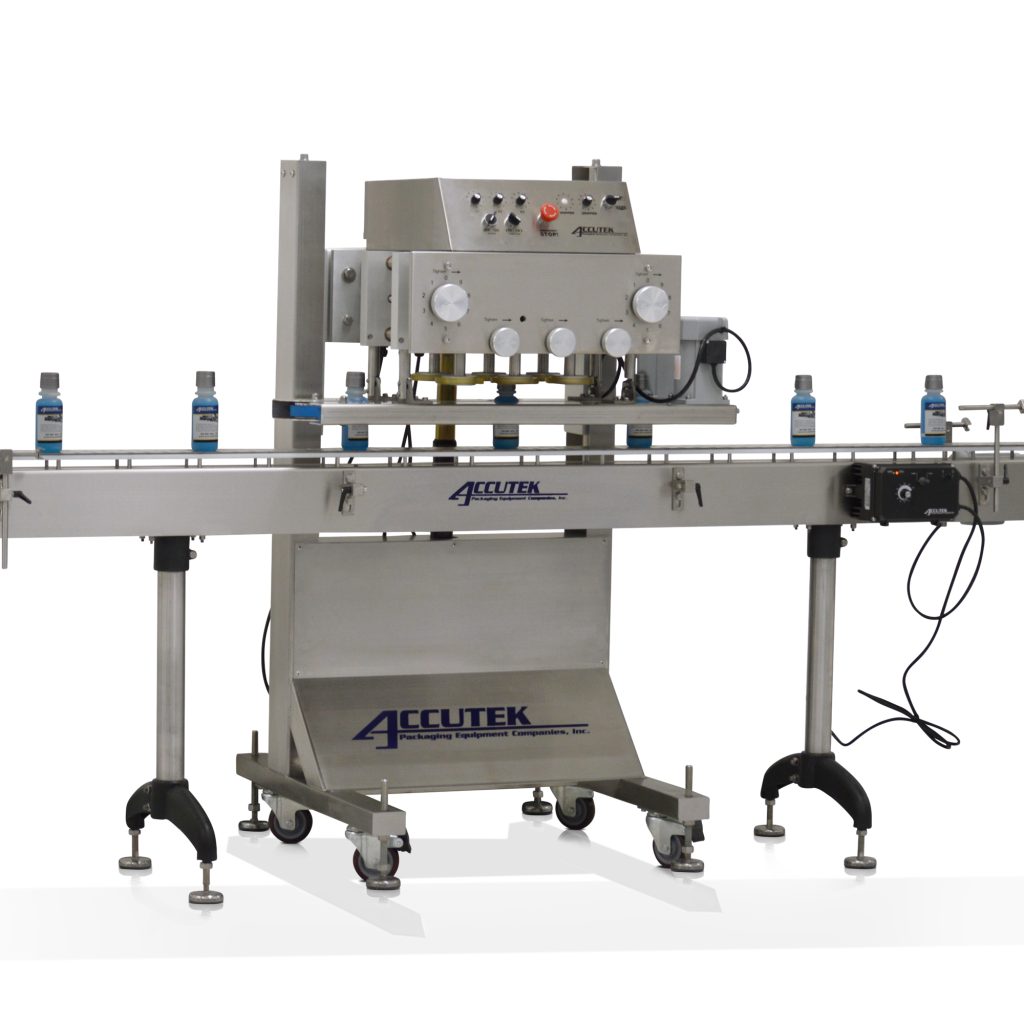

The Accutek Semi-Automatic Spindle Capper (SSC-6) is designed to place and tighten a wide variety of closures onto containers in a sanitary environment. Each tightening spindle is spring-loaded and driven by a torque-sensitive individual motor for increased disk-to-cap contact and reduced disk wear.

This unique design eliminates the need for transmissions, pulleys, and universal shafts. This reduces the size of the machine, lowers maintenance time, and expands the capper’s capability and adjustability. The SSC-6 can accommodate standard closure sizes ranging from 1 to 12 cm with no additional components.

The SSC ships standard with a centrifugal bowl closure orientation system for line speeds up to 120 CPM. The system can be upgraded with an optional closure elevator/orientator, increasing line speed and efficiency.

Single gripper belts are standard and have a tapered container adjustment to accommodate sloped containers up to 8.5” (21.59 cm) wide. Various optional gripper belt configurations are available for higher production rates, torque requirements, or difficult-to-handle containers.

Contact Accutek Packaging Equipment Company, Inc. today to learn more about this capping machine.

Standard Specification:

Cap Size	.39” – 4.72” (10 – 120 mm)
Speed	120 CPM
Electrical Requirements	110 VAC 20 Amp
Air Requirements	120 PSI @ 2 CFM
Height	67” (170.18 cm)
Length	36” (91.44 cm)
Width	24” (60.96 cm)
Weight	~950 lbs. (430.91 kg)

Machine specifications are based on the machine configuration. Any options or modifications may affect these specifications.
