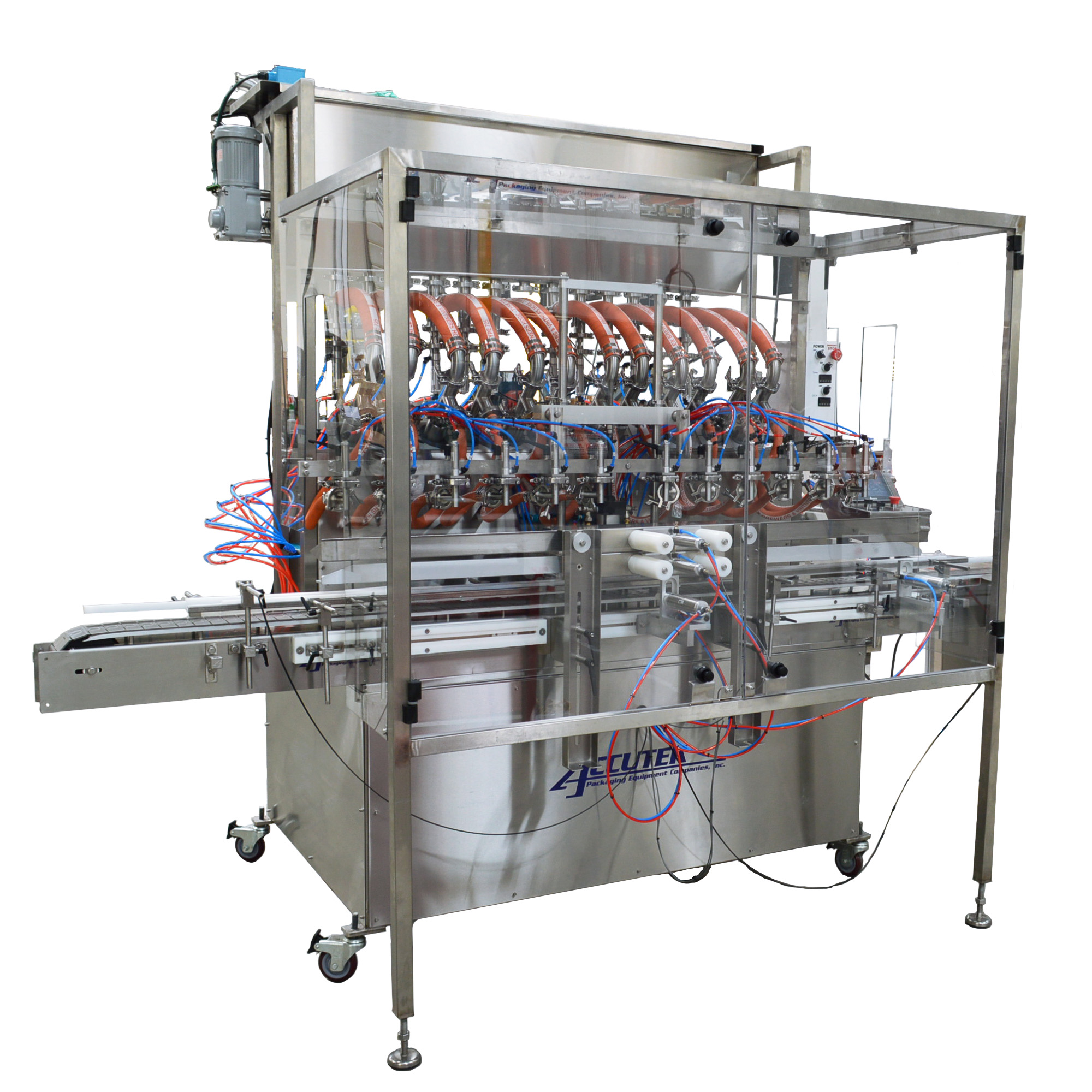

AVF Series – Automatic Piston Filling Machine – AVF12

Features:

15’ conveyor
A.B.I. kit (automatic bottling index kit)
Color touchscreen control
PLC-controlled
Multi-stroke (multiple doses per container)
Delrin or stainless steel conveyor
6”-wide chain conveyor for 64 oz or 128 oz containers

Options:

1 oz, 8 oz, 16 oz, 32 oz, 64 oz, or 128 oz dose cylinders (29.57 mL, 236.59 mL, 473.18 mL, 946.53 mL, 1.89 L, 3.79 L)

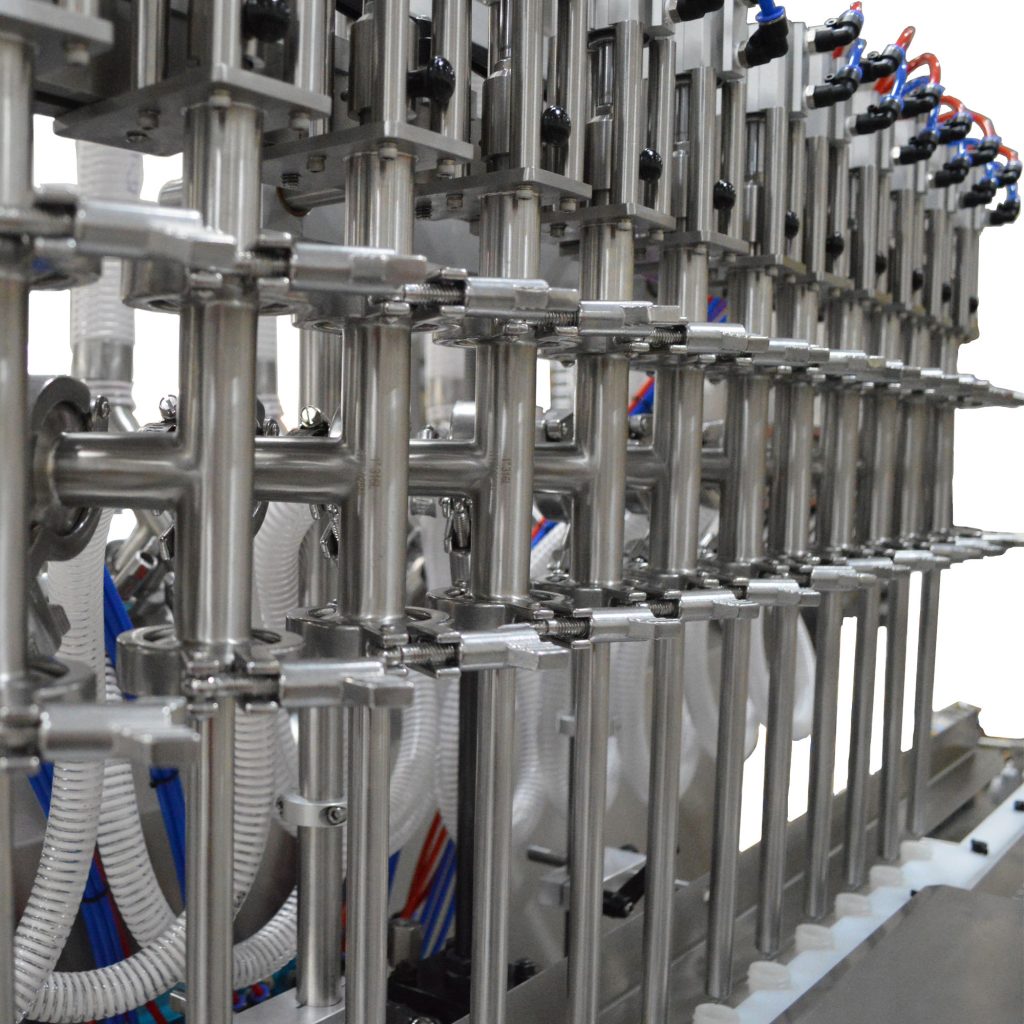

Extended Length nozzles (for bottom-up filling to reduce foam)
Honeycomb nozzles (for products that string or drip)
Chunky product butterfly valves for sanitary products with particulates
Heat packages
Corrosive product packages
Conveyor upgrades
Diving heads
Positive off nozzles
Servo-driven pistons and servo dive head control
Neck locators
Drip tray
Star wheel indexing
Safety frame with interlock doors
Conveyor chain wash bath

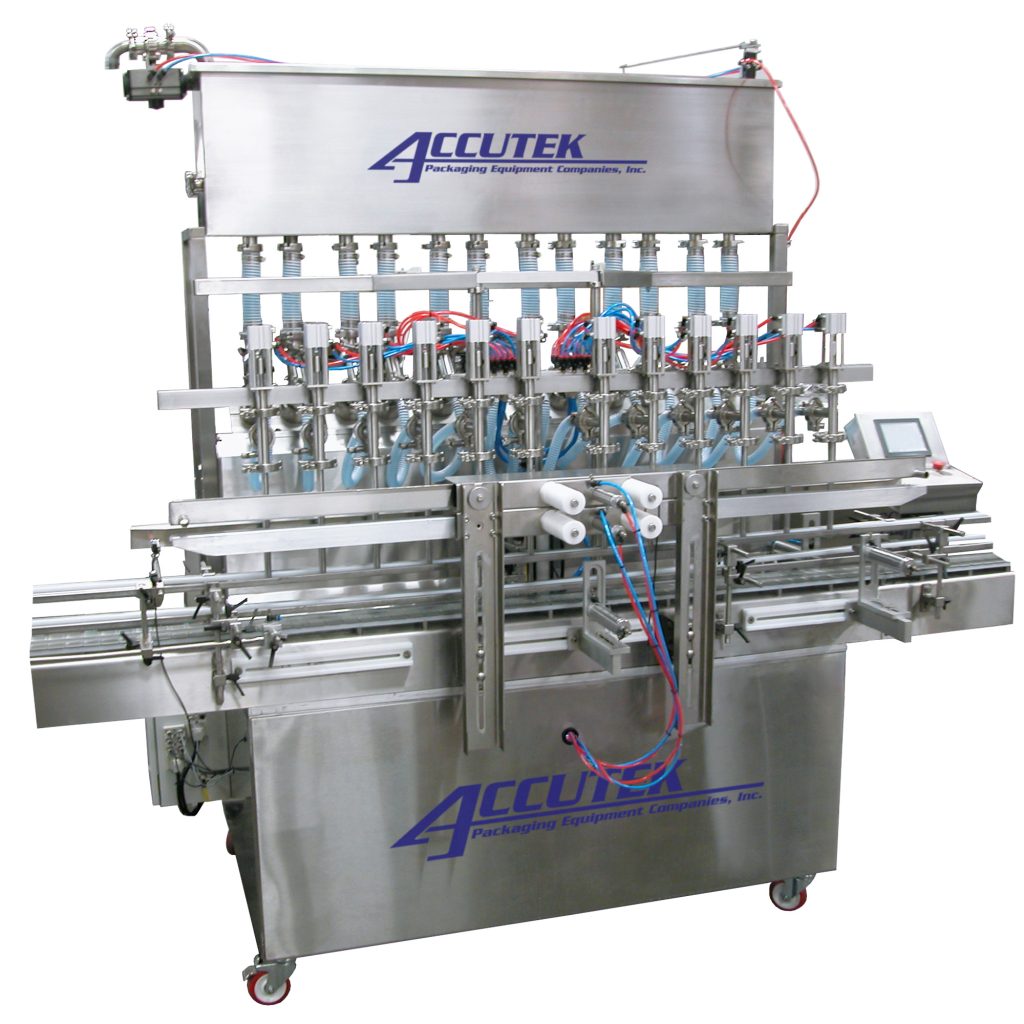

AVF - Automatic Volumetric Piston Filling machines are heavy-duty filling powerhouses that deliver precision-dose filling and offer multi-work-shift reliability.

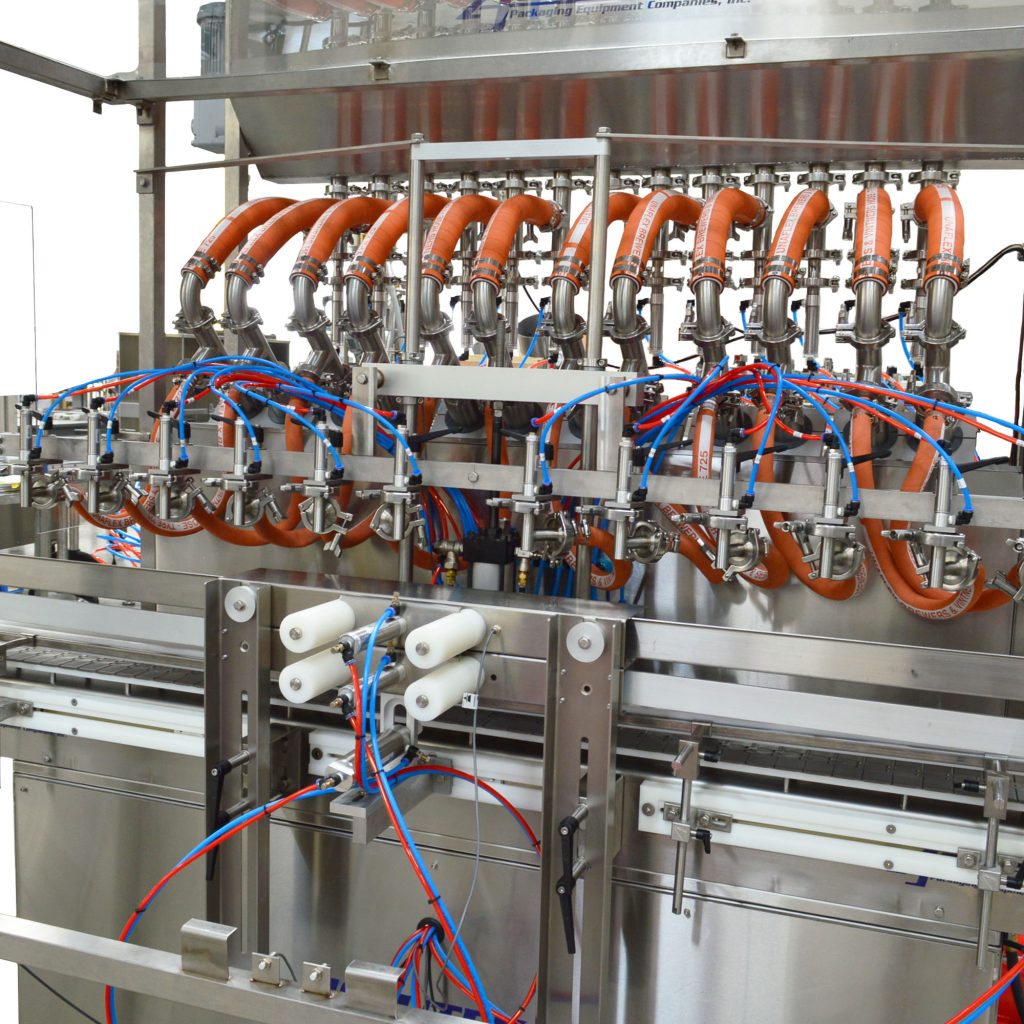

The AVF12 dispenses an accurately measured volume of product into containers via 12 fill heads, reducing overfill and saving you money. It's versatile enough to fill thin products such as water or thick products like caulking compounds with little to no additional change parts.

Along with its flexible filling options, the AVF12 can be used with a variety of rigid or lightweight containers. This includes containers that might otherwise be distorted by vacuum-filling pressure.

This machine features heavy-duty stainless steel adjustable height bases, sanitary stainless steel product cylinders in 1 oz - 128 oz (29.57 mL – 3.79 L) dose models, durable 10’ variable-speed conveyors, and touchscreen controls. It also comes with a 15’ conveyor.

The AVF12 is a robust filler that delivers precision-dose filling and offers multi-work-shift reliability. Contact Accutek today to learn more about it.

Standard Specification:

Dimensions	Length: 120” (304.8 cm)
Width	56” (142.2 cm)
Height	96” (243.8 cm)
Weight	~1200 lbs (545 kg)
Electrical Requirements	120 VAC, Single Phase, 60 Hz (220 or 240 VAC available)
Air Requirements	100 PSI / 3 CFM
Up to 120 CPM
Viscosity Range	1-20,000 cps (Centipoise)
Foamy Product	Yes
Corrosive Product	Yes
Heated Product	Yes

Machine specifications are based on the machine configuration. Any options or modifications may affect these specifications.
