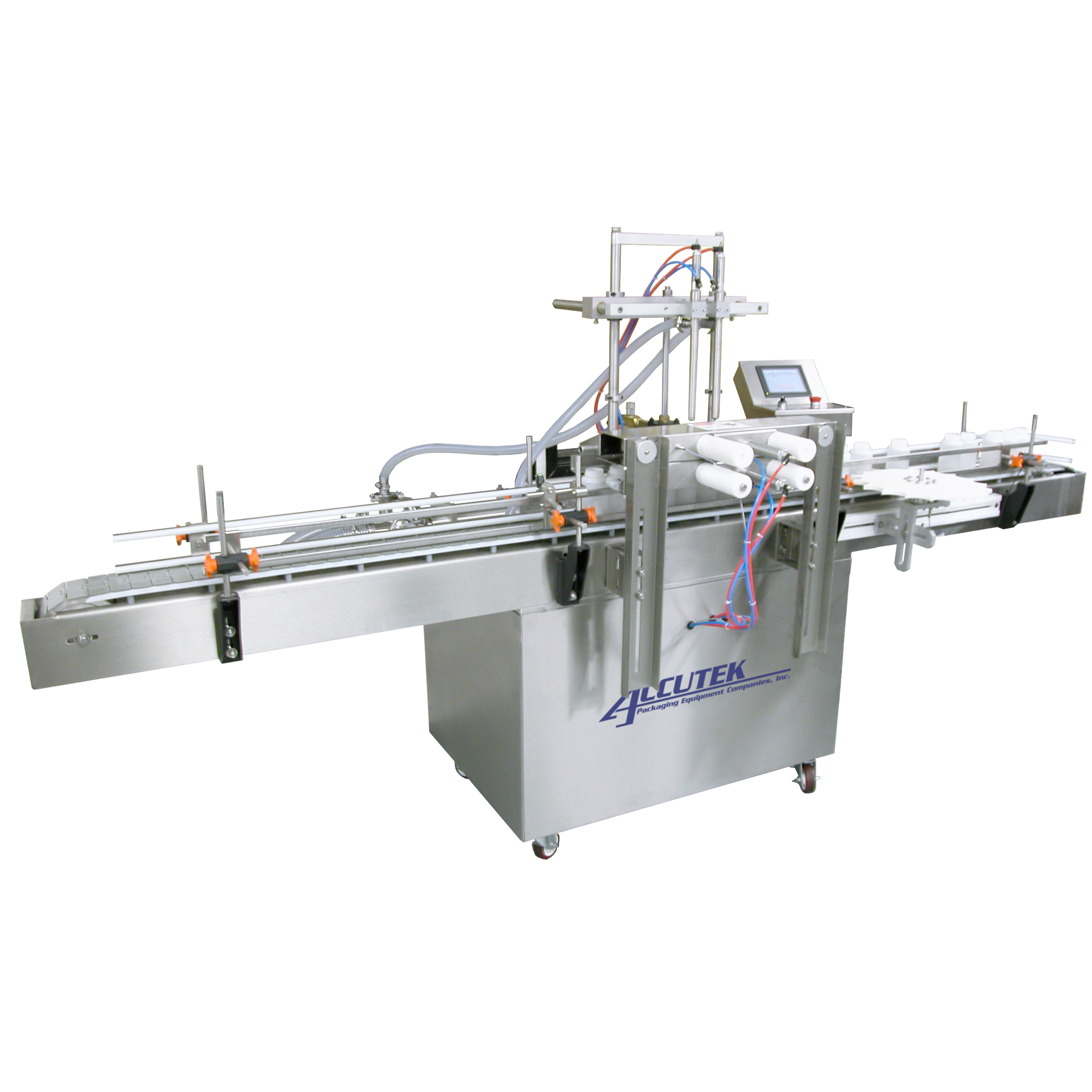

AVF Series – Automatic Piston Filling Machine – AVF2

Features:

  • 10′ conveyor
  • A.B.I. kit (automatic bottling index kit)
  • Color touchscreen control
  • PLC-controlled
  • Multi-stroke (multiple doses per container)
  • Delrin or stainless steel conveyor
  • 6″-wide chain conveyor for 64 oz or 128 oz containers

Options:

  • 1 oz, 8 oz, 16 oz, 32 oz, 64 oz, or 128 oz dose cylinders (29.57 mL, 236.59 mL, 473.18 mL, 946.53 mL, 1.89 L, 3.79 L)
  • Extended-length nozzles (for bottom-up filling to reduce foam)
  • Honeycomb nozzles (for products that string or drip)
  • Chunky product butterfly valves for sanitary products with particulates
  • Heat packages
  • Corrosive product packages
  • Conveyor upgrades
  • Diving heads
  • Positive off nozzles
  • Servo-driven pistons and servo dive head control
  • Neck locators
  • Drip tray
  • Star wheel indexing
  • Safety frame with interlock doors
  • Conveyor chain wash bath

The AVF2 (Automatic Piston Filling Machine) dispenses an accurately measured volume of product to containers, reducing overfill and saving you money. It's versatile enough to fill thin products such as water or thick products like caulking compounds with little to no additional change parts.

This AVF piston filler can be used with a variety of rigid or lightweight containers. This includes containers that might otherwise be distorted by vacuum-filling pressure.

This automatic model is a two-nozzle configuration and features a heavy-duty stainless steel adjustable height base, sanitary stainless steel product cylinders in 1 oz - 128 oz (29.57 mL – 3.79 L) dose models, a durable 10' variable-speed conveyor, and touchscreen controls.

The AVF2 is a powerhouse filler that delivers precision-dose filling and offers multi-work-shift reliability. Contact Accutek today to learn more about this machine.

Recommended Products:

  • Semi-viscous and viscous liquids
  • Catsup
  • Mustard
  • Mayonnaise
  • Syrups
  • Salsa
  • Honey
  • Peanut butter
  • Jellies
  • Dipping sauces
  • Lip balm
  • Shampoo
  • Thick soaps
  • Styling gels
  • Facial masks
  • Wax
  • Glue
  • Grease
  • Sealants
  • Silicone
  • And much more

Standard Specification:

DimensionsLength: 120″ (304.8 cm)
Width48″ (121.9 cm)
Height62″ (198.1 cm)
Weight~800 lbs (365 kg)
Electrical Requirements120 VAC, Single Phase, 60 Hz (220 or 240 VAC available)
Air Requirements100 PSI / 3 CFM
Up to 20 CPM
Viscosity Range1-20,000 cps (Centipoise)
Foamy ProductYes
Corrosive ProductYes
Heated ProductYes
ParticulatesYes

Machine specifications are based on the machine configuration. Any options or modifications may affect these specifications.
