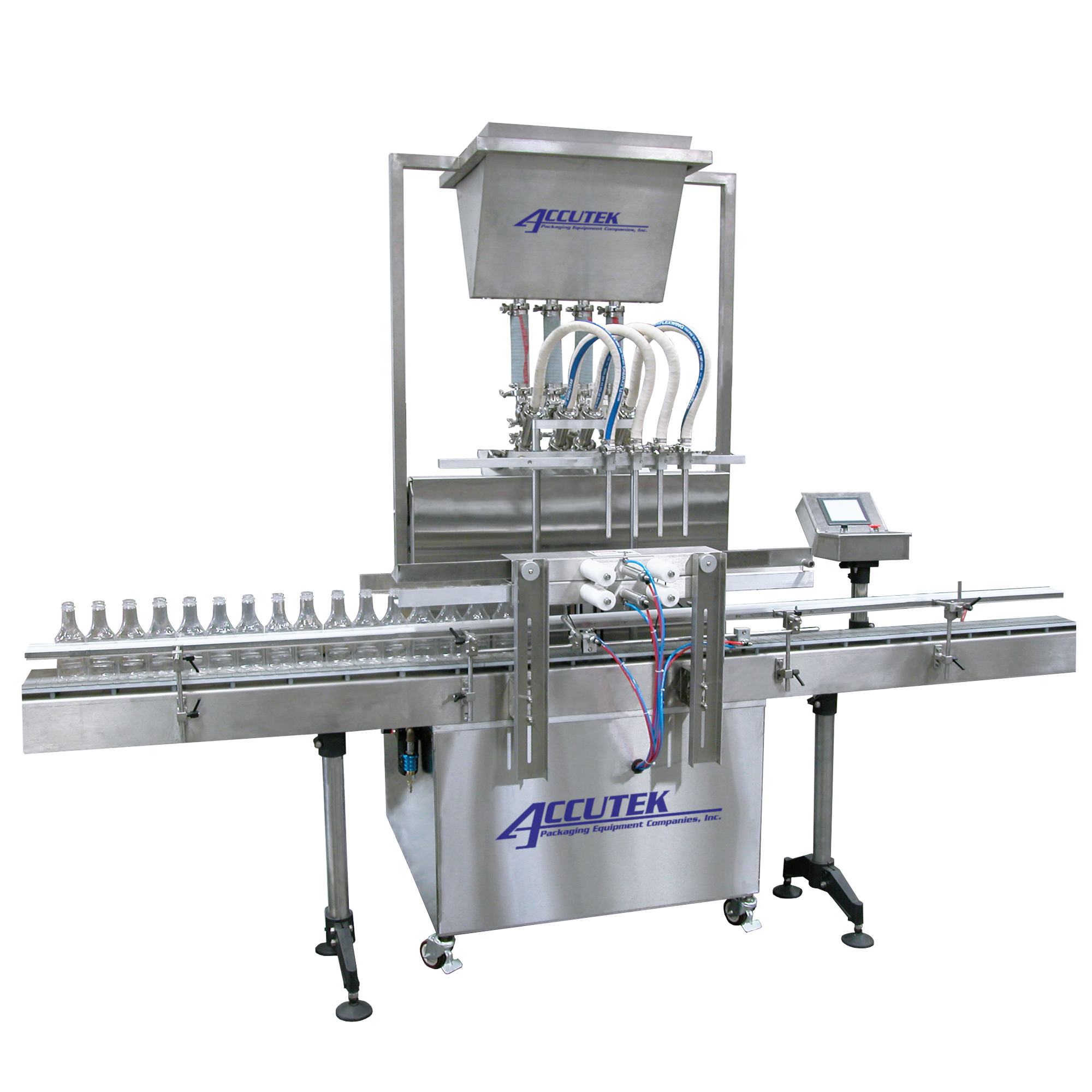

AVF Series – Automatic Piston Filling Machine

Product Description

The AVF4 dispenses an accurately measured volume of product to containers, reducing overfill and saving you money. It's versatile enough to fill thin products such as water or thick products like caulking compounds with little to no additional change parts. This AVF piston filler can be used with a variety of rigid or lightweight containers. This includes containers that might otherwise be distorted by vacuum-filling pressure. This automatic model is a four-nozzle configuration and features a heavy-duty stainless steel adjustable height base, sanitary stainless steel product cylinders in 1 oz - 128 oz (29.57 mL – 3.79 L) dose models, a durable 10' variable-speed conveyor, and touchscreen controls. The AVF4 is a workhorse filler that delivers precision-dose filling and offers multi-work-shift reliability. Contact Accutek today to learn more about this machine. Recommended Products

Semi-viscous and viscous liquids
Catsup
Mustard
Mayonnaise
Syrups
Salsa
Honey
Peanut butter
Jellies
Dipping sauces
Lip balm
Shampoo
Thick soaps
Styling gels
Facial masks
Wax
Glue
Grease
Sealants
Silicone
And much more

Features

10′ conveyor
A.B.I. kit (automatic bottling index kit)
Color touchscreen control
PLC-controlled
Multi-stroke (multiple doses per container)
Delrin or stainless steel conveyor
6″-wide chain conveyor for 64 oz or 128 oz containers

Options

1 oz, 8 oz, 16 oz, 32 oz, 64 oz, or 128 oz dose cylinders (29.57 mL, 236.59 mL, 473.18 mL, 946.53 mL, 1.89 L, 3.79 L)
Extended-length nozzles (for bottom-up filling to reduce foam)
Honeycomb nozzles (for products that string or drip)
Chunky product butterfly valves for sanitary products with particulates
Heat packages
Corrosive product packages
Conveyor upgrades
Diving heads
Positive off nozzles
Servo-driven pistons and servo dive head control
Neck locators
Drip tray
Star wheel indexing
Safety frame with interlock doors
Conveyor chain wash bath

Standard Specifications

Unit Specifications

Dimensions:
- Length: 120″ (304.8 cm)
- Width: 48″ (121.9 cm)
- Height: 62″ (198.1 cm)
Weight: ~800 lbs (365 kg)
Electrical Requirements: 120 VAC, Single Phase, 60 Hz (220 or 240 VAC available)
Air Requirements: 100 PSI / 3 CFM

Output

Up to 20 CPM
Viscosity Range: 1-20,000 cps (Centipoise)

Speciality Products

Foamy Product: Yes
Corrosive Product: Yes
Heated Product: Yes
Particulates: Yes

Can be upgraded to account for location.
