Servo Piston Filler (E-SPF) — Specification Sheet

Features:

Single-head filler configuration
Multi-stroke operations (multiple doses per container)
Direct from drum draw kit
Sanitary contact parts and fluid path

Options:

Thin nozzles (for products that string or drip)
Long nozzles (for bottom-up filling to reduce foam)
Chunky product butterfly valves for products with particulates
Heat or corrosive product packages (contact parts and tubing)
Positive off nozzles
Product suck-back kits (prevents dripping)
Sanitary stainless-steel hoppers
Footswitch control
Standalone frame with or without casters

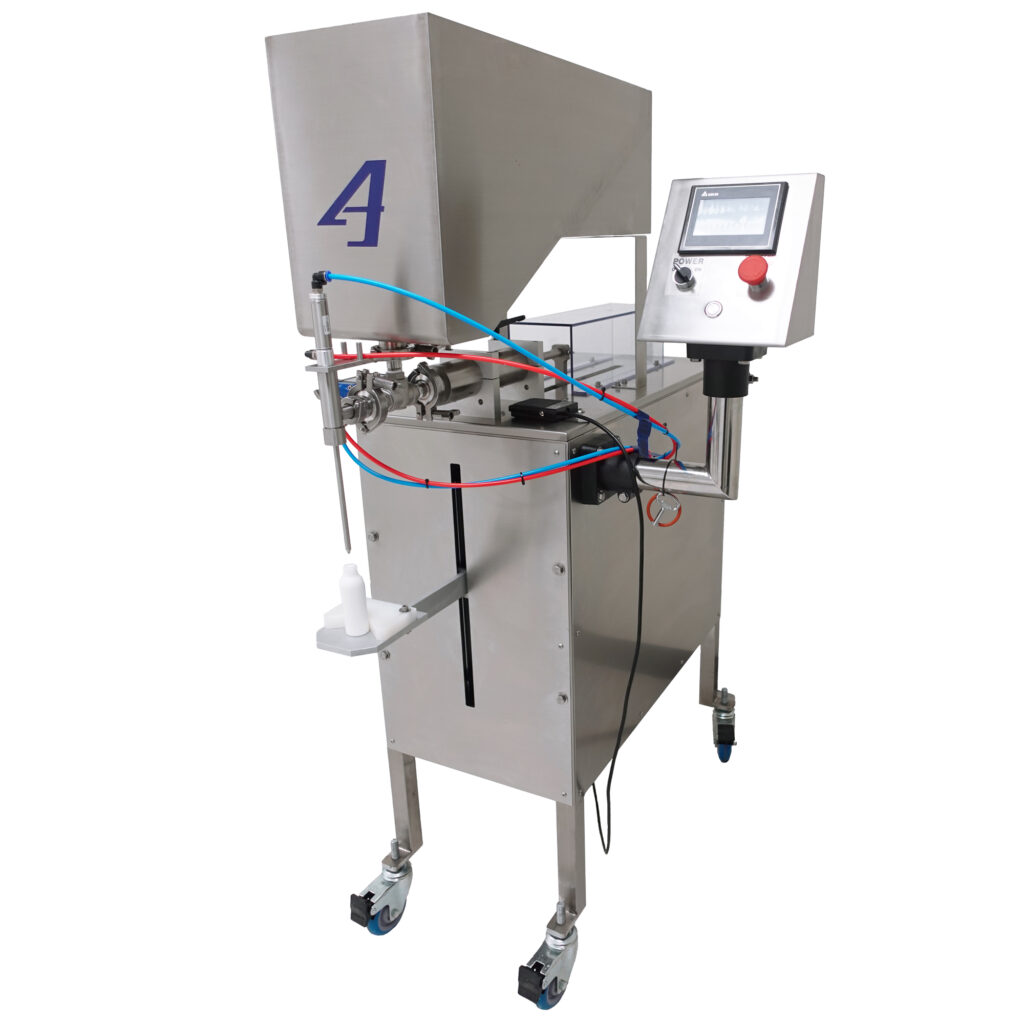

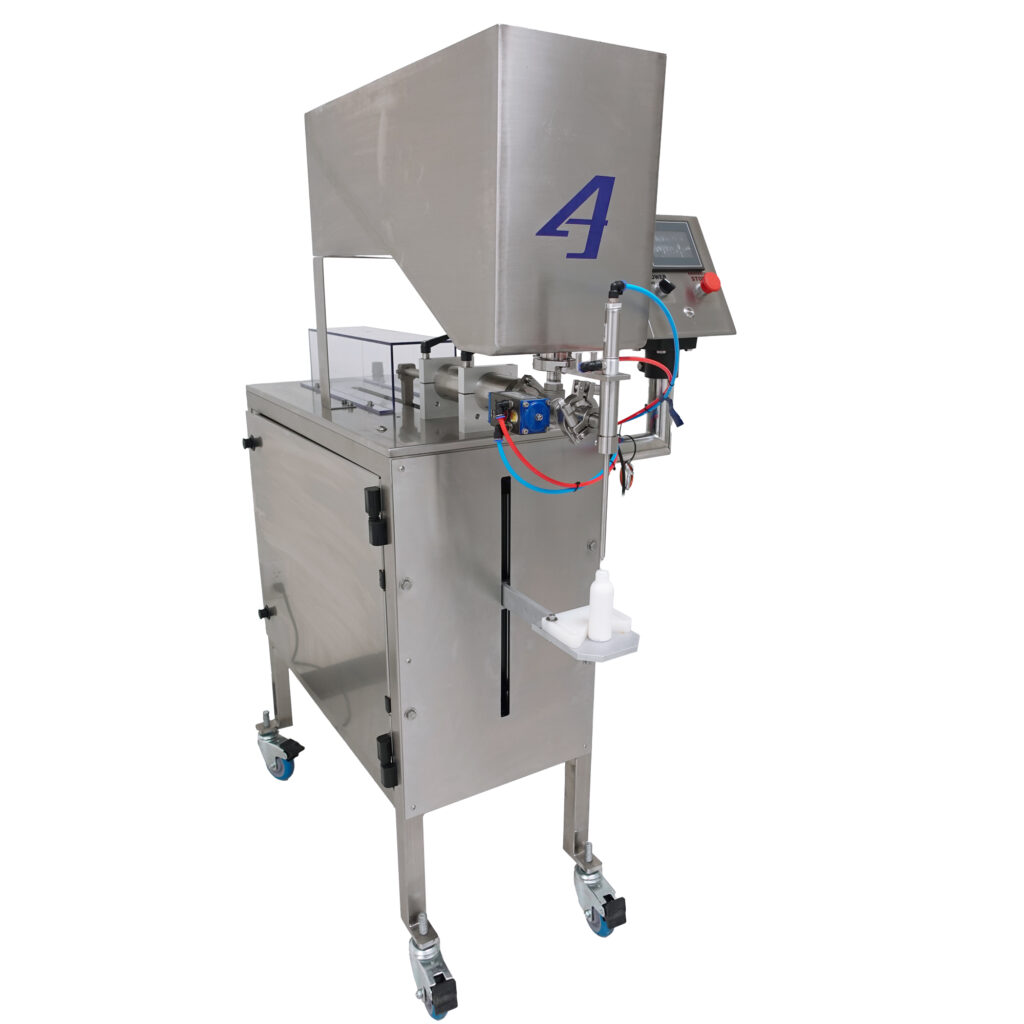

The Accutek All Electric Servo Driven Piston Filler (E-SPF) is a semiautomatic, volumetric piston filling machine designed to dispense a precise volume of product into each container. This translates to significant cost savings by minimizing waste products caused by overfilling.

This filling machine controls the piston stroke length directly through an integrated touchscreen controller. It doesn’t need air compressors, air dryers, filters, and the associated maintenance and permitting requirements.

The E-SPF can handle a range of substances such as pastes, creams, lotions, gels, and products with larger particulates or chunks. It’s equally efficient at filling thinner products. The fill volumes are customizable, depending on the size of the product cylinder and piston.

Contact Accutek Packaging Equipment Company, Inc. today to see how this filler can make your production process more efficient.

Standard Specification:

Foamy Product	Yes
Corrosive Product	Yes
Heated Product	Yes
Particulates	Yes
Fill Quantity	2– 128 oz (59.15 mL – 3.79 L)
Air Requirements	0 PSI
Electrical Requirements	110VAC VAC / Single Phase / 5 Amp
Height	62.75” (159.39 cm)
Length	43” (109.22 cm)
Width	28.5” (71.39 cm)

Machine specifications are based on the machine configuration. Any options or modifications may affect these specifications.
