SVF Series

Features:

  • One product cylinder and piston
  • Direct from drum draw kit
  • Available in 2 – 128 oz (59.15 mL – 3.79 L) single-dose configurations

Options:

  • Longer nozzles (for bottom-up filling to reduce foam)
  • Skinny nozzles (for products that string or drip)
  • Hopper
  • Chunky product butterfly valves for sanitary products with particulates
  • Heat packages
  • Corrosive product packages
  • Positive off nozzles
  • Product suck-back nozzle kits
  • Foot switch
  • Honeycomb nozzles

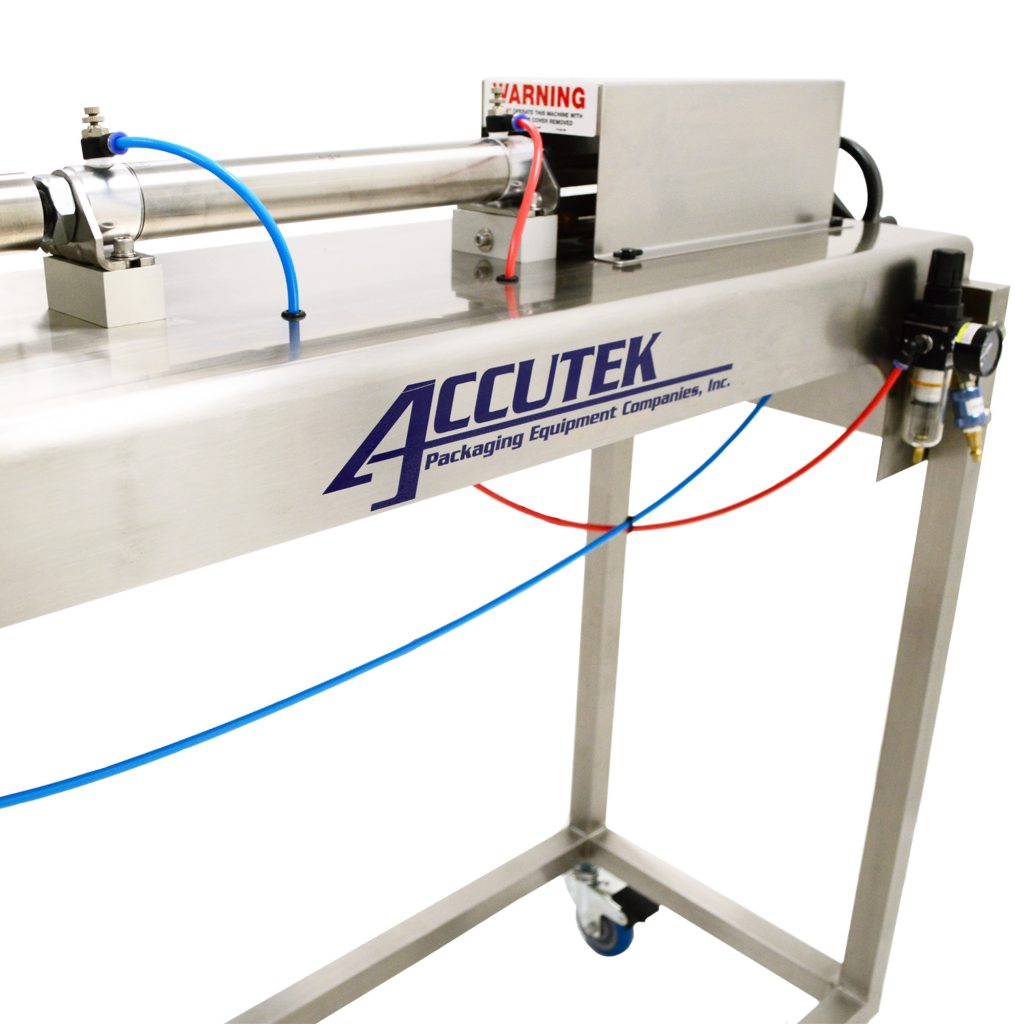

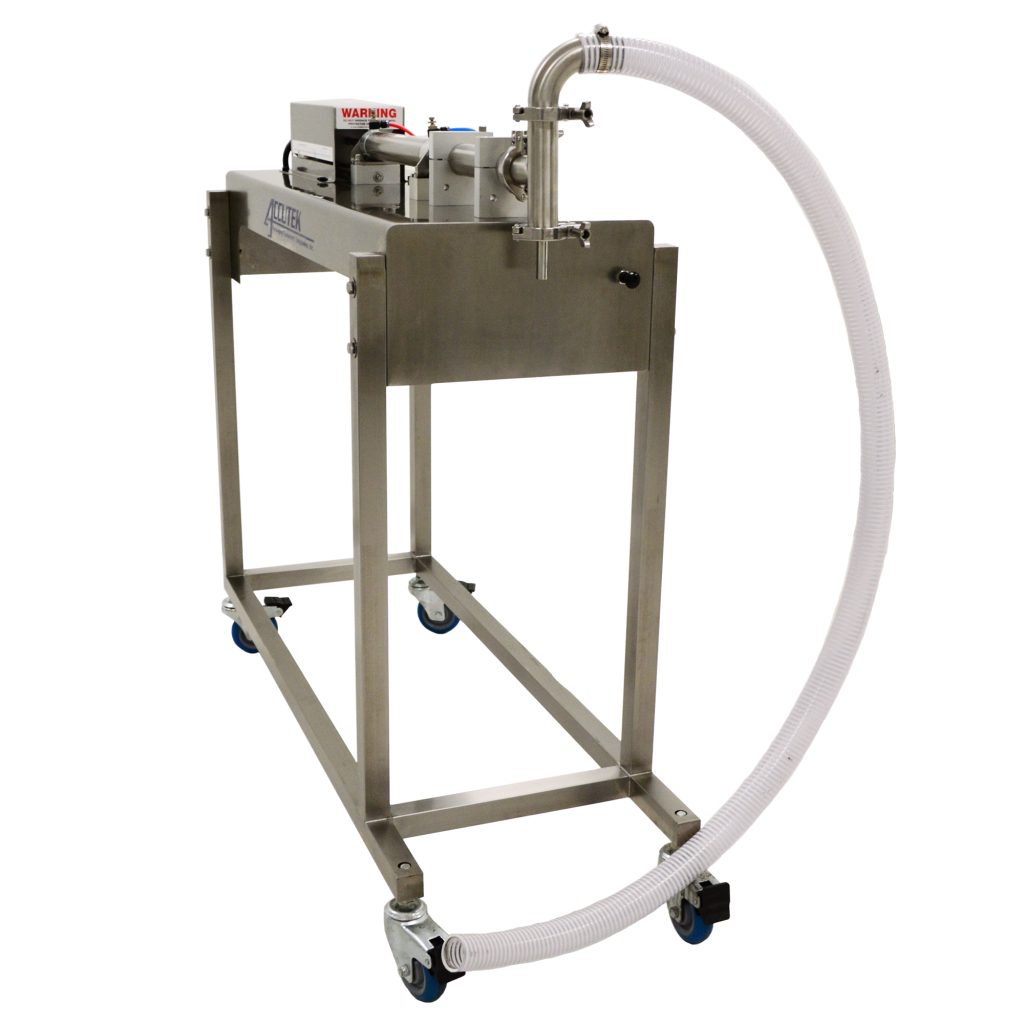

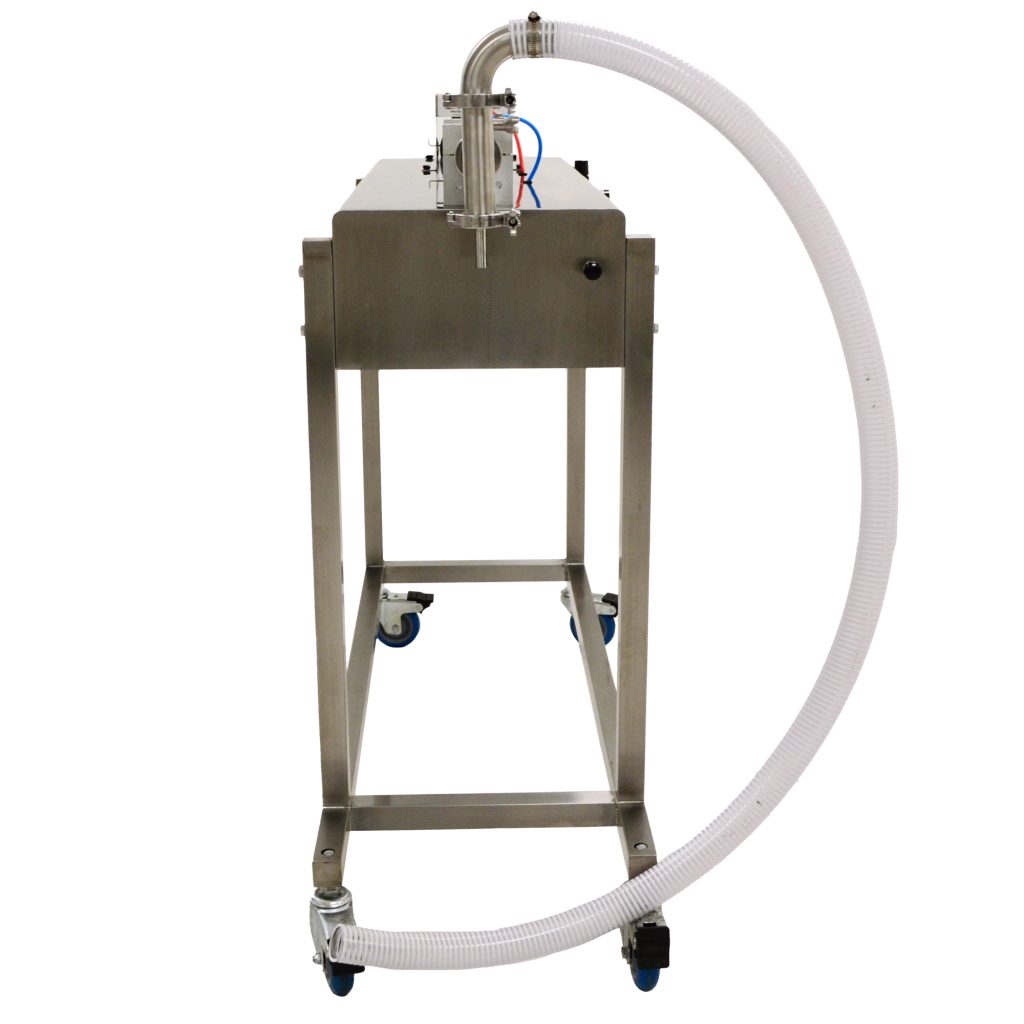

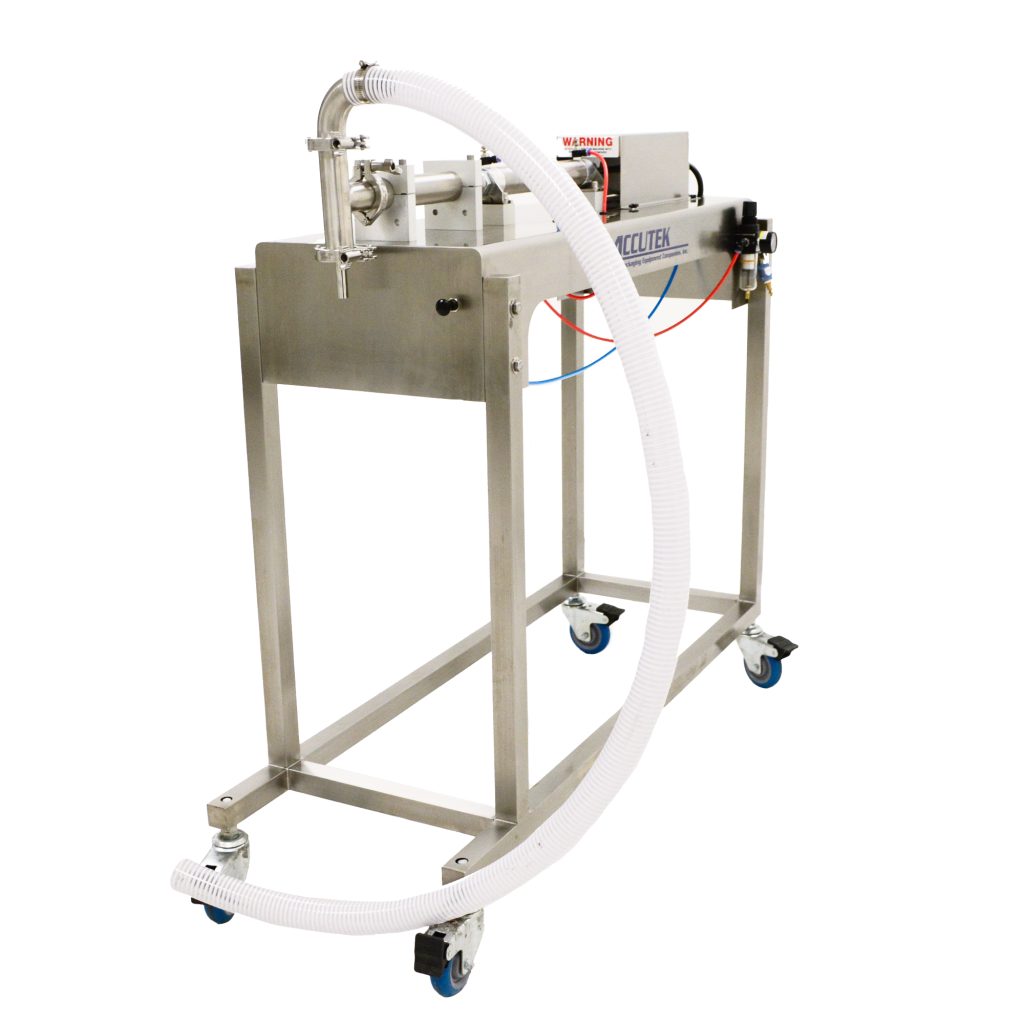

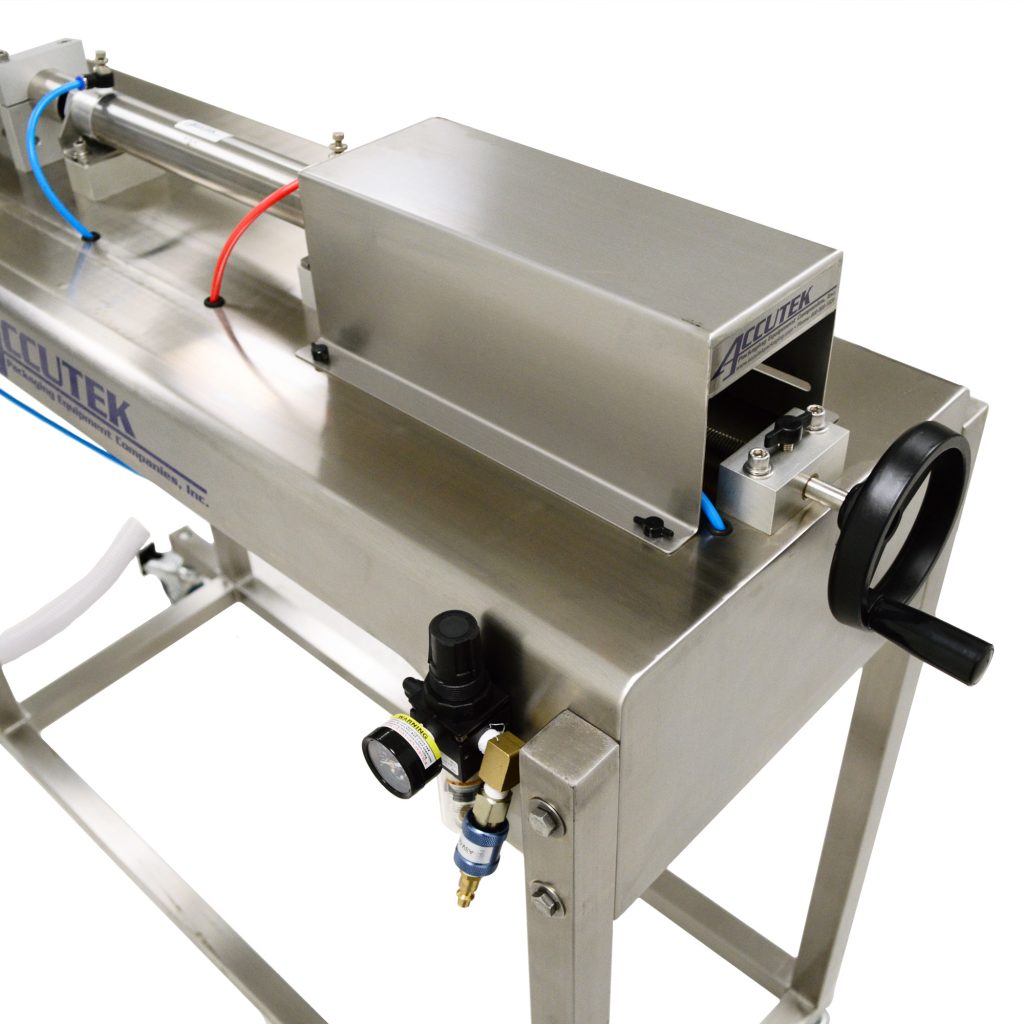

Accutek’s Semi-Automatic Volumetric Fillers (SVF Series) are piston filling machines that accurately deliver a measured volume of product to each container. Their accuracy ensures bottom-line savings by reducing the amount of product used as overfill.

These flexible piston fillers adapt to a wide product range, from water to thick caulking compounds, and can handle lightweight containers prone to distortion. Volumetric piston fillers can accommodate chunky products with an optional valve. They also come with a direct-from drum draw kit (optional hopper available) and can be swiftly set up for production.

Whether as the core of your filling process, a cost-effective backup, or an alternative to contract packagers, SVF Series piston filling machines eliminate downtime and expensive setup for small runs.

Contact Accutek to learn more about how these fillers can boost your production cycle.

Recommended Products

  • Food and beverage products
  • Beauty products
  • Automobile and vehicle products
  • Medical products
  • And more

Standard Specification:

Foamy ProductYes
Corrosive ProductYes
Heated ProductYes
ParticulatesYes
Fill SizeNA
Viscosity Range1 – 20,000+ cP
Speed30 CPM
Air Requirements80 PSI, 1.5 CFM
Electrical Requirements110 VAC/Single-phase/10 AMP
Height20” (50.8 cm)
Length43” (109.22 cm)
Width14” (35.56 cm)
Weight~80 lbs. (36.29 kg)

Machine specifications are based on the machine configuration. Any options or modifications may affect these specifications.
