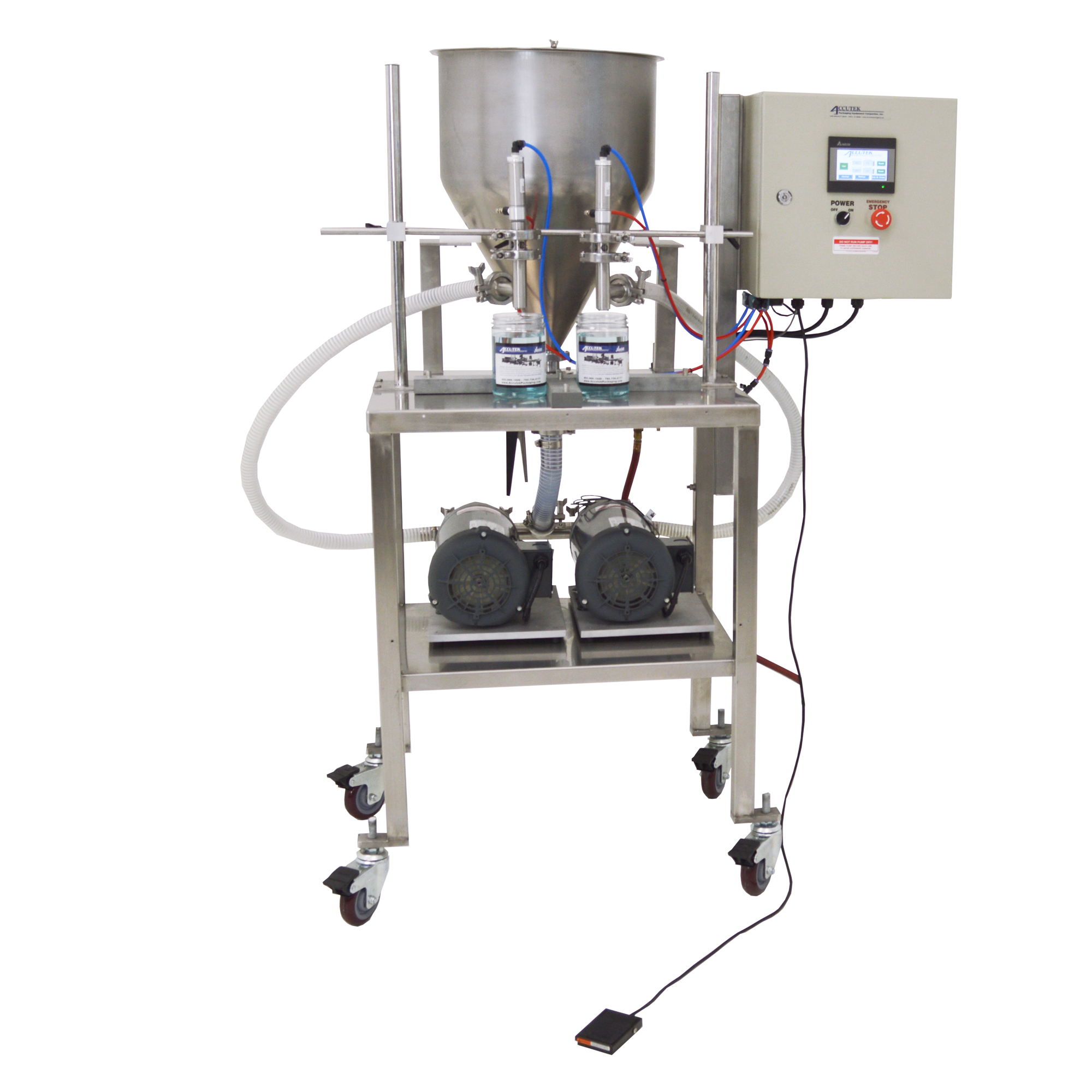

SAPD-2 Positive Displacement Filling Machine

Features:

Sanitary stainless-steel base
Reinforced food-grade tubing
Stainless-steel gear pump with Ryton gears
Adjustable volumetric fill by pump revolutions
Independent fill heads
Manual fill head height adjustment
Easy to program
30-job memory
Sanitary stainless-steel control valve for tank
PLC control box
4-GPM (optional 10-GPM) positive displacement pumps
Stainless-steel hopper with liquid-level assembly

Options:

Automatic diving nozzles
Positive-off nozzles
Hazardous location electrical controls
Powered fill head height adjustment
Container neck orienter
Sanitary connections
Gear materials stainless steel/plastic
10-GPM pump

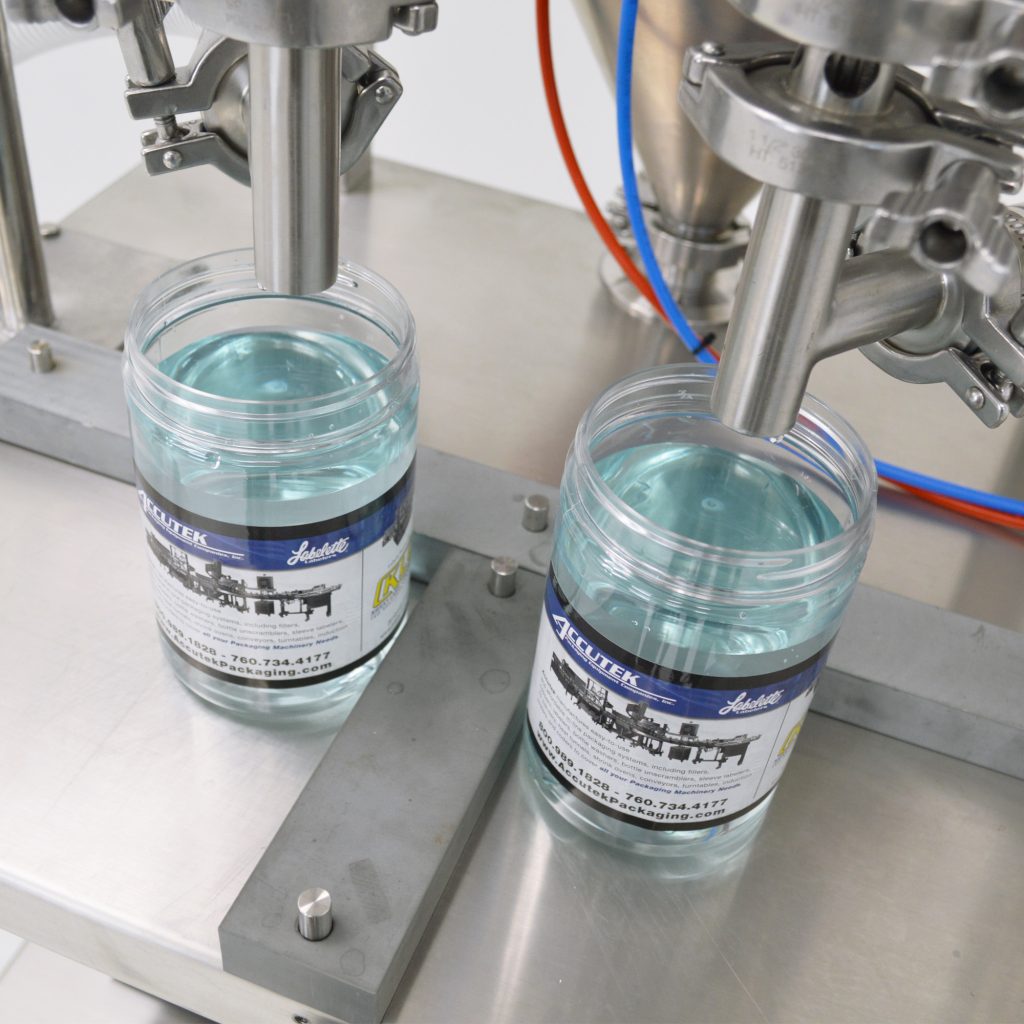

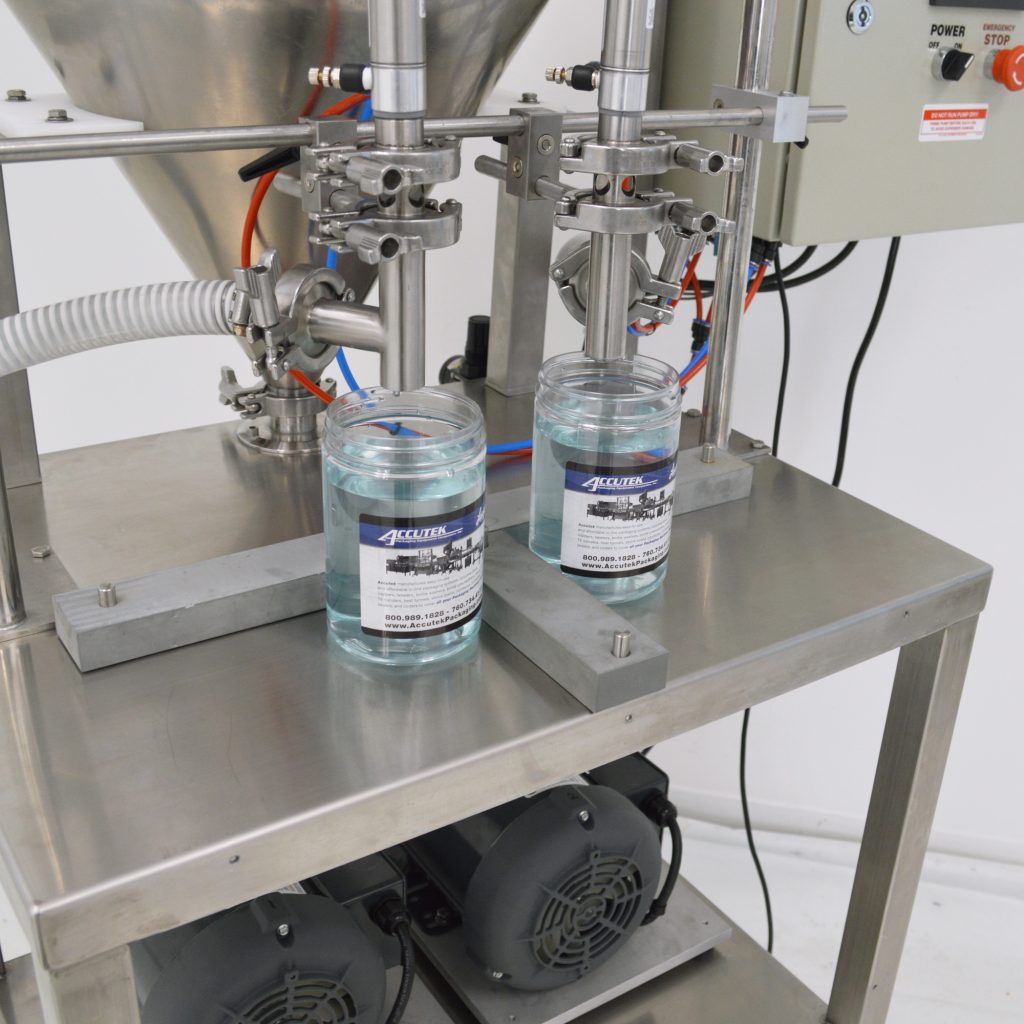

The Semi-Automatic 2-Head Positive Displacement filling machines (SAPD-2) use a positive displacement pump head for each fill head, offering superior control and accuracy. Its advanced PLC control package lets operators precisely control each fill head using encoding technology for fractional control of the pump head.

Each fill head can be programmed to initiate the filling process gradually and increase to full speed before slowing down to complete the fill. Post-filling, the pump filler can reverse to prevent dripping as it withdraws excess product from the nozzle, readying it for the next fill. The pump heads are available in sanitary 4-GPM and 10-GPM options.

This filler is ideal for higher-viscosity products and applications requiring high accuracy. It boasts versatility to accommodate various container sizes, fill volumes, and product types, making it suitable for multiple applications.

The SAPD-2 is a perfect choice for both large production runs and start-ups. Contact Accutek Packaging Equipment Company, Inc. today to learn more about this filling machine.

Standard Specification:

Foamy Product	Yes
Corrosive Product	Yes
Heated Product	Yes
Particulates	No
Product Filling Speed	Approx. 40 CPM
Fill Size	0.5 oz – 5 gallons (14.79 mL – 18.93 L)
Viscosity Range	0 – 18,000 cP
Electrical	110/240 VAC / Single Phase / 40 AMP
Air Requirements	80 PSI
Height	64” (162.56 cm)
Length	35“ (88.9 cm)
Depth	48” (121.92 cm)
Weight	Approx. 300 lbs. (136.08 kg)

Machine specifications are based on the machine configuration. Any options or modifications may affect these specifications.
