Auto-Indexing Mini-Pinch — Specification Sheet

Features:

Direct-from-drum draw kit
Sanitary contact parts and fluid path
Six stainless steel filling heads with individual flow controls
Toolless removal of sanitary stainless steel manifold
Easy to operate using a touchscreen controller with job memory
Simple-to-use fill wand auto-triggered by PLC
Adjustable tabletop stand
Positive displacement pump
Food-grade tubing
Pinch valve system
Pump

Options:

Thin nozzles (for products that string or drip)
Heat or corrosive product packages (contact parts and tubing)
Sanitary stainless steel hoppers
Standalone frame with or without casters
Custom bottle guides, trays, and nozzle upgrades
Tanks

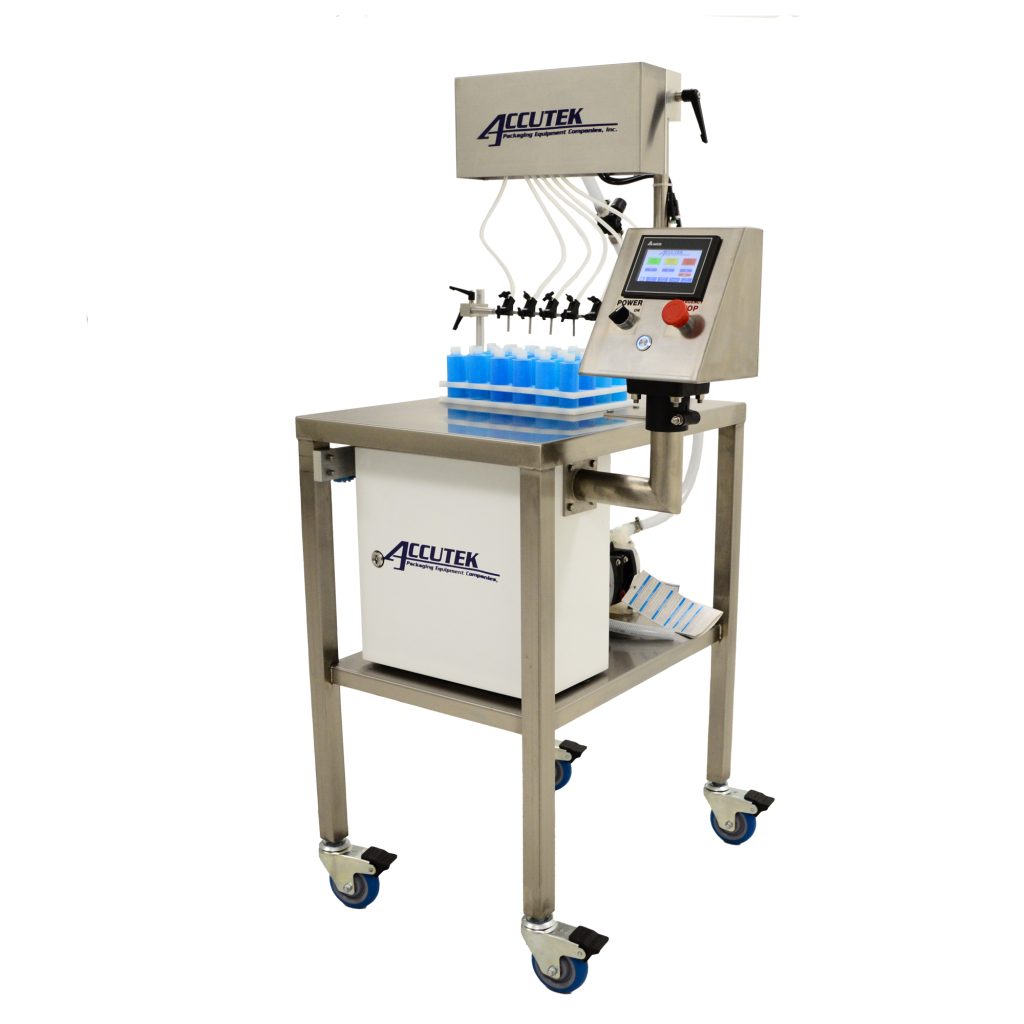

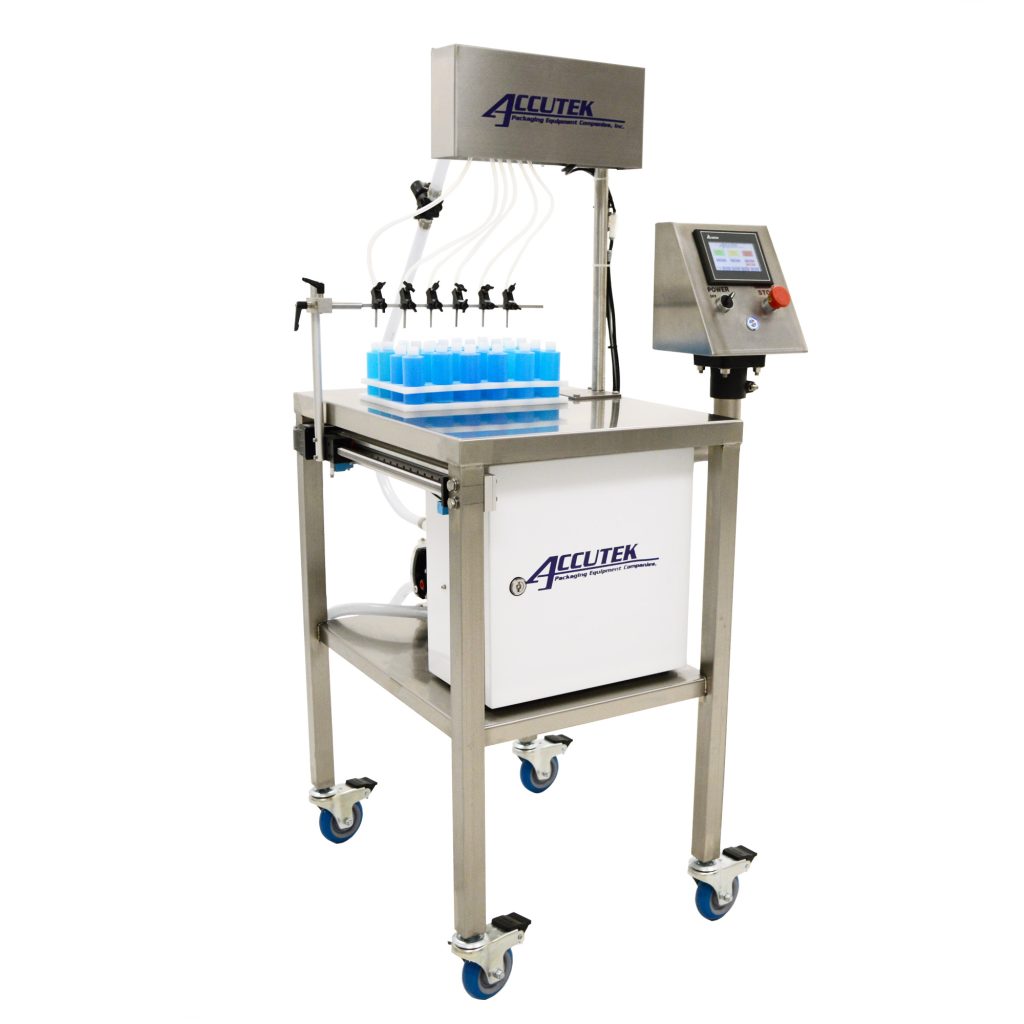

The Indexing Mini Pinch is a timed-flow filling machine best suited for filling aqueous solutions and thin and light oils. With its six heads, it achieves a fill rate of up to six ounces per second.

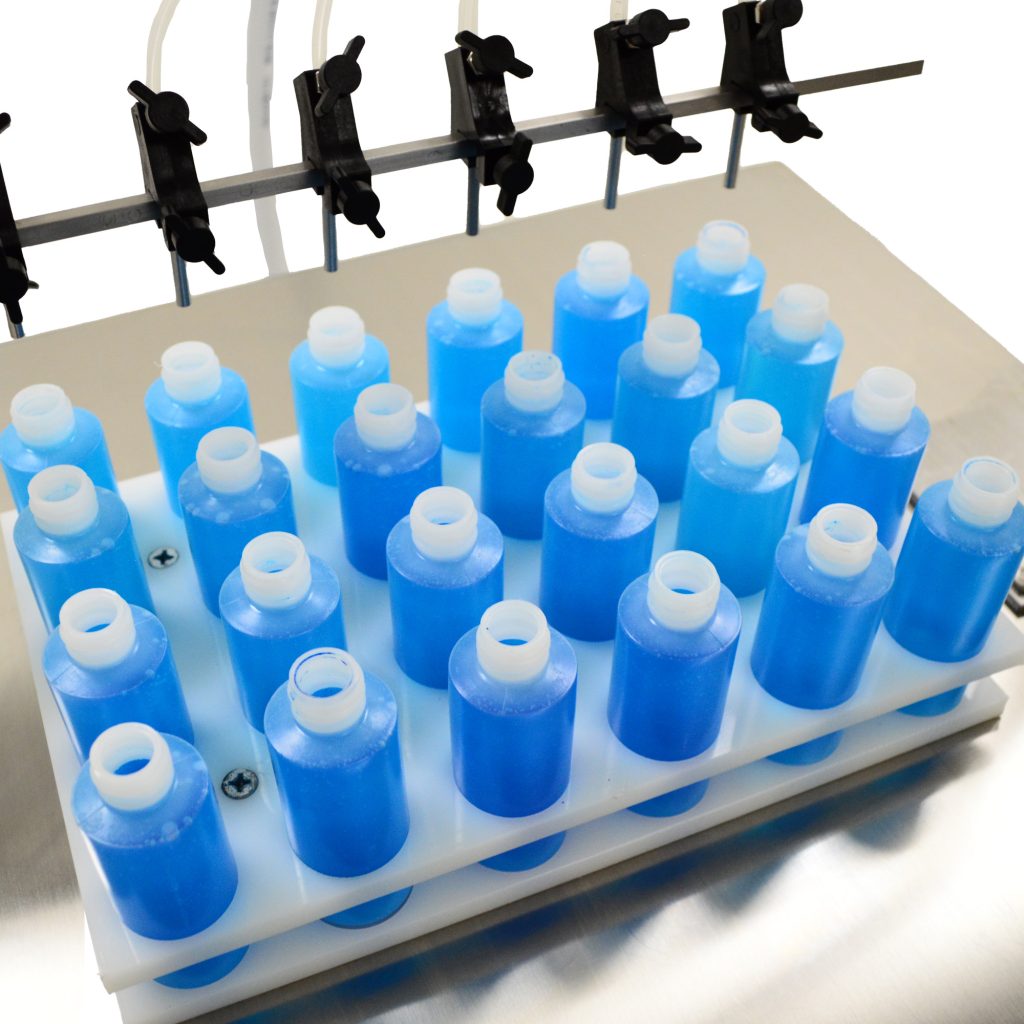

The Auto-Indexing Mini-Pinch is perfect for aqueous solutions and light oils. This six-head timed flow volumetric filler can handle up to six ounces per second. One press of a button fills a tray of bottles, moving from row to row for up to 20 rows. The Mini-Pinch accommodates containers from .17 oz up to 16 oz.

Contact Accutek Packaging Equipment Company, Inc. today to learn more about this filling machine.

Recommended Products

Milk
Tomato juice
Perfumes
Essential oils
Ink
Thin liquid soap
Shampoos
Light makeup removers
Urethane
Silicone
Urine
Alcohol
And more

Standard Specification:

Foamy Product	No
Corrosive Product	Yes
Heated Product	Yes
Viscosity Range	Under 1 – 1000 cP (centipoise)
Electrical	110 VAC – 5 amps (optional: 220 VAC)
Particulates	No
Length	20” (50.8 cm)
Width	26” (66.04 cm)
Height	59” (149.86 cm)

Machine specifications are based on the machine configuration. Any options or modifications may affect these specifications.
