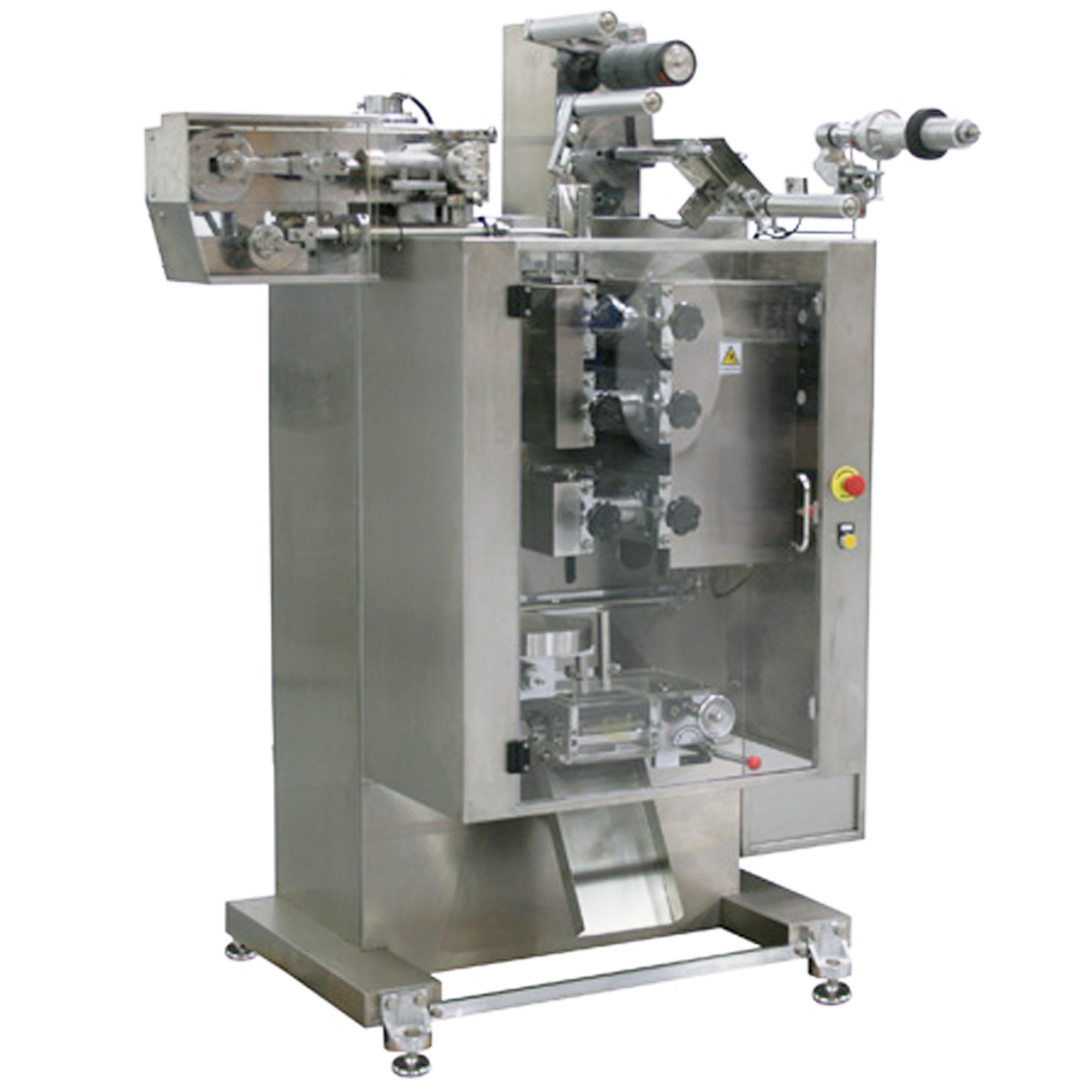

Accu-Pack

Features:

  • Volumetric filling module complete with a hopper, piston, and a dispensing nozzle
  • Side vertical heated sealing module adjustable from 3 cm to 9 cm
  • Top and bottom horizontal heated sealing modules adjustable from 3 cm to 9 cm
  • Cutter module for “easy-rip” open tab and packet separation
  • Advanced touchscreen controls for easy setup and management
  • Heavy-duty sanitary stainless steel construction for years of trouble-free service

Options:

  • Horizontal sealing line dye (checkered or horizontal line)
  • Flex film date coding
  • Extended hoppers and float kits
  • Three seal change part set
  • Powder or granule filling module

The Accu-Pack Series Form, Fill, and Seal machines are ideal for forming, filling, and sealing single-use plastic pouch packages. Each system is constructed of stainless steel and has a color touchscreen interface for easy setup. The Accu-Pack can maintain trouble-free operation at speeds up to 60 CPM.

The packaging process begins when heat-sealable film is pulled into the machine and is positioned to form a pouch. Once in position, the film is sealed on each side and bottom to form the lower part of the packet. This open packet is moved to the filling station, where a metered amount of your product is dispensed. Each packet then advances to the final sealing area for top-end sealing.

Any date/lot code embossing is also completed during the top sealing operation. Once the packet is completely sealed, they receive their “Easy-Rip” open tab and final separation cut. Each Accu-Pack system delivers this process continuously through the work shift, making it a solid addition to any sample packet packaging line.

Contact Accutek today to learn more about this sealing machine.

Standard Specification:

Filling SpeedUp to 60 CPM
Filling Size8-60 mL
Film Width2 – 9 cm
Film Thickness0.04 cm / 110 micron
Electrical220V – 20 amp single-phase
Length57” (144.78 cm)
Depth33.5” (85.09 cm)
Height98.5” (250.19 cm)
Weight990 lbs. / 449.06 kg

Machine specifications are based on the machine configuration. Any options or modifications may affect these specifications.
