106 Fabric Belt Labeler

Features:

  • Auto Label Learn™ (Automatic label setup)
  • Label head dispenses up to 5.75″ (14.61 cm) tall labels

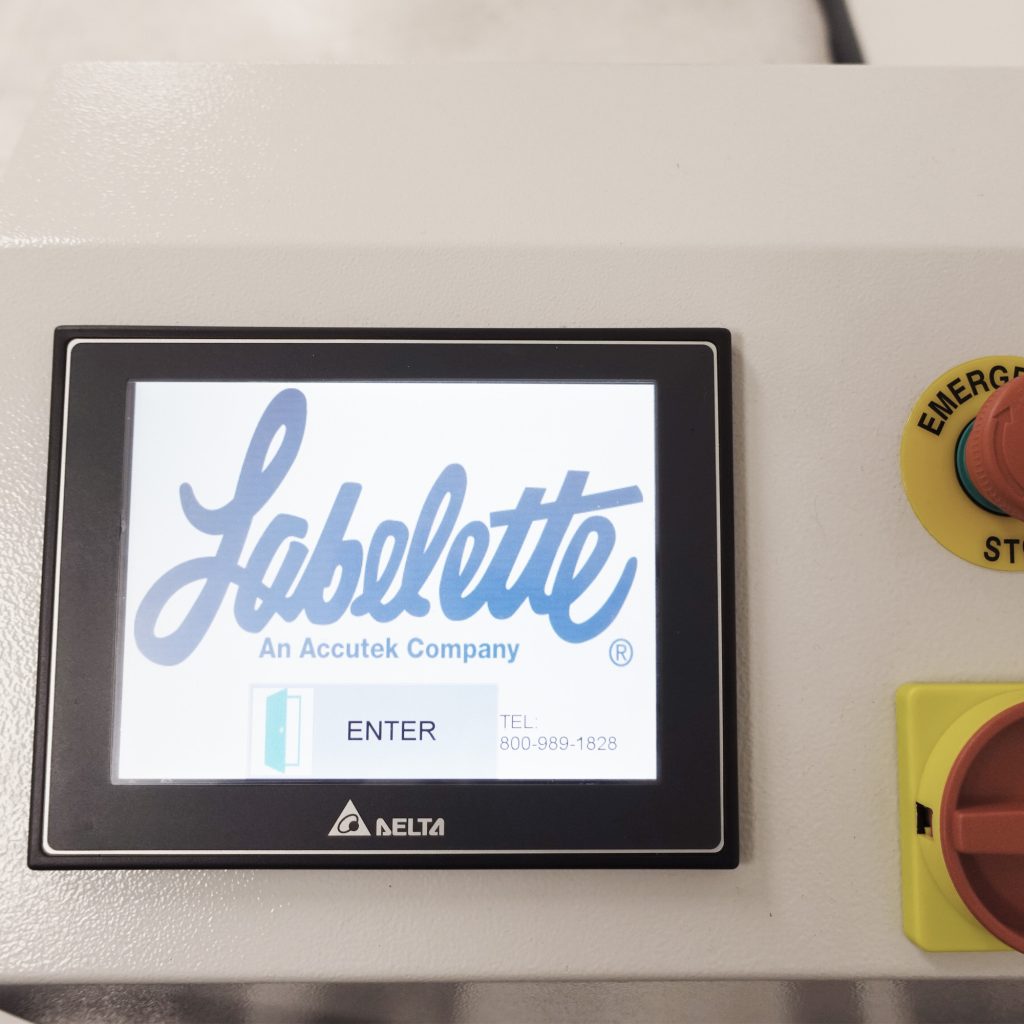

  • Touchscreen control system with job memory
  • Heavy-duty construction for three-shift operations
  • Sanitary stainless-steel frame
  • Easy adjusting hand wheels for quick setup
  • Fully synchronized conveyor/label head, with eight different speed selections
  • Height-adjustable conveyor

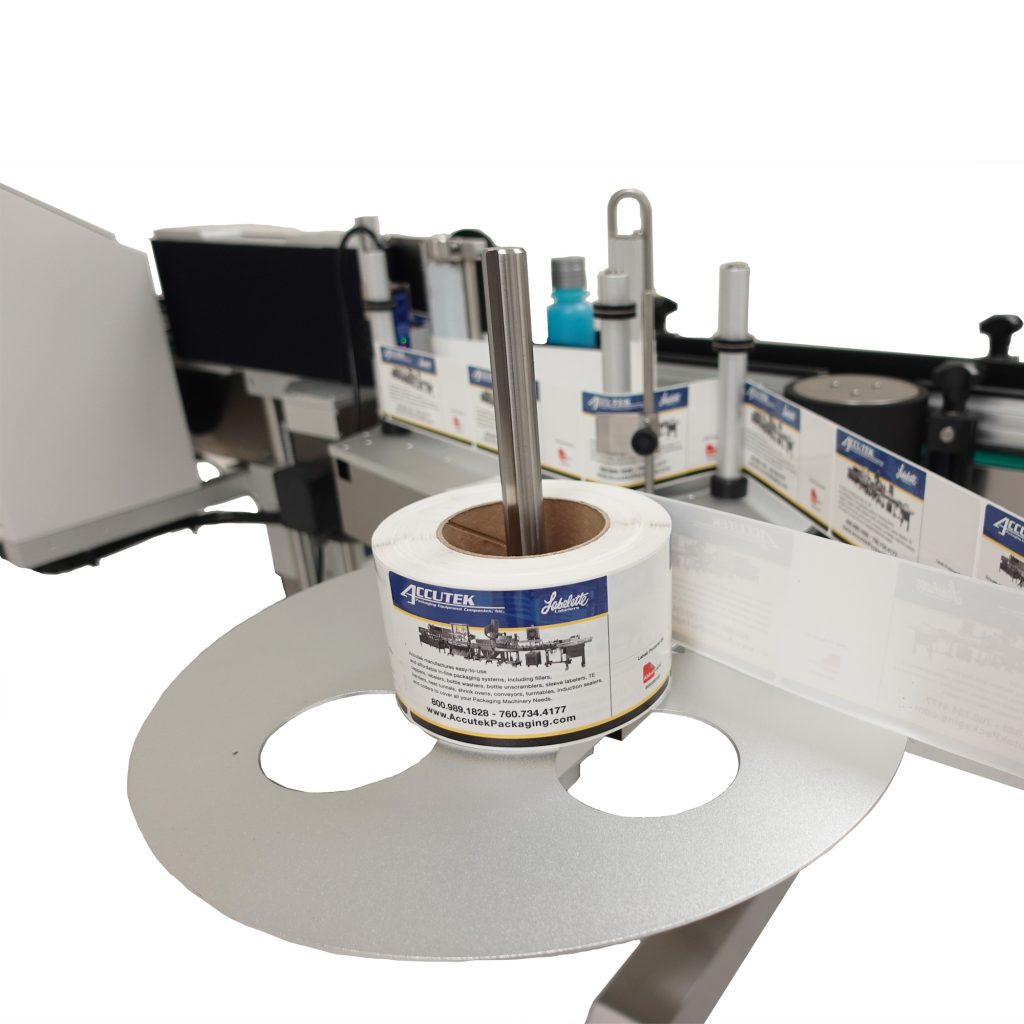

  • Maximum roll diameter of 13.5″ (34.29 cm)

Options:

  • Hot-stamp coder
  • Pneumatic separator
  • Three-roller system (registration and long labels)
  • Clear label sensor
  • Anti-static device

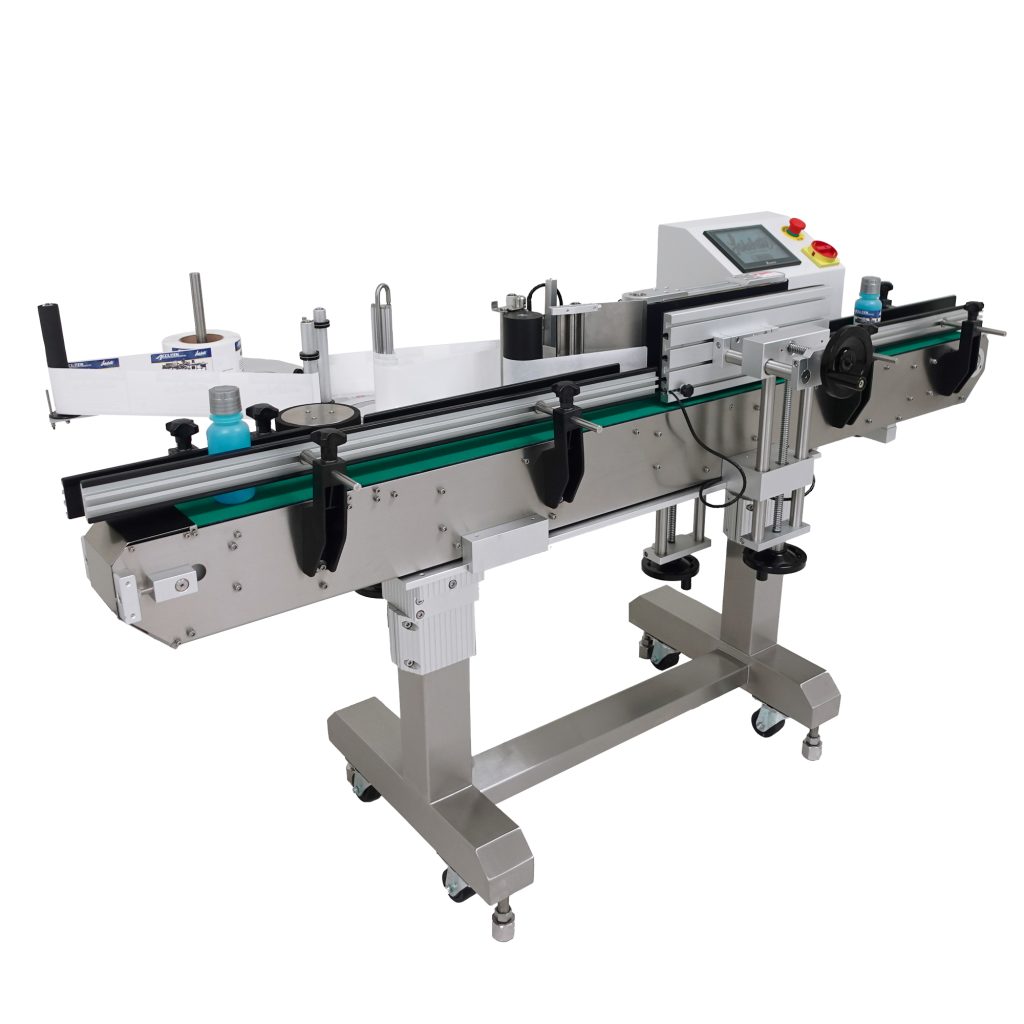

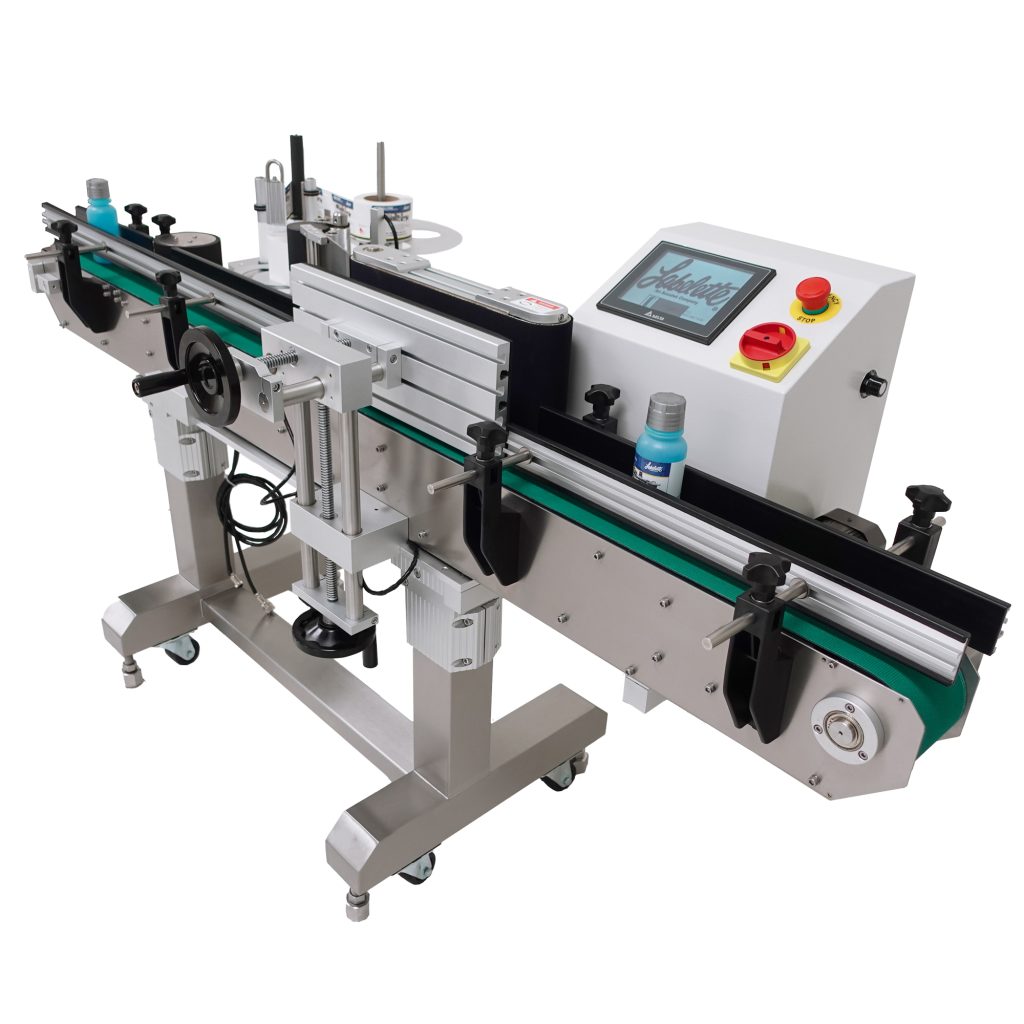

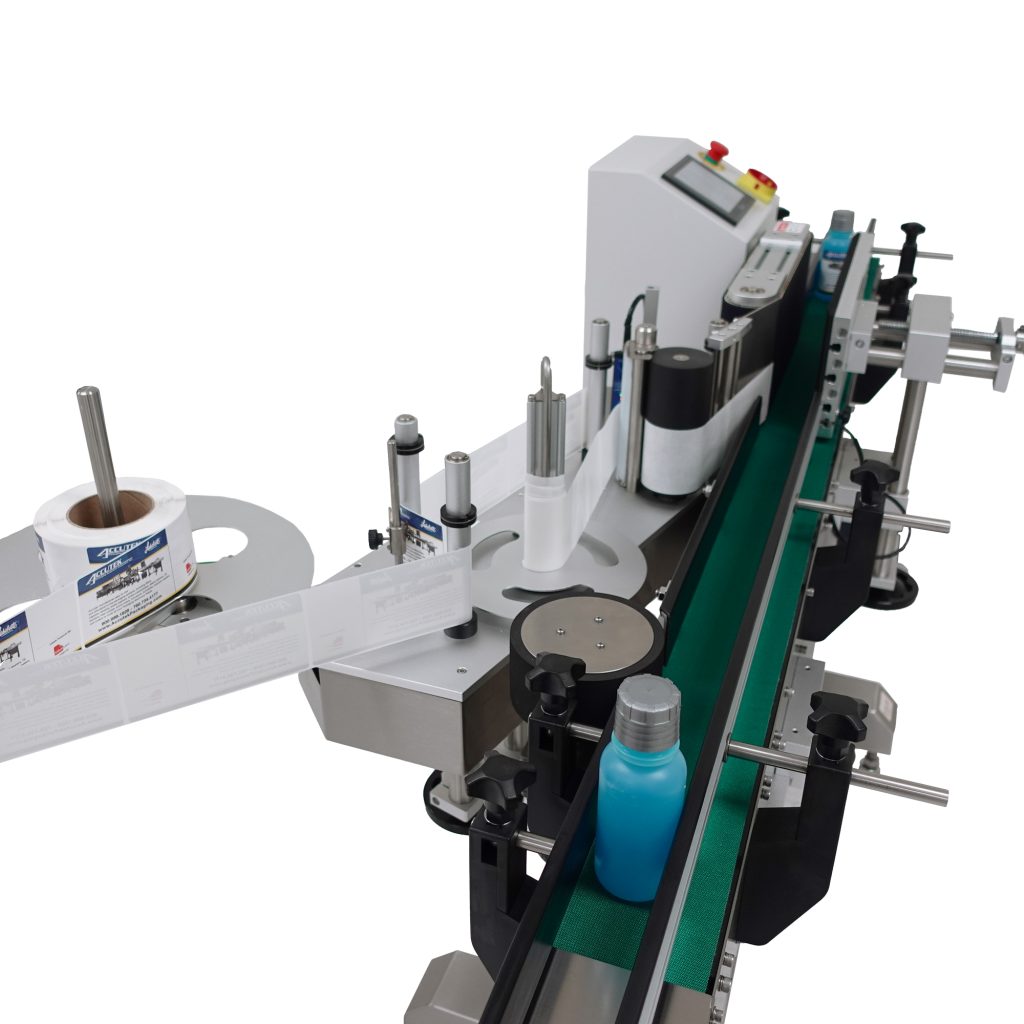

The APS-106 fabric belt labeler is an automatic pressure-sensitive labeler designed for efficiently labeling containers.

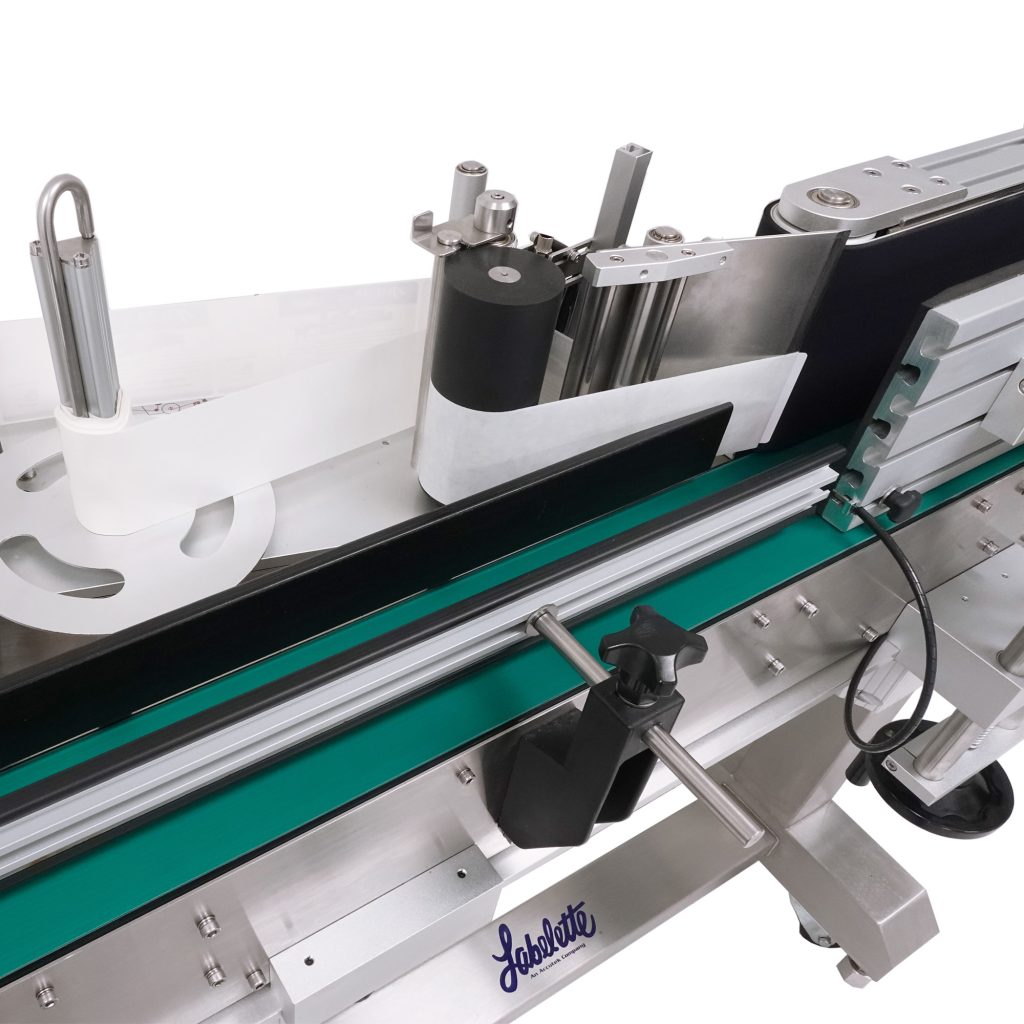

This labeling machine is designed with a fabric belt to assist in labeling containers incompatible with the flexible chain link on the standard APS or PSA series labelers. The fabric belt will not mar or scratch high-gloss cosmetic bottles during labeling.

This APS features a high-torque digital drive system for precise label application, ensuring reliability with low maintenance. A variable-speed conveyor handles speeds up to 175 containers per minute, perfect for high-volume production.

The APS-106 also has a full wrap station, maintaining smooth label application without wrinkles or creases; it also has an accurate non-contact photo-eye detection system.

One of the standout features included here is Labelettes’s Auto Label Learn software. This allows operators to make real-time adjustments to bottle and label settings using touchscreen controls, streamlining changeovers and reducing production downtime.

The labelers accommodate plastic, metal, fiber, and glass containers, offering versatility for diverse packaging needs.

Contact Accutek Packaging Equipment Company, Inc. today to learn more about this machine.

Recommended Products:

  • Beverages
  • Pharmaceuticals
  • Cosmetics
  • Personal care products
  • Cleaning products
  • Cooking oils
  • Sauces
  • Health and beauty products
  • Liquid medicines
  • Chemicals
  • Solvents
  • Ink
  • Pigments
  • Food products
  • Adhesives
  • Glues
  • Pet care products
  • Industrial
  • Automotive fluids
  • Liquid fertilizers
  • Art and craft supplies

Standard Specification:

Labeling SpeedUp to 175 CPM
Label DirectionLeft side off outside peel (counterclockwise)
Base PaperOpaque or translucent
Reel Inner Diameter76 mm (3”)
Reel Outer Diameter375 mm (14.76”)
Interval of Label (between label)Min: 3 mm (1/10” ) or more
Width of Base PaperLabel Width + 4 mm
Width of Label70H Label Head – 10~70 mm
Length of Label1.5 ~ 30 cm (standard)
Electrical Requirements110VAC – 10 AMPS (220 VAC optional)
Height45″ (114.3 cm)
Length72″ (182.88 cm)
Depth41-53″ (104.14-134.62 cm)
Weight527 lbs. (239.04 kg)

Machine specifications are based on the machine configuration. Any options or modifications may affect these specifications.
