Case Packer - Specification Sheet

Product Description

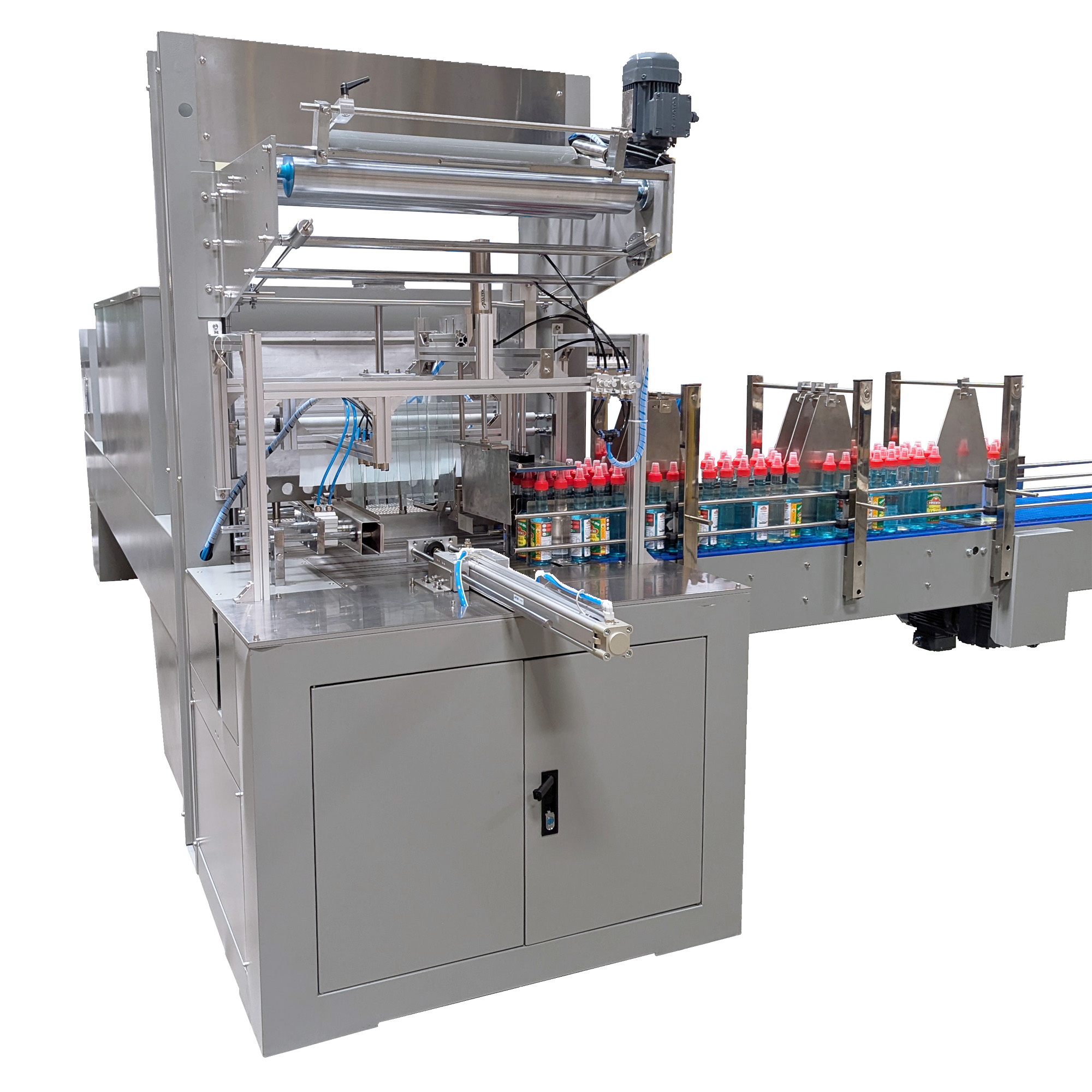

Accutek’s Case Packer is a versatile machine that can be employed independently or in conjunction with other equipment to establish a comprehensive packaging production line. Its capabilities include automatically arranging, aggregating, and aligning PET beverage bottles or similar articles. The machine packages these items with shrinking film, leading to the production of finished goods through a process involving heating, cooling, and forming. The resulting packaged products exhibit a secure binding and an aesthetically pleasing appearance, offering easy accessibility. Contact Accutek today to learn more about this machine. Recommended Products

Bottles

Features

HMI interface
Automatic temperature control
Conveyor controls
Isothermal sealing cutter
Stable operation with guide bar cylinder
Programmable logic controller

Standard Specifications

Operating Voltage: Three-phase five-line system, 380V/50～60Hz
Working Pressure: 0.6～0.8Mpa

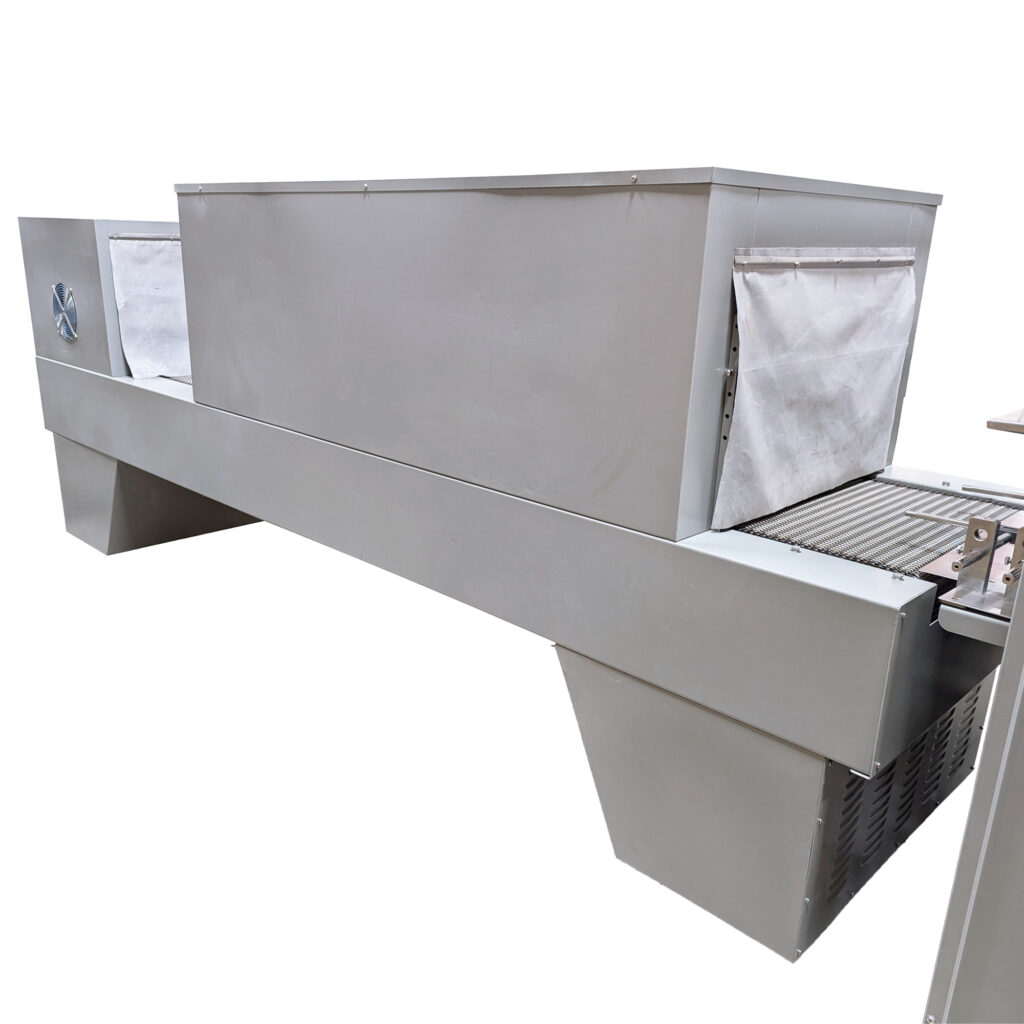

Shrinking Room Dimensions: L×W×H=1800×650×450(mm)
Packaging Efficiency: Up to 12 packs per minute
Sealing and cutting temperature: 140℃～160℃
Shrinking temperature: 200℃～280℃
Package Material: PEFilm Roll Specifications:
- Width: ≤580 mm
- Thickness: 0.06～0.12 mm
- Diameter: ≤400 mm
Working Noise: ≤65dB
Total Power: 22KW
- Product conveying motors: 1400r/min, 370W, 2pcs
- Motor for conveying finished product: 1400r/min, 370W, 1pc
- Roll-laying motors for upper and lower film: 1400r/min, 90W, 2pcs
- Cooling motor: 1400r/min, 65W, 6pcs
- Drying oven motor: 1400r/min, 750W, 2pcs
- Heating pipe for sealing and cutting: 700W, 1pc
- Heating pipe for drying oven:
  - Maximum working power: 21kw/220V, 1.8kw/pc
  - Normal working power: 15kw/220V, 1.8kw/pc
Total Weight: 1500kg
Boundary Dimensions:
- Length: 216.5” (550 cm)
- Width: ~126” (320 cm)
- Height: ~82.68” (210 cm)
Electrical Requirements: 220 V-3 Phase

Frequently Asked Questions

What are the case packer’s key functions?

This machine’s key functions include:

Product conveying
Aggregating and aligning
Laying rolls of film
And pressing bottles

What happens if the case packer isn’t working as intended?

The manual contains a thorough troubleshooting section that will tell you what to do in the event of a major malfunction. It will identify the malfunction, its possible cause, and how to remedy it. But if the suggested solutions don’t work or you don’t find your problem listed, make sure to reach out to Accutek’s service department so we can help you out.
