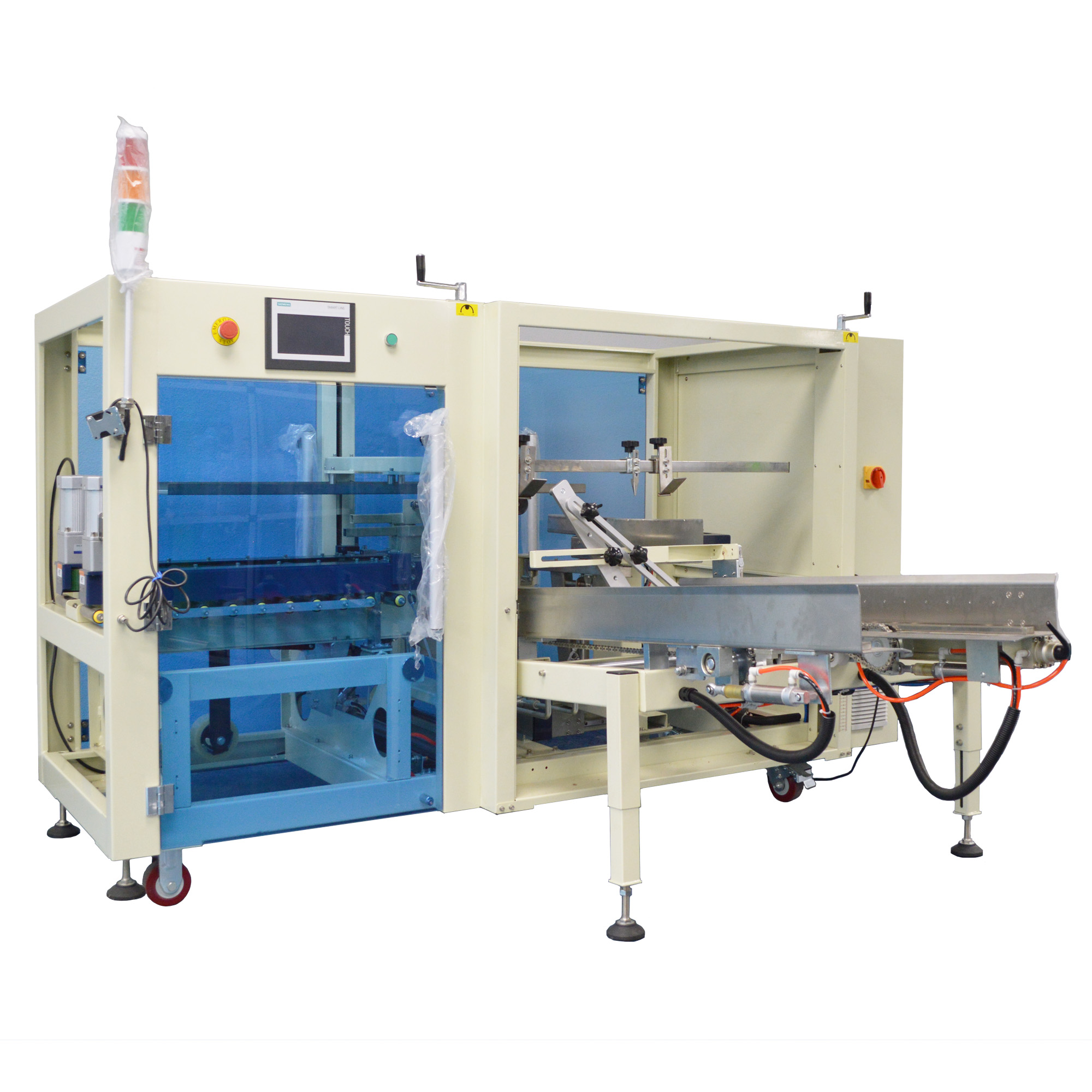

Case Erector - Specification Sheet

Product Description

Accutek’s Case Erector automatically forms cartons for use. An investment in this machine can pay off in the short term by reducing labor costs and improving productivity. It takes a flat cardboard loaded in a stack and forms it, with the top left area open to place products inside. It can form boxes from 20~50 cm in length, 20~46 cm in width, and 20~40 cm in height. This machine can make 6-10 cartons/min. It uses tape that is 1.88” wide, or 2.36”-2.95” in width, and 39.37” in length. Contact Accutek today to learn more about this machine. Disclaimer: The dimensions and weights are estimates of the standard equipment. Any customizations or modifications made to the machine may alter this information. Recommended Products

Boxes
Cases

Standard Specifications

Sealing Speed: 6-18 cartons/min
Power Source: 110V/50/60HZ
Air: 6-7kgf/cm, flow rate 40 nl/min
Use Tape:
- Width: 48 mm-75 mm
- Length: 1000 mm
Machine Dimensions:
- Length: 82.67” (210 cm)
- Width: 78.74” (200 cm)
- Height: 55.11” (140 cm)
Weight: 771.62 lbs (350 kg)
Carton Dimensions:
- Length: 7.87”~19.68” (20~50 cm)
- Width: 7.87”~18.11” (20~46 cm)
- Height: 7.87”~15.74” (20~40 cm)
Table Height: 23.62” (60 cm)

Frequently Asked Questions

How is this machine controlled?

The case erector is equipped with a basic touchscreen.

Is the touchscreen interface easy to use?

Yes, the touchscreen is simple to operate. It may not be immediately obvious what the functions of some buttons are, but the manual will lay everything out for you in easily understandable language.

What should I do if the machine malfunctions?

In the case of a malfunction, contact Accutek’s service department so we can troubleshoot the problem.
