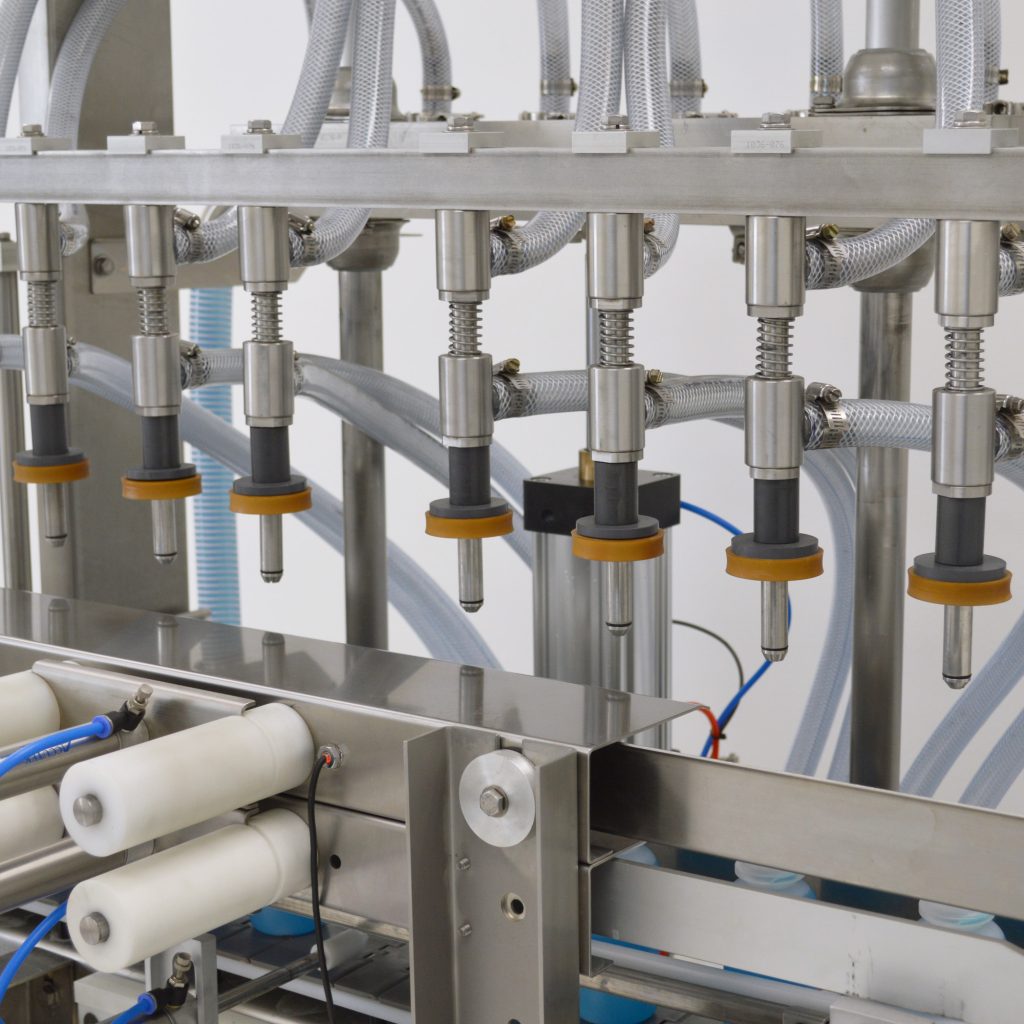

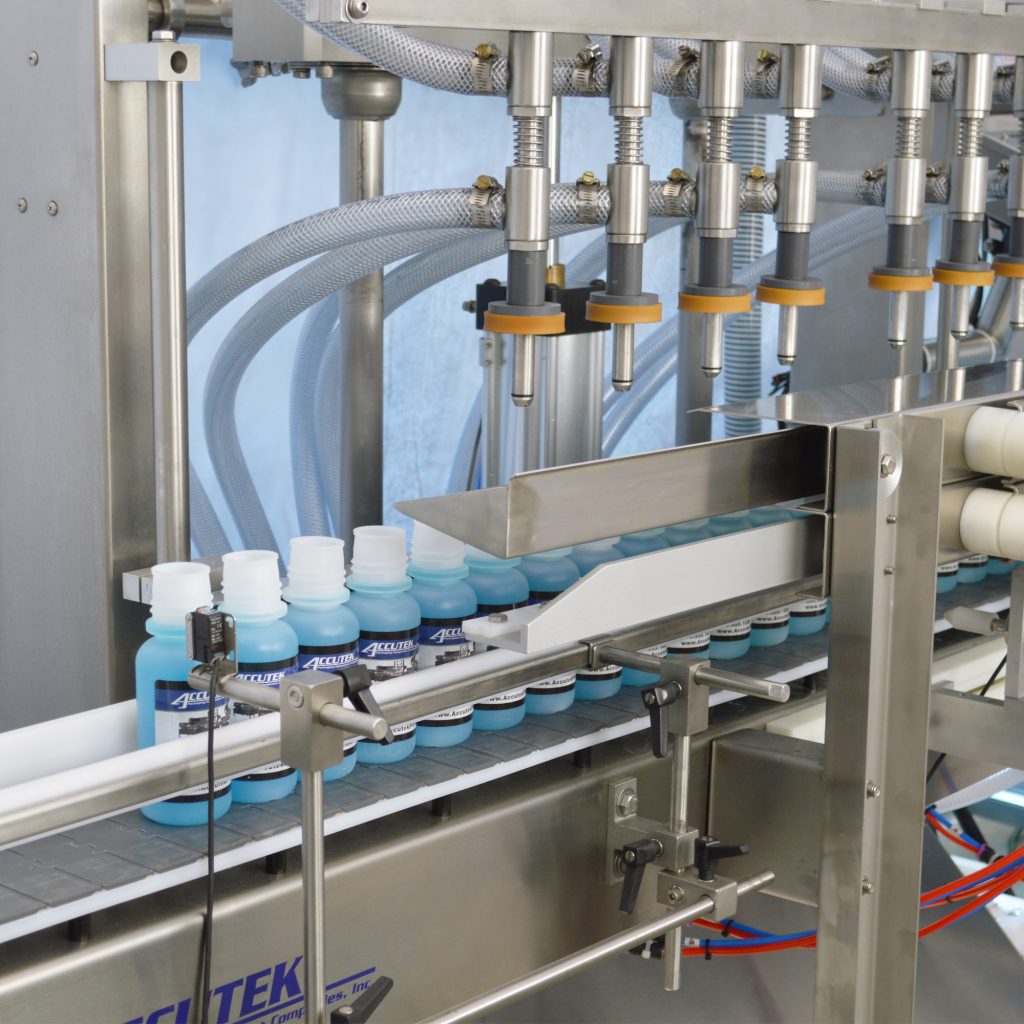

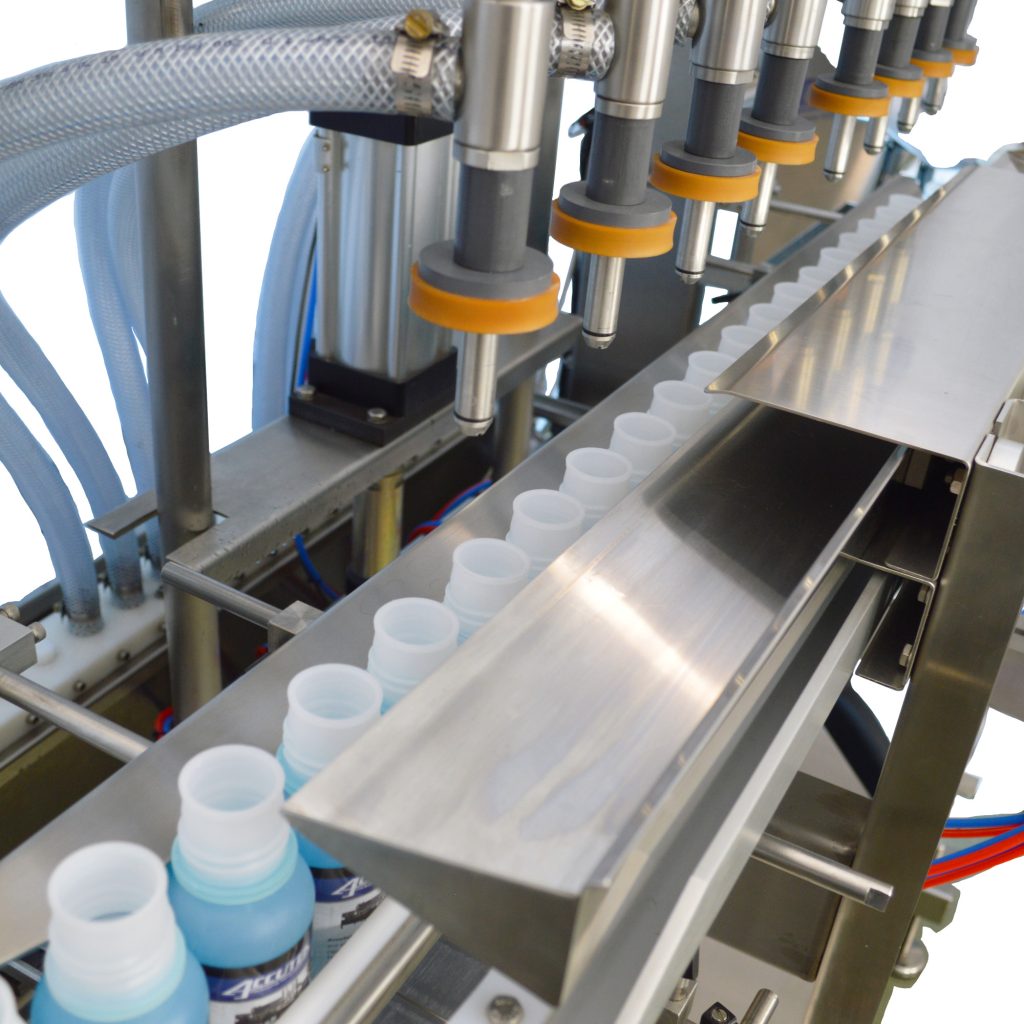

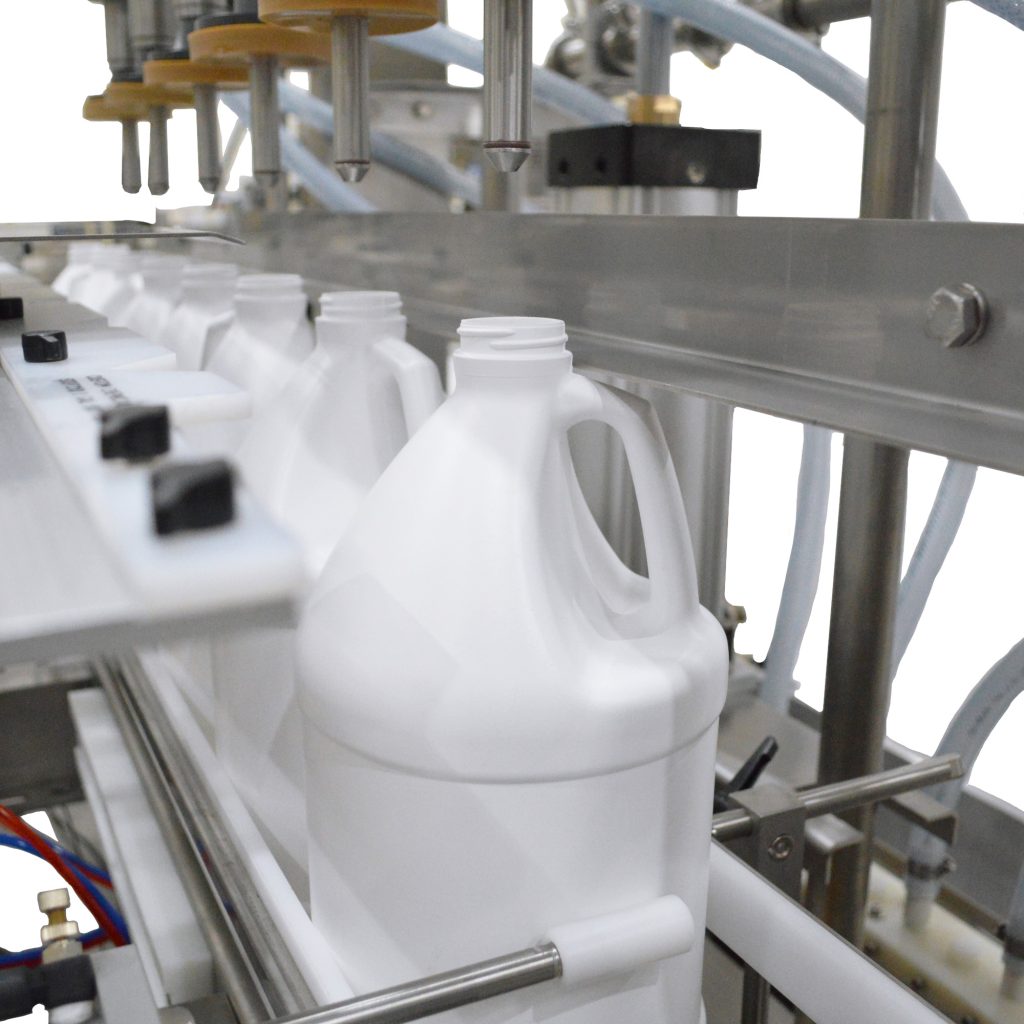

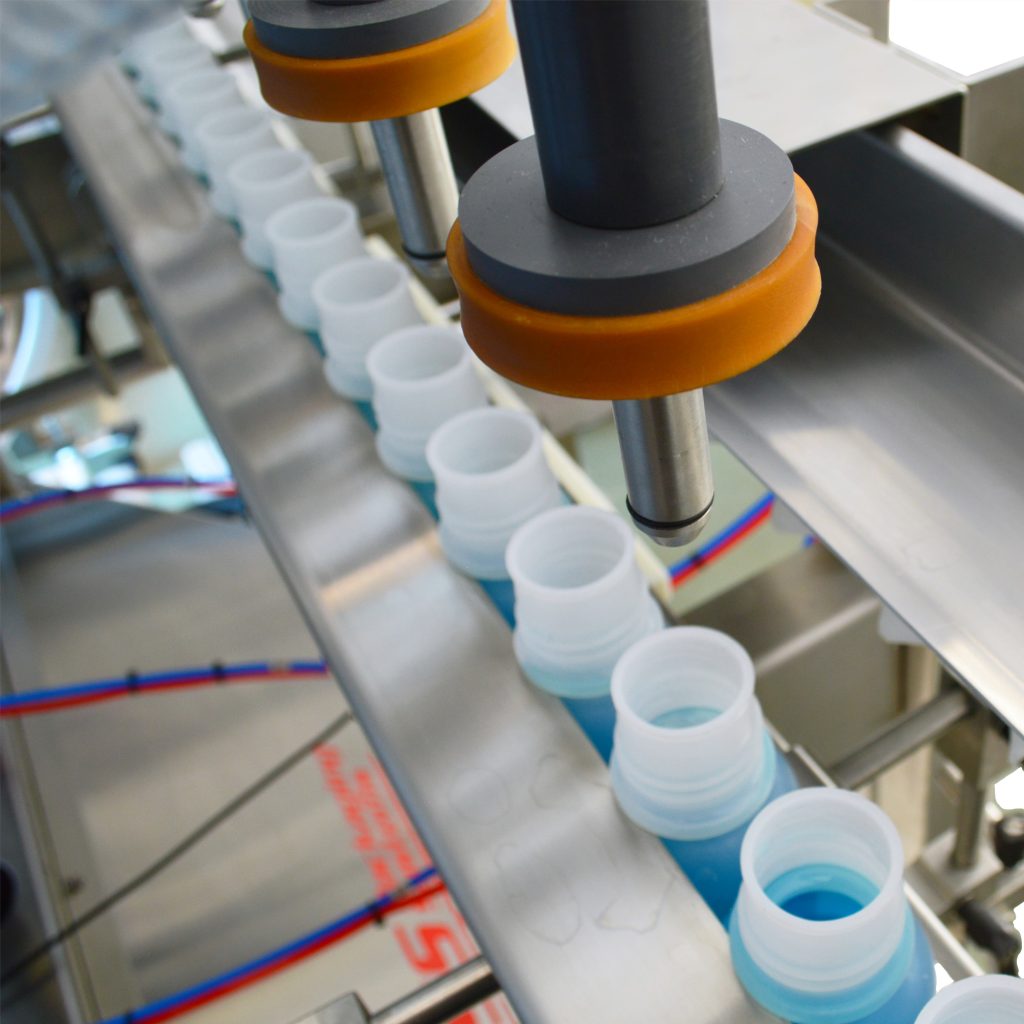

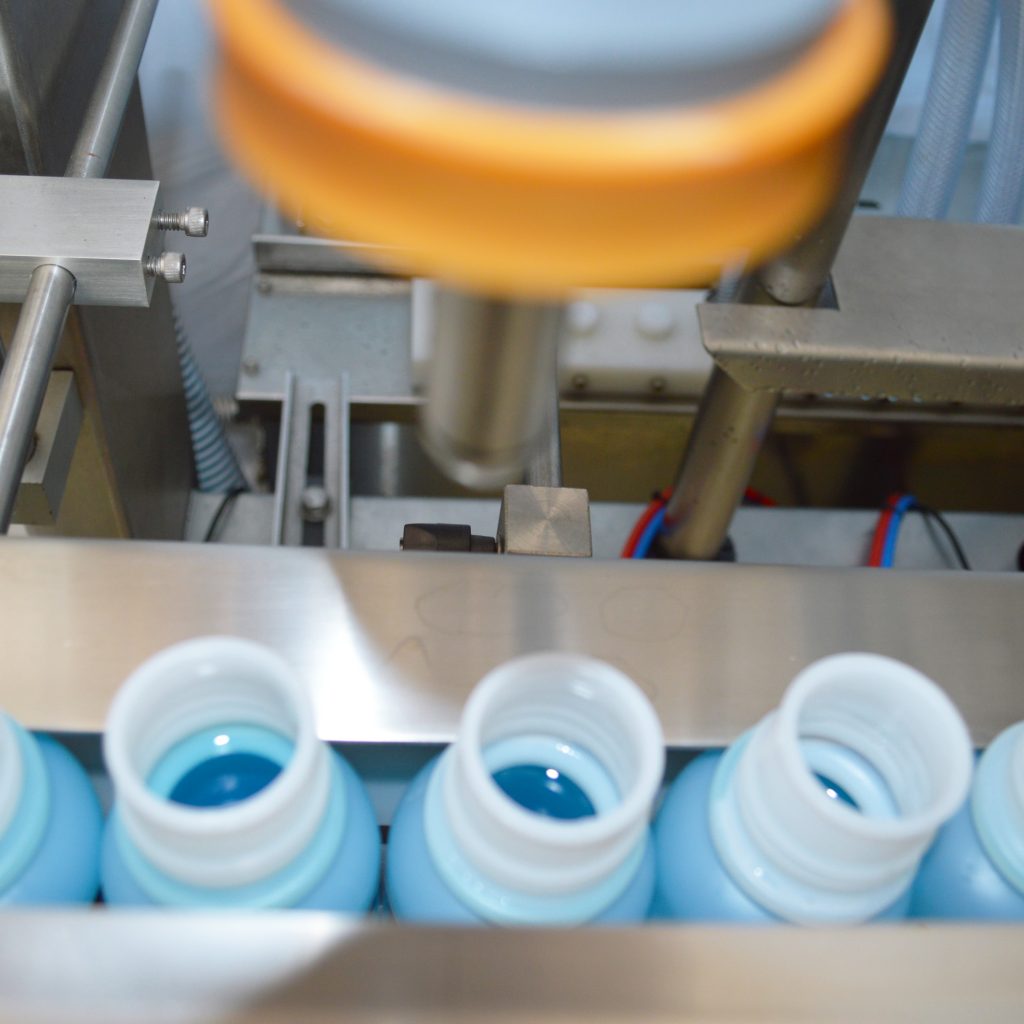

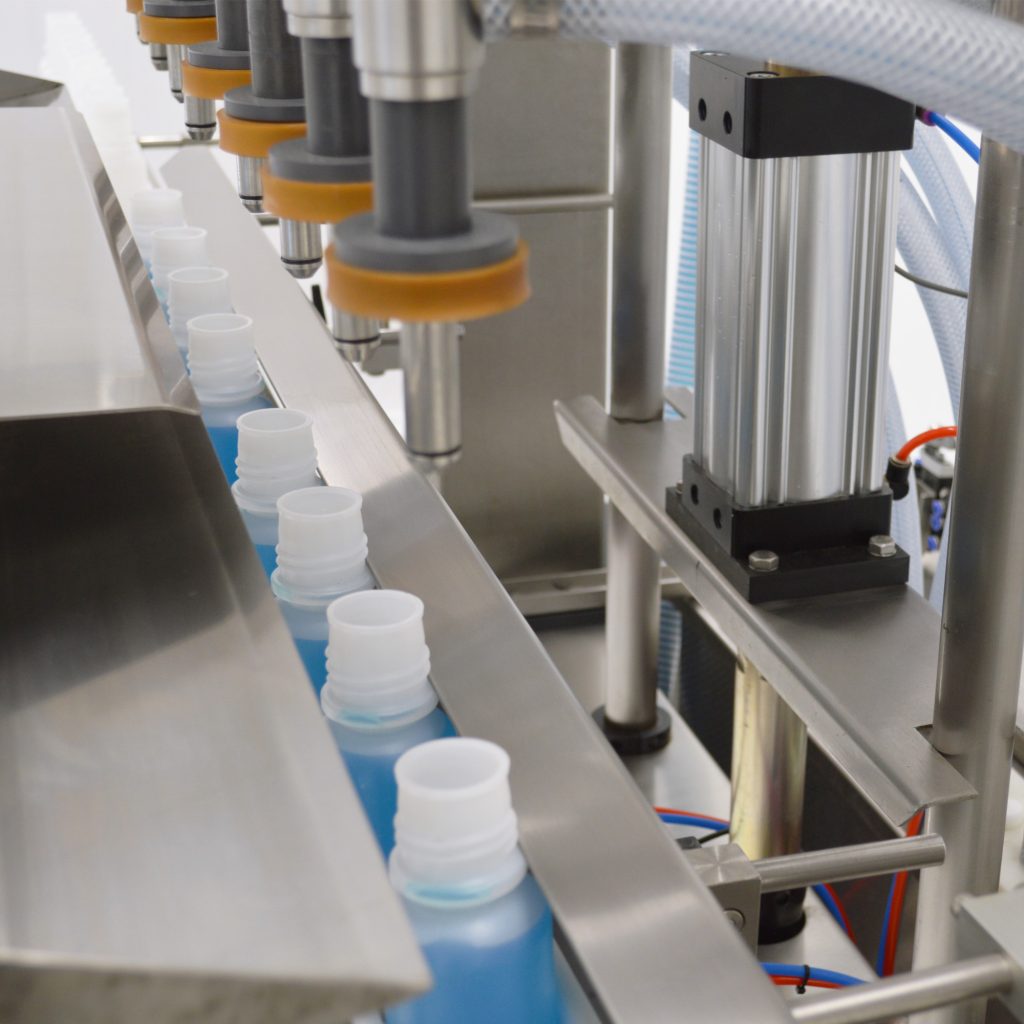

APOF Series – Automatic Pressure Overflow Filler

Features:

No drip nozzles
Various pump options
Recovers overflow product
Pneumatic operation
Diving head
Rugged stainless-steel frame

Options:

Buffer tank with stainless-steel valve
Container neck locator
Drip tray
Stainless steel or Hastelloy nozzles
Product contact part material options
Star wheel indexing
Safety enclosures
Bottom-up fill nozzles for foam control
High-temperature upgrades

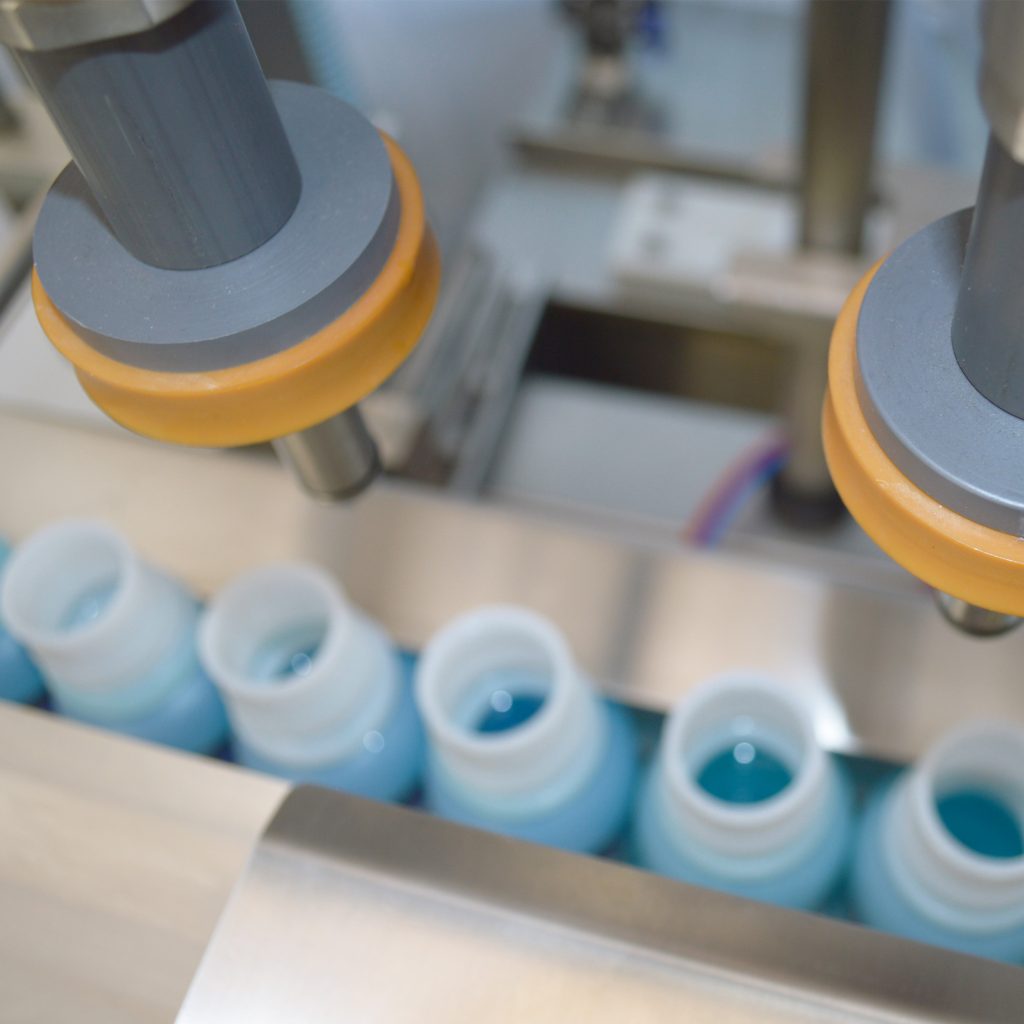

Automatic pressure overflow fillers (APOF) best suit low to medium-viscosity (200 cP) liquids. The precision-engineered overflow nozzles guarantee that every container is filled to the same visual level. Boutique products, personal care, and food products must present the same visual fill level when arranged on a shelf together. Automatic pressure overflow filling machines are an economical and reliable solution to address that problem.

In addition, the pneumatic automatic pressure overflow fillers safely handle flammable liquids, such as acetone and light paints. These machines have diving head nozzles that reduce foam, drips, and fumes. APOF series fillers are available in 6, 8, 10, and 12-head configurations. Accutek also offers high-speed rotary APOF machines.

The stainless-steel contact parts can be autoclaved to meet sanitation requirements. The versatility and accuracy of this series of machines make them a solid addition to any production environment.

Contact Accutek today to learn more about the machines in this series.

Recommended Products

Bottled water
Food coloring
Vegetable oil
Liquid cleaners
Petroleum oils
Ink
Light makeup remover
Alcohol
Bleach
Brine
And many more

Standard Specification:

Speed	Up to 120 CPM
Fill Size	2 – 169.07 oz (59.15 mL – 5 L)
Viscosity Range	200 cP
Foamy Product	Yes
Corrosive Product	Yes
Heated Product	Yes
Particulates	No
Electrical Requirements	110 or 140 VAC, Single-phase, 60 Hertz (220 VAC available)
Air Requirements	100 PSI, 5 – 10 CFM
Height	78” (198.12 cm)
Length	120” (304.8 cm)
Width	56” (142.24 cm)
Weight	1100 lbs. (498.95 kg)

Machine specifications are based on the machine configuration. Any options or modifications may affect these specifications.
