Overflow (Level) Filling Machines

What Overflow Filling Machines Do

An overflow filler works by filling the container until the liquid reaches a set level, then returning excess product back to the reservoir. This allows the system to produce a consistent visual fill height, even if small variations exist in bottle geometry or internal capacity. Overflow machines can ensure each container reaches the same level, even when internal volume varies slightly.

This filling method is commonly selected for:

• Sauces
• Syrups
• Light gels
• Shampoos
• Foamy cleansers
• Chemicals
• Water
• Fruit juice
• Wine
• Tea
• Other non-carbonated aqueous beverages

These machines are designed to handle rigid plastic, metal, and glass containers.

Overflow Filling Machine Configurations

Accutek’s own overflow filling machines include semi-automatic, automatic, and rotary systems. Let’s take a look at some of them.

Semi-Automatic Overflow Fillers

The SAPOF is Accutek’s semi-automatic pressure overflow filler. It is well-suited for low- to medium-viscosity liquids and for products that foam.

This machine is a strong fit for:

• Smaller production runs
• Manual or semi-automatic packaging environments
• Products requiring level-fill presentation
• Operations that need overflow filling without a fully automatic line

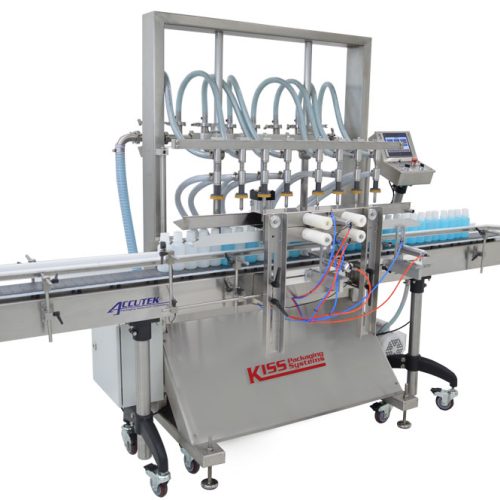

Automatic Overflow Fillers

The APOF Series is Accutek’s automatic pressure overflow filler platform. It is best suited for low- to medium-viscosity liquids up to about 200 cps, and its overflow nozzles are designed to ensure every container is filled to the same visual level.

Automatic overflow systems are commonly selected when manufacturers need:

• Inline automation
• More stable throughput
• Consistent bottle indexing
• Higher repeatability in multi-container runs

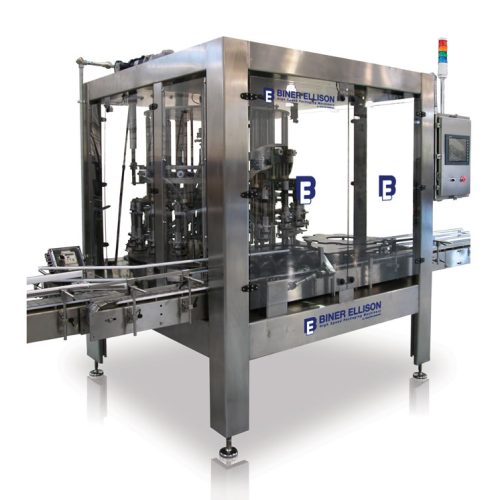

Rotary Overflow Fillers

At the higher-output end of the category are the rotary overflow fillers. These machines are fast, accurate systems for free-flowing, non-carbonated liquids. They’re meant for foods, beverages, cosmetics, chemicals, and similar applications.

Rotary overflow systems are best suited for:

• Higher-speed production lines
• Continuous-motion bottling operations
• Facilities prioritizing throughput
• Large-volume packaging environments

Core Engineering Strengths

Overflow filling machines are selected not only because they fill fast, but because they can create a highly consistent visual result. They have several advantages, including:

• Accurate and consistent filling
• Minimal product loss
• Gentle handling of fragile products
• Suitability for non-uniform containers
• Easy integration into existing production lines
• Quick and easy cleaning
• Advanced control systems
• Cost-effective operation

This design approach helps reduce:

• Uneven (visible) fill levels
• Overfill and underfill risk
• Product loss during filling
• Downtime during cleaning
• Integration challenges in existing lines

Excess product is returned to the reservoir, which contributes to efficient filling and reduced waste.

Best Product Fit

Overflow filling technology is especially effective when appearance, level consistency, and gentle handling are more important than strict volumetric matching across bottles with slight dimensional variation.

This filling method is usually a strong fit for:

• Free-flowing liquids
• Low- to medium-viscosity products
• Light foamy products
• Non-carbonated beverages
• Personal care liquids
• Cleanser and chemical products

It is commonly used in industries such as:

• Food and beverage
• Cosmetics and personal care
• Chemical packaging
• Household product manufacturing

Overflow Filling Machine Overview

Integration Within a Packaging Line

Overflow filling machines perform best when integrated with properly matched upstream and downstream equipment.

A typical packaging line may include:

1. Container infeed and spacing
2. Overflow level filling
3. Cap placement and capping
4. Label application
5. Inspection or coding
6. Outfeed accumulation

Accutek’s own overflow filling machines are designed for easy integration into existing production lines and can be configured to match specific requirements.

When line integration is engineered correctly, manufacturers gain:

• Better speed matching
• More stable bottle flow
• Reduced back-pressure
• Cleaner handoff to capping and labeling
• More predictable production output

Frequently Asked Questions

What is an overflow filling machine?

An overflow filling machine fills containers to a consistent visible level by allowing excess product to return to the reservoir after the target fill height is reached.

What products are best suited for overflow filling?

Overflow fillers are best suited for low- to medium-viscosity liquids, especially free-flowing and foamy products such as shampoos, syrups, juices, cleansers, and other non-carbonated liquids.

Why choose an overflow filler instead of another liquid filler?

The main advantage is visual consistency. Overflow fillers are designed to ensure each container appears filled to the same level, even when internal bottle volume varies slightly.

Are overflow fillers good for foamy products?

Yes. Overflow filling machines are ideal for filling foamy products at higher speeds.

Can overflow filling machines be integrated into automated lines?

Yes. These machines are designed for easy integration into existing production lines, and the category includes both automatic and rotary systems for higher-throughput environments.

Want to learn more about this type of equipment? Give Accutek Packaging a call and we’ll answer all of your questions; not only about filler machines, but about entire liquid filling systems and other packaging equipment.
