vibratory net weight filling machine

Vibratory Weigh Filler

Product Variants

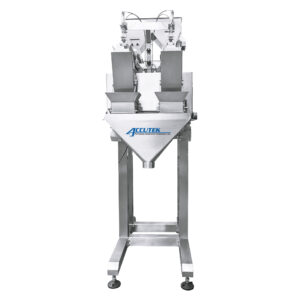

AccuWeight Belt-Fed Weight Filler

AccuWeight Belt-Fed Weight Filler

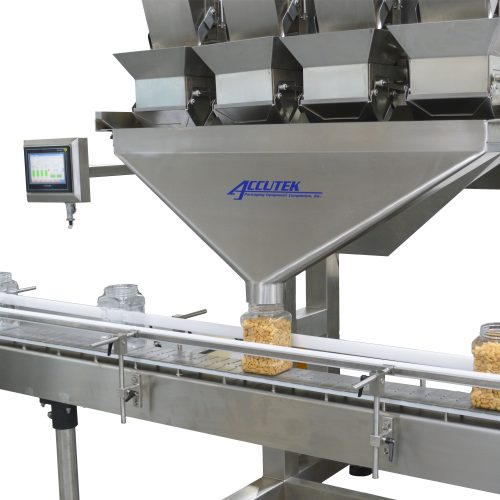

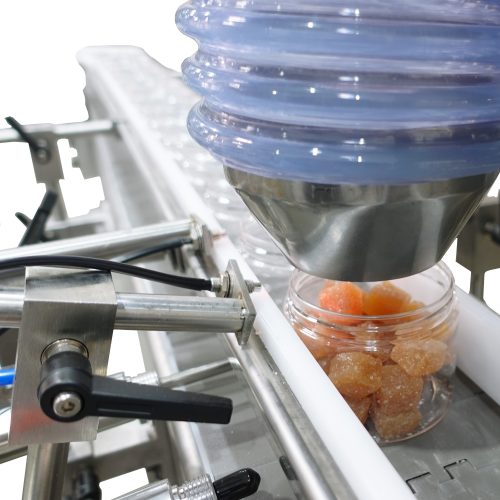

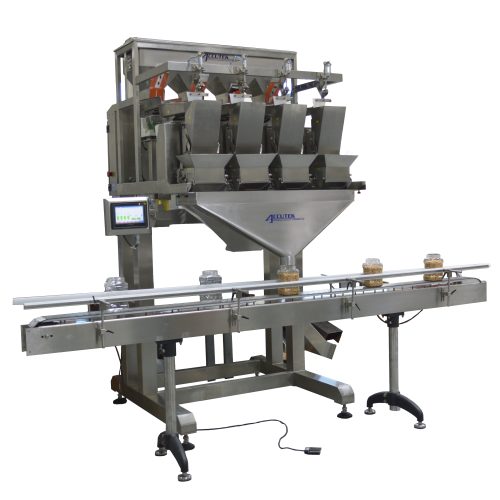

The Vibratory Weight Filler is an automatic granular product weight-filling machine. It can be ordered with two filling channels that funnel into a single fill head, or four filling channels that funnel into two filling heads.

An upper- and lower-level vibrator feeds each weighing station. The upper vibrator draws product from the storage hopper. The lower-level vibrator smooths the product flow, maximizing machine accuracy. The vibrating delivery channels that feed product to the load cells avoid damage normally encountered with feed screw or auger systems.

Accutek vibratory fillers are the ideal solution for dry granular products that require precision weighing. Contact Accutek today to learn more about how the vibratory weight filler can boost your production cycle.

Recommended Products

Dry, granular products

Are the touchscreen controls difficult to use?

Yes. While it may not be obvious at first glance what buttons on the PLC do what, the manual goes over in detail how to navigate the PLC and use it to fill your containers with product.

What will the manual for this product cover?

The manual goes over the machine’s specifications, setting the machine up, how to perform a test run, and calibrating the machine. If there’s anything in the machine you’re confused about or need assistance with, feel free to call Accutek and ask any questions you might have.

How often will I need to clean and maintain a weigh filler?

That will depend on how often you use the machine and what product you use it for. We recommend cleaning any parts that contact your product—like your conveyor belt and weigh hoppers—on a daily basis. The joints of each hopper need to be lubricated with food-grade oil once a week, and the inside of the actuator needs to have the dust cleaned out once every two months.

What should I do if I have any issues with my machine?

If you have any problems with your vibratory weigh filler, then we recommend contacting Accutek’s service department. We’ll do our best to help you troubleshoot your problem.

Hopper volume: 101.44 oz (3 L)
Weight range: .35 oz – 6.61 lbs (10 g – 3 kg)
Speed: 30 BPM
Accuracy: ± 0.2-2g
Max. Mix product: 4
Preset Parameter: 10
Weigh Hopper: 8
Weight Hopper Open: Upper — Motor Control, Downer — Cylinder Control
Power Requirement: 220V 50Hz Single-phase
Power: 0.8 KW
Temperature/Moisture: -10 to 40℃ 35 to 85%
Machine Weight: 771.62 lbs (350 kg)
Width: 61″ (154.94 cm)
Length: 63″ (160.02 cm)
Height: 102″ (259.08 cm)
Other: Without other high-power motive equipment around, keep away from sunshine, high temperatures, and wind.

Both semi-auto or automatic functioning

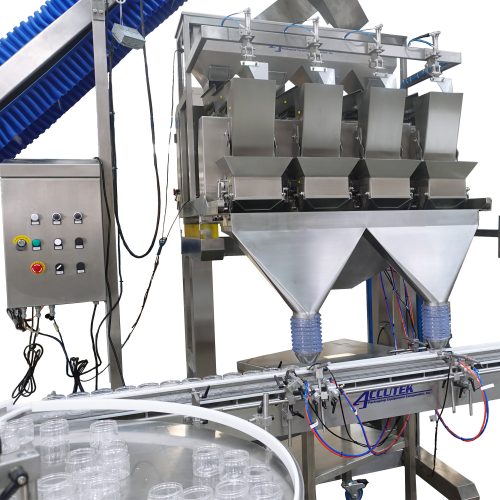

Four weighing stations feeding two nozzles or two weighing stations feeding a single nozzle
Toolless sanitary contact parts
PLC touchscreen controls
Stainless-steel contact parts
99 job recipes
One product hopper per nozzle comes installed on the machine

Bulk loading options
