How exactly does the machine work?

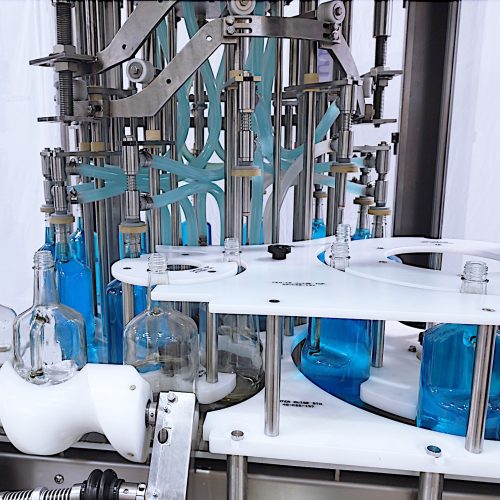

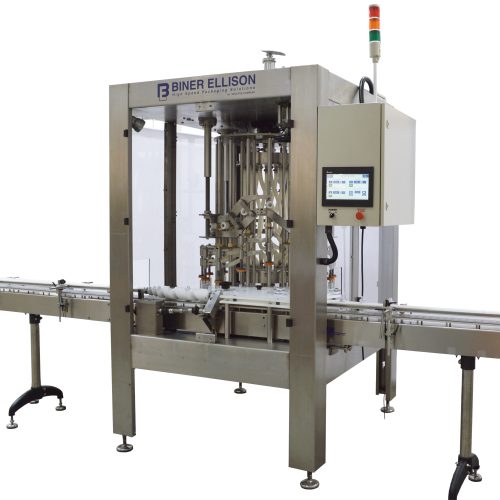

Containers enter the machine from the left, and as the turret rotates, each platform raises its container so a nozzle can enter it. The machine will fill the container with product and release it through the other side of the machine via the conveyor, on the right. Then the container can move on to a capper or labeler.

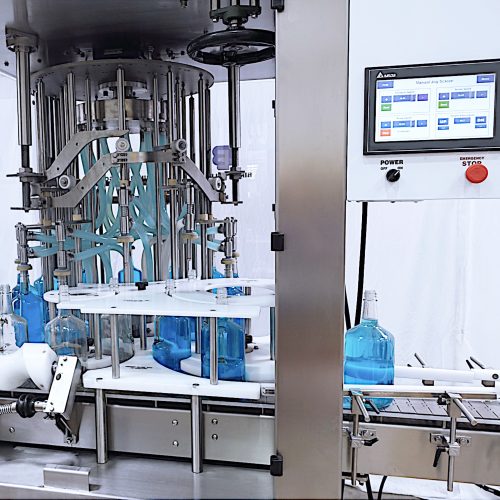

Is the touchscreen difficult to use?

Nope, it’s straightforward to use. While the functions of some particular buttons may not be immediately clear, the manual will give you a simplified rundown of how to navigate the interface so you can easily operate your RVF.

Will I need Accutek’s assistance with performing a parts changeover?

The manual has a thorough guide on how you can perform this process yourself. But you’re welcome to contact us if you have any questions or need any assistance with changing out parts like the infeed or discharge stars.

How often do I need to lubricate the ball bearings?

That depends on how fast you configure the machine to work. For instance, if you operate the ROF at only 7 to 8 rotations per minute, you’ll only need to lubricate it once every 6 to 12 months. But if you operate it at the maximum speed—1500 rotations per minute—then it’s best to lubricate it once per day at most, or once per every two weeks at the least.

Are there any other parts that I’ll need to maintain?

Yes; we recommend servicing the gland hub so you can prevent it from leaking. Also, if this hub is incorrectly installed, it can get damaged. In this case, we insist that you call us instead of performing any maintenance yourself.

• Foamy Product: Yes
• Corrosive Product: Yes
• Heated Product: Yes
• Particulates: No
• Fill Size: 1 oz – 1.3 gallons (30 mL – 5 L)
• Viscosity Range: 1 – 2000 cP
• Electrical Requirements: 120/240 VAC, 3-phase, 60 Hz (optional 220/240 VAC, 3-phase)
• Air Requirements: 100 PSI @ 5-10 CFM
• Height: 89” (226.06 cm)
• Length: 54” (137.16 cm)
• Width: 61” (154.94 cm)
• Weight: 2200 lbs. (997.90 kg)
• Speed: 240 CPM

• Touchscreen control package
• Electronic variable speed controls
• Accommodates glass, plastic, and metal containers at speeds of 240 CPM

• Specialty pumps available
• Explosion-proof option
• Clean-in-place systems
• Teflon seals and hoses
• Sanitary conveyor system
