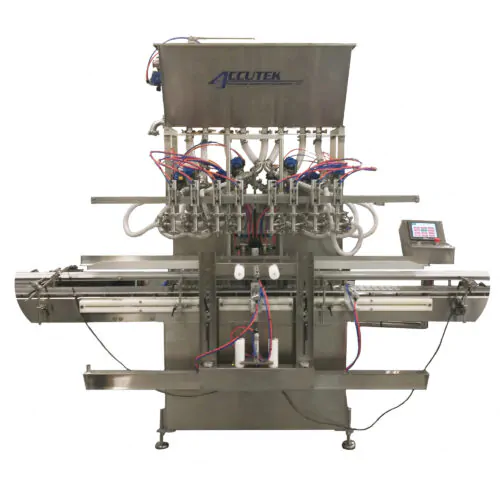

AVF Series – Automatic Piston Filling Machine – AVF8
The AVF8 dispenses an accurately measured volume of product to containers, reducing overfill and saving you money. It’s versatile enough to fill thin products such as water or thick products like caulking compounds with little to no additional change parts.
This AVF piston filler can be used with a variety of rigid or lightweight containers. This includes containers that might otherwise be distorted by vacuum-filling pressure.
This automatic model is an eight-nozzle configuration and features a heavy-duty stainless steel adjustable height base, sanitary stainless steel product cylinders in 1 oz – 128 oz (29.57 mL – 3.79 L) dose models, a durable 10′ variable-speed conveyor, and touchscreen controls.
The AVF8 is a highly efficient filling machine that delivers precision-dose filling and offers multi-work-shift reliability. Contact Accutek today to learn more about the AVF8.
Recommended Products
- Semi-viscous and viscous liquids
- Catsup
- Mustard
- Mayonnaise
- Syrups
- Salsa
- Honey
- Peanut butter
- Jellies
- Dipping sauces
- Lip balm
- Shampoo
- Thick soaps
- Styling gels
- Facial masks
- Wax
- Glue
- Grease
- Sealants
- Silicone
- And much more
What does the optional heat package do?
The heater package reduces a product’s viscosity to help it flow through the machine. The mixer keeps the product’s temperature uniform throughout the tank’s contents. The heater is controlled through an add-on control panel.- Dimensions:
- Length: 120″ (304.8 cm)
- Width: 56″ (142.2 cm)
- Height: 96″ (243.8 cm)
- Weight: ~1000 lbs (455 kg)
- Electrical Requirements: 120 VAC, Single Phase, 60 Hz (220 or 240 VAC available)
- Air Requirements: 100 PSI / 3 CFM
- Up to 80 CPM
- Viscosity Range: 1-20,000 cps (Centipoise)
- Foamy Product: Yes
- Corrosive Product: Yes
- Heated Product: Yes
- Particulates: Yes
- 10′ conveyor
- A.B.I. kit (automatic bottling index kit)
- Color touchscreen control
- PLC-controlled
- Multi-stroke (multiple doses per container)
- Delrin or stainless steel conveyor
- 6″-wide chain conveyor for 64 oz or 128 oz containers
- 1 oz, 8 oz, 16 oz, 32 oz, 64 oz, or 128 oz dose cylinders (29.57 mL, 236.59 mL, 473.18 mL, 946.53 mL, 1.89 L, 3.79 L)
- Extended-length nozzles (for bottom-up filling to reduce foam)
- Honeycomb nozzles (for products that string or drip)
- Chunky product butterfly valves for sanitary products with particulates
- Heat packages
- Corrosive product packages
- Conveyor upgrades
- Diving heads
- Positive off nozzles
- Servo-driven pistons and servo dive head control
- Neck locators
- Drip tray
- Star wheel indexing
- Safety frame with interlock doors
- Conveyor chain wash bath
