Auto Pinch 50
Product Variants

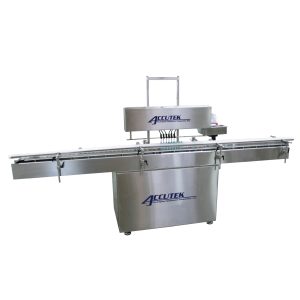

The Auto-Pinch 50 is a high-speed machine that can fill up to 100 containers with liquid per minute. It boasts a durable stainless steel base, a 10′ variable-speed conveyor, easy-to-clean parts, stainless steel nozzles, and an intuitive bottle indexing system. It can fill containers up to 128 oz.
This machine offers a digital display with essential features like ‘No Bottle – No Fill,’ ‘Step Fill,’ ‘All Fill’ modes, and an adjustable bottle counter. This interface can be easily set up with minimal training.
With minimal contact parts, the Auto-Pinch 50 is the top choice for sanitary filling in the food, pharma, cosmetic, and specialty industries. It’s also ideal for medium-speed filling operations.
Contact Accutek today to see how this machine can benefit your production cycle.
Recommended Products
- Water
- Fruit juices & extracts
- Food coloring
- Perfumes
- Essential oils
- Nail polish & remover
- Ink
- Urine
- Blood
- Alcohol
- Wax
- Lip balms
- Candles
- Sun tan lotions
- Light shampoo & lotions
How exactly does the Auto Mini-Pinch work?

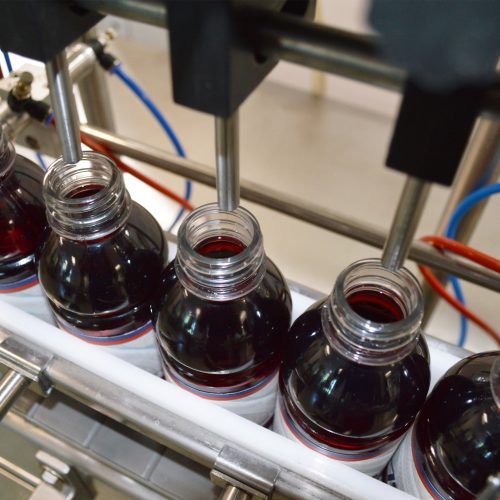

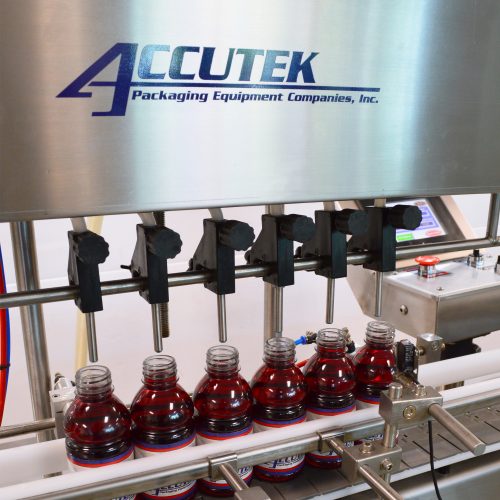

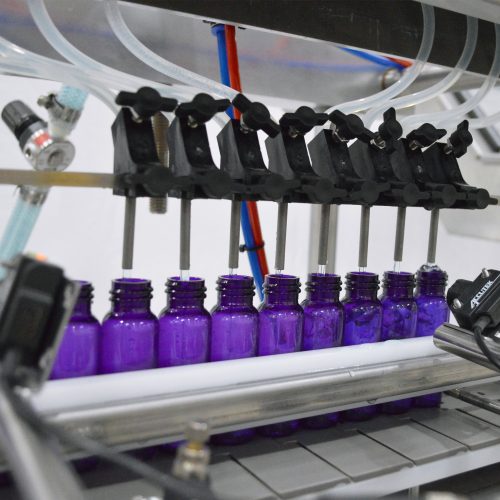

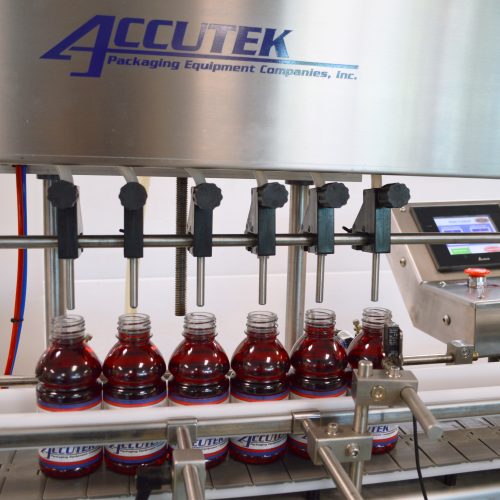

Empty containers enter along the left side via the conveyor belt. A sensor detects when six containers are in position, then locks the star indexer. The pinch bar opens to let product flow into the containers from the nozzles. Every nozzle has a flow control, which equalizes the amount of product delivers to the containers. Once the pinch bar closes, the star indexer releases to let the filled bottles out via the conveyor, allowing for the next set to be loaded.Is the touchscreen control complicated?
The controls may not seem immediately straightforward at first glance, but the manual contains clear step-by-step instructions on navigating through the interface to carry out filling operations.What does the start wheel indexing option do?
This helps you achieve a higher production rate by offering better control and handling of containers during the filling process. It reduces production time and container changeover time. This option is best suited for when you want to minimize changeover time.What’s the drip tray for?
The drip tray or pan keeps any drips from the nozzles from landing on your product containers, helping to keep them clean. This tray works in tandem with a sensor so your control interface knows when the tray is retracted.- Foamy Product: Yes
- Corrosive Product: Yes
- Heated Product: Yes
- Particulates: Yes
- Fill Size: 8 oz. – 128 oz. (236 mL – 3.79 L)
- Speed: Up to 100 CPM
- Viscosity Range: 1 cP – 1000 cP
- Air Requirements: 90 PSI @ 2 CFM
- Electrical Requirements: 110VAC or 220/240 VAC / Single-phase / 20 AMP
- Length: 120” (304.8 cm)
- Height: 66” (167.64 cm)
- Width: 28” (71.12 cm)
- Weight: ~400 lbs. (181.44 kg)
- Heavy-duty stainless steel base
- Color touchscreen control package
- Job memory & help menus
- No-drip fill heads
- Surge tank for increased accuracy
- Food-grade centrifugal pump
- Stainless steel construction
- 10’ (3.05 m) variable-speed sanitary conveyor
- Automatic dual-pin bottle indexing system
- No-fluid-contact pinch valves
- Quick-exchange manifold
- Drip tray
- Container neck locator
- Sanitary liquid connections
- Gravity or pressurized tank
- Various pump upgrades
- Diving heads
- Star wheel bottle indexing
- Sanitary conveyor system
- Heated package for molten product filling
Related products
Pinch-50
The Pinch-50 is a versatile, timed flow volumetric filler designed to fill water thin liquids to oils and creams. All the contact parts can be easily cleaned and are autoclavable which makes the machine ideal for the medical, pharmaceutical, food, cosmetic, and specialty industries.
Pinch-50
The Pinch-50 is a versatile, timed flow volumetric filler designed to fill water thin liquids to oils and creams. All the contact parts can be easily cleaned and are autoclavable which makes the machine ideal for the medical, pharmaceutical, food, cosmetic, and specialty industries.
Pinch-25
The Pinch-25 is a timed flow volumetric liquid filling machine designed to fill water thin liquids, oils, and creams. All the contact parts can be easily cleaned and are autoclavable which makes the machine ideal for the medical, pharmaceutical, food, cosmetic, and specialty industries.
Pinch-25
The Pinch-25 is a timed flow volumetric liquid filling machine designed to fill water thin liquids, oils, and creams. All the contact parts can be easily cleaned and are autoclavable which makes the machine ideal for the medical, pharmaceutical, food, cosmetic, and specialty industries.
RVF-52
Elevate design standards with the RVF-52, filling machine. Achieve higher speed, safety, and productivity while maintaining efficiency and cost-effectiveness.
RVF-52
Elevate design standards with the RVF-52, filling machine. Achieve higher speed, safety, and productivity while maintaining efficiency and cost-effectiveness.

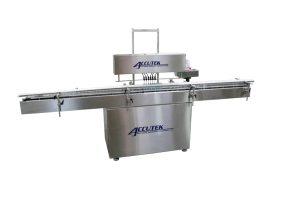

Auto Mini Pinch
