RVF-40
Product Variants
The Rotary Volumetric Filler-40 is a high-speed rotary filling system. It’s engineered to position the power transmission for the main turret infeed and outfeed star wheel and timing screw on top of the machine. This keeps the important components away from the wetted area, which helps to deliver precise variable speed control and longevity.
The RVF-40 can handle all container shapes and sizes and easily deliver filling accuracies up to +/- 0.5%. This versatile system can come with 6 to 20 fill stations, depending on your filling requirements and goals.
Contact Accutek today to learn more and determine whether this machine is right for your production needs.
How exactly does the machine work?
Containers enter the machine from the right, and as the turret rotates, each platform raises its container so a nozzle can enter it. The machine will fill the container with product and release it through the other side of the machine via the conveyor. Then the container can move on to a capper or labeler.Is the touchscreen difficult to use?
Nope, it’s straightforward and simple to use. While the functions of some particular buttons may not be immediately clear, the manual will give you a simplified rundown of how to navigate the interface so you can easily operate your RVF.Will I need Accutek’s assistance with performing a parts changeover?
The manual has a thorough guide on how you can perform this process yourself. But you’re welcome to contact us if you have any questions or need any assistance with changing out parts like the infeed or discharge stars.How often do I need to lubricate the ball bearings?
That depends on how fast you configure the machine to work. For instance, if you operate the RVF at only 100 rotations per minute, you’ll only need to lubricate it once every 6 to 12 months. But if you operate it at the maximum speed—1500 rotations per minute—then it’s best to lubricate it once per day at most, or once per every two weeks at the least.- Foamy Product: Not Recommended
- Corrosive Product: Yes
- Heated Product: Yes
- Particulates Product: Yes
- Filling Speed: Up to 240 CPM1
- Viscosity Range: 1 c– 18,000 cP
- Electrical Requirements: 220/240 VAC, 20 AMP, 3 Phase
- Air Requirements: 87 PSI @ 2CFM
- Length: 54” (137.16 cm)
- Height: 89” (226.06 cm)
- Width: 61” (154.94 cm)
- Weight: ~2200 lbs. (997.9 kg)
- Suitable for filling a wide range of liquids from light oils to heavy viscous semi-solids at speeds of up to 450+ CPM
- Touchscreen control packaging includes job memory, tooling memory, and management lockout
- Variable speed “Top Drive” system keeps key systems away from wetted areas for easy access and lasting performance
- Can accommodate glass, plastic, and metal containers
- Synchronized “pump to turret” design for smooth filling of light or thick products at a high rate of production
- Each machine incorporates safety interlocks, polycarbonate guarding, and other integrated safety features
- All systems include self-aligning tool-less change parts for quick and trouble-free changeover
- Easy operation and maintenance
- Diving heads
- Hazardous-location-proofing
- Sanitary conveyor system
Related products
Auto Mini Pinch
The Auto Mini Pinch is an automatic timed flow volumetric filling machine capable of filling water thin liquids to light oils and creams at speeds of up to 100 containers per minute. Minimal contact parts (hose only) make the machine ideal for sanitary filling of food, pharmaceutical, cosmetic, and specialty products.
Auto Mini Pinch
The Auto Mini Pinch is an automatic timed flow volumetric filling machine capable of filling water thin liquids to light oils and creams at speeds of up to 100 containers per minute. Minimal contact parts (hose only) make the machine ideal for sanitary filling of food, pharmaceutical, cosmetic, and specialty products.
Pinch-25
The Pinch-25 is a timed flow volumetric liquid filling machine designed to fill water thin liquids, oils, and creams. All the contact parts can be easily cleaned and are autoclavable which makes the machine ideal for the medical, pharmaceutical, food, cosmetic, and specialty industries.
Pinch-25
The Pinch-25 is a timed flow volumetric liquid filling machine designed to fill water thin liquids, oils, and creams. All the contact parts can be easily cleaned and are autoclavable which makes the machine ideal for the medical, pharmaceutical, food, cosmetic, and specialty industries.
Mini-Pinch
The Mini-Pinch is a filling machine best suited for filling aqueous solutions, thin and light oils. The Mini-Pinch is a six-head, timed flow volumetric filler that has a fill rate up to six ounces per second. An experienced operator can fill up to two thousand five hundred bottles per hour; it is also highly accurate even when filling 10 ml. Bottles.
Mini-Pinch
The Mini-Pinch is a filling machine best suited for filling aqueous solutions, thin and light oils. The Mini-Pinch is a six-head, timed flow volumetric filler that has a fill rate up to six ounces per second. An experienced operator can fill up to two thousand five hundred bottles per hour; it is also highly accurate even when filling 10 ml. Bottles.

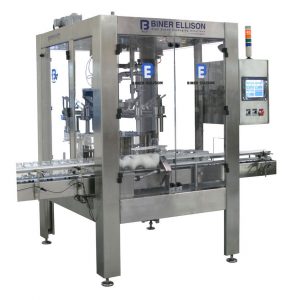

RVF-52
