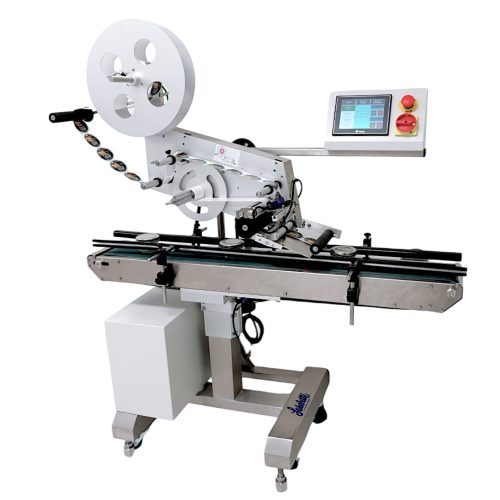

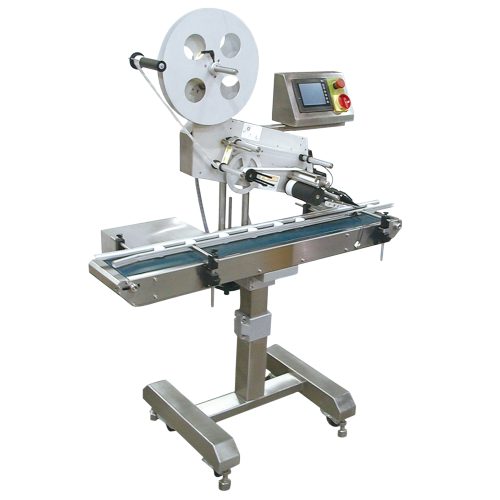

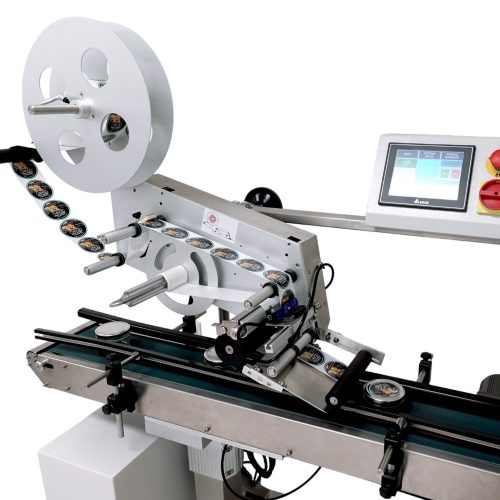

APS-104

Labelette’s APS-104 Top Labeler is economical, self-contained, and easy to operate. This automatic labeling system has a height-adjustable four-foot variable-speed belted conveyor.

The simple-to-use design makes it simple to change container and label sizes.

The APS-104 can dispense up to 6″ tall labels and 4″ long. Its speed, versatility, and reliability exceed the industry leaders in labeling equipment technology, usually at a fraction of the price. Our labelers are ideal for all plastic, metal, fiber, and glass containers. The APS-104 handles square, flat, and indented containers.

Contact Accutek today to learn more about this machine.

Recommended Products

Round containers
Square containers
Indented containers

Is the touchscreen interface easy to use?

Yes, the touchscreen interface is easy to navigate. It may not be immediately obvious which buttons are supposed to do what, but the manual will go over all of this with you. After reading it, you’ll have the know-how and confidence to label your product(s).

How am I supposed to mount my label reel onto the machine?

You start by setting a roll of labels on the supply reel, then pulling about five feet of labels from the roll to form a leader. Then you peel the labels off the ladder and lace it through the guide rollers, label sensor, and around the peel plate. The rest of how to mount your label is described in the machine’s manual.

What should I do if I have a problem with the machine?

The machine’s interface contains a built-in section on troubleshooting problems that you may encounter when operating this machine. If the suggested solutions don’t work or the problem is outside its covered scope, then contact Accutek’s service department. We’ll do our best to help you solve your problem.

How often should I clean and maintain my machine?

That will depend on how often you use it. We do recommend cleaning the APS once you receive it, just to make sure any residue from transport is removed.

Label Length: 0.5” – 11” (1.27 cm – 27.94 cm)
Label Height: 0.5” – 6” (1.27 cm – 15.24 cm)
Speed: Up to 150 CPM
Electrical: 110 VAC, 60Hz, single-phase (220 VAC option available)
Height: 60” (152.4 cm)
Length: 68 (172.72 cm)
Width: 40” (101.6 cm)
Weight: ~425 lbs. (192.78 kg)

Label Learn™ (automatic label setup)
Label head dispenses up to 6” (15 cm) tall labels
Stepper motor drive
Power-assisted web takeup
Tamp station
Auto speed adjust (all motors synchronized)
Non-contact photo-eye sensors for label gaps and containers
Brushes or roller for adhering labels
In-line automatic applications or semi-automatic use
Touchscreen control system with job memory
Heavy-duty construction for three-shift operations
Sanitary stainless steel frame
Easy-adjusting hand wheels for quick setup
Fully synchronized conveyor/label head, with eight different speed selections
Height-adjustable conveyor
Maximum roll diameter of 13.5″ (34.29 cm)
Casters

Thermo coder
Alphanumeric starter kit
Pneumatic separator
Clear label sensor
