What are the differences between the different SVF fillers?

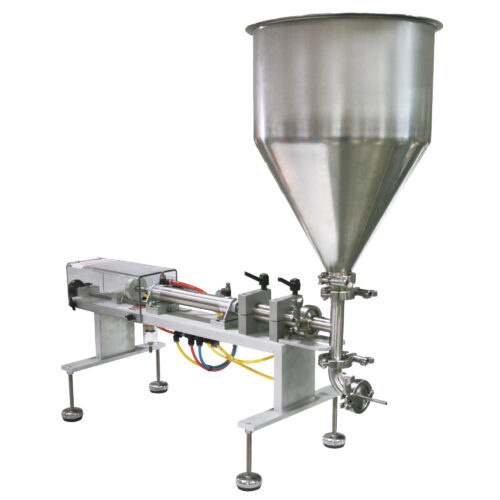

Accutek sells three different versions of the SVF: The main SVF, the servo SVF, and the mini-SVF. The main difference between them comes down to how they’re controlled and their sizes. The main and servo SVF are both approximately the same size, but while the former is controlled via a foot pedal, the latter has a PLC touchscreen interface. The mini-SVF, as the name suggests, is much smaller than the other two. It can be placed on a table and, like the main SVF, is controlled with a foot pedal.

Can I get a touchscreen controller for this SVF?

Only the Servo SVF comes with a touchscreen controller. But with the other SVFs, control literally comes down to the push of a pedal. It doesn’t get much easier than that.

What should I do in the event of a malfunction?

If your servo volumetric filler malfunctions, first, check your manual’s troubleshooting guide. It contains a list of potential problems and how to rectify them. If the suggested solutions don’t work, or the problem is outside of the manual’s scope, call Accutek’s service department. We’ll look into the issue and come up with a solution.

• Single head 8 oz filling cylinder (16, 32, 64, & 128 oz optional)
• Multi-stroke operations (multiple-dose fill)
• Sanitary contact parts and fluid path
• Direct from drum draw kit
• 2.5” rotary valve for large particulates

• Sanitary-stainless steel hoppers
• ABI system for automatic depositing
• Foot-switch control
• Heated product package
• Various nozzle configurations
• Stainless-steel stand or cart
• Stand casters for added mobility
• Lazy Susan turntable for semi-automatic operation
• Conveyor systems for the automatic line

• Product Speed: Up to 30 CPM
• Dose Size: 4 oz – 16 oz (118.29 mL – 473.18 mL) (32, 64 & 128 oz optional)
• Viscosity Range: Up to 20,000 Centipoise
• Electrical: None
• Air: 80 PSI @ 1.5 CFM
• Heated Product: YES
• Particulates: YES
• Length: 55.5” (140.97 cm)
• Depth: 19.5” (49.53 cm)
• Height: 68” (172.72 cm)
• Weight: Approx. ~138 lbs. (62.6 kg)
