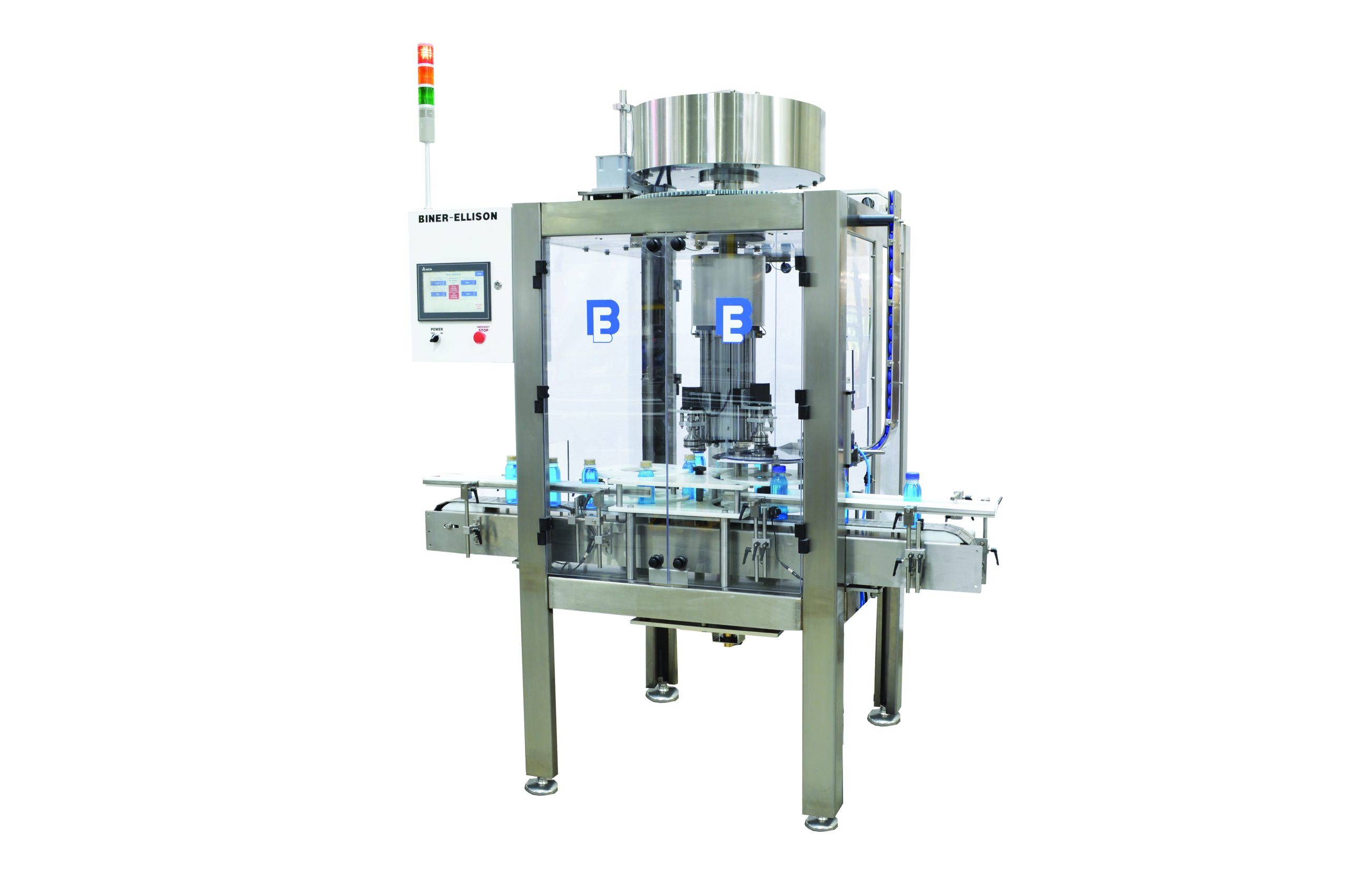

Servo Rotary Chuck Capper
Product Variants
The Servo-Drive Rotary Chuck Capper delivers superior performance, combining precision, efficiency, and affordability for high-volume capping operations.
Powered by advanced servo motor technology and an electronic servo cam with precision ball screws, it ensures smooth, accurate vertical movement of the capping heads, accommodating containers from two ounces to one gallon with exceptional reliability.
Capable of processing 20 to 100 bottles per minute, it supports threaded, tamper-evident, and child-resistant caps with diameters ranging from approximately 20mm to 100mm. It also features a job memory function that streamlines settings for diverse applications.
Optional torque feedback technology enhances precision by providing real-time monitoring and adjustment of cap application torque, ensuring consistent sealing quality.
The capper’s quick-change tooling, including chucks and star wheels, accommodates various bottle sizes and shapes. Its compact design optimizes production floor space, while its unmatched speed, accuracy, and cost-effectiveness set it apart from competitors.
Customizable and efficient, the Servo-Driven Rotary Capper maximizes productivity and profitability.
Contact Accutek today to check whether this highly efficient capping machine is right for you.
What’s the primary benefit of using this machine, as opposed to an in-line chuck capper?
You would want to get a rotary chuck capper over an in-line chuck capper if you’re aiming for faster production. The greater number of heads paired with the servo technology lets you cap containers at significantly faster speeds.Is the machine easy to operate?
The machine’s controls are straightforward to use. The manual will lay everything out for you in easily explainable terms and language, letting you operate the servo rotary chuck capper like a professional.Can this machine be easily moved around?
You will undoubtedly need a forklift for this machine, on account of its size and weight. It is not installed with wheels.What exactly is a star wheel?

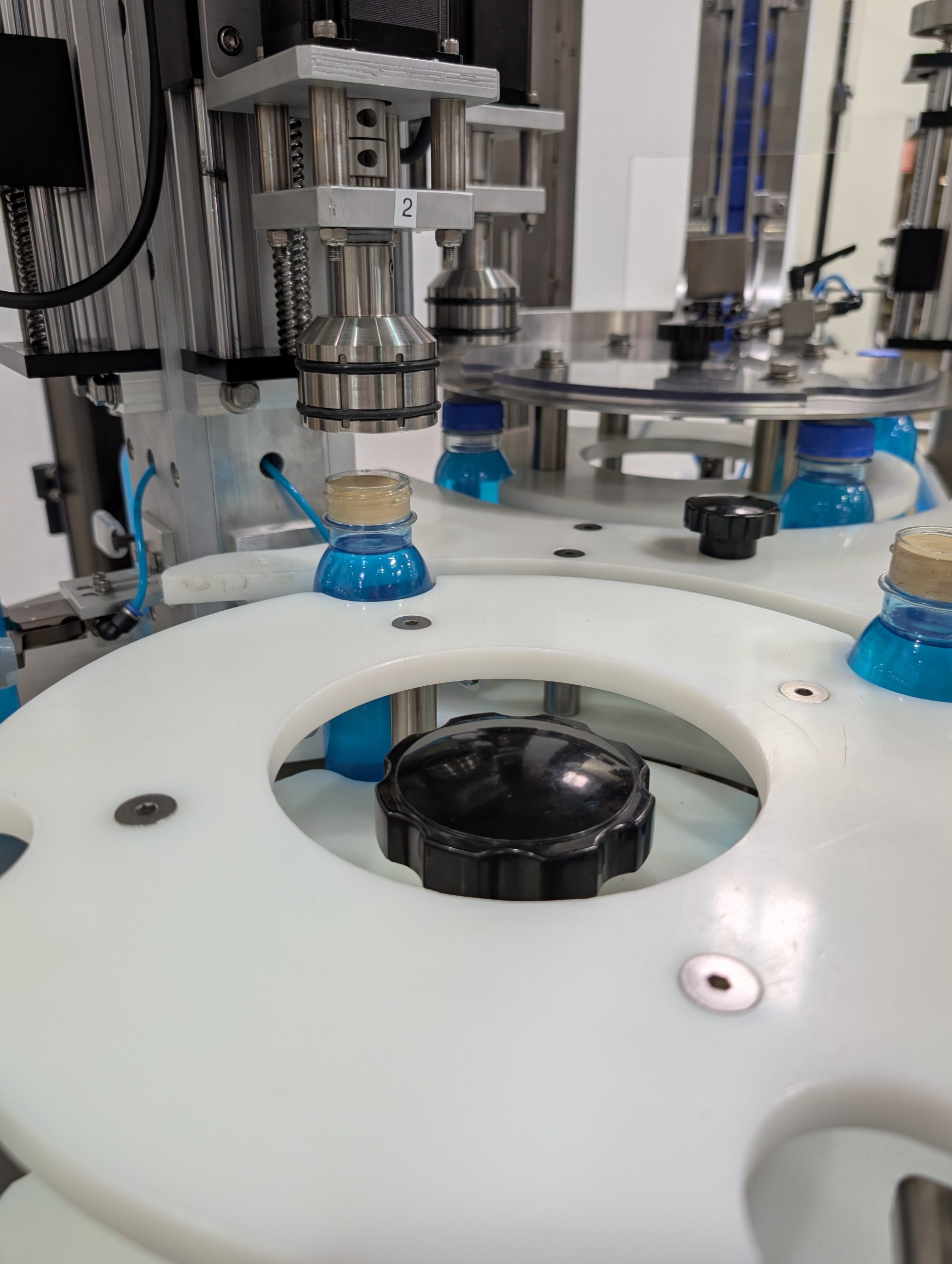

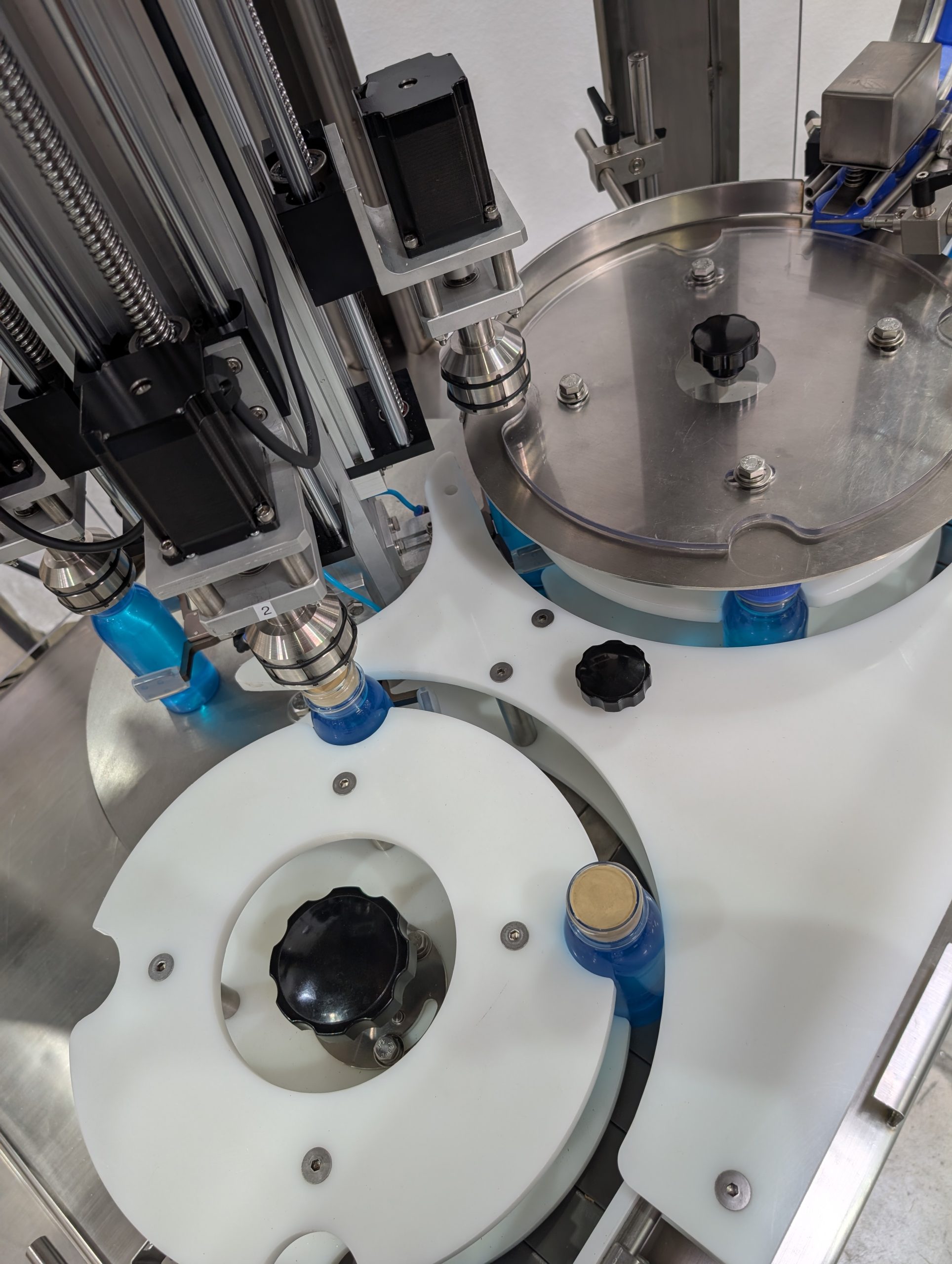

A star wheel is a large plastic component that resembles a gear. Each pocket fits a container and orients them towards each capping head. So if you had multiple sizes of bottles you wanted to cap, you would need to change out your star wheel, as each star wheel can only accommodate one type of bottle.- HMI and PLC controller
- Stainless-steel and aluminum construction
- 10” control color touchscreen
- Hybrid stepper drives
- Precision ball screws
- Electronic adjustable cam that simulates a mechanical cam
- Servo drive
- Top drive
- Low power consumption
- Minimal tooling change over time
- Safety lockouts
- Remote bottle count
- Production monitoring and reporting
- Linear height adjustment
- Different sizes of chucks and star wheels for different sizes of containers

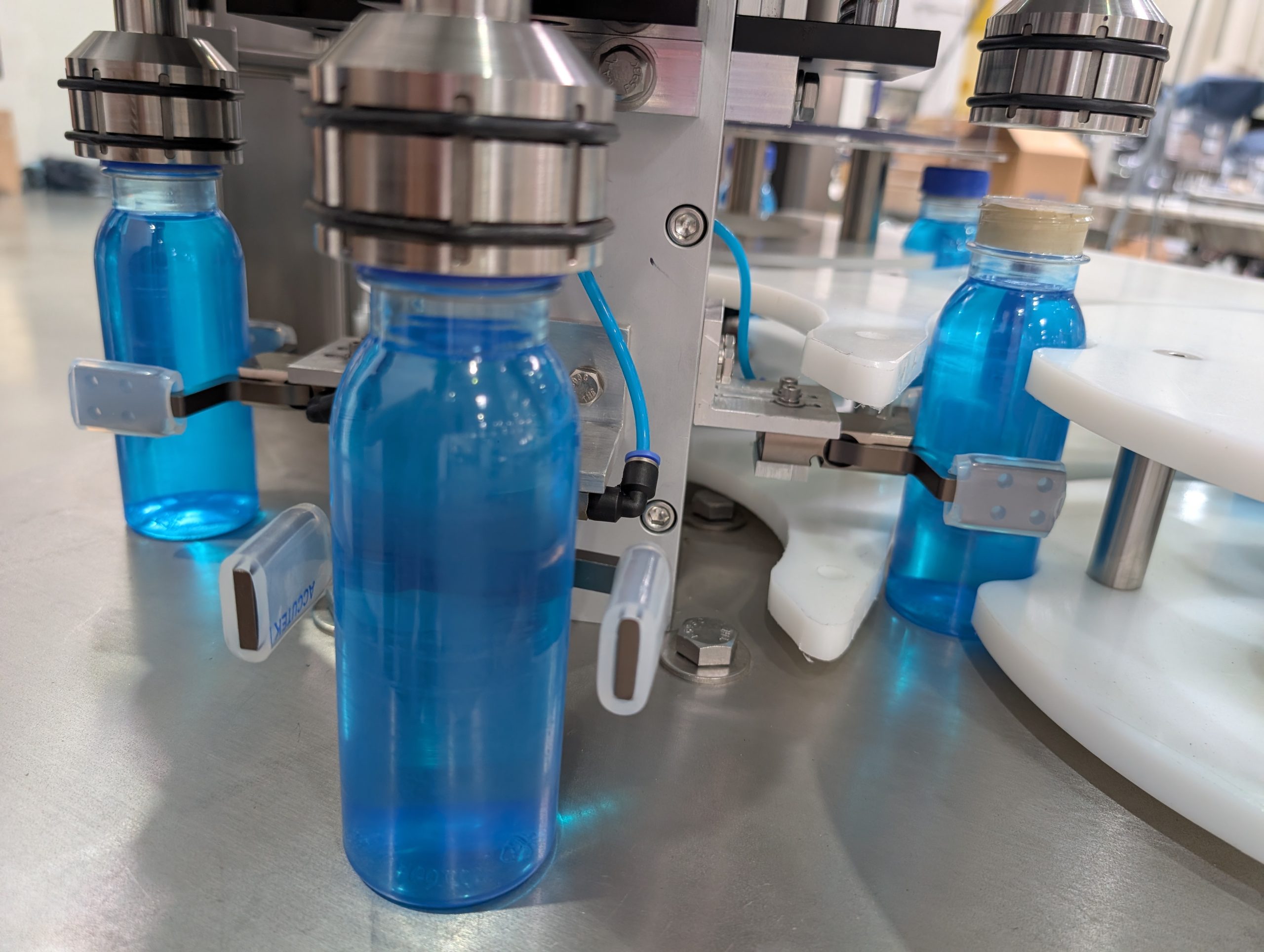

- Adjustable pneumatic grippers
- Centrifugal bowl

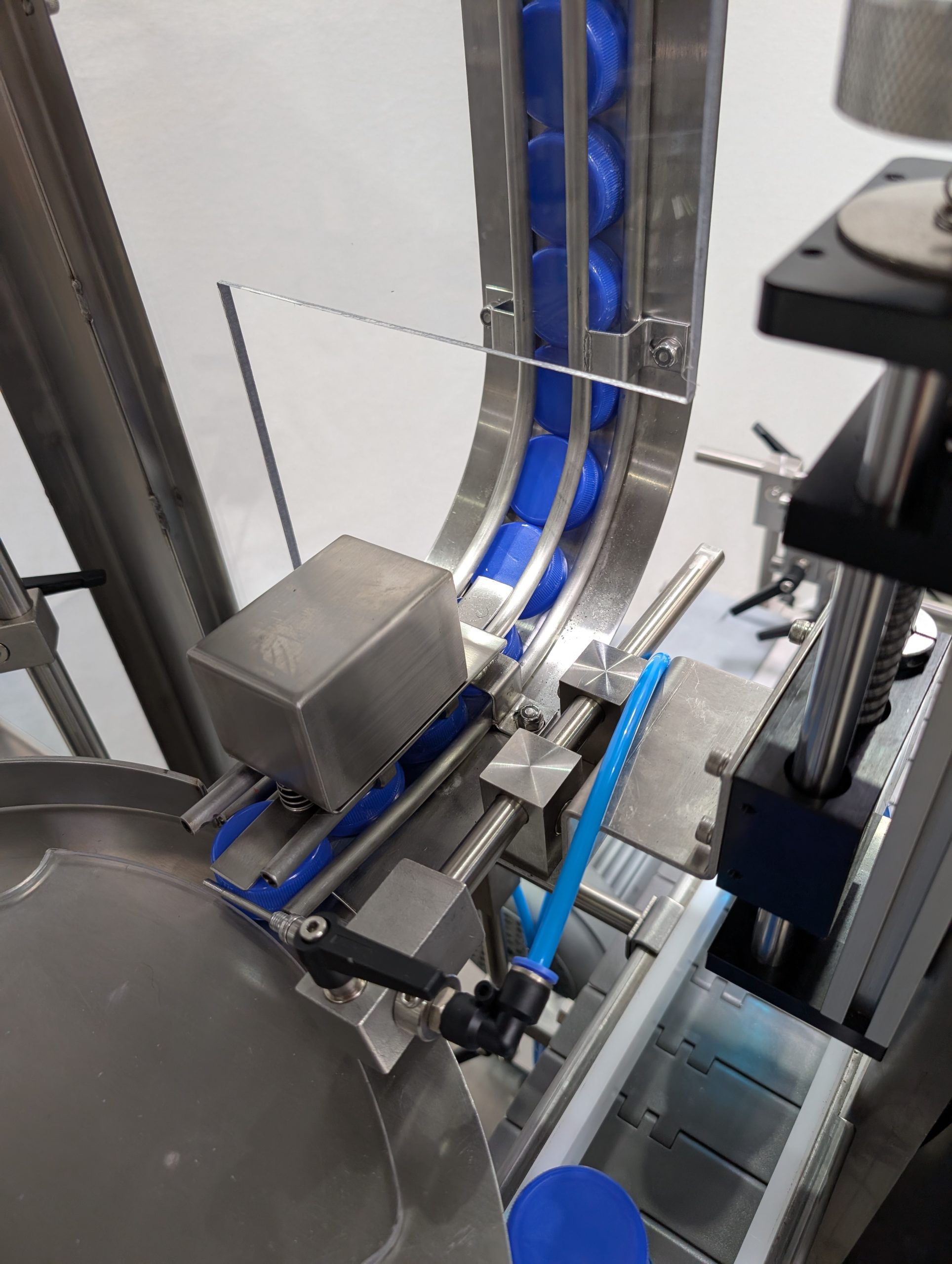

- Cap elevator orientator
- Backup sensor
- Cap torque measurement/reporting
- Go-no-go torque measurement
- Digital torque feedback
- Air shoots
- Tooling changes
- Cap UV cleaning
- Electric: 220V, Single-phase
- Length: ~71.5” (181.61 cm)
- Width: 40” (101.6 cm)
- Height: ~92.25” (234.32 cm)
