Siphon Filler

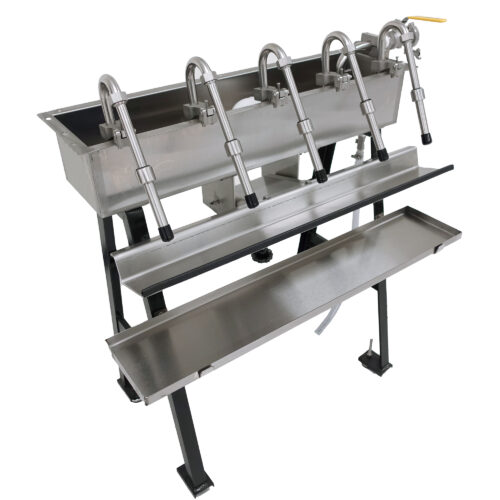

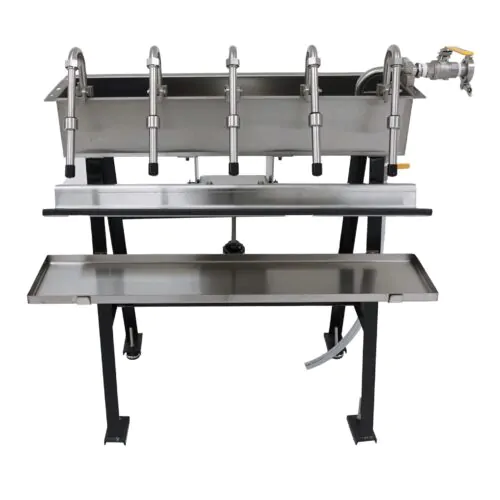

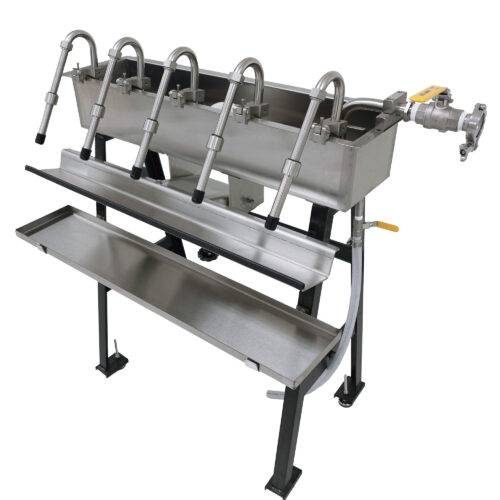

Accutek’s Siphon Filling machine presents a cost-effective solution for filling glass, plastic, or metal containers ranging from 2 ounces to 1 gallon (and potentially up to 2 gallons, depending on the container’s dimensions) with most low-viscosity liquids. This system is well-suited for small- to medium-volume production.
The siphon filling equipment operates based on the straightforward and natural principle used in siphoning liquids from one container to another. The flow automatically stops when the liquid levels in the two containers reach equilibrium. This principle governs the flow from the tank to the bottle.
Once set, the bottle holder rack’s height regulates the level in the bottle. This eliminates the risk of overflow, even if the operator temporarily leaves the filler unattended.
Contact Accutek today to learn more about the Siphon Filler.
Does this machine come with a control touchscreen?
No; this machine is operated completely analog. There are no electronics to speak of.What should I do if my siphon filler gets damaged or otherwise isn’t working properly?
If you have any problems with your siphon filler, call Accutek’s service department. Our service technicians will be happy to help you get everything sorted out.Can I call you to request new parts if any are lost or damaged?
Yes, feel free to call us. We can get you replacement parts.- Stainless-steel construction
- Four spouts
- Float-controlled valve
- Bottle holder rack
- Drip tray
- Spouts
- Siphon starter
- Additional spouts
- 7.5-gallon hopper
- Fill amount 4 oz to 2.5 gal
- Min bottle height 4”. Maximum of 15”.
- Min bottle opening ½”
- Handles from 3 to 30 containers per minute*
- Accepts free-flowing and low-viscosity liquids
- Stainless-steel tank
- Stainless-steel spouts
- Painted stand (stainless steel optional)
- Capable of 20+ quarts of water per minute
- Capable of 10+ quarts of syrup per minute
- Capable of 10+ gallons of water per minute
- *Test results based on a five-spout machine
