How does the Mini-Pinch work?

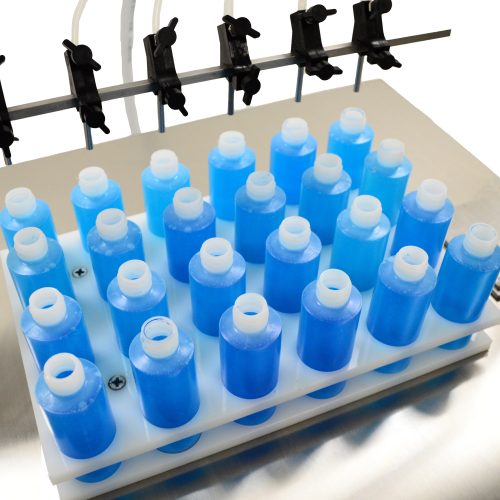

You use the Mini-Pinch by placing a row of empty containers beneath the fill nozzles, then you press the Start button on the touchscreen interface. The fill nozzles will dispense however much product you’ve programmed it to into each of your containers. The manual will tell you how to program your filler to dispense however much product you want.

Is the Mini-Pinch easy to set up?

Yes, it is. The Pinch is easily programmable and can be set up on any flat, solid surface. The manual also goes over both preliminary and production setups, so you know exactly what to do to start filling your containers with product.

What do I do if I have any issues with my Mini-Pinch?

If you have any problems with the machine, the first thing to do is to check the troubleshooting section in the manual, which will tell you how to solve some basic problems. For any other issues that the manual doesn’t otherwise cover, contact Accutek’s service department.

How often should I clean and maintain this machine?

That will depend on how often you use it and what you use it for. We do recommend checking for leaks whenever you use the machine. The manual will cover more information regarding cleaning and maintenance.

• Foamy Product: No
• Corrosive Product: Yes
• Heated Product: Yes
• Viscosity Range: Under 1 – 1000 cP (centipoise)
• Electrical: 110 VAC – 5 amps (optional: 220 VAC)
• Particulates: No
• Length: 20” (50.8 cm)
• Width: 26” (66.04 cm)
• Height: 59” (149.86 cm)



• Direct-from-drum draw kit
• Sanitary contact parts and fluid path
• Six stainless steel filling heads with individual flow controls
• Toolless removal of sanitary stainless steel manifold
• Easy to operate using a touchscreen controller with job memory
• Simple-to-use fill wand auto-triggered by PLC
• Adjustable tabletop stand
• Positive displacement pump
• Food-grade tubing
• Pinch valve system
• Pump

• Thin nozzles (for products that string or drip)
• Heat or corrosive product packages (contact parts and tubing)
• Sanitary stainless steel hoppers
• Standalone frame with or without casters
• Custom bottle guides, trays, and nozzle upgrades
• Tanks
