RVF-52
Product Variants

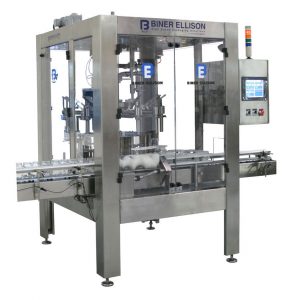

The Rotary Volumetric Filler-52 redefines design standards with its exceptional performance. This machine offers elevated speed, safety, and productivity while maintaining production efficiency and cost-effectiveness. It can accommodate glass, plastic, and metal containers.
Thanks to our ‘Time and Flow ‘ metering system, it’s designed for precise volumetric filling of viscous and semi-viscous products. This design incorporates advanced features like an overhead drive system, powered nozzle height adjustment, and convenient job memory functionality.
When it comes to high-viscosity filler designs, rotary volumetric filling machines are the pro-accuracy choice.
Recommended Products
- Semi-viscous and viscous liquids
- Catsup
- Mustard
- Mayonnaise
- Syrups
- Salsa
- Honey
- Peanut butter
- Jellies
- Dipping sauces
- Lip balm
- Shampoo
- Thick soaps
- Styling gels
- Facial masks
- Wax
- Glue
- Grease
- Sealants
- Silicone
- And much more
How exactly does the machine work?
Containers enter the machine from the right, and as the turret rotates, each platform raises its container so a nozzle can enter it. The machine will fill the container with product and release it through the other side of the machine via the conveyor. Then the container can move on to a capper or labeler.Is the touchscreen difficult to use?
Nope, it’s straightforward and simple to use. While the functions of some particular buttons may not be immediately clear, the manual will give you a simplified rundown of how to navigate the interface so you can easily operate your RVF.Will I need Accutek’s assistance with performing a parts changeover?
The manual has a thorough guide on how you can perform this process yourself. But you’re welcome to contact us if you have any questions or need any assistance with changing out parts like the infeed or discharge stars.How often do I need to lubricate the ball bearings?
That depends on how fast you configure the machine to work. For instance, if you operate the RVF at only 100 rotations per minute, you’ll only need to lubricate it once every 6 to 12 months. But if you operate it at the maximum speed—1500 rotations per minute—then it’s best to lubricate it once per day at most, or once per every two weeks at the least.- Foamy Product: Not Recommended
- Corrosive Product: Yes
- Heated Product: Yes
- Particulates Product: Yes
- Filling Speed: Up to 450 CPM
- Viscosity Range: 1 – 18,000 cP
- Electrical Requirements: 120/240 VAC, 20 AMP, 3-phase (optional 220/240 VAC, 3-phase)
- Air Requirements: 87 PSI @ 2 CFM
- Length: 69” (175.26 cm)
- Height: 89” (226.06 cm)
- Width: 75” (190.5 cm)
- Weight: ~3100 lbs. (1406.14 kg)
- Suitable for filling at speeds up to 450+ CPM
- Touchscreen control packaging
- Variable speed “Top Drive” system for easy access and lasting performance
- Synchronized “pump to turret” design for smooth filling
- Integrated safety features
- Self-aligning tools for quick and trouble-free changeovers
- Easy operation and maintenance
- Explosion proofing
- Sanitary conveyor system
- Positive shutoff nozzles
