Description

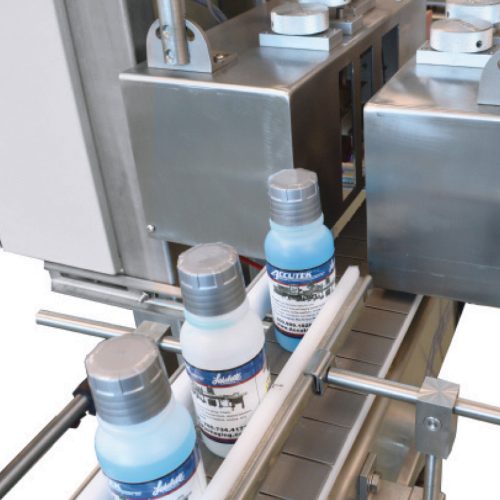

If you are in the business of selling bottled or packaged products you want to ensure that your products are shipped free from defects and arrive on store shelves looking their best. Accutek’s Inspection-Rejection Stations (Accu-INSR) can help you accomplish this goal. The Accu-INSR can be used to inspect for unsecured caps, missing foil liners, or missing caps.

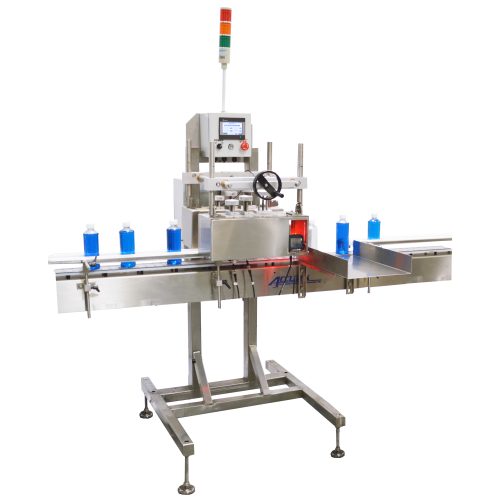

The Accu-INSR uses a proximity sensor to detect defective closures and rejects bad containers using a diverter arm. Rejects can be pushed to a table, collected in a bin, or transferred to another conveyor.
Features
-
- Easy Adjustability
- Extremely High Accuracy
- Color Touch Screen Display
- Anodized Aluminum and 304 Stainless Steel Construction
- Heavy Duty Stainless Steel Frame
- Clean, Non-Painted, Non-Marring Surfaces
- Adjustable Discharge Height
- High Floor Clearance
- Hand Wheel Adjustments for Bottle Height Change
- Clear Poly Carbonate Guarding
- UL Listed Components
- Designed and Manufactured in the USA
Options
-
- Stainless steel variable speed and size conveyor stainless steel variable speed and size conveyor
Specs
| Height: | 62.5 |
| Length: | 31 |
| Depth: | 38 |
| Weight: | ~45lbs. (~20kg) |
| Product Speed: | Dependent on complexity of product being inspected. |
| Electrical Requirements: | 110 VAC , 1 AMP |
| Air Requirements: | 80 PSI |
