APS 106 TA Labeler
Product Variants

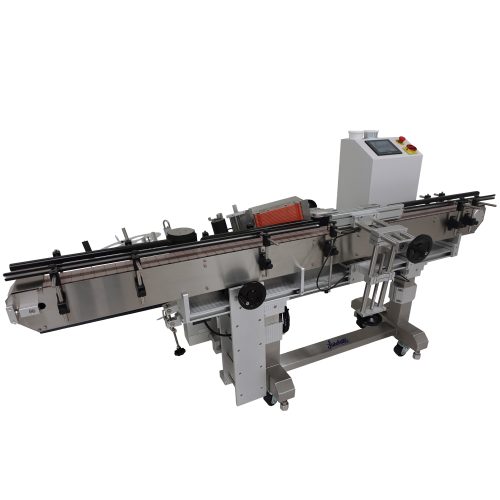

Accutek’s 106 TA is a pressure-sensitive labeler designed to wrap tapered containers and is ideal for wrapping round containers. Filled and capped bottles enter the labeler on the conveyor belt and slow down when they reach the bottle spacer wheel. The bottle spacer wheel speed sets the space between bottles as they travel toward the peel plate.

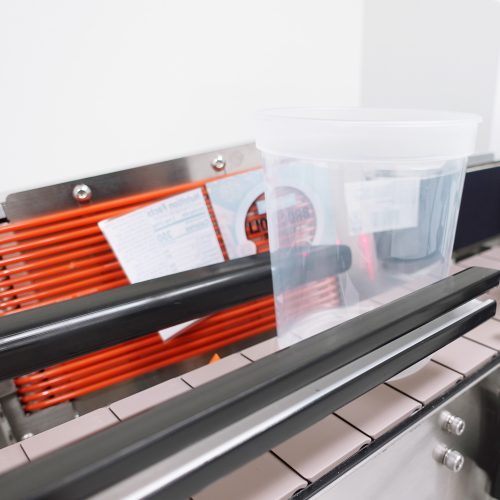

When the bottle sensor sees a bottle, it signals the drive roller to pull a label across the peel plate. The flagged label’s sticky leading edge attaches to the bottle as it passes the peel plate. The wrap belt rolls the bottle against the pressure plate and presses the label around the bottle. The conveyor then moves the labeled bottle past the label head. The label itself is indexed to a vacuum station that holds the label at the angle that correlates to the angle of the container’s taper.
Contact Accutek Packaging Equipment Company, Inc. today to learn more about this labeling machine.
Recommended Products
- Round containers
Is the touchscreen interface easy to use?
How am I supposed to mount my label reel onto the machine?
What should I do if I have a problem with the machine?
How often should I clean and maintain my machine?
- Conical wrap addendum
- Stainless-steel assembly
- In-line automatic applications

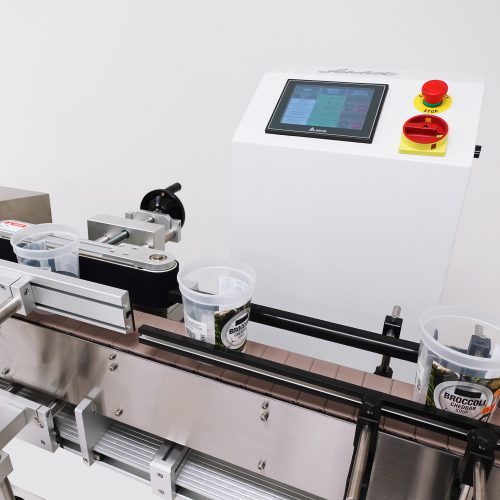

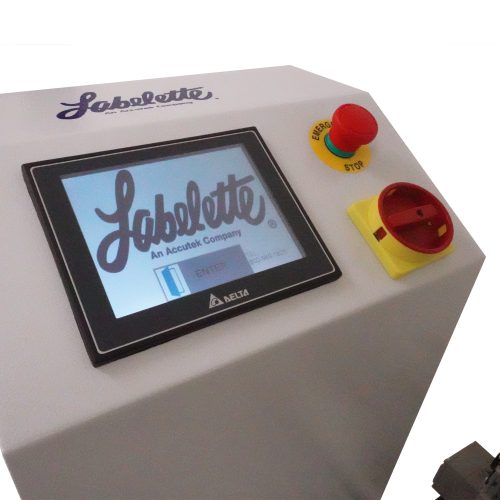

- Touchscreen control system with job memory
- Heavy-duty construction built for three-shift operations
- Sanitary stainless-steel thick wall frame
- Easy-adjusting hand wheels for quick setup
- Synchronized operation
- Synchronized powered wrap station
- Infeed separator wheel
- Labeling Speed: Up to 175 CPM
- Label Direction: Left Side Off Outside Peel (counterclockwise)
- Label Size:
- Length: 0.5” – 17” (1.25 – 43 cm)
- Width: 0.75” – 5.75” (1.9 – 14.6 cm)
- Electrical Requirements: 110 VAC – 10 AMPS (220 VAC optional)
- Height: 45″ (114.3 cm)
- Length: 72″ (182.9 cm)
- Width: 41 – 53″ (104.1 – 134.6 cm)
- Weight: 527 lbs. (239.04 kg)
