PSA-108

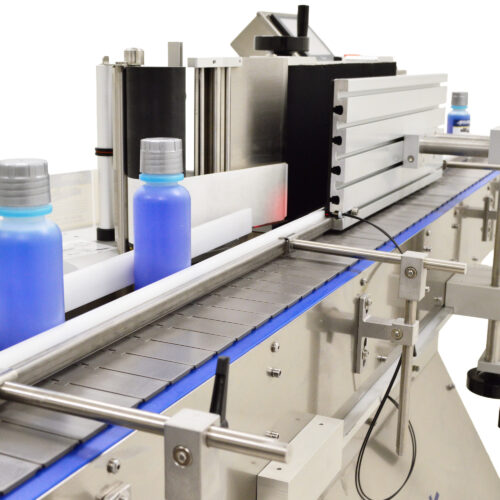

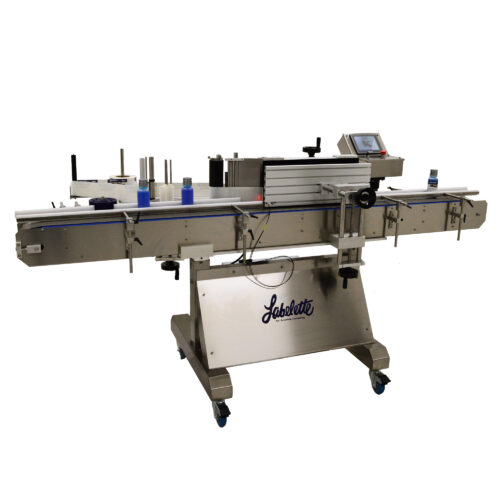

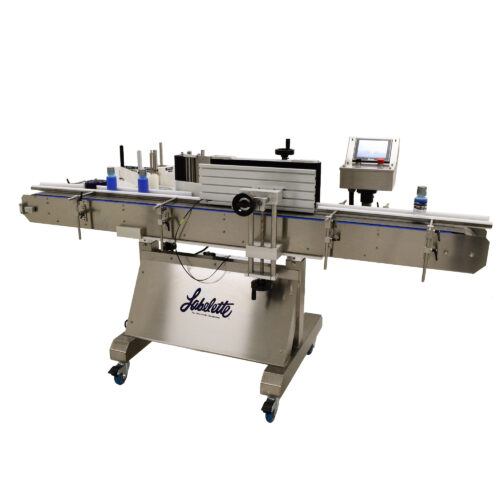

The PSA-108 is an economical, self-contained, and easy-to-operate machine for labeling cylindrical containers. This automatic labeling system is equipped with a 6 ft. variable-speed conveyor to convey your bottles.
Additional features include a stepper motor drive for labeling, power-assisted web takeup, a full wrap-around station, automatic speed adjustment, and photo-eye (non-contact) sensors for label gaps and containers.

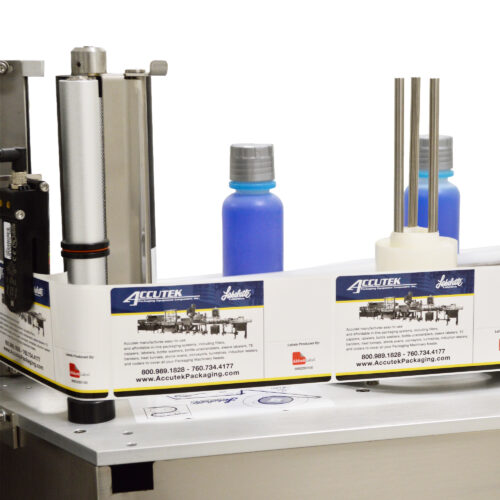

The easy-to-use design makes it simple to change bottle and label sizes. The PSA-108 can dispense up to 5.75” wide labels. It’s ideal for all plastic, metal, fiber, and glass containers with rounded shapes.
This machine’s versatility and reliability exceed other industry leaders in labeling equipment technology at a fraction of the price.
Contact Accutek today to learn more about this machine.
Recommended Products
- Round containers
Is the touchscreen interface easy to use?
Yes, the touchscreen interface is easy to navigate. It may not be immediately obvious which buttons are supposed to do what, but the manual will go over all of this with you. After reading it, you’ll have the know-how and confidence to carry out the labeling of your product(s).How am I supposed to mount my label reel onto the machine?
You start by setting a roll of labels on the supply reel, then pulling about five feet of labels from the roll to form a leader. Then you peel the labels off the ladder and lace it through the guide rollers, label sensor, and around the peel plate. The rest of how to mount your label is described in the machine’s manual.What should I do if I have any issues with the machine?
The machine’s interface contains a built-in section on troubleshooting problems that you may encounter when operating this machine. If the suggested solutions don’t work or the problem itself isn’t otherwise covered, contact Accutek’s service department. We’ll do our best to help you solve your problem.How often should I clean and maintain my machine?
That will depend on how often you use it. We do recommend cleaning the PSA once you receive it, just to make sure any residue from transport is removed.- In-line automatic applications
- Touchscreen control system with job memory
- Heavy-duty construction built for three-shift operations
- Sanitary stainless-steel thick-wall frame
- Easy-adjusting hand wheels for quick setup
- Synchronized operation
- Synchronized powered wrap station
- Infeed separator wheel
- Hot stamp coder or digital thermal coder
- Alpha-numeric starter kit
- Pneumatic separator
- Star wheel separator
- Clear label sensor
- Anti-static bar
- 8” (203.2 mm) wrapping belt
- Labeling Speed: Up to 150 CPM
- Label Length: 0.5” – 17” (12.7 – 431.8 mm)
- Label Height: 0.5” – 8” (12.7 – 203.2 mm)
- Labeling Direction: Left Side Off – Outside peel
- Electrical Requirements: 110 V (220 V optional), 10 Amps
- Air Requirements: None
- Length: 97.5” (2476.5 mm)
- Width: 41-53” (1041 – 1346 mm)
- Height: 49.5” (1257.3 mm)
- Weight: 527 lbs (239.04 kg)
