RC Series

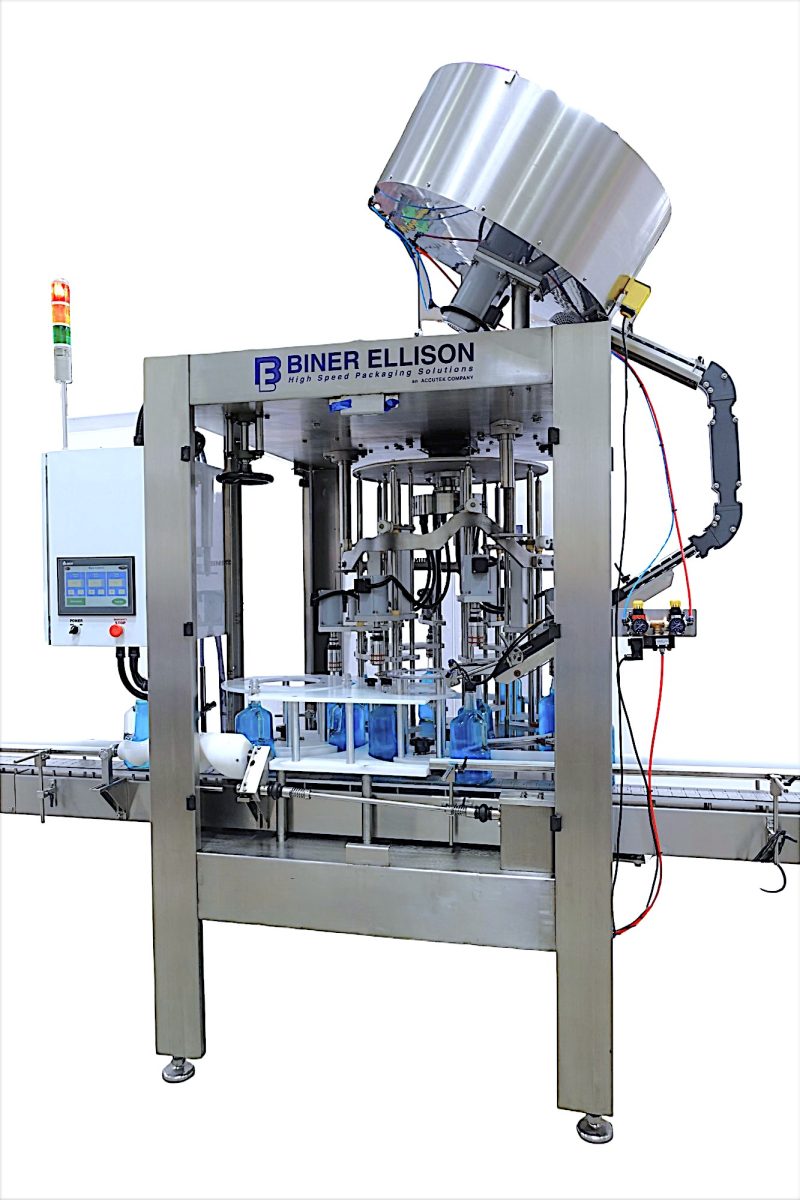

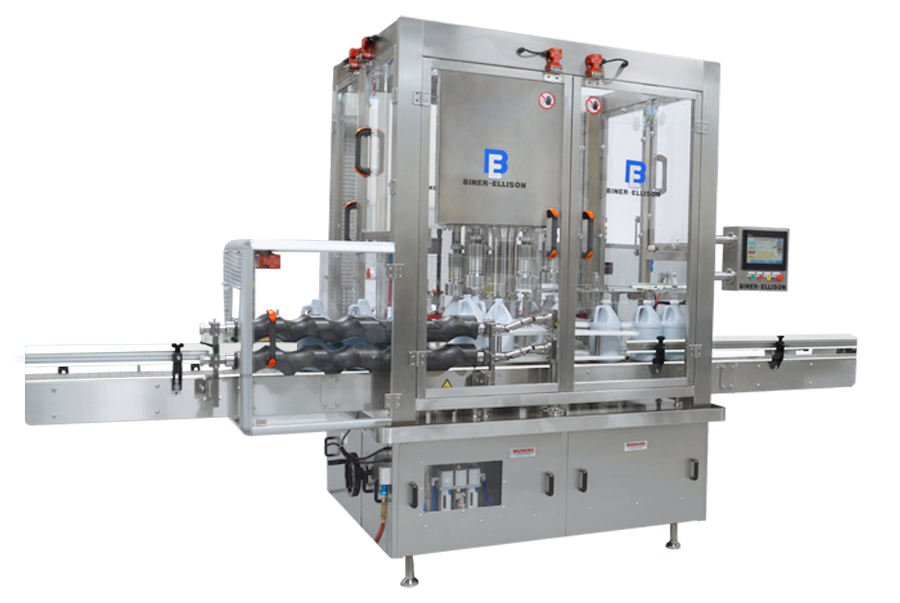

The Biner Ellison RC Series Cappers are versatile rotary capping systems designed to complement high speed rotary bottling equipment.

Compatiblity

The Biner Ellison RC Series Cappers are versatile rotary capping systems designed to complement high speed rotary bottling equipment. These flexible rotary cappers continuously sort, apply, and torque caps to a variety of different container sizes and shapes. The RC Series comes standard with mechanical friction clutches to ensure that accurate and uniform torque values are applied to each container for optimal closure results. They can be easily integrated into existing packaging lines or tailored for your new project specs.

The RC Series Cappers are available in two model sizes, the RC40 and the RC52, with operational speeds up to 140 CPM and 240 CPM respectively. (Higher speeds possible depending on container and cap characteristics.) Each RC Series Capper can accommodate a range of container and cap sizes with minimal change parts. This makes them the perfect capper for customers or contract packagers who plan to run multiple products on a single bottling line. All cappers have color touch screen displays featuring a full management interface for complete efficiency control. Up to 99 job recipes can be saved making changeover from one project to another smooth and simple.

Features
    • Adaptable to a wide range of caps and containers
    • Speeds up to 240 CPM
    • Up to 20 AC motor drive chuck capping stations
    • Automatic “No Bottle – No Cap” system
    • Centrifugal cap orientation and delivery
    • Powered height control
    • Single point grease system for easy maintenance
    • Touch screen controls with job memory
    • Adjustable mechanical friction clutches
    • Quick swap change parts
Options
    • Neck stabilizer for weak walled containers
    • Low cap supply sensor and alarms
    • Anti-rotation upgrade for round containers (Cam or Belt operated)
    • QA sensor and alarm for miss-aligned or missing caps
    • Custom chuck head upgrades (Vacuum, teeth)
    • Magnetic or Pneumatic clutches
Specs
Cap Type: Screw or Lug
Air Requirements: 90 PSI @ 3 CFM
Electical Requirements: 220/240 VAC, 20 AMP, 3 Phase
Cap Range: 1u0094 – 6u0094 (25mm – 152mm) OD
Container Range: 1u0094 – 9u0094 (228.6mm – 152mm) OD**
model: RC_Series
height: 89
length: 54-62
width: 61-73
weight: 2350 lbs. (1065 kg)
speed: Up to 240 CPM*
