Description

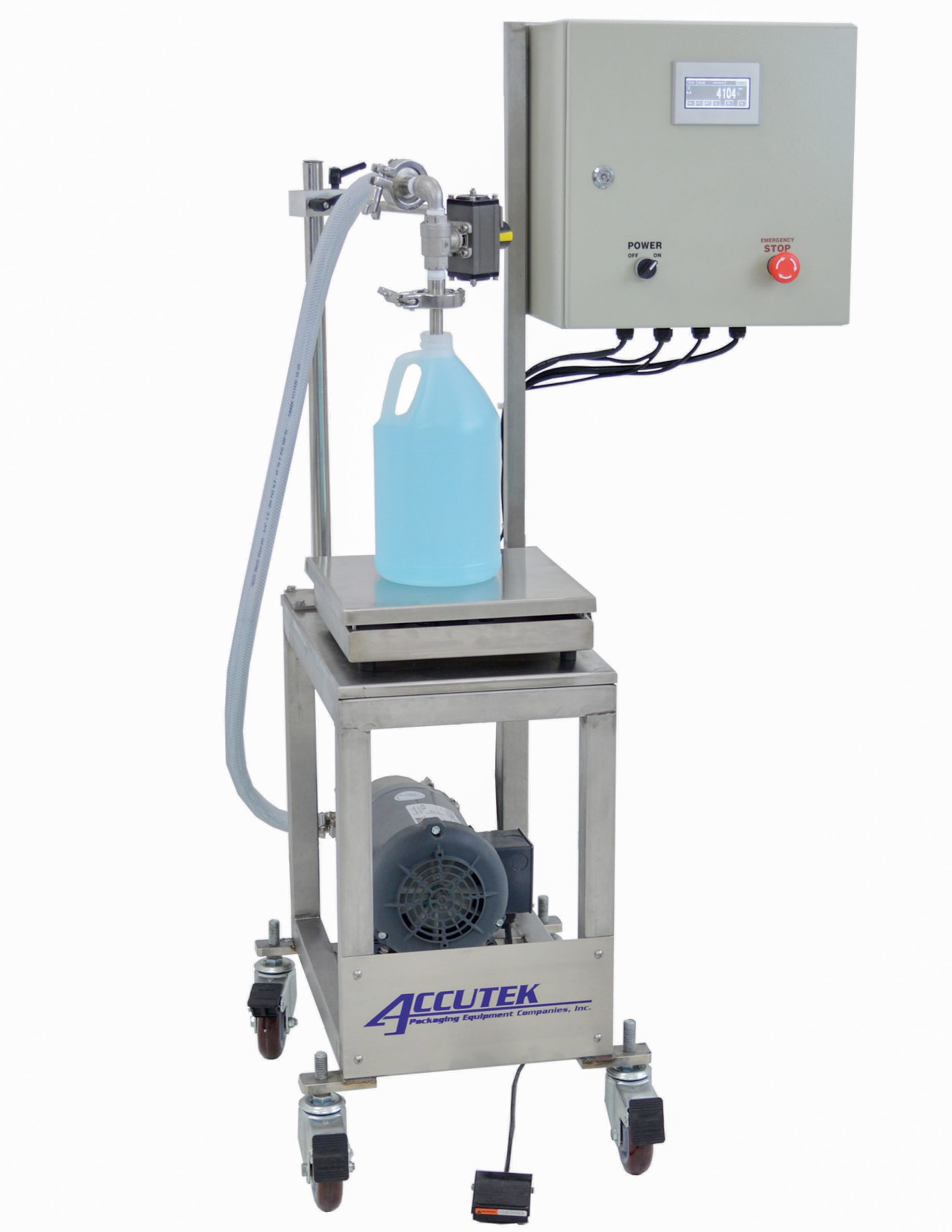

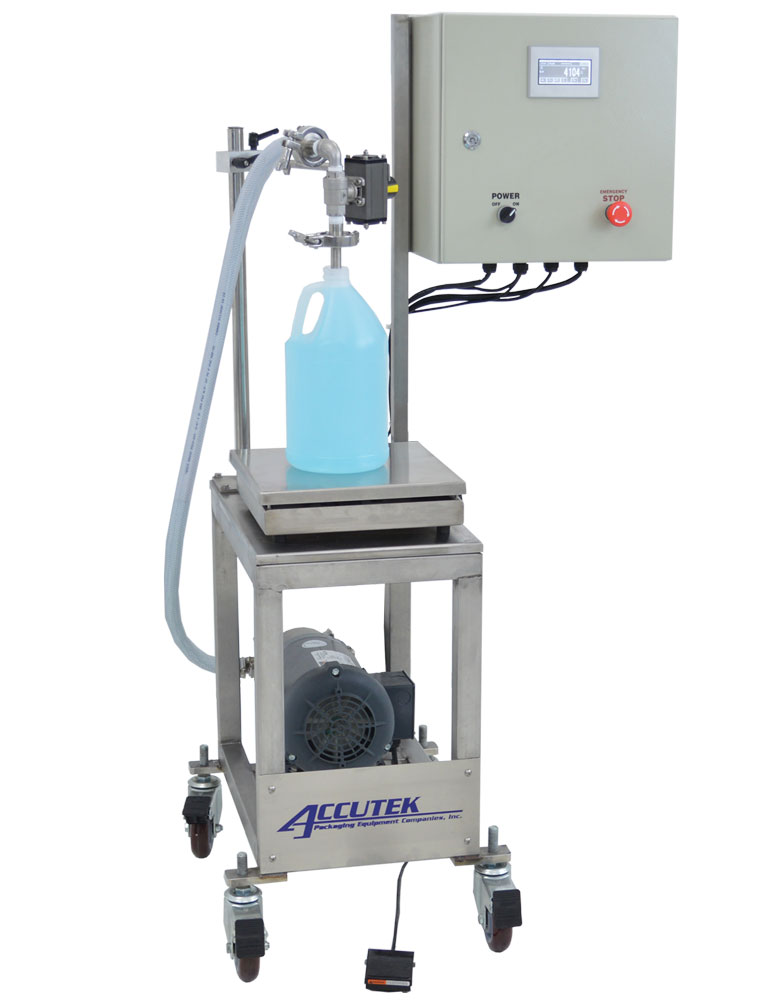

AccuWeight fillers are net weight fillers which provide accurate filling of liquid or semi-liquid products into drum or bucket containers ranging from 0.5 – 6 gallons (2-25 L). The easy to use AccuWeight fillers feature durable stainless steel weigh surfaces, mechanical weight sensors, sanitary stainless steel contact parts, and full pneumatic operation.







Features for net weight filler
    • Multi-speed filling setpoints
    • Adjustable stainless steel filling nozzle
    • Air actuated valves with Teflon seats
    • Pneumatic operation for hazardous products
    • Micro adjust control
    • Automatic fill sequencing
    • Food grade manifold with Tri-clamp ends
    • Welded straight-through wetted parts



Options for net weight filler
    • Automatic Bottle Indexing
    • Roller conveyor fill platform
    • No container no fill sensor
    • Suckback nozzle to reduce dripping
    • Casters for easy relocation
    • Fume hood for hazardous liquids
    • Remote emergency stop
    • Various types of fill nozzles



Specs for net weight filler
Height: 75” (1,905 mm)
Length: 28” (711.2 mm)
Depth: 28” (711.2 mm)
Weight: Approx. 160 lbs. (72.57 kg)
Product Speed: Up to 5 CPM1
Fill Size: 2oz – 7 gal
Viscosity Range: up to 2000 cps (Centipoise)
Electrical: 110 VAC – 5amps
Air Requirements: 90 PSI @ 3 CFM
Foamy Product: YES
Corrosive Product: YES
Heated Product: YES
Particulates: NO
