ROF-64

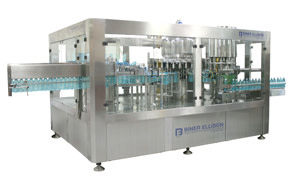

The Rotary Overflow Filling Machine is a fast and accurate production system that can be used for all free-flowing and non-carbonated liquids including foods, beverages, cosmetics, chemicals, and much more.

Compatiblity

Description

The Rotary Overflow Filling Machine is a fast and accurate production system that can be used for all free-flowing and non-carbonated liquids including foods, beverages, cosmetics, chemicals, and much more.

The Rotary Overflow Filling Machines use fill to level technology to deliver product to the container. The Rotary Overflow Filling Machine includes more standard features, safety systems, and new production technology which boost its productivity past any machine in its class.

Rotary Overflow Filling Machines allow customers to produce visually appealing and consistent fill levels regardless of volume irregularities and container shapes, which can be caused through the bottle molding and forming process.

The Rotary Overflow Filling machines compensate for these minor changes and variations in the container volume allowing for a uniform and appealing fill level. These machines can accommodate all types of containers comprised of rigid plastic, metal, and glass from ounces to gallons.

Features

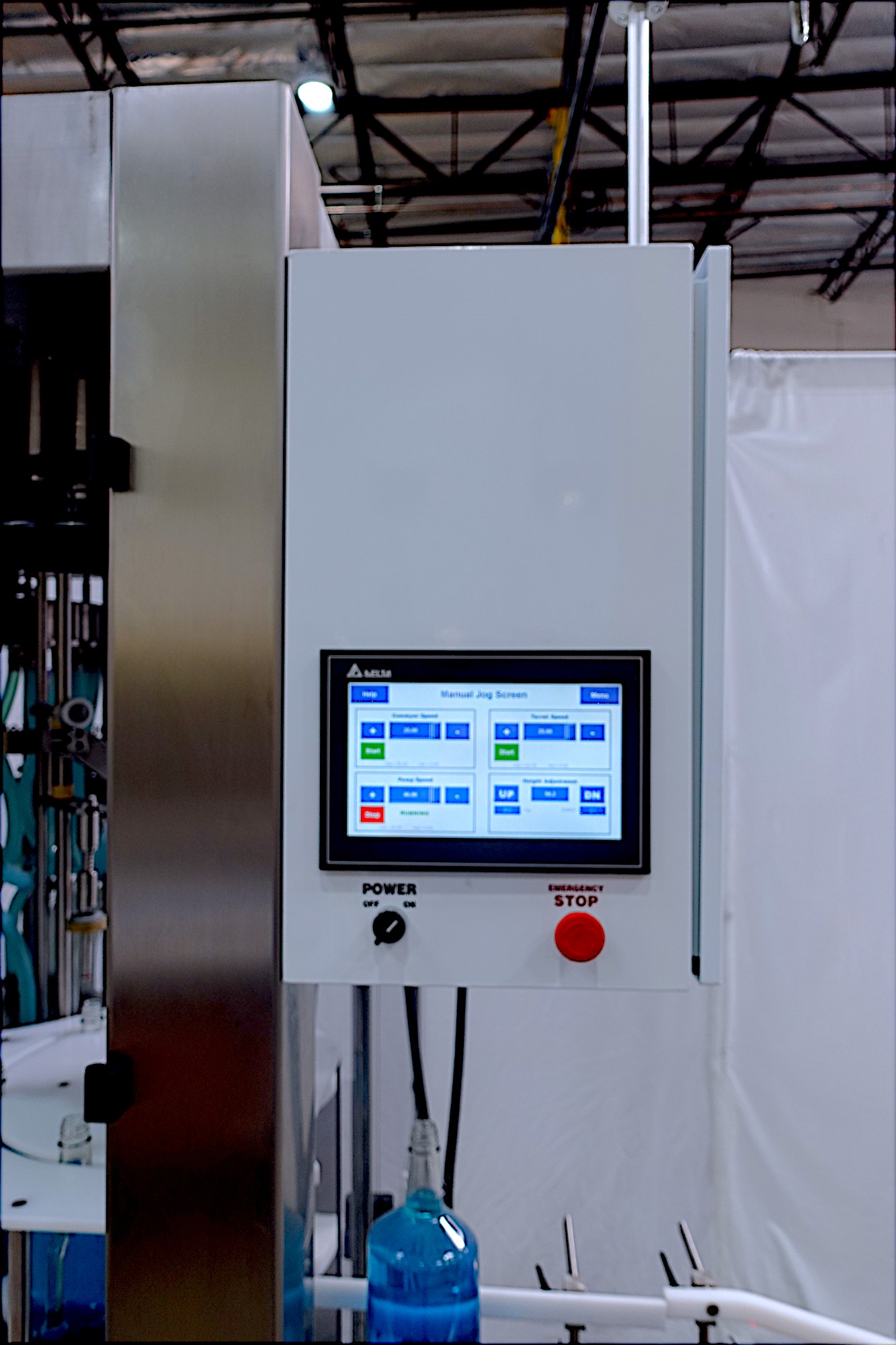

    • Touch screen control package
    • Electronic variable speed controls
    • Accommodates glass, plastic, and metal containers up to 600 CPM
Options
    • Specialty pumps available
    • Explosion Proof option
    • Teflon Seals and hoses
    • Sanitary Conveyor System
Specs
Fill Size: 1 oz – 1.3 Gal (30mL – 5L)
Viscosity Range: 1-2000 cp
Foamy Product: Yes
Corrosive Product: Yes
Heated Product: Yes
Particulates: No
Electrical Requirements: 220/240 VAC, 20 AMP, 3 Phase
Air Requirements: 100psi @ 5 u0096 10 CFM
model: ROF-64
height: 89″
length: 86″
width: 92″
weight: 5200 lbs. (2358.68 kg)
speed: 600 CPM
