SVF Series

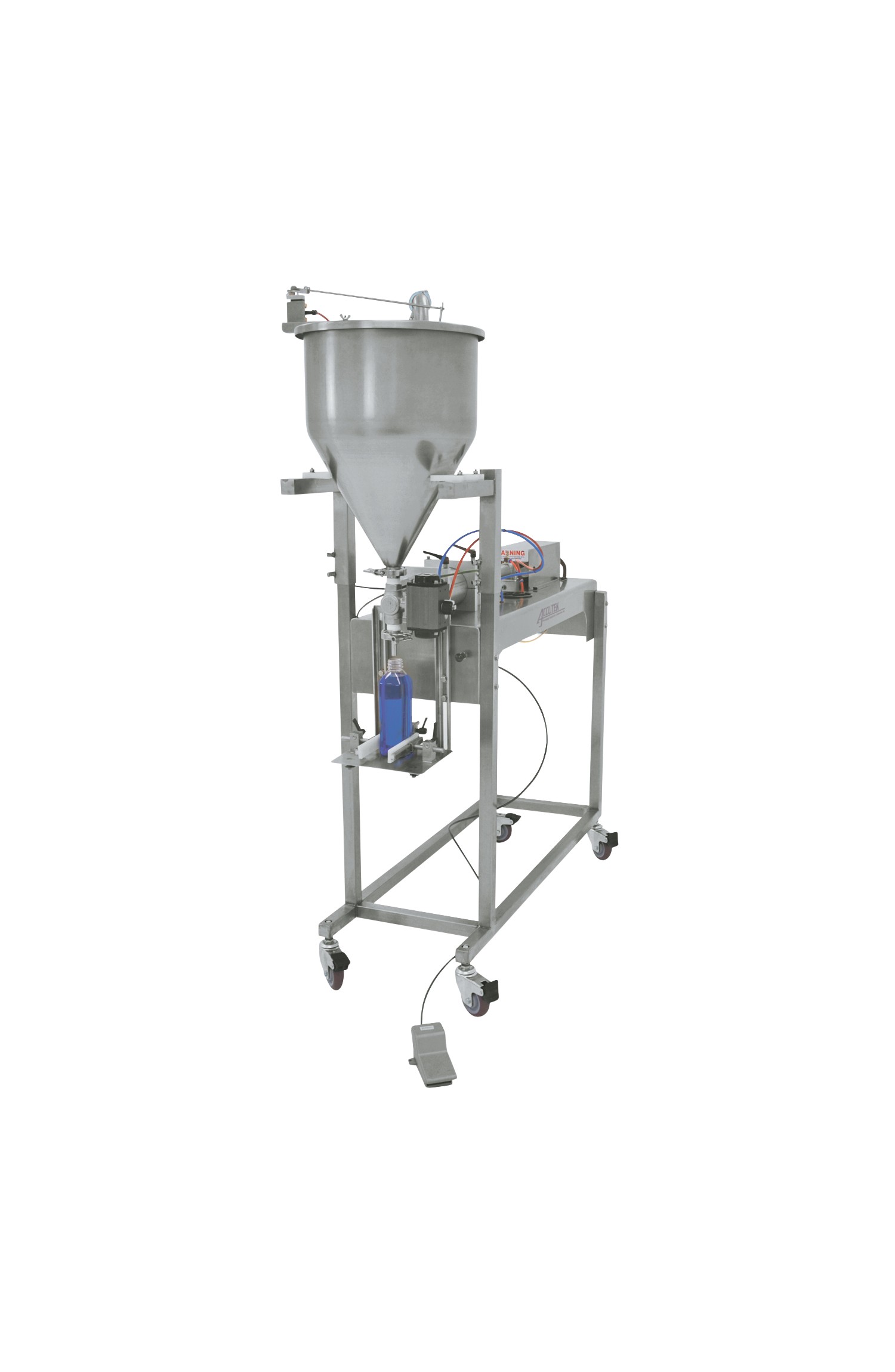

Accutek’s Semi-Automatic Volumetric Fillers (SVF) are piston fillers that accurately deliver a measured volume of product to each container. The accuracy of these machines ensures bottom line savings by reducing the amount of product that is used as overfill.

Compatiblity

Description

Accutek’s Semi-Automatic Volumetric Fillers (SVF) offer precise product measurement per container, reducing overfill and saving costs. These flexible piston fillers adapt to a wide product range, from water to thick caulking compounds, and handle lightweight containers prone to distortion. Volumetric piston fillers can accommodate chunky products with an optional valve, come with a direct from drum draw kit (Optional hopper available), and can be swiftly set up for production. Whether as the core of your filling process, a cost-effective backup, or an alternative to contract packagers, SVF piston fillers eliminate downtime and expensive setup for small runs.





Features
    • One Product Cylinder and Piston
    • Direct from Drum Draw Kit
    • Available in 2-128oz single dose configurations



Options
    • Longer nozzles (for bottom up filling to reduce foam)
    • Skinny Nozzles (for products that string or drip)
    • A Hopper
    • Chunky Product Butterfly Valves for Sanitary Products with Particulates
    • Heat Packages
    • Corrosive product packages
    • Positive Off Nozzles
    • Product suck-back nozzle kits
    • A Foot Switch



Specs
Height: 12
Length: 27
Width: 12
Weight: ~45 lbs. (20.41 kg)
Speed: 30 CPM
Fill Size: NA
Air Requirements: 0.25 – 2 oz. (One Dose Size)
Electrical Requirements: 80 PSI u0096 1.5CFM
Viscosity Range: Centipoise (cp) 1-20,000+
Foamy Product: Yes*
Corrosive Product: Yes*
Heated Product: Yes*
Particulates: Yes*
