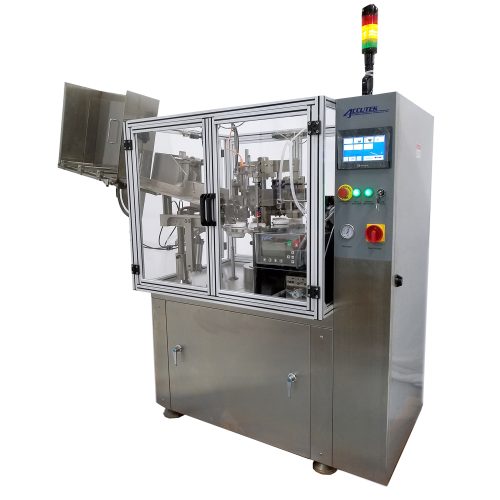

TFS Filler/Sealer

The TFS-1PT Tube Filler Sealers machines are heavy duty stainless steel fillers suitable for filling all kinds of semi-viscous and viscous products into plastic tubes. Plastic tubes are then internally heated and can be embossed with an optional date and lot number coder. The TFS machines are great for use in the pharmaceutical, food, cosmetic and chemical industries. Tube feeding, marking identification, filling, folding or sealing, code printing, and finished product output are all conducted by a fully automated touch screen control system with help menus. The TFS tube filler sealers offer quick and easy adjustment, making these machines simple to operate and maintain.

Model: TFS-1PT
Fill Size: Up to 8 oz
Tube Diameter: 0.375″
Max Tube Length: 8.25″
Electrical Requirements: 220 VAC / 3 ph
Air Requirements: 90 PSI @ 3 CFM
Height: 75″
Length: 75″
Width: 39″
Weight: 1200 lbs (544 kg)
Speed: Up to 40 CPM

Compact Design for Minimum Floor Space
Heavy Duty Stainless Steel Frame Construction
Automated Pneumatic Tube Loading System
Intelligent Temperature Control and Cooling Systems
Easy to Operate and Adjust with Touch Screen Controls
Sanitary Stainless Steel Contact Parts
Fully Enclosed Safety Frame with Door Interlock
Automatic Sensor Activated Orientation
Convenient and Swift Adjustment of filling volume via Hand Wheel

Magazines and Bulk Loader
Date Coding Embossing
Chiller
Automatic Tube Feeding Magazine
Change Parts for Lot Exp and Alpha Numeric Lettering Kits
Automatic Tube Elevator Loader
