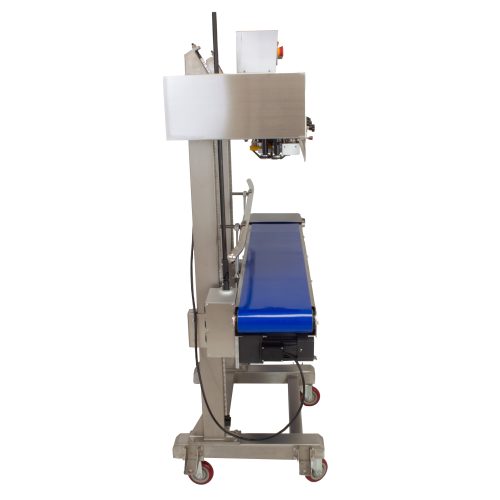

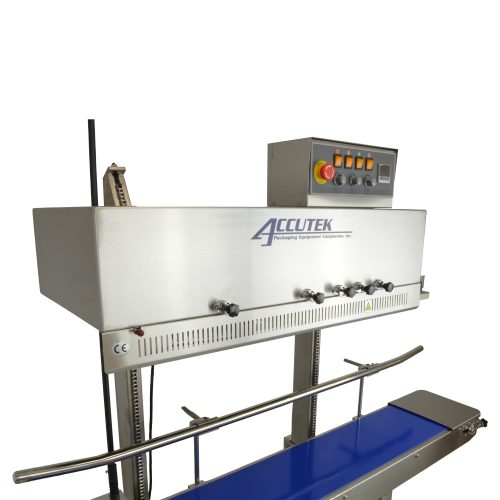

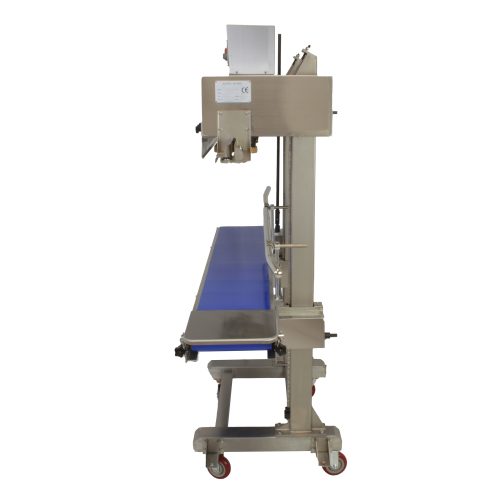

Accutek Band Sealer

Accutek band sealers are equipped with electronic temperature controllers and variable speed conveyors to seal all types of thermoplastic materials (PP, PE, stand up pouches, gusseted bags, moisture barrier bags, etc.).

Compatiblity

Accutek band sealers are equipped with electronic temperature controllers and variable speed conveyors to seal all types of thermoplastic materials (PP, PE, stand up pouches, gusseted bags, moisture barrier bags, etc.). Seals are created using PTFE bands, which maintain high seal quality and produce consistently reliable, clean seals on all heat sealable bags. Because bags are placed on a conveyor system, the bag width does not matter. These versatile machines offer several adjustments that allow them to be used for a wide range of applications. These machines are used extensively in the food, medical, chemical, cosmetic, and electronics industries.

The Accutek band sealer is a standalone unit with locking casters providing easy mobility. The vertical configuration of the sealer makes the unit ideal for packaging granular, powder, and liquid products. Stand up pouches work well with this machine.

Features for band sealer
    • Simple to use with minimal operator training
    • Fast warm up time
    • Unit feeds right to left
    • Stainless steel construction
    • Equipped with bag entry guide for easy bag feeding and straight seals
    • Wide seal (8mm) to assure an airtight seal
    • PTFE sealing belts
    • PID digital temperature controller, 0 – 300 degrees Centigrade

Options for band sealer

  • A printer is available as an option for that machine.



Specifications for band sealer

Voltage 110 V 60Hz
Motor power 245 W
Sealing power 300x2W
Sealing speed 0 – 32.81 ft/min [0 – 10 m/min]
Sealing width .39 in [10 mm]
Temperature control range 0 – 572 º F [0 – 300º C]
Distance from sealing center to conveyor table 3.94 – 27.6 in [100-700mm]
Size of conveyor table 55.12 x 9.8 in [1400 x 250 mm]
Thickness of film (monolayer) ≤ .005 in [0.12 mm]
Conveyor loading for single package ≤ 11lbs [5 kg]
Overall loading of conveyor ≤ 33 lbs [15 kg]
External dimensions (LxWxH) 57.1 [1450] x 26.8 [680] x 58.3 [1480] in[mm]
Net weight 300 lbs [136 kg]
