Mixing Tanks

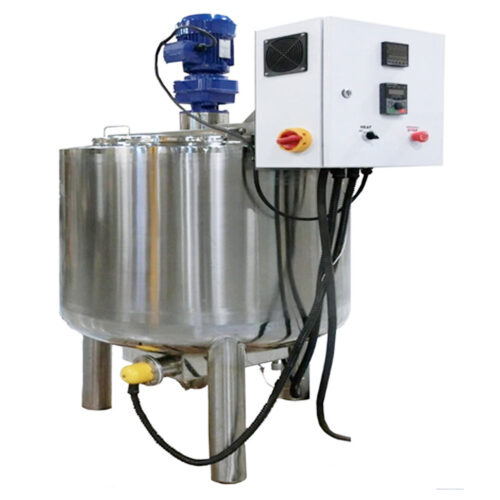

Accutek’s mixing tanks use heat-conducting oil via jacket inlets to heat your product up to high temperatures. This helps solidify certain liquid or near-liquid products, and can be drained and refilled (as recommended by the oil’s manufacturer).
You can use control panels to change the tank’s mixer speed and temperature. There’s also a drain valve and product drain you can use to drain your product, allowing you to move it to the next stage of your production cycle.
The reliability of Accutek’s tanks exceeds industry leaders in mixing equipment technology at a fraction of the price.
Contact Accutek Packaging Equipment to learn more about this bottling machine and how it can enhance your production line.
Recommended Products
- Balms
- Sauces
- Jellies
- Dressings
How often should I clean the tank?
The frequency of cleaning and the type of cleaning solution you use will depend on your specific application. Local and federal guidelines for your product and manufacturing format should also be considered.What are some tips for performing maintenance on this machine?
Generally, we recommend having two people remove the wall scrapers for cleaning. The manual will discuss this process in greater depth.What should I do if I have a problem with my heated mixing tank?
If you have a problem with your machine, give Accutek’s service department a call. We’ll do whatever we can to help you solve the problem and get your production cycle back to peak efficiency.- Control box
- Stainless-steel construction
- Motor controller
- Clean in place (CIP) spray ball
- Digital temperature and speed controls
- Wall scrapers
- High-shear mixers
- Electrical or steam-heated tanks
- Insulated walls
- Dual lids for easy access
- Two-inch tri-clamp outlets
- 6-unit 7 KW heating element
- For the 300-gallon tank:
- Half-open lid
- Three legs
- CIP spray ball
- 2” tri-clamp outlet
- Voltage: 220V, 3-phase, 60 Hz, 36KW
- 38.5 AMPS with paddle mixer
- 39 AMPS with wall scraper mixer
- 110V, 15 amps for heater rope on product drain
- Mixer motor: .75KW/1HP, 0-30 RPM, 56 gear box ratio
- Max working pressure of inner tank: .095 MPa
- Max working pressure of second layer: .3 MPa
- Max working temperature of inner tank: 100 degrees Celsius
- Max working temperature of second layer 143 degrees Celsius
- AC power: 220V, 3-phase
- Motor power: 4 kw/5.4 HP
- Variable speed: 0-3000 rpm
- Electric heating element power: 7 kw x 3 (units)=21 kw
- Dimensions: 1000 mm x 1000 mm x 1900 mm (L x W x H)
- Max working pressure of inner tank: .095 MPa
- Max working pressure of second layer: .3 MPa
- Max working temperature of inner tank: 100 degrees Celsius
- Max working temperature of second layer: 143 degrees Celsius
- AC power: 220V, 3-phase
- Motor power: 7.5 kw/10.2 HP
- Variable speed: 0-3000 rpm
- Electric heating element power: 7 kw x 6 (units)=42 kw
- Dimensions: 1200 mm x 1200 mm x 2100 mm (L x W x H)
- 3mm thickness material
- Max working pressure of inner tank: .095 MPa
- Max working pressure of second layer: .3 MPa
- Variable speed: 0-3000 rpm
- AC power: 220V, 3-phase
- Dimensions: 1118 mm x 1118 mm x 1651 mm (L x W x H)
