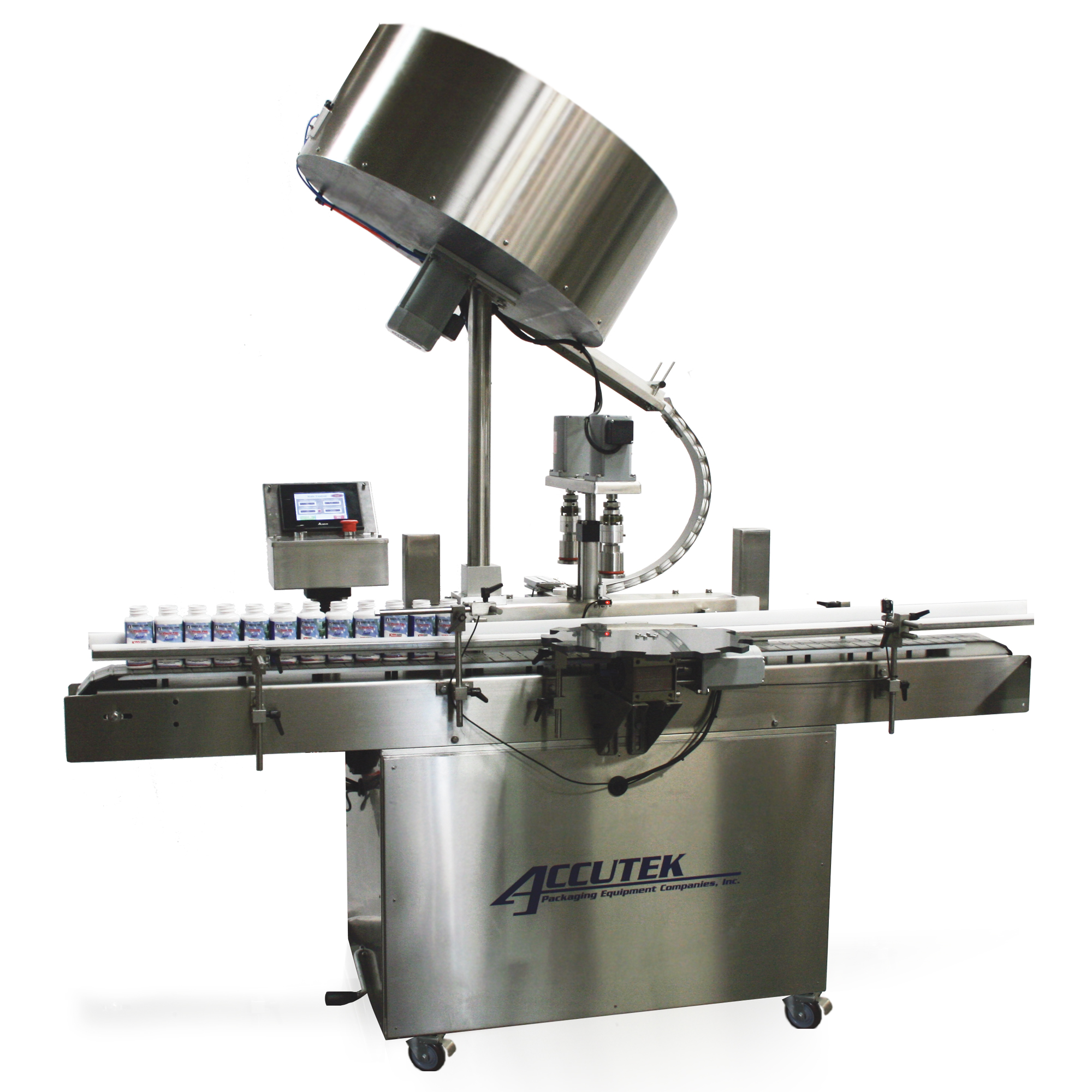

Pick and Place
The automatic Pick and Place is a dual-head Automatic Chuck Capper, designed for the cost-conscious consumer or when you need specific torque accuracies.

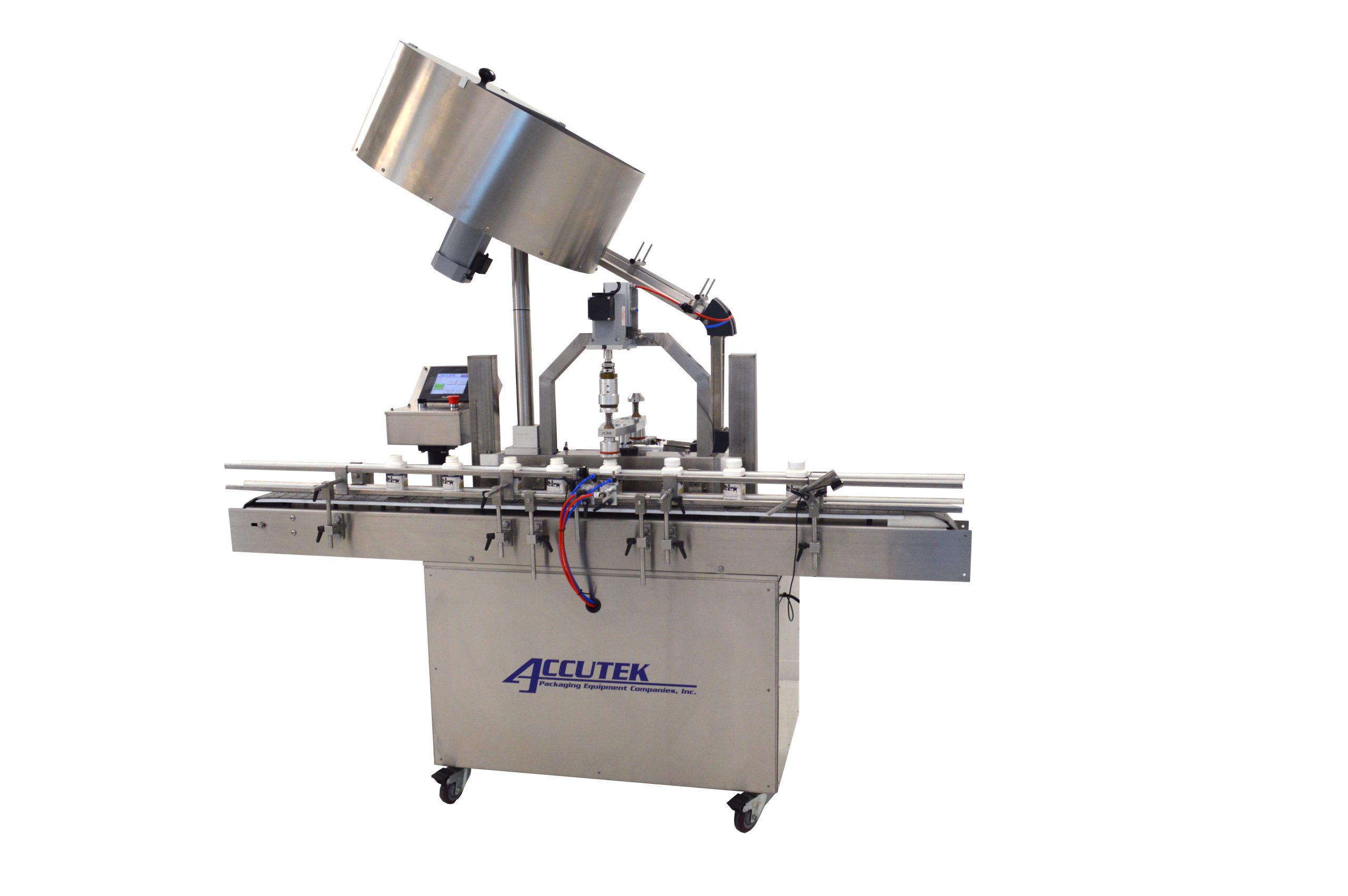

A centrifugal bowl orientator feeds caps to be picked. Once picked, the dual-head unit rotates and automatically tightens a cap while receiving another. A spring-loaded clutch determines how much torque is applied to each cap.
The Pick and Place is designed to handle most bottle types, including P.E.T, P.V.C, plastic, and glass. It comes with adjustable electronic torque values, which help keep it from damaging caps.

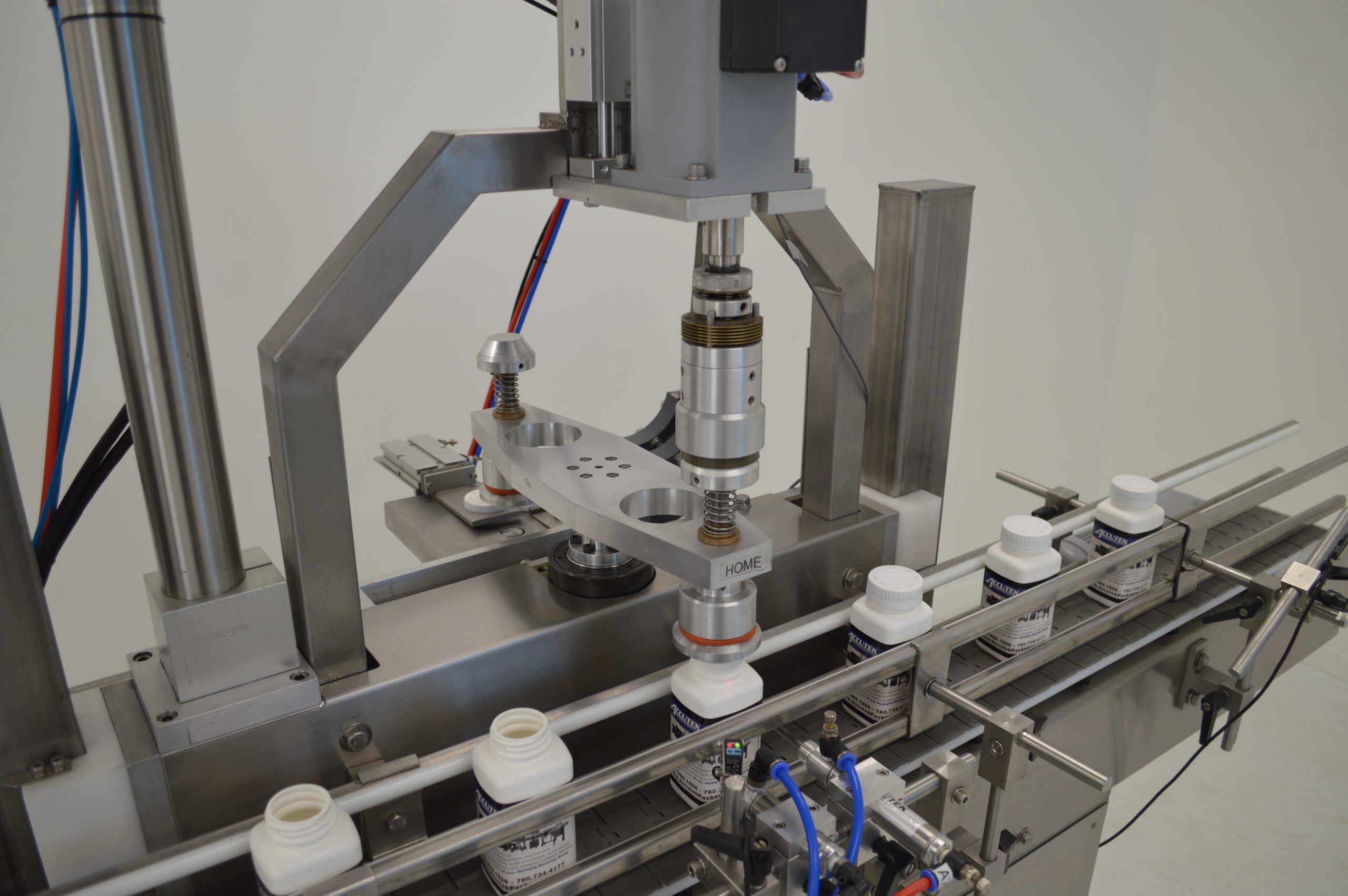

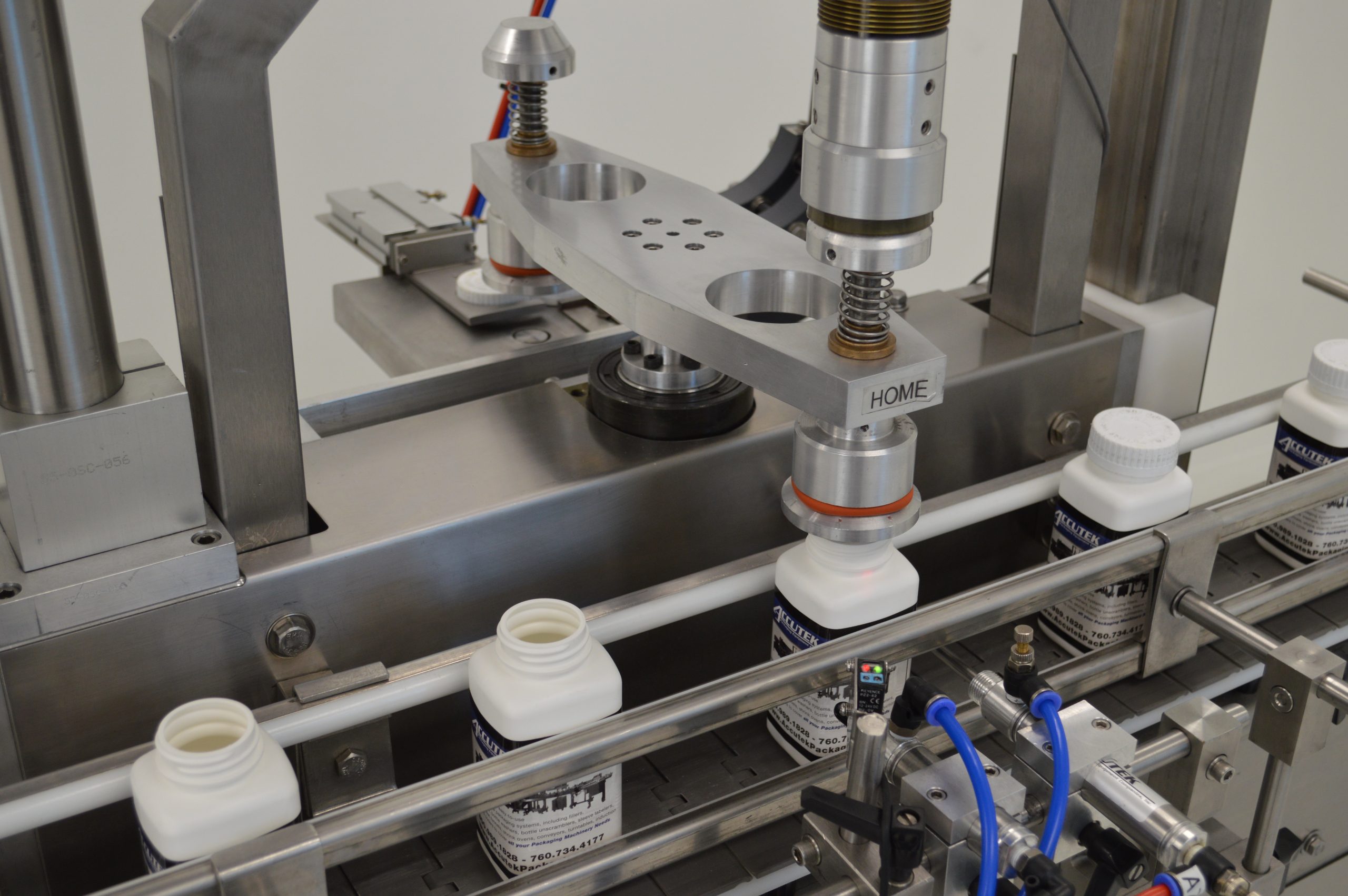

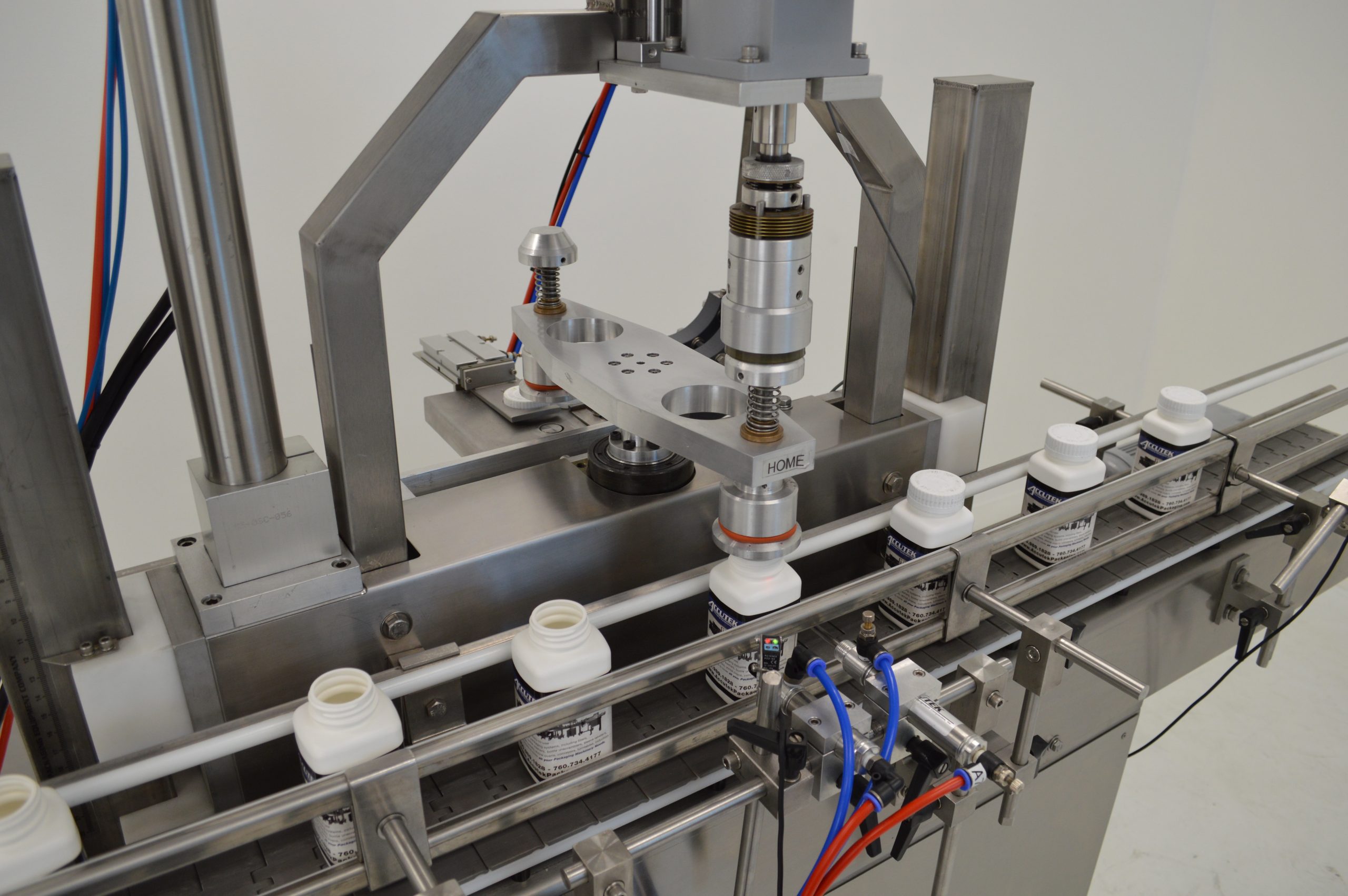

The machine is designed with Pin indexing or an optional star wheel indexing system. The star wheel keeps round bottles stationary as torque is applied. The individual air pressure controls and rotating head speed allow you to adjust the head for constant, predetermined torque. The dual-head rotating chucks allow a cap to be picked up and placed concurrently.
Contact us today to learn more about this capping machine.
*A conveyor is required for operation to feed into the automatic bottle indexing system.

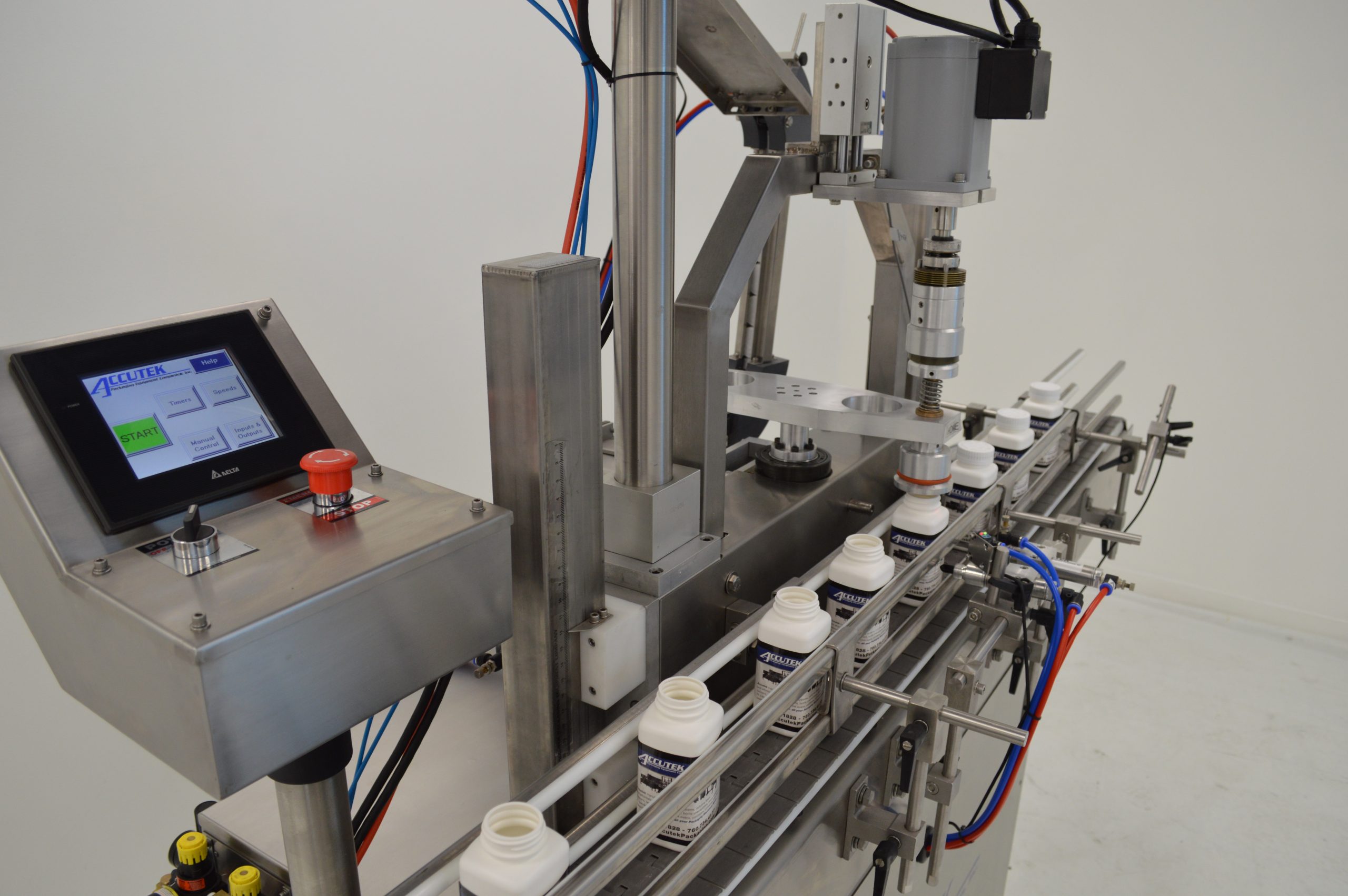

Is the touchscreen easy to use?
Yes, the touchscreen interface is easy to navigate. The manual will thoroughly describe how to use it effectively.How can I perform cap chuck changeovers?
The manual describes how to perform a changeover of the cap chuck. Make sure to consult it before attempting a changeover.How often do I need to clean and maintain the machine?
That will depend on how often you use the Pick and Place and what you use it for. Consider your local guidelines for how best to maintain your machine and what cleaning solution you’ll need to use. We generally recommend taking apart the conveyor belt to clean it.- Caps up to 30 containers per minute
- Heavy-duty stainless steel frame
- Automatic bottle indexing unit
- Intelligent electronic torque control
- Color touchscreen controls with job memory
- 10′ x 4.5″ (304.8 x 11.43 cm) sanitary conveyor
- Dual-head
- 1 set of change parts and 1 standard O-ring chuck
- High-speed feed system
- Additional chucks and inserts for specialty caps
- Custom container/closure product handling
- Automatic head height adjustment
- Cap elevator/centrifugal bowl orientator
- Bottle height: 1″ (127 mm) to 15″ (381 mm)
- Bottle diameter: 2″ (50.8 mm) to 7″ (177.8 mm)
- Capping Speed: Up to 30/min
- Electrical Requirements: 110 VAC, 60 Hz, 15 AMP, Single-phase
- Air Requirements: 90 psi @ 3 cfm
- Cap Size: 1.18– 3.66″ (30 – 93 mm)
- Height: ~84″ (213.36 cm)
- Length: ~47″ (119.38 cm)
- Depth: ~39″ (99.06 cm)
- Weight: Approx. ~850 lbs (~385.55 kg)
Related products

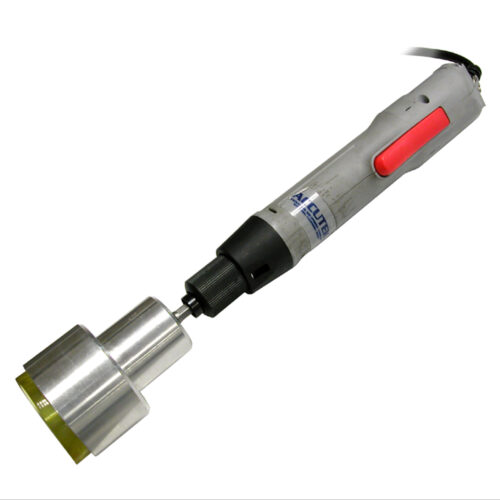

AccuCapper E
