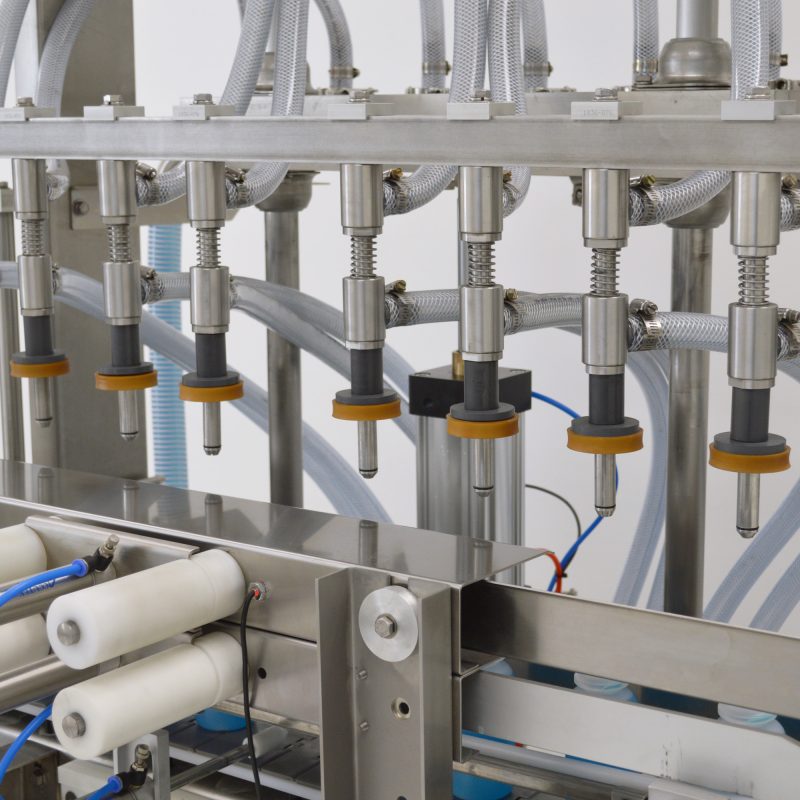

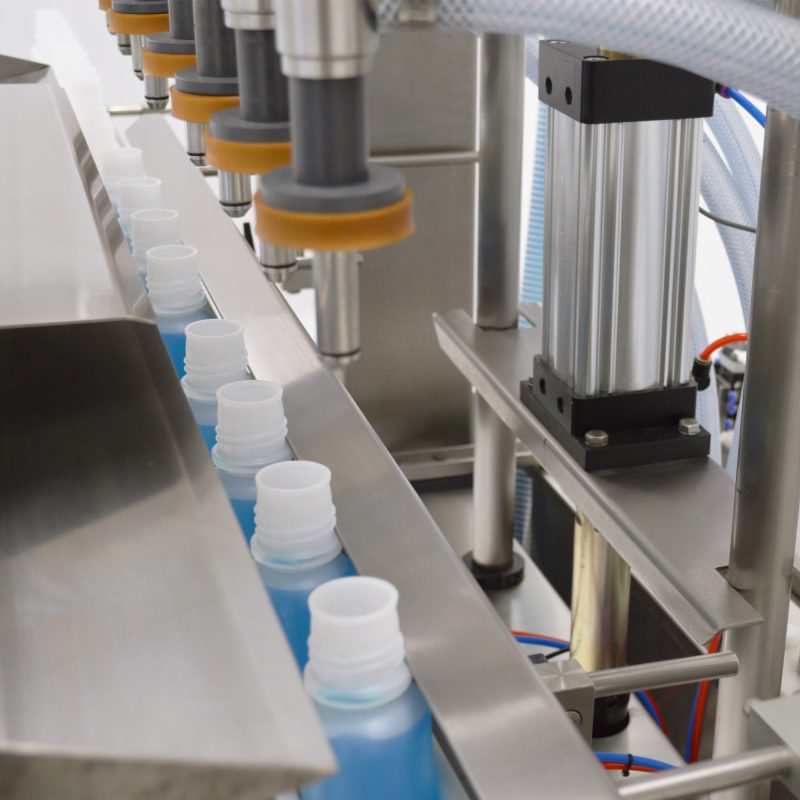

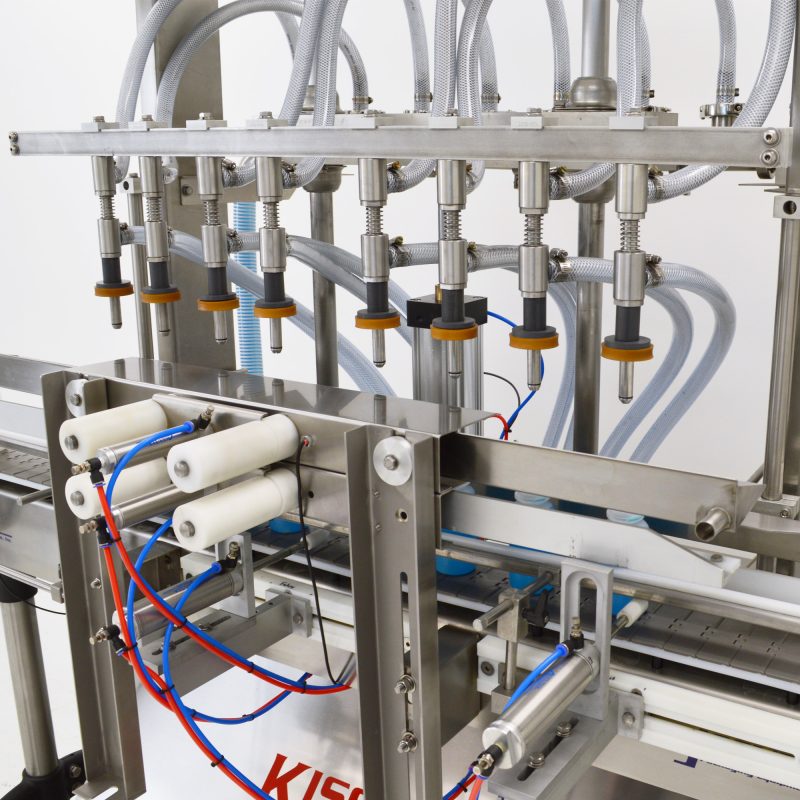

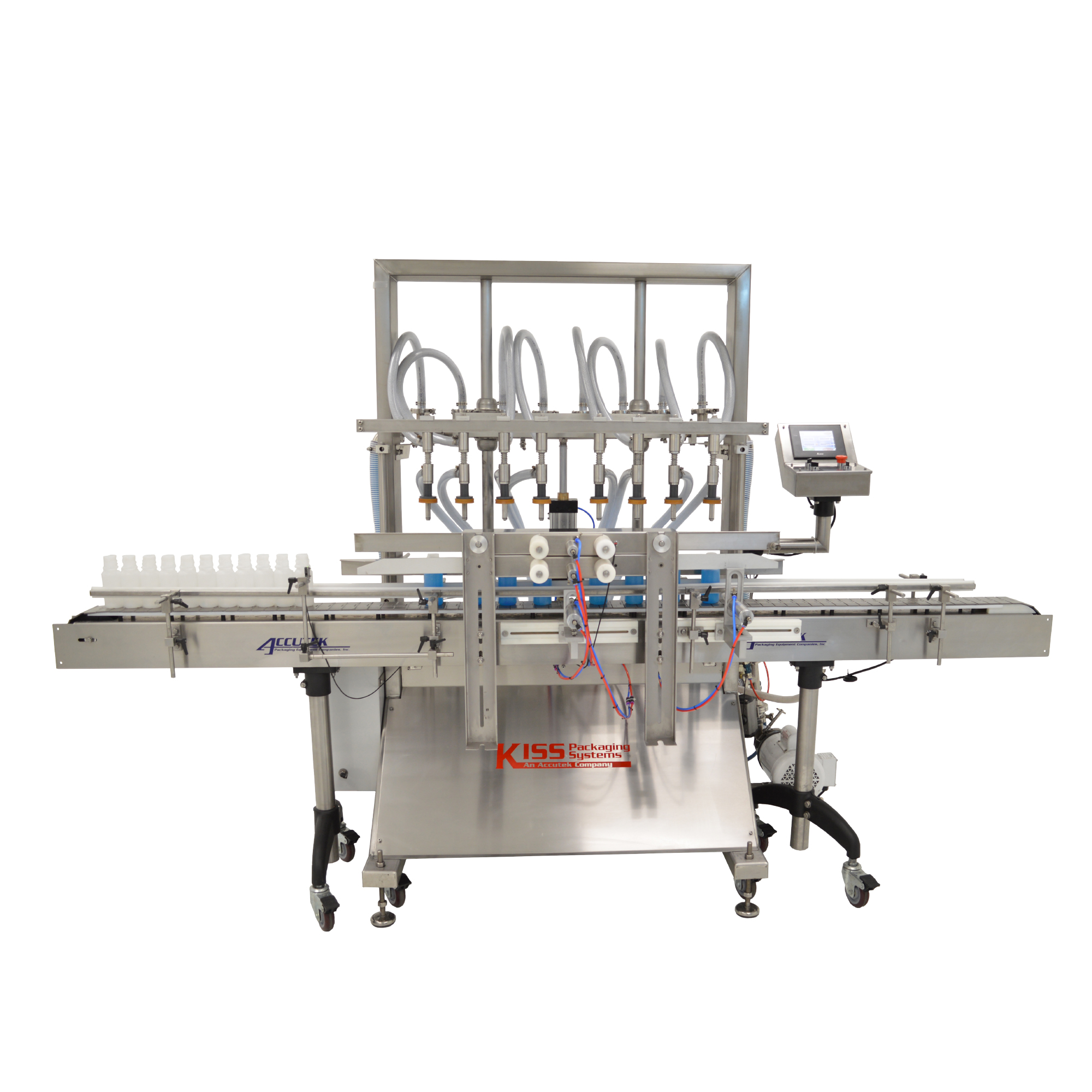

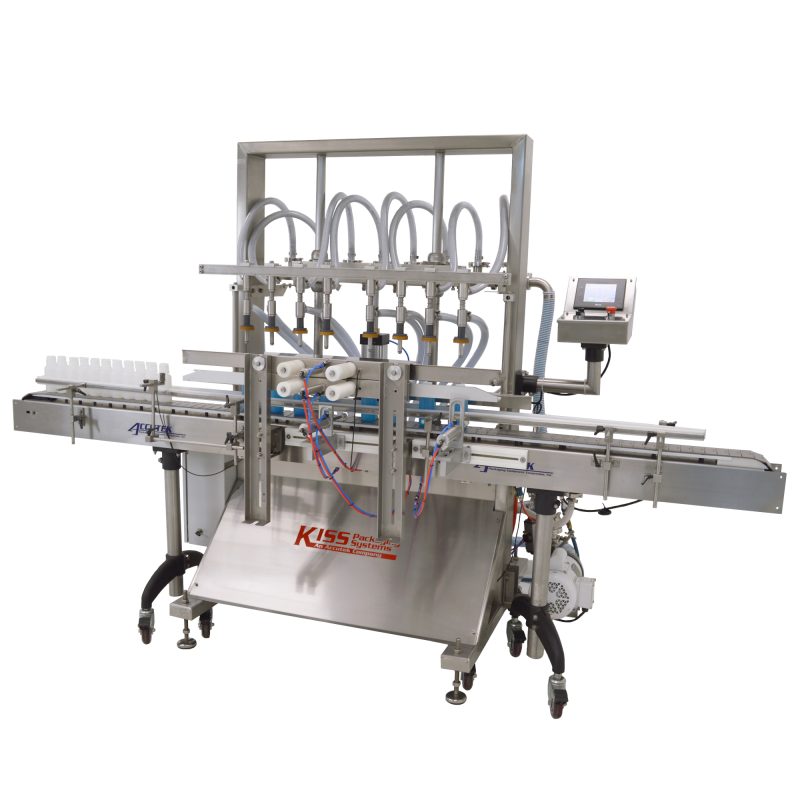

APOF Series – Automatic Pressure Overflow Filler

Automatic pressure overflow fillers are best suited for low to medium viscosity (200 cps) liquids. The precision engineered overflow nozzles guarantee that every container is filled to the same visual level.

Compatiblity

Description

Automatic pressure overflow fillers are best suited for low to medium viscosity (200 cps) liquids. The precision engineered overflow nozzles guarantee that every container is filled to the same visual level. Boutique products, personal care, and food products must present the same visual fill level when arranged on a shelf together. Automatic pressure overflow fillers are an economical and reliable solution to address that problem.

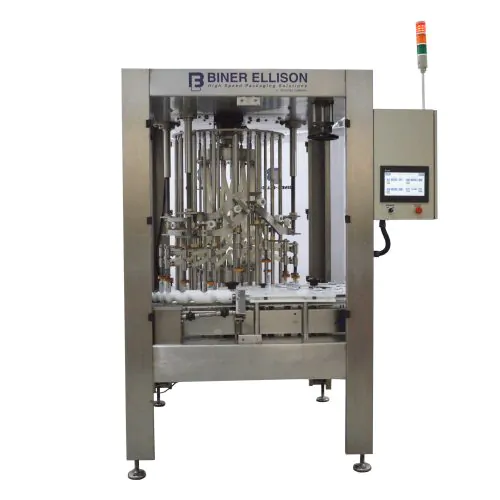

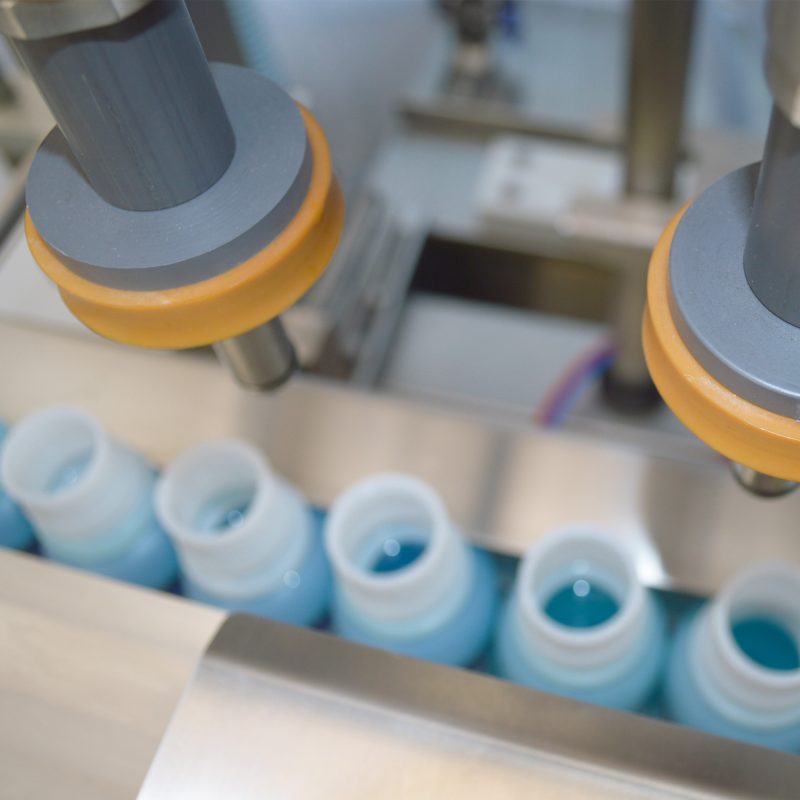

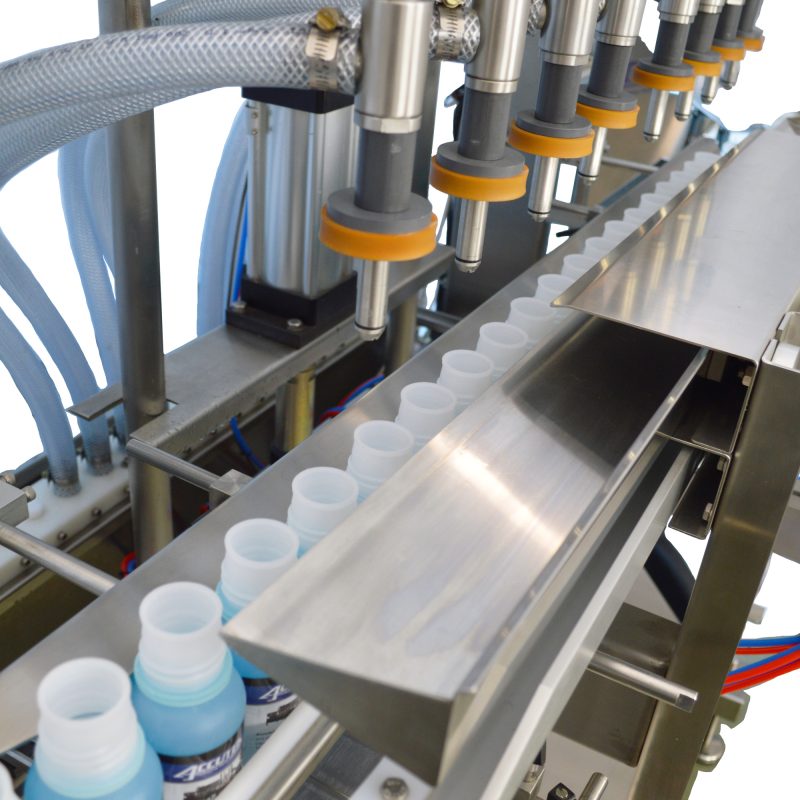

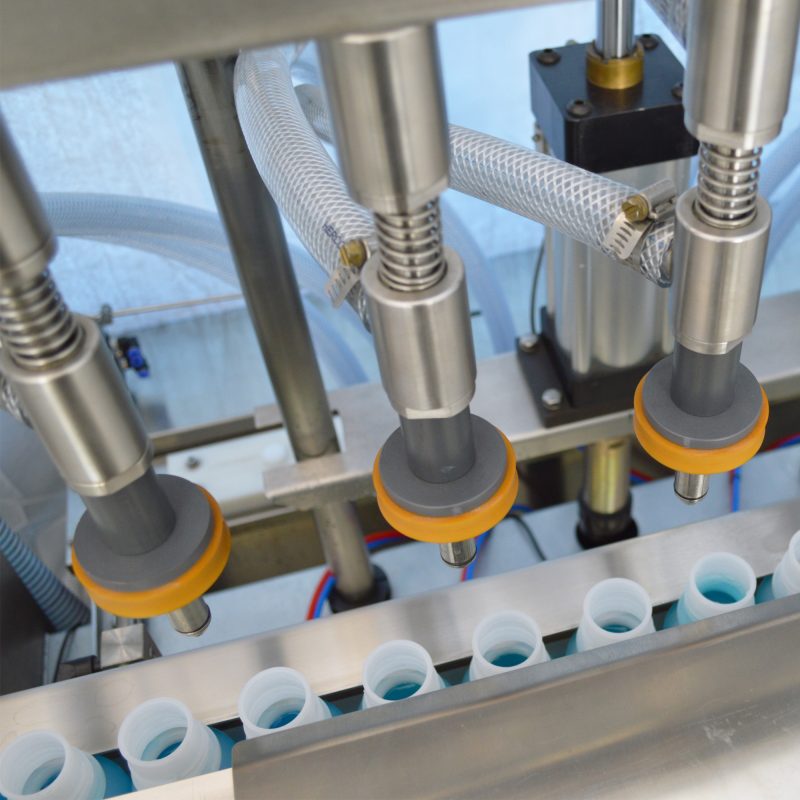

In addition, the pneumatic Automatic Pressure overflow fillers safely handle flammable liquids, such as acetone and light paints. These machines have diving head nozzles that reduce foam, drips, and fumes. APOF series fillers are available in 6, 8, 10 and 12 head configurations. Accutek also offers high-speed rotary APOF fillers. Automatic Pressure Overflow Fillers are easy to operate. Changing bottle shapes and products is straightforward.

Stainless steel product contact parts can be autoclaved to meet sanitation requirements. The versatility and accuracy of this series of machines make them a solid addition to any production environment.

Features

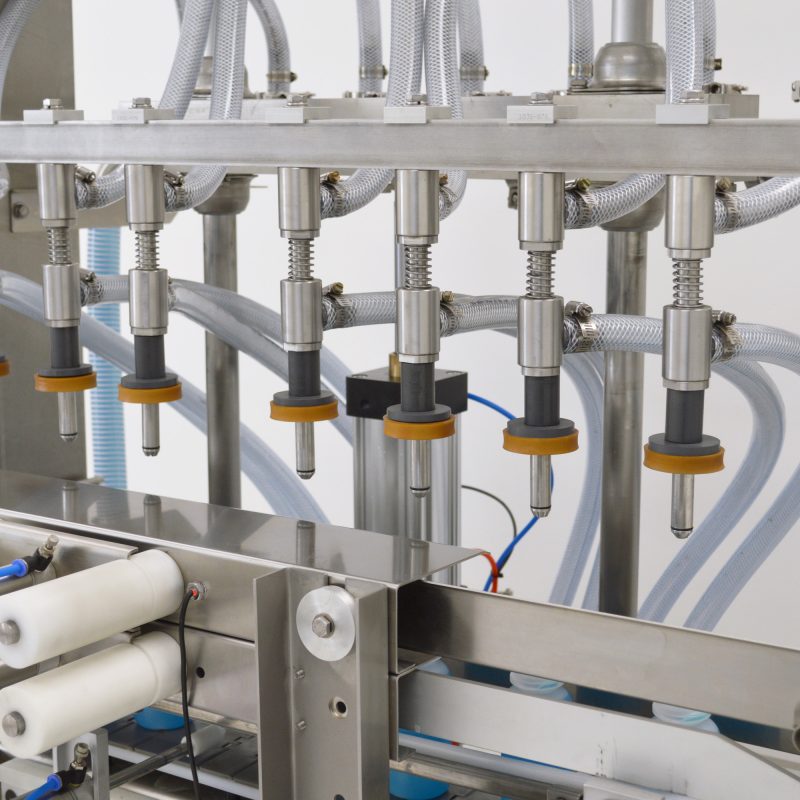

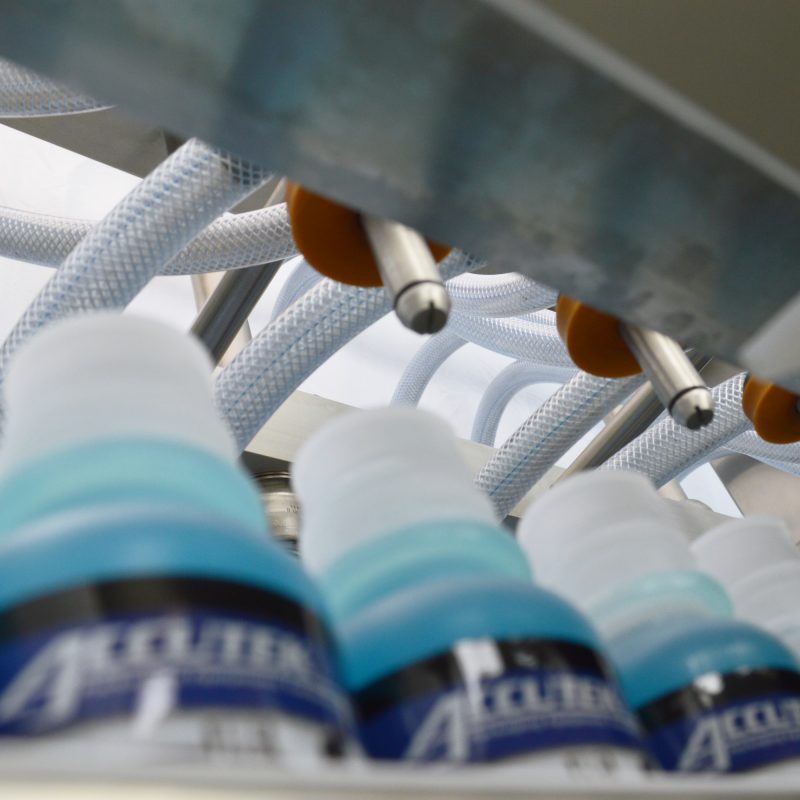

    • No drip nozzles
    • Various pump options
    • Recovers overflow product
    • Pneumatic operation

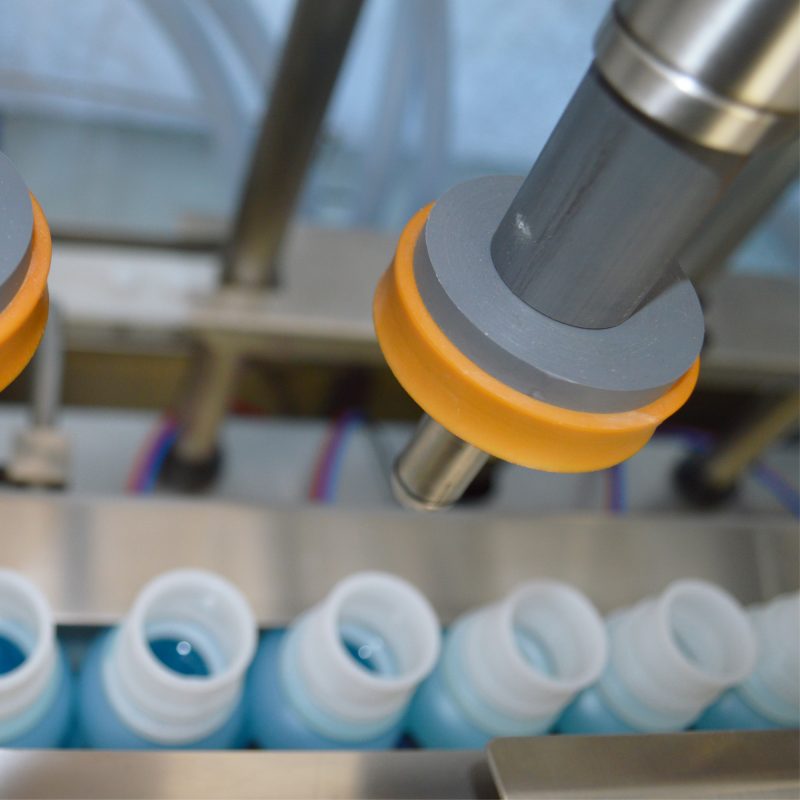

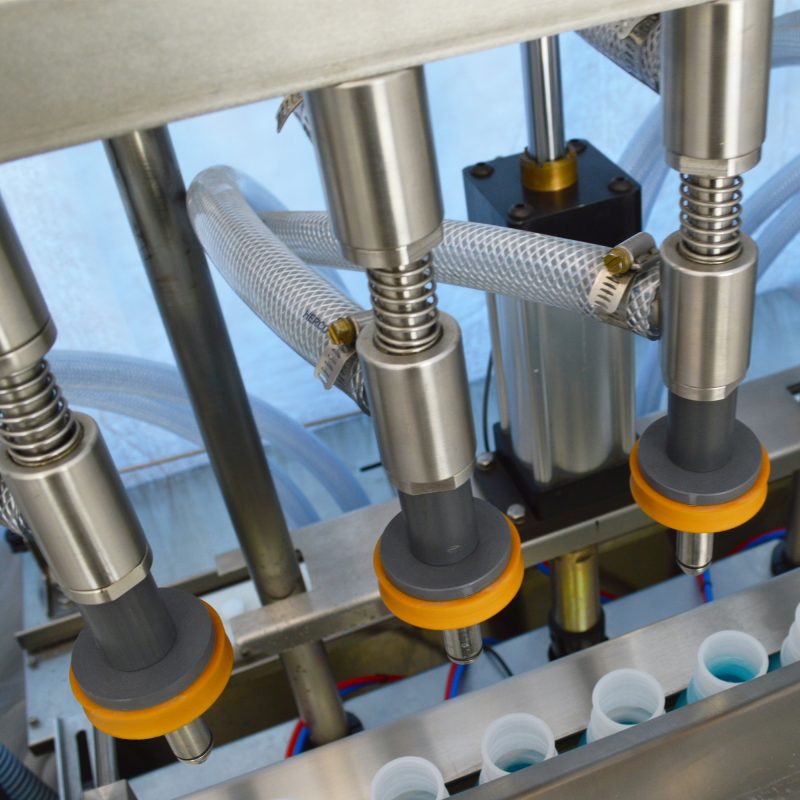

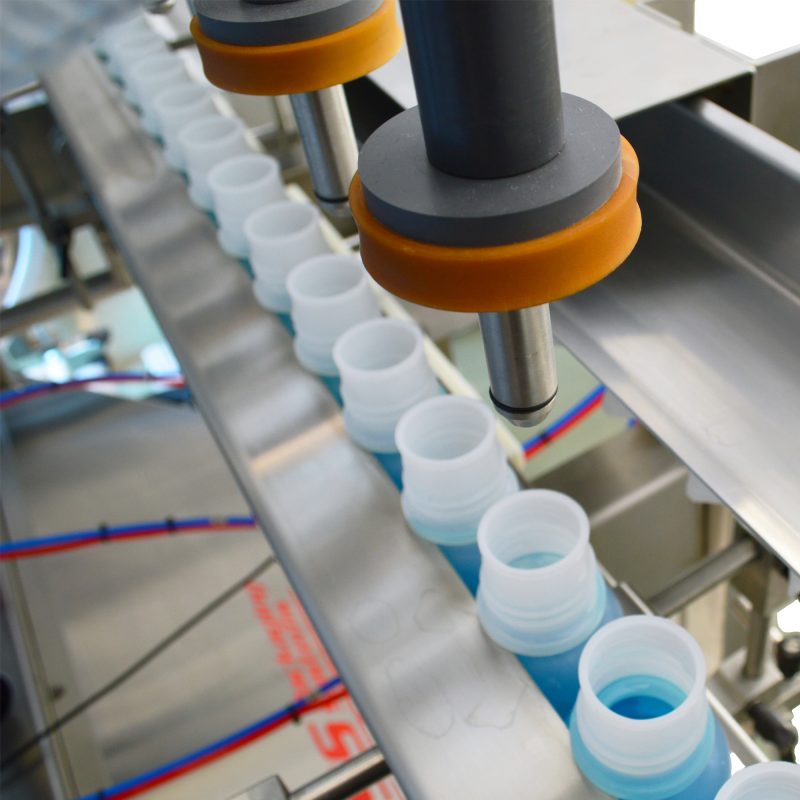

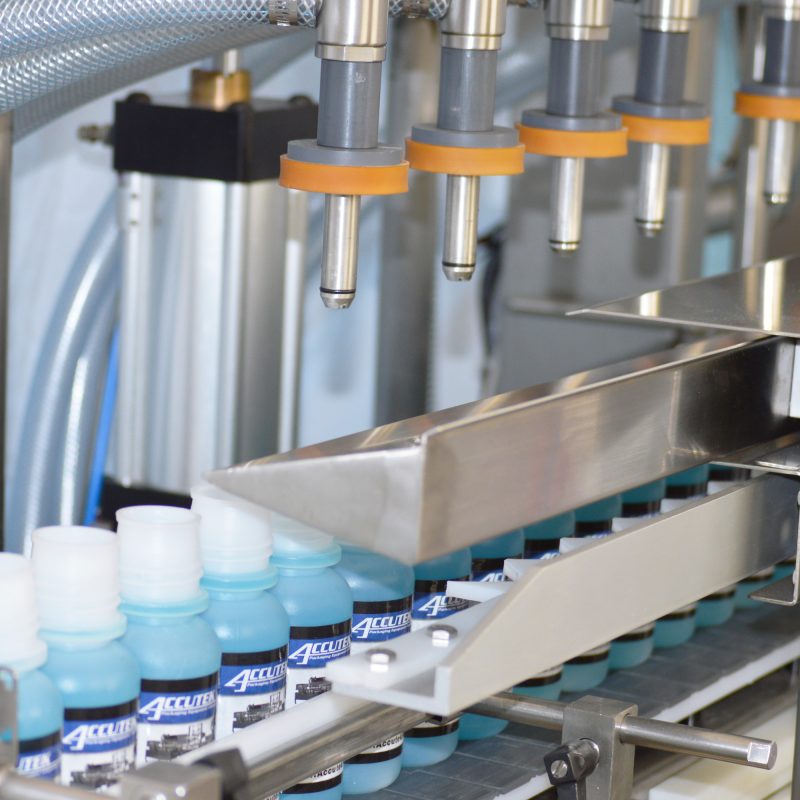

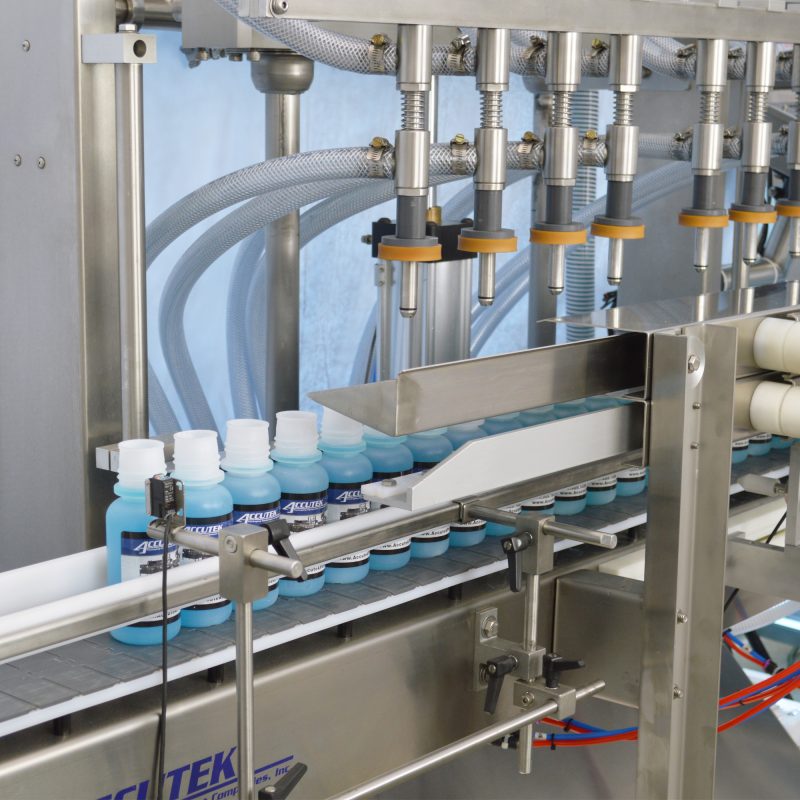

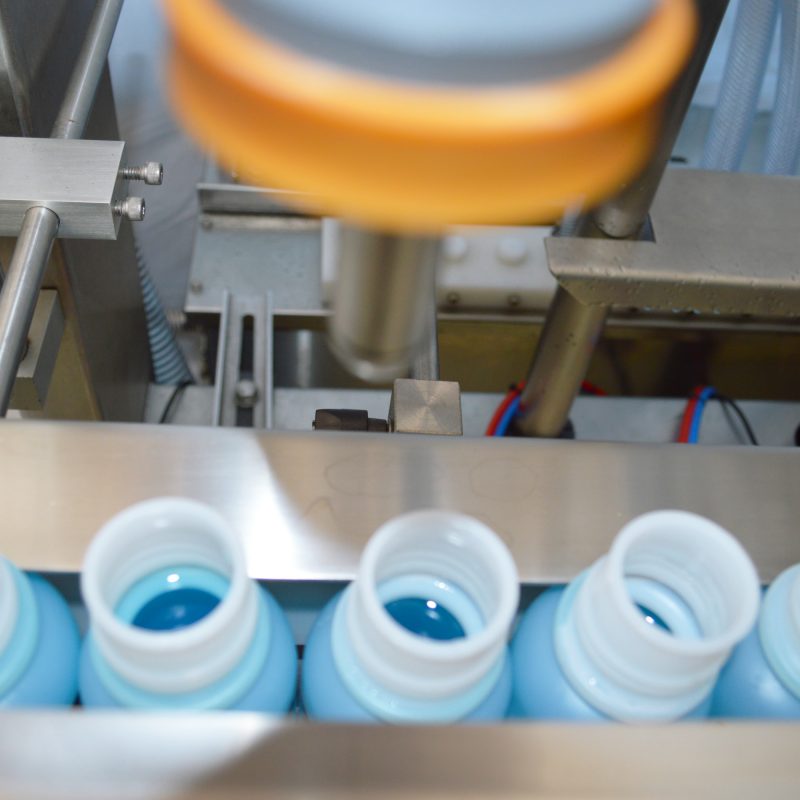

    • Diving head
    • Rugged stainless-steel frame
Options
    • Buffer tank with stainless steel valve

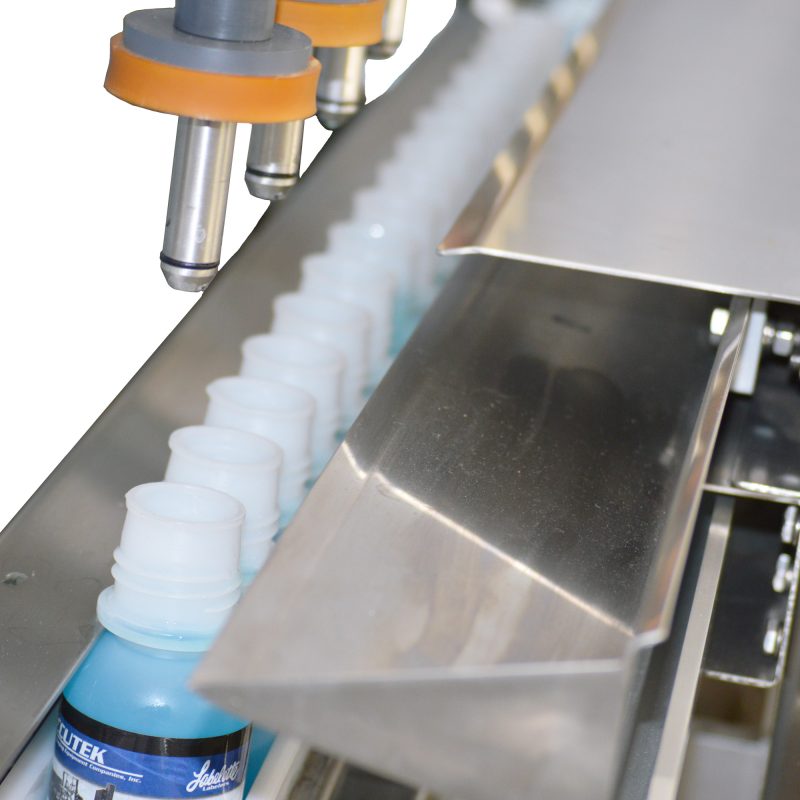

    • Container neck locator
    • Drip tray
    • Stainless steel or Hastelloy nozzles
    • Product contact part material options
    • Star wheel Indexing
    • Safety enclosures
    • Bottom up fill nozzles for foam control
    • High temperature upgrades
Specs
Height: 78
Length: 120
Width: 56
Weight: 1100 lbs. (498.95 kg)
Speed: Up to 120 CPM

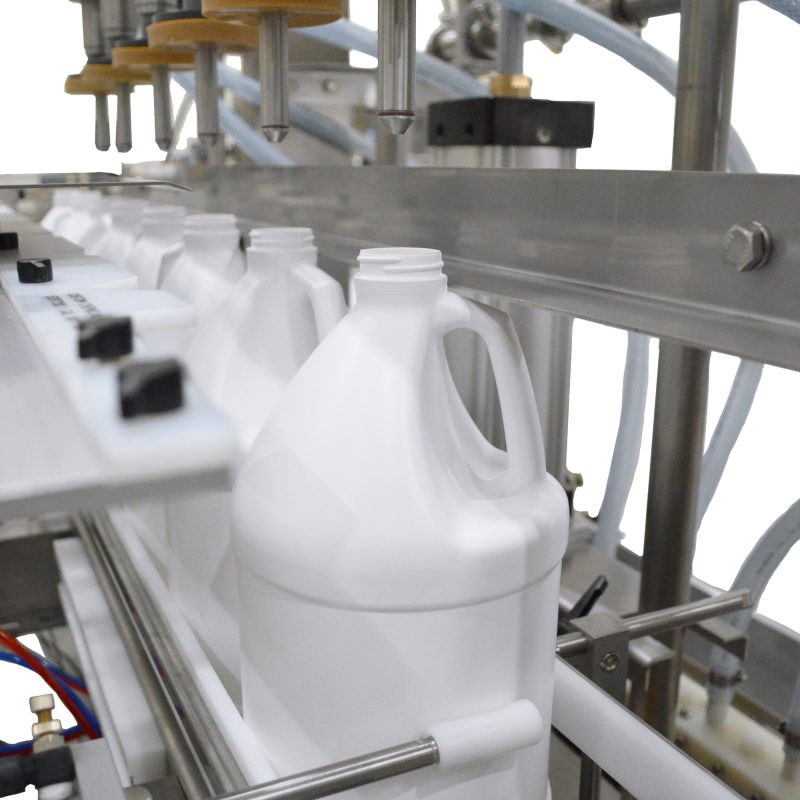

Fill Size: 2oz-5L
Viscosity Range: 200 cps (centipoise)
Foamy Product: Yes
Corrosive Product: Yes
Heated Product: Yes
Particulates: No
Electrical Requirements: 220 or 240 VAC, single phase, 60 hertz (120 VAC available)
Air Requirements: 100 PSI, 5-10 CFM
