What are the differences between the different SVF fillers?

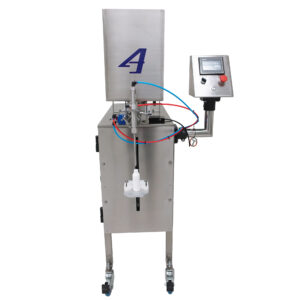

Accutek sells three different versions of the SVF: The main SVF, the servo SVF, and the mini-SVF. The main difference between them comes down to how they’re controlled and their sizes. The main and servo SVF are both approximately the same size, but while the former is controlled via a foot pedal, the latter has a PLC touchscreen interface. The mini-SVF, as the name suggests, is much smaller than the other two. It can be placed on a table and, like the main SVF, is controlled with a foot pedal.

Which version of the SVF will be best for my production line?

That’s going to depend on a lot of factors: The amount of space you have available for your equipment, what type of product you’re filling, how much of it you want to fill, et cetera. Feel free to call Accutek to ask us about the SVF. This way, we can get a better idea of which version of the SVF will best suit your production needs.

Can I get a touchscreen controller for the other SVF machines?

Only the Servo SVF comes with a touchscreen controller. But with the other SVFs, control literally comes down to the push of a pedal. It doesn’t get much easier than that.

• One product cylinder and piston
• Direct from drum draw kit
• Available in 2 – 128 oz (59.15 mL – 3.79 L) single-dose configurations

• Longer nozzles (for bottom-up filling to reduce foam)
• Skinny nozzles (for products that string or drip)
• Hopper
• Chunky product butterfly valves for sanitary products with particulates
• Heat packages
• Corrosive product packages
• Positive off nozzles
• Product suck-back nozzle kits
• Foot switch
• Honeycomb nozzles

• Foamy Product: Yes
• Corrosive Product: Yes
• Heated Product: Yes
• Particulates: Yes
• Fill Size: NA
• Viscosity Range: 1 – 20,000+ cP
• Speed: 30 CPM
• Air Requirements: 80 PSI, 1.5 CFM
• Electrical Requirements: 110 VAC/Single-phase/10 AMP
• Height: 20” (50.8 cm)
• Length: 43” (109.22 cm)
• Width: 14” (35.56 cm)
• Weight: ~80 lbs. (36.29 kg)
