48-LBS-A03 L-Bar Sealer
Product Variants
This complete packaging system uses a high-efficiency L-Bar Sealer with an integrated take-away conveyor to feed a state-of-the-art shrink tunnel system to wrap, seal, and shrink your product using PVC, PP, and POF shrink films.
The L-Bar Sealer wraps up your products in the materials of your choice, using an L-shaped, healing sealing bar to make that material adhere to your product.
Contact Accutek Packaging today to learn more about this machine.
Does this machine utilize a touchscreen?
No, the L-Bar Sealer does not use a touchscreen. Instead, it is controlled via simple knobs and timers.What should I do if I have a problem with the machine?
If you have any issues with the sealer, contact Accutek Packaging. Our service department will help you solve the problem.What components should I maintain?
We recommend occasionally realigning and tightening the sealing/cutting blade.- Variable temperature sealer control
- Variable time sealer control
- Temperature-compensating solid-state controllers that will increase the life of the seal elements
- Take-away conveyor with variable speed and dwell time
- Double magnetic hold down
- Large, approximately 22″ long by 17″ wide seal area (Send sample to confirm)

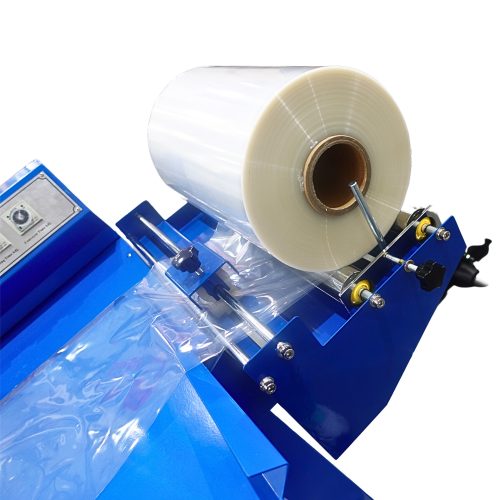

- Easy load film supply spool with integrated pin perforation unit
- Product load tray area with film horn
- Power Supply: 11,220V / 50-60HZ
- Conveyor Speed: 0-49 feet/min
- Power: 1.5 KW
- Seal Size Length: 19.68″
- Seal Size Width: 17.71″
- Machine Length: 62.20″ (158 cm)
- Machine Depth: 28.18″ (71.58 cm)
- Machine Height: 36.8″ (93.47 cm)
- Machine Weight: 264.5 lbs (119.98 kg)
Related products

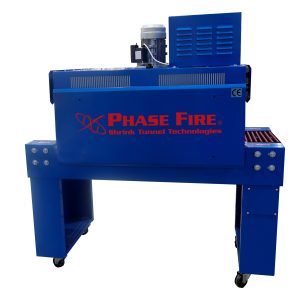

48-LBS-A03 Shrink Oven
