L-bar Sealer with Oven
Complete Shrink Wrapping Systems for Sealing, Cutting & Finishing
L-bar sealers with oven systems are complete packaging solutions designed to wrap, seal, and shrink products using heat-shrink film in a single integrated process. These systems combine an L-bar sealing unit with a shrink tunnel (oven), delivering a finished, tightly wrapped package ready for distribution or retail display.
These systems use a high-efficiency L-bar sealer with an integrated take-away conveyor feeding into a shrink tunnel, allowing products to be wrapped, sealed, and shrunk using materials like PVC, PP, and POF films.
In modern packaging machine operations, this type of oven system is used to:
- Wrap products in shrink film
- Seal and cut film in one motion
- Shrink film tightly around products
- Improve product protection and presentation
- Support retail-ready packaging
Because they combine multiple stages into one system, these machines provide a compact and efficient shrink packaging solution.

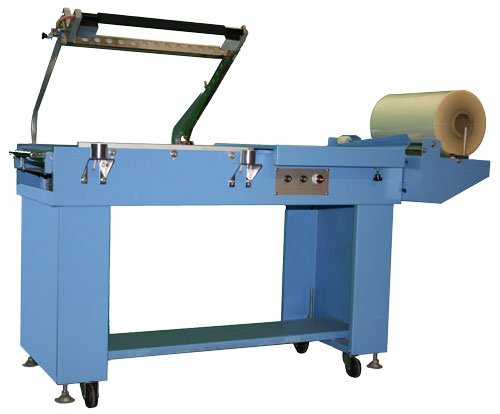

48-LBS-A03 L-Bar Sealer
This complete packaging system uses a high efficiency L-Bar Sealer with an integrated take away conveyor to feed a state of the art shrink tunnel system to wrap, seal, and shrink your product using PVC, PP, and POF shrink films.
48-LBS-A03 L-Bar Sealer
This complete packaging system uses a high efficiency L-Bar Sealer with an integrated take away conveyor to feed a state of the art shrink tunnel system to wrap, seal, and shrink your product using PVC, PP, and POF shrink films.
48-LBS-A03 Shrink Oven
This complete packaging system uses a high efficiency L-Bar Sealer with an integrated take away conveyor to feed a state of the art shrink tunnel system to wrap, seal, and shrink your product using PVC, PP, and POF shrink films.
48-LBS-A03 Shrink Oven
This complete packaging system uses a high efficiency L-Bar Sealer with an integrated take away conveyor to feed a state of the art shrink tunnel system to wrap, seal, and shrink your product using PVC, PP, and POF shrink films.
What L-Bar Sealers with Oven Systems Do
These systems perform a complete shrink-wrapping cycle via the following process:
- Product is placed in shrink film
- The L-shaped sealing bar seals and cuts the film
- The sealed product moves via conveyor
- The product enters the shrink tunnel (oven)
- Heat shrinks the film tightly around the product
The L-bar uses an L-shaped heated sealing wire to simultaneously seal and separate film, creating a clean, enclosed package.
This method is commonly used for:
- Boxed goods
- Retail products
- Bundled items
- Consumer packaged goods
Because the shrink tunnel completes the process, the result is a tight, protective, and visually appealing package.
L-Bar Sealer with Oven Configurations
Accutek’s systems are designed as integrated sealing and shrinking solutions for different production environments. Let’s take a look at a few.
48-LBS-A03 L-Bar Sealer with Shrink Oven
The 48-LBS-A03 system is a complete shrink packaging solution. Its L-bar sealing system is paired with an integrated conveyor, feeding products directly into a shrink tunnel/oven. This machine supports PVC, PP, and POF shrink films, has variable temperature and sealing time controls, and its conveyor speed and dwell time are both adjustable.
This machine is best suited for:
- Small to mid-scale production
- Retail packaging operations
- Multi-product packaging environments
Semi-Automatic L-Bar Sealer Systems
Semi-automatic systems combine operator input with automated sealing and shrinking. The operator manually places a product before the machine automatically seals and transfers it. This type of sealer also includes integrated safety features (sensors, emergency stops) and rugged construction for industrial use.
Semi-automatic L-bar sealers are best suited for:
- Flexible production lines
- Medium-volume operations
- Businesses transitioning to automation
Integrated Conveyor + Shrink Tunnel Systems
These systems focus on continuous product flow. A take-away conveyor feeds products into the shrink tunnel; this shrinking stage is synchronized with the sealing process. You can also adjust the machine’s speed for different product sizes.
These machines are best suited for:
- Continuous packaging operations
- Consistent throughput requirements
- Streamlined production workflows
Compact Combination Units
Some L-bar systems are designed as compact, all-in-one units. These machines are small enough that they leave a space-saving footprint; they feature combined sealing and shrinking functions, and they can be equipped with casters for mobile configurations.
Best suited for:
- Limited floor space
- Small production facilities
- Entry-level shrink packaging
Core Engineering Capabilities
To recap, L-bar sealers with oven systems are engineered for precision sealing and controlled shrink performance. Their key capabilities include:
- L-shaped sealing bar for clean, consistent seals
- Adjustable temperature and sealing time controls
- Conveyor synchronization for smooth product transfer
- Recirculating heat systems in shrink tunnels
- Durable construction for long-term operation
These systems are designed to:
- Produce consistent, high-quality seals
- Prevent film tearing or weak seals
- Ensure uniform shrink around products
- Reduce operator variability
Because sealing and shrinking are combined, system performance depends on precise coordination between sealing timing and heat exposure.
Best Application Fit
L-bar sealers with oven systems are ideal for packaging applications requiring protective shrink wrapping and professional presentation.
They are typically used for:
- Retail boxed products
- Multipack bundles
- Printed materials (books, magazines)
- Food items (bakery goods, packaged snacks)
- Consumer goods packaging
These systems are widely used because they provide tamper resistance, product protection, and improved shelf appeal.
L-Bar Sealer with Oven System Overview
System Type |
Primary Role |
Key Component |
Key Strength |
Typical Use Case |
| 48-LBS-A03 System | Seal + shrink packaging | L-bar + shrink oven | Complete packaging solution | Retail goods |
| Semi-Automatic System | Assisted sealing | L-bar + conveyor + oven | Flexible operation | Mid-scale production |
| Conveyor-Integrated System | Continuous packaging | Inline conveyor + oven | Smooth product flow | High-throughput lines |
| Compact Combo Unit | Space-saving packaging | Combined unit | Efficient footprint | Small facilities |
Integration Within a Packaging Line
L-bar sealers with oven systems are typically used as standalone or end-of-line packaging solutions.
A typical workflow includes:
- Product preparation or grouping
- Placement into shrink film
- L-bar sealing and cutting
- Conveyor transfer
- Shrink tunnel processing
- Cooling and final packaging
These systems can also integrate with:
- Conveyors and accumulation systems
- Labeling or coding systems
- Cartoning or case packing equipment
When properly integrated, manufacturers gain:
- Faster packaging throughput
- Consistent package quality
- Reduced manual labor
- Improved product protection
- Scalable packaging operations
Frequently Asked Questions
What is an L-bar sealer with an oven?
It is a packaging system that seals products in shrink film using an L-shaped sealing bar and then shrinks the film using a heat tunnel.
What materials can be used?
These systems support shrink films such as PVC, polypropylene (PP), and polyolefin (POF).
Why combine a sealer and a shrink tunnel?
Combining both processes improves efficiency, reduces handling, and ensures consistent packaging quality.
What types of products can be packaged?
They can package boxed goods, retail items, food products, and bundled products.
Are these systems suitable for automation?
Yes. They can be configured as semi-automatic or integrated into automated packaging lines.
Consult with Packaging System Engineers
Selecting the right L-bar sealer with oven system requires evaluating product size, film type, production speed, and available floor space.
Accutek Packaging Equipment Company, Inc. offers integrated shrink wrapping systems designed for efficient sealing, consistent shrink performance, and seamless integration into packaging operations.
For manufacturers seeking professional product presentation, reliable shrink wrapping, and scalable packaging efficiency, L-bar sealers with oven systems provide a complete and proven solution for modern packaging environments.
