ASC Series

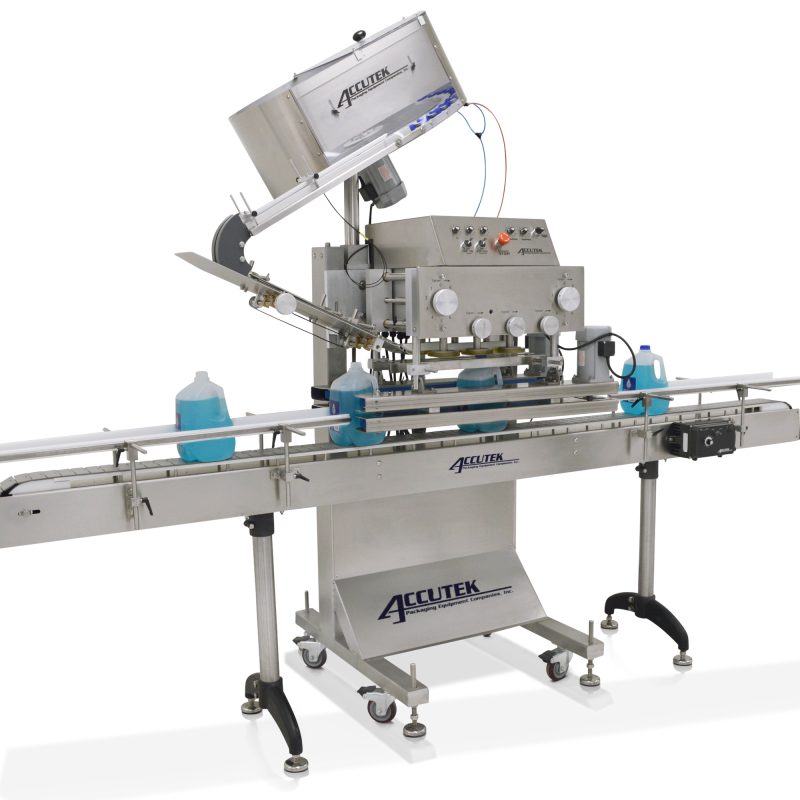

The ASC Automatic Spindle Cappers are tough stainless steel spindle cappers designed to automatically place and tighten a wide variety of screw and lug type closures onto containers in a sanitary environment.

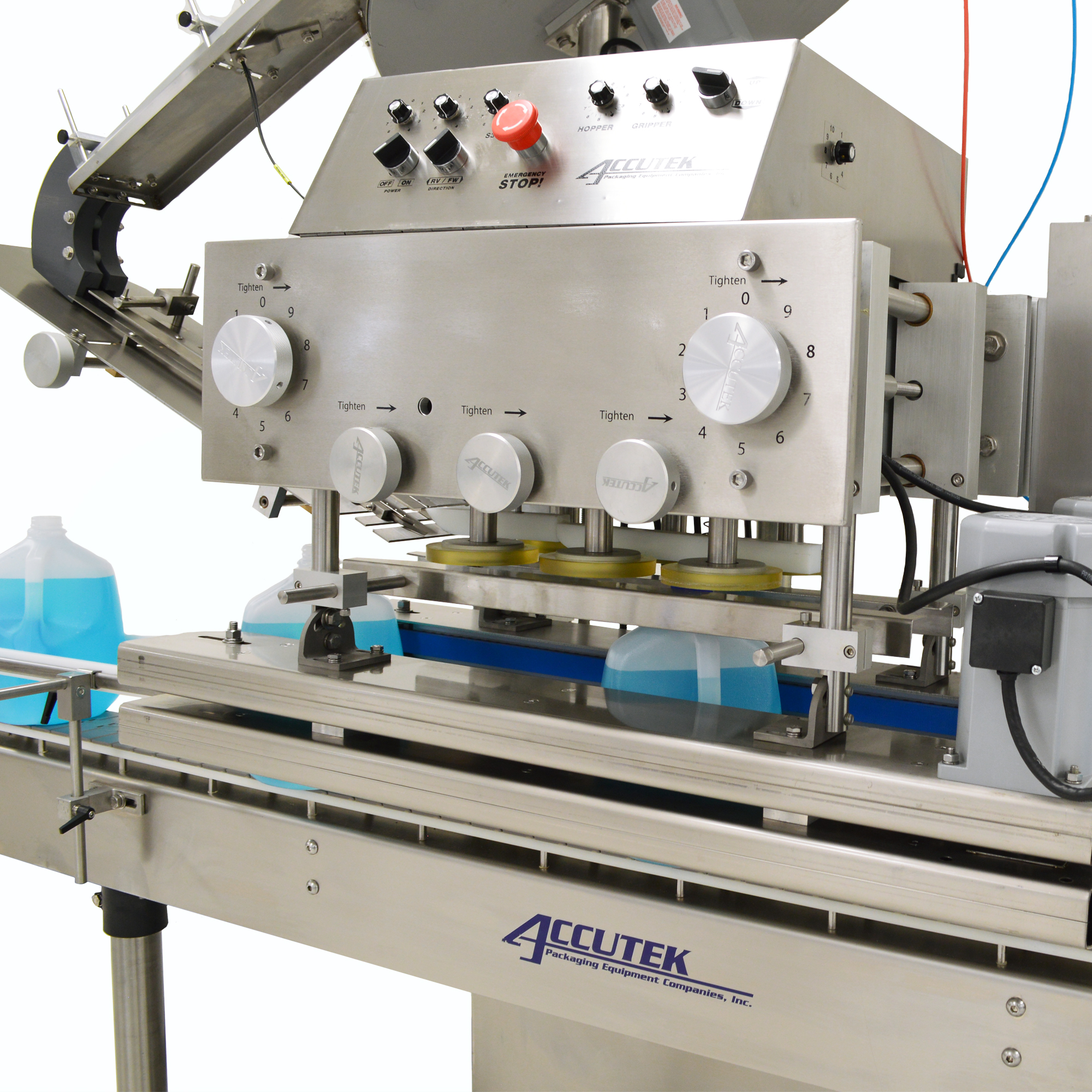

The ASC Automatic Spindle Cappers are tough stainless steel spindle cappers designed to automatically place and tighten a wide variety of screw and lug type closures onto containers in a sanitary environment. Each tightening spindle is spring loaded and driven by a torque sensitive individual motor for increased disk to cap contact and reduced disk wear.

This unique design eliminates the need for transmissions, belts, pulleys, and universal shafts which reduces the size of the machine, lowers maintenance time, and expands the capability and adjustability of the capper. The ASC Series can accommodate standard closure sizes ranging from 10mm – 120mm with no additional components.

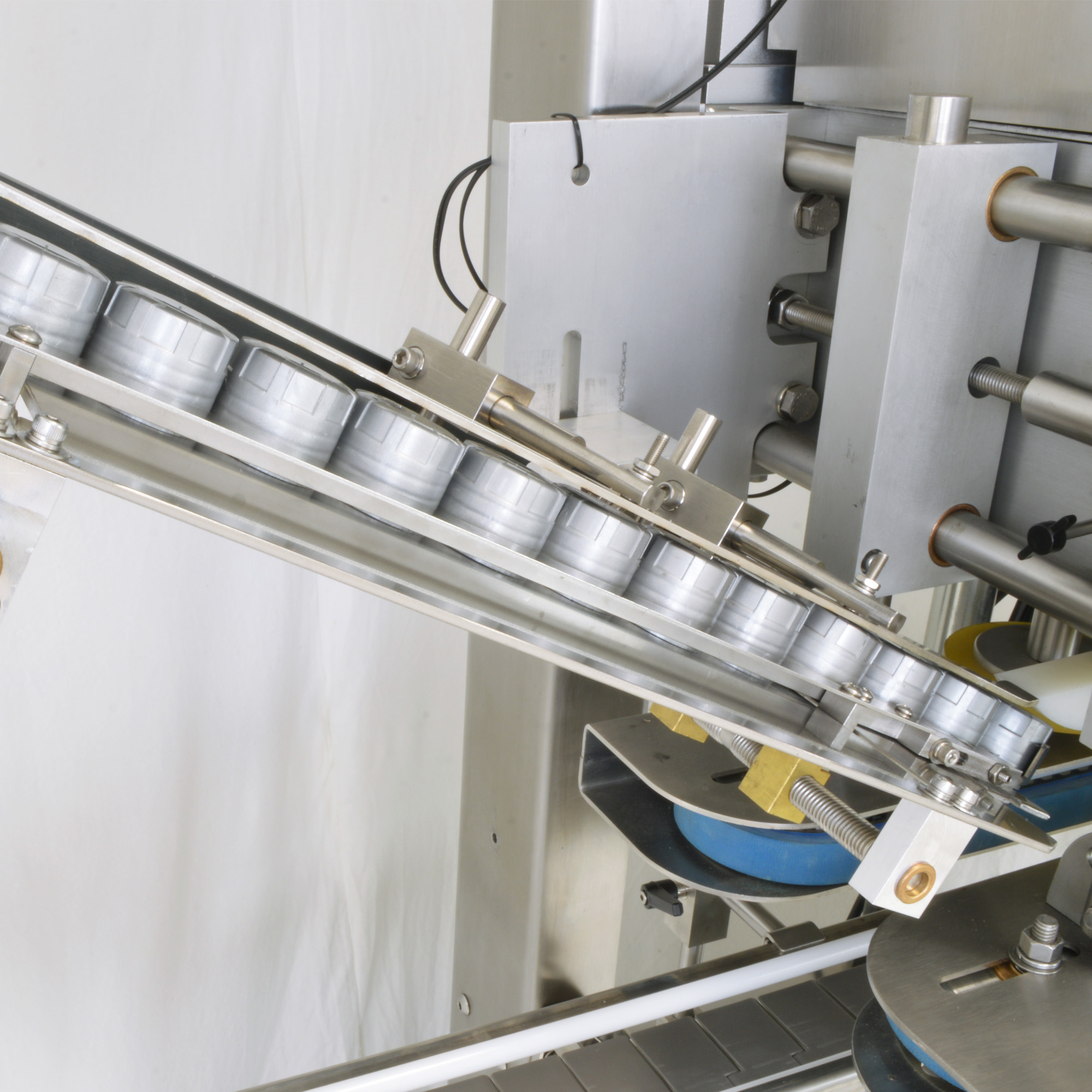

Automatic Spindle Capper ships standard with a Centrifugal Bowl closure orientation system for line speeds up to 120 cpm. The system can be upgraded with an optional Closure Elevator / Orientator, increasing overall line speed and efficiency.

Single gripper belts are standard and have a tapered container adjustment to accommodate sloped containers up to 8 ½” wide. Various optional gripper belt configurations are available for higher production rates, torque requirements, or difficult to handle containers.

Features
      • Heavy Duty Stainless Steel. Frame
      • C-Frame Design for Easy Addition to any Conveyor
      • Centrifugal Bowl Cap Orientator
      • Low Maintenance
      • Individual Spindle Speed Settings

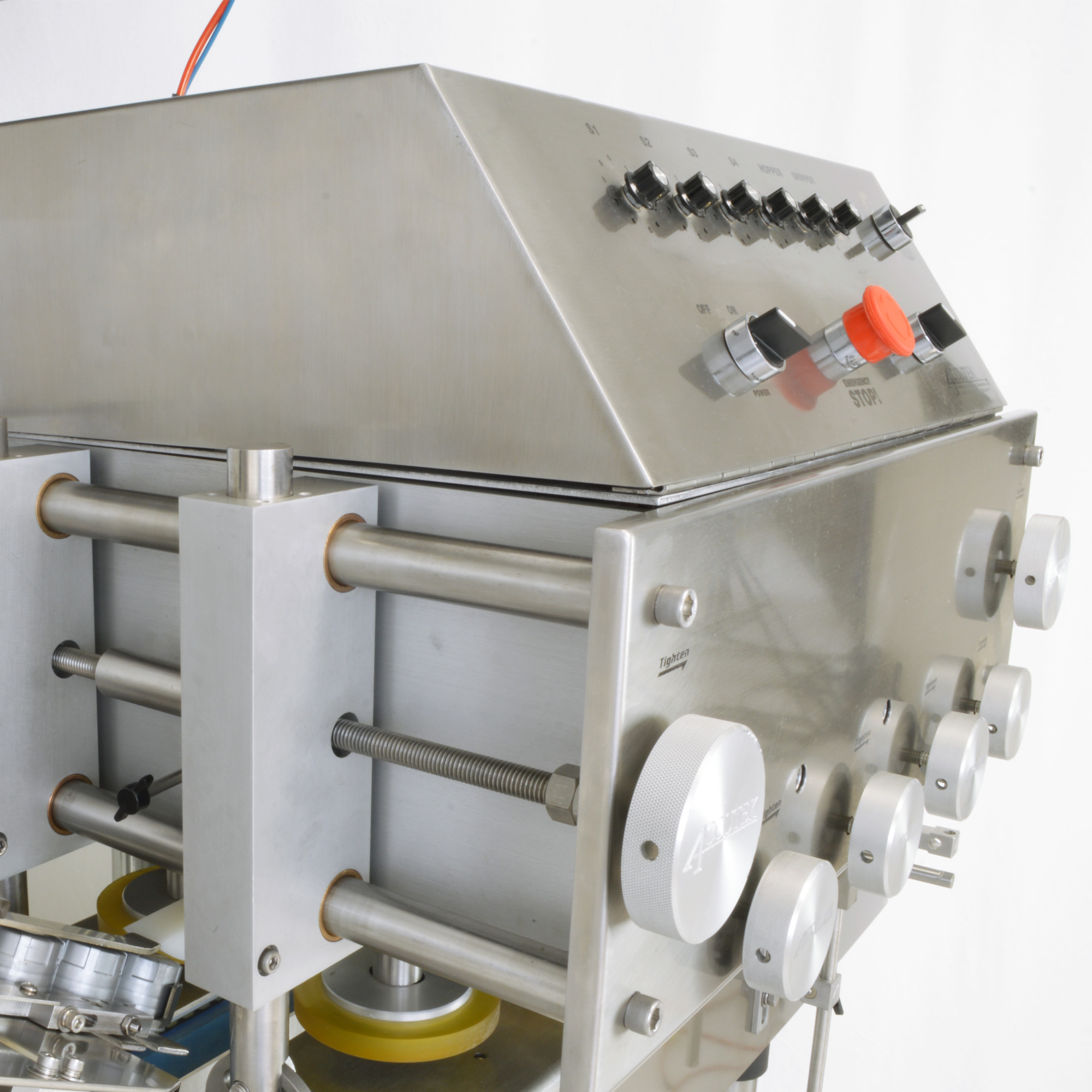

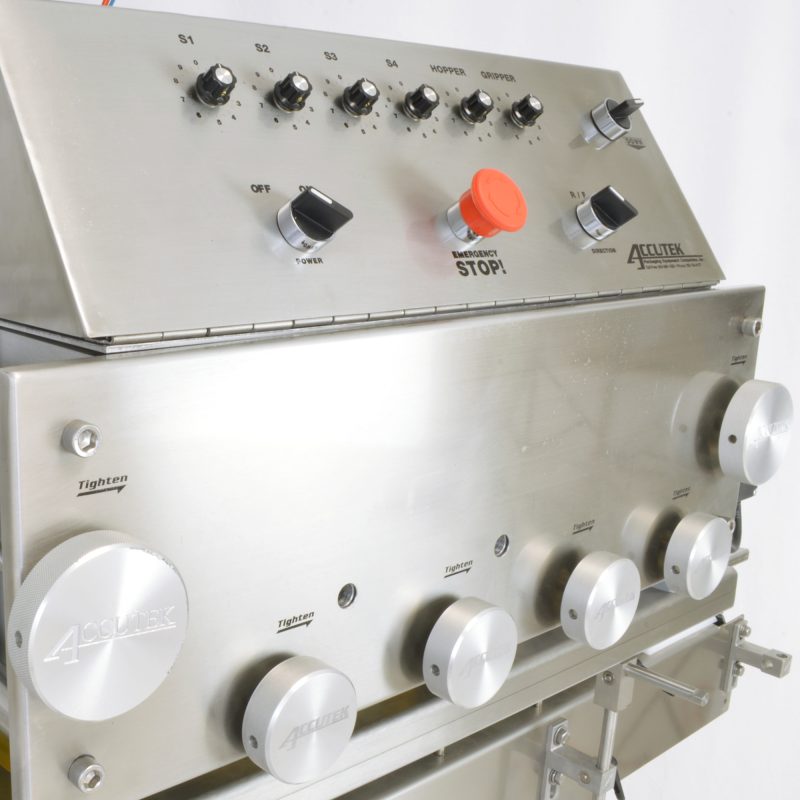

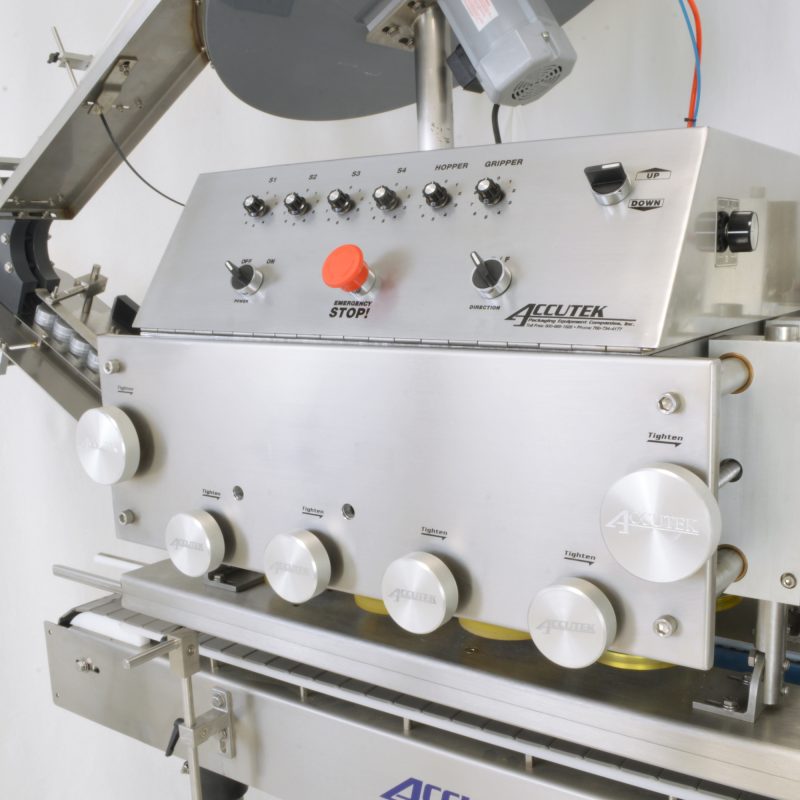

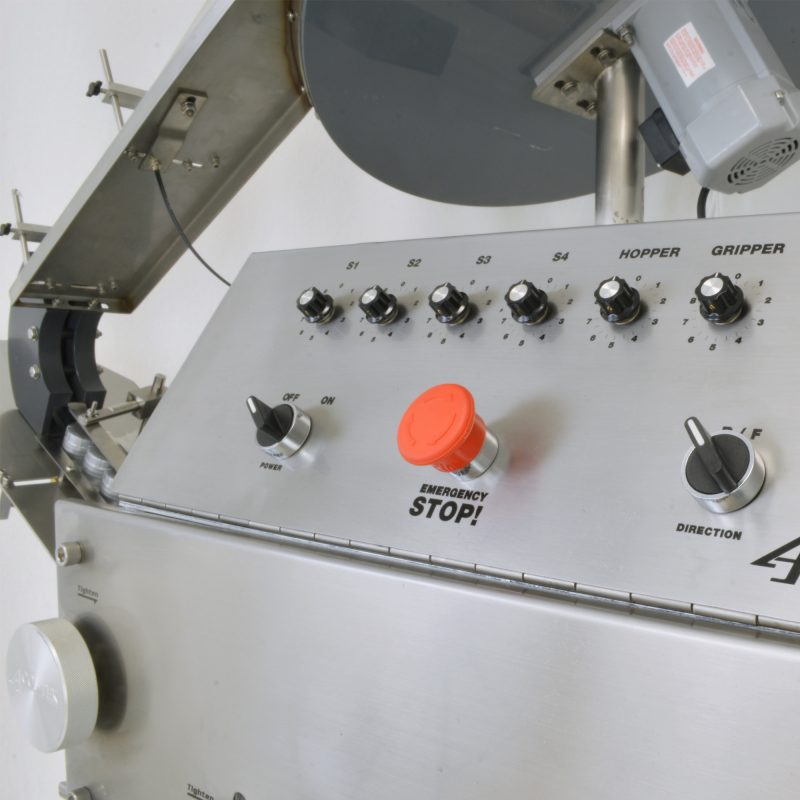

      • Intelligent Electronic Single Touch Torque Control
      • Powered Height Adjust
      • On-the-Fly Speed and Torque Adjustment
      • Adjust Adjustable Angle Gripper Belts Spring Loaded Spindles
Options
    • Dual, Double Wide, or Low-Profile Gripper Belts
    • Closure Elevator / Orientator
    • Reversible Spindle Sets for Cap Seating
    • Custom Container / Closure Product Handling
Specs
Cap Size: Min 10mm / Max 120mm
Electrical Requirements: 110 VAC u0096 20 Amp
Air Requirements: 120psi @ 2 cfm
Torque Range: 1 inch pound to over 90 lbs
model: ASC-6
height: 94
length: 36
width: 24
weight: 1200 lbs. (544.31 kg)
speed: 200 CPM
