(760) 734-4177
SSC-6

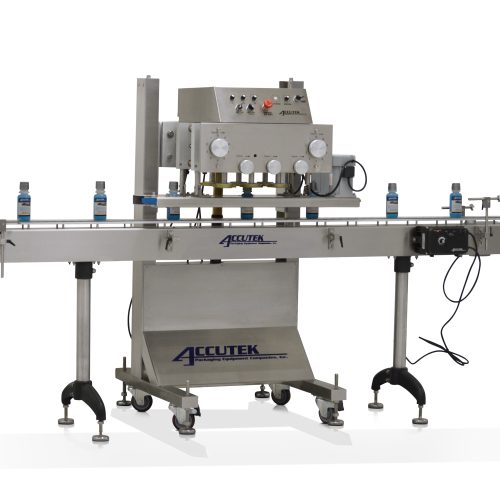

The Accutek Semi-Automatic Spindle Capper (SSC-6) is designed to place and tighten a wide variety of closures onto containers in a sanitary environment. Each tightening spindle is spring-loaded and driven by a torque-sensitive individual motor for increased disk-to-cap contact and reduced disk wear.
This unique design eliminates the need for transmissions, pulleys, and universal shafts. This reduces the size of the machine, lowers maintenance time, and expands the capper’s capability and adjustability. The SSC-6 can accommodate standard closure sizes ranging from 1 to 12 cm with no additional components.
The SSC ships standard with a centrifugal bowl closure orientation system for line speeds up to 120 CPM. The system can be upgraded with an optional closure elevator/orientator, increasing line speed and efficiency.
Single gripper belts are standard and have a tapered container adjustment to accommodate sloped containers up to 8.5” (21.59 cm) wide. Various optional gripper belt configurations are available for higher production rates, torque requirements, or difficult-to-handle containers.
Contact Accutek Packaging Equipment Company, Inc. today to learn more about this capping machine.
Why are there so many knobs on this machine?
These are the controls for adjusting the:- Spindle wheels’ speeds
- Spindle tightness
- Hopper speed
- Gripper belt speed
What happens if my machine has an issue? What should I do?
If you have a problem with the SSC, there’s a troubleshooting section in the manual describing various potential problems and their solutions. If the provided solutions don’t work or the problem is outside the manual’s scope, call Accutek’s service department. We’ll do what we can to walk you through fixing the problem.How often should I perform maintenance on the machine?
We recommend performing daily, weekly, and quarterly maintenance. The machine must have its air regulator checked daily for moisture. Also, ensure that the cooling fan above the control panel is operating. Every week, clean all external surfaces with a mild detergent. Never wash the top of the machine with a water hose. Since the motors used to drive the spindle tensioning wheel aren’t sealed, this will cause them to short out. As for every quarter, remove the top guard for servicing. Blow out any accumulated dust before servicing your equipment. As with any type of rotating equipment, ensure proper isolation from the electrical and pneumatic supply.- Heavy-duty stainless steel frame
- C-frame design for easy addition to any conveyor
- Individual spindle set speeds
- Low-maintenance individual variable-speed AC motors
- Intelligent electronic single-touch torque control
- Powered height adjustment
- On-the-fly speed and torque adjustment
- Spring-loaded spindles for reduced cap damage and disk wear
- Cantering bottle grippers to accommodate oddly shaped containers
- Dual, double-wide, or low-profile gripper belts
- Auto upgrade with centrifugal bowl
- Auto upgrade with closure elevator / orientator
- Reversible spindle sets for cap seating
- Custom container/closure product handling
- Spindle disks in different durometers
- Casters
- Cap Size: .39” – 4.72” (10 – 120 mm)
- Speed: 120 CPM
- Electrical Requirements: 110 VAC 20 Amp
- Air Requirements: 120 PSI @ 2 CFM
- Height: 67” (170.18 cm)
- Length: 36” (91.44 cm)
- Width: 24” (60.96 cm)
- Weight: ~950 lbs. (430.91 kg)
