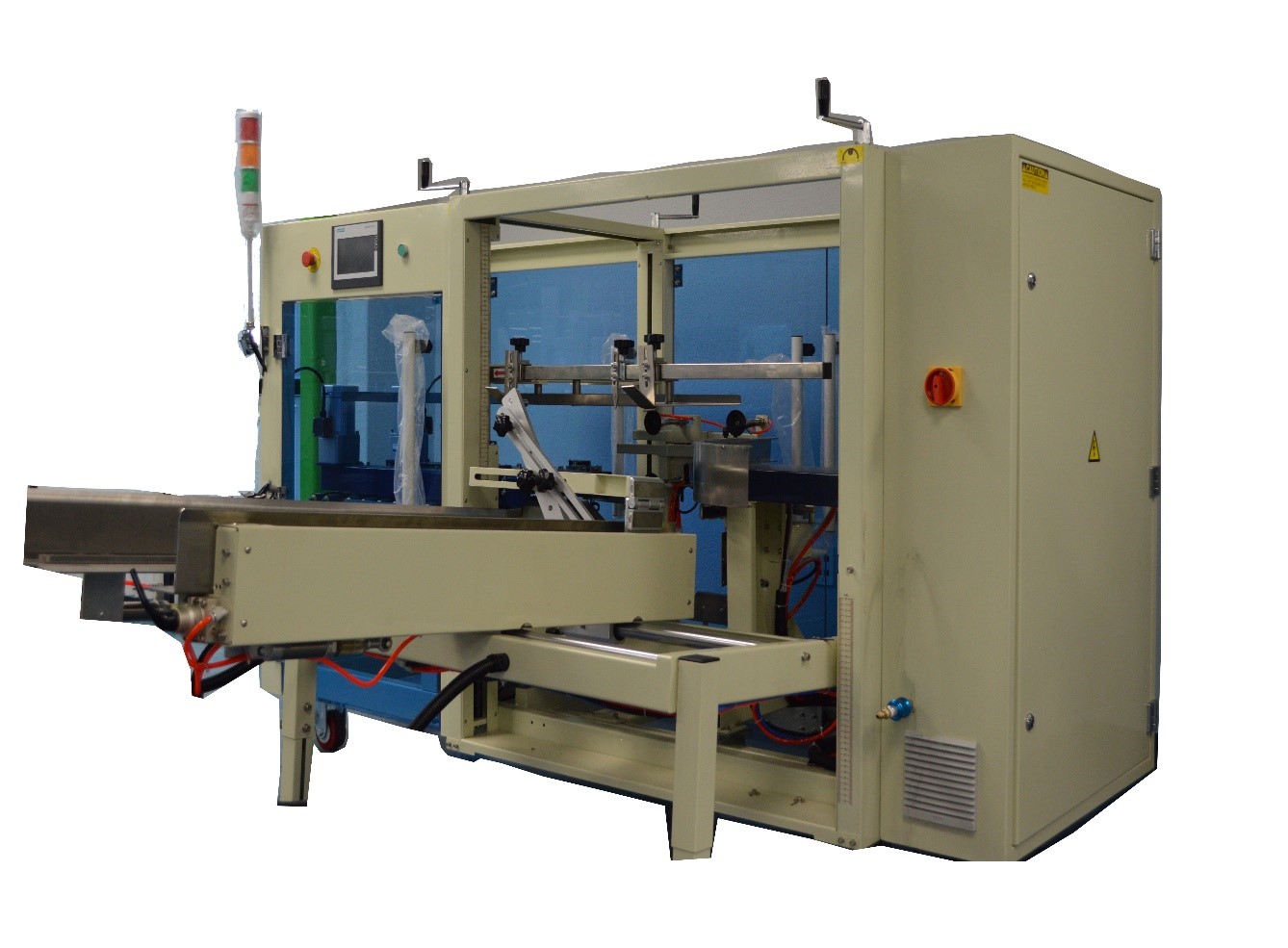

Case Erector
Accutek’s Case Erector automatically forms cartons for use. An investment in this support equipment can pay off in the short term by reducing labor costs and improving productivity. It takes a flat cardboard loaded in a stack and forms it, with the top left area open to place products inside.
It can form boxes from 20~50 cm in length, 20~46 cm in width, and 20~40 cm in height. This machine can make 6-10 cartons/min. It uses tape that is 1.88” wide, or 2.36”-2.95” in width, and 39.37” in length.
Contact Accutek Packaging Equipment Company, Inc. today to learn more about this machine.
Disclaimer: The dimensions and weights are estimates of the standard equipment. Any customizations or modifications made to the machine may alter this information.
Recommended Products
- Boxes
- Cases
How is this machine controlled?
Is the touchscreen interface easy to use?
What should I do if the machine malfunctions?
- Sealing Speed: 6-18 cartons/min
- Power Source: 110V/50/60HZ
- Air: 6-7kgf/cm, flow rate 40 nl/min
- Use Tape:
- Width: 48 mm-75 mm
- Length: 1000 mm
- Machine Dimensions:
- Length: 82.67” (210 cm)
- Width: 78.74” (200 cm)
- Height: 55.11” (140 cm)
- Weight: 771.62 lbs (350 kg)
- Carton Dimensions:
- Length: 7.87”~19.68” (20~50 cm)
- Width: 7.87”~18.11” (20~46 cm)
- Height: 7.87”~15.74” (20~40 cm)
- Table Height: 23.62” (60 cm)
