Case Packer
Accutek’s Case Packer is a versatile machine that can be employed independently or in conjunction with other support equipment to establish a comprehensive packaging production line.

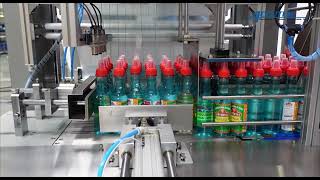

Its capabilities include automatically arranging, aggregating, and aligning PET beverage bottles or similar articles. The machine packages these items with shrinking film, leading to the production of finished goods through a process involving heating, cooling, and forming.
The resulting packaged products exhibit a secure binding and an aesthetically pleasing appearance, offering easy accessibility.
Contact Accutek today to learn more about this machine.
Recommended Products
- Bottles
What are the case packer’s key functions?
This machine’s key functions include:- Product conveying
- Aggregating and aligning
- Laying rolls of film
- And pressing bottles
What happens if the case packer isn’t working as intended?
The manual contains a thorough troubleshooting section that will tell you what to do in the event of a major malfunction. It will identify the malfunction, its possible cause, and how to remedy it. But if the suggested solutions don’t work or you don’t find your problem listed, make sure to reach out to Accutek’s service department so we can help you out.- HMI interface
- Automatic temperature control
- Conveyor controls
- Isothermal sealing cutter
- Stable operation with guide bar cylinder
- Programmable logic controller
- Operating Voltage: Three-phase five-line system, 380V/50～60Hz
- Working Pressure: 0.6～0.8Mpa
- Shrinking Room Dimensions: L×W×H=1800×650×450(mm)
- Packaging Efficiency: Up to 12 packs per minute
- Sealing and cutting temperature: 140℃～160℃
- Shrinking temperature: 200℃～280℃
- Package Material: PEFilm Roll Specifications:
- Width: ≤580 mm
- Thickness: 0.06～0.12 mm
- Diameter: ≤400 mm
- Working Noise: ≤65dB
- Total Power: 22KW
- Product conveying motors: 1400r/min, 370W, 2pcs
- Motor for conveying finished product: 1400r/min, 370W, 1pc
- Roll-laying motors for upper and lower film: 1400r/min, 90W, 2pcs
- Cooling motor: 1400r/min, 65W, 6pcs
- Drying oven motor: 1400r/min, 750W, 2pcs
- Heating pipe for sealing and cutting: 700W, 1pc
- Heating pipe for drying oven:
- Maximum working power: 21kw/220V, 1.8kw/pc
- Normal working power: 15kw/220V, 1.8kw/pc
- Total Weight: 1500kg
- Boundary Dimensions:
- Length: 216.5” (550 cm)
- Width: ~126” (320 cm)
- Height: ~82.68” (210 cm)
- Electrical Requirements: 220 V-3 Phase
