Cotton Inserter

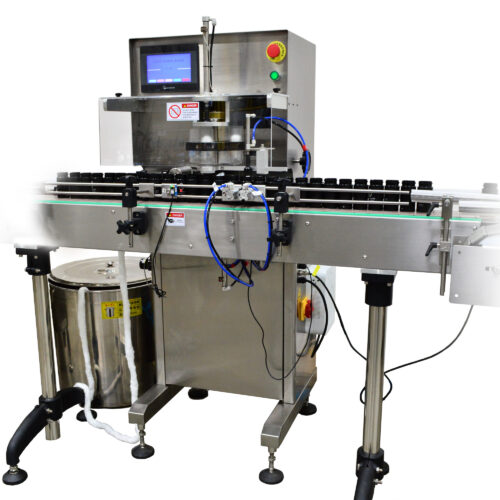

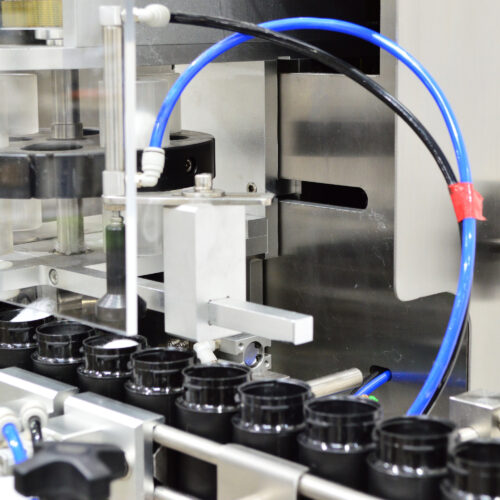

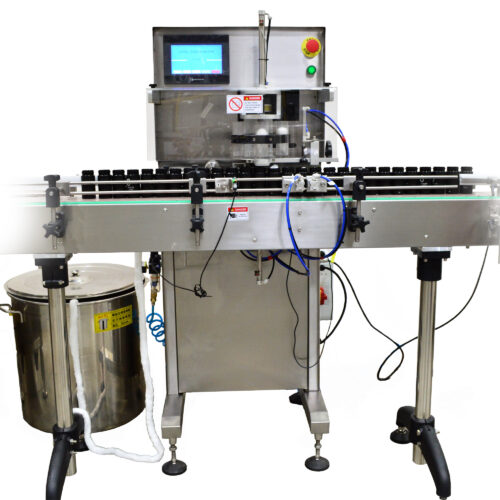

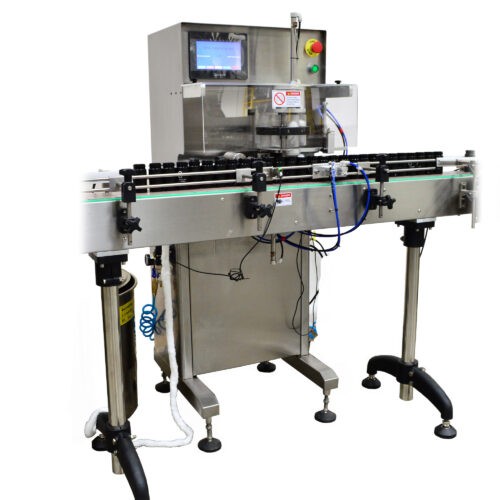

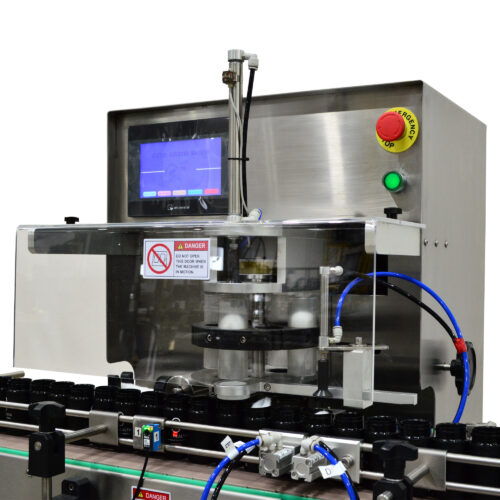

Accutek’s Cotton Inserter is a sleek machine that can be used as either a standalone unit or as part of an integrated line alongside bottle feeders, counters, cappers, and more. It automatically loads strips of cotton into containers, pulling, cutting, and feeding the cotton into an inserting guide rail via a continuously rotating DC motor.
Contact Accutek today to learn more about this machine.
Recommended Products
- Perishable medicines contained in small bottles
Why should I buy a cotton inserter instead of inserting the cotton myself?
This machine can run significantly faster than a single individual applying cotton by themselves. It can even run faster than multiple people stuffing in cotton. So you’ll be saving yourself labor costs, and you won’t have to keep scraping your fingers against the surface of your container.Can the cotton inserter be used with other fibrous materials?
Yes, the cotton inserter can be used with other materials, such as polyester.What should I do if the cotton inserter malfunctions?
If you have any problems with your cotton inserter, contact Accutek’s service department for assistance.- Stepper motor
- DC motor
- Air valve
- Stainless-steel construction
- Sensors
- Pressure stompers
- Cotton feeder
- Rotating cam
- Bottle Speed: 10-60 bottles/minute
- Cotton Strip Length: 5-180mm
- Dimensions: 850mm x 650mm x 1350mm (L x W x H)
- Conveyor Belt Length: 1800mm
- Container Diameter: 20-100mm
- Container Height: 30-250mm
- Net Weight: 100kg
- Noise Level: ≤75dB (A)
- Compressed Air: 0.5 MPa
- Power Supply: AC 220V; 50/60 Hz
- Power: 400W
-
-
-
-
- Input Control Voltage: DC12V-DC24V
- Power Consumption: Below 4W (TYP 2.0W)
- Allowable Momentary Power Failure: Less than 20ms
- Withstand Voltage: AC1000V-10mA for 1 minute (signal to ground)
- Insulation Resistance: DC500V-approx. 10MΩ (signal to ground)
-
-
-
-
-
- Operating Temperature: 0-50 degrees Celsius
- Storage Temperature: -10-60 degrees Celsius
- Ambient Humidity: 20-85% (non-condensing)
- Vibration Resistance: 10-25 Hz (2G for 30 minutes each in X, Y, Z directions)
- Anti-interference: Voltage noise: 1000Vp-p
- Ambient Air: No corrosive gases
- Protection Structure: Compliant with IP65F
-
